ARGUS ONE LED 600mm zw

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

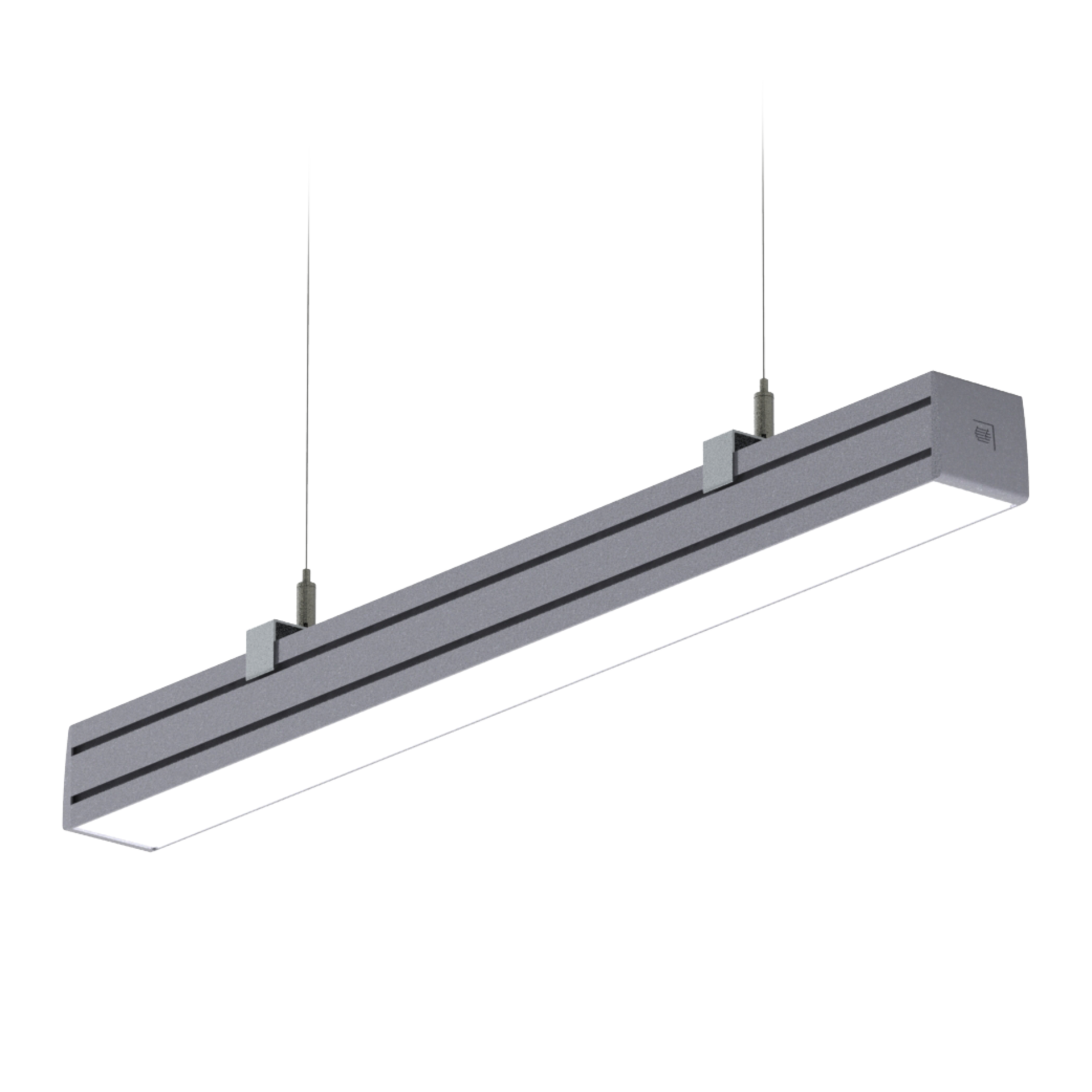

ARGUS ONE LED 600mm zw
Modern pendant luminaire for LED light sources. Implementation of the 600mm version for suspended installation.



Modern design
Luminaire body made of aluminum
Maintenance-free operation
Possible illuminance control

Application

auditorium, boutiques, classrooms, hotels, museums, offices, reception desks

Available on request

DALI

Luminous flux range

1650 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (on request)
Body colour
gray
Operating temperature range
0˚C ... +35˚C
Body
aluminium profile

Electrical data

Power supply efficiency
>90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
19 - 21
Output current [mA]
350
Type of equipment
DIM 1...10V, ED

Optical data

Way of lighting
direct
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
4000
CRI/Ra
≥80
Lumen luminaire [lm]
1650
Efficacy [lm/W]
79 - 87

General data

Additional equipment
plastic end caps (included)
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] D Pallet quantity Quantity in package Net weight [kg]
615x50x50 350 120 1 1.15
615x50x50 350 120 1 1.25
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DIM 1...10V
ED
Clear Filters
Compare Code Degree of water and dust protection Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
900012.00616 IP20 19 1650 87 4000 ≥80
900012.00617 IP20 21 1650 79 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150060.00062
Suspension hanger MINI
150061.00063
150065.00065
150062.00064
Mechanical round suspension
150061.00066
150065.00068
150062.00067
Mechanical round suspension with supply connector
