OPTILINE H200 LED
Modern LED luminaire for quick assembly.



High efficacy to 87 lm/W
Unique design
Perfect for retail lighting
Fast and easy mounting
Possible illuminance control

Application

boutiques, logistics centers, production halls, supermarkets, warehouses, warehouses

Luminous flux range

2600 - 5200 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (on request)
Body colour
white
Operating temperature range
0˚C ... +50˚C
RAL
9016
Body
aluminum profile
Type
initial luminaire, median luminaire

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
30 - 60
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
4 - 18
Maximum number of luminaires in the circuit with a 16A fuse (B)
6 - 30

Optical data

Way of lighting
direct
Diffuser
flat
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
2600 - 5200
Efficacy [lm/W]
87

General data

Other remarks
PLX cover
Lifetime L80B10
50 000 h
Lifetime L90B10
31 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
1000x35x200 108 3 3.6
2000x35x200 96 3 6.5
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
080121.3L10.151 DALI 30 2600 87 3000 ≥80
080121.3L10.156 DALI 30 2600 87 3000 ≥80
080121.3L11.151 DALI 30 2600 87 4000 ≥80
080121.3L11.156 DALI 30 2600 87 4000 ≥80
080121.3L12.152 DALI 60 5200 87 3000 ≥80
080121.3L12.157 DALI 60 5200 87 3000 ≥80
080121.3L13.152 DALI 60 5200 87 4000 ≥80
080121.3L13.157 DALI 60 5200 87 4000 ≥80
080121.5L10.151 ED 30 2600 87 3000 ≥80
080121.5L10.156 ED 30 2600 87 3000 ≥80
Compare selected
Shown 10 / 16
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150111.00886

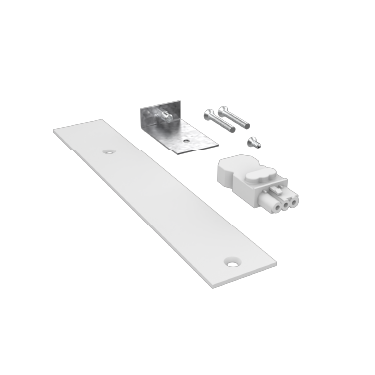

OPTILINE H200 LED Starter KIT (1x 3-pole power connector, 1x end cap, 1x bracket cover)
150111.00934
OPTILINE H200 LED DALI Starter KIT (1x 5-pole power connector, 1x end cap, 1x bracket cover)
CM-19030-004

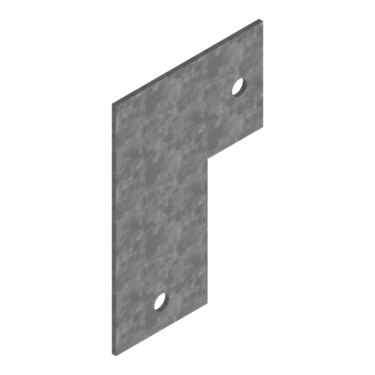

Connector L [53x78 mm]
CM-19030-003

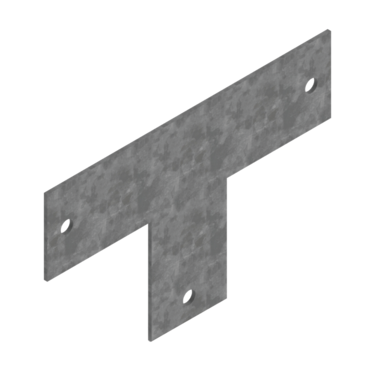

Connector T [122.5x77.5 mm]
