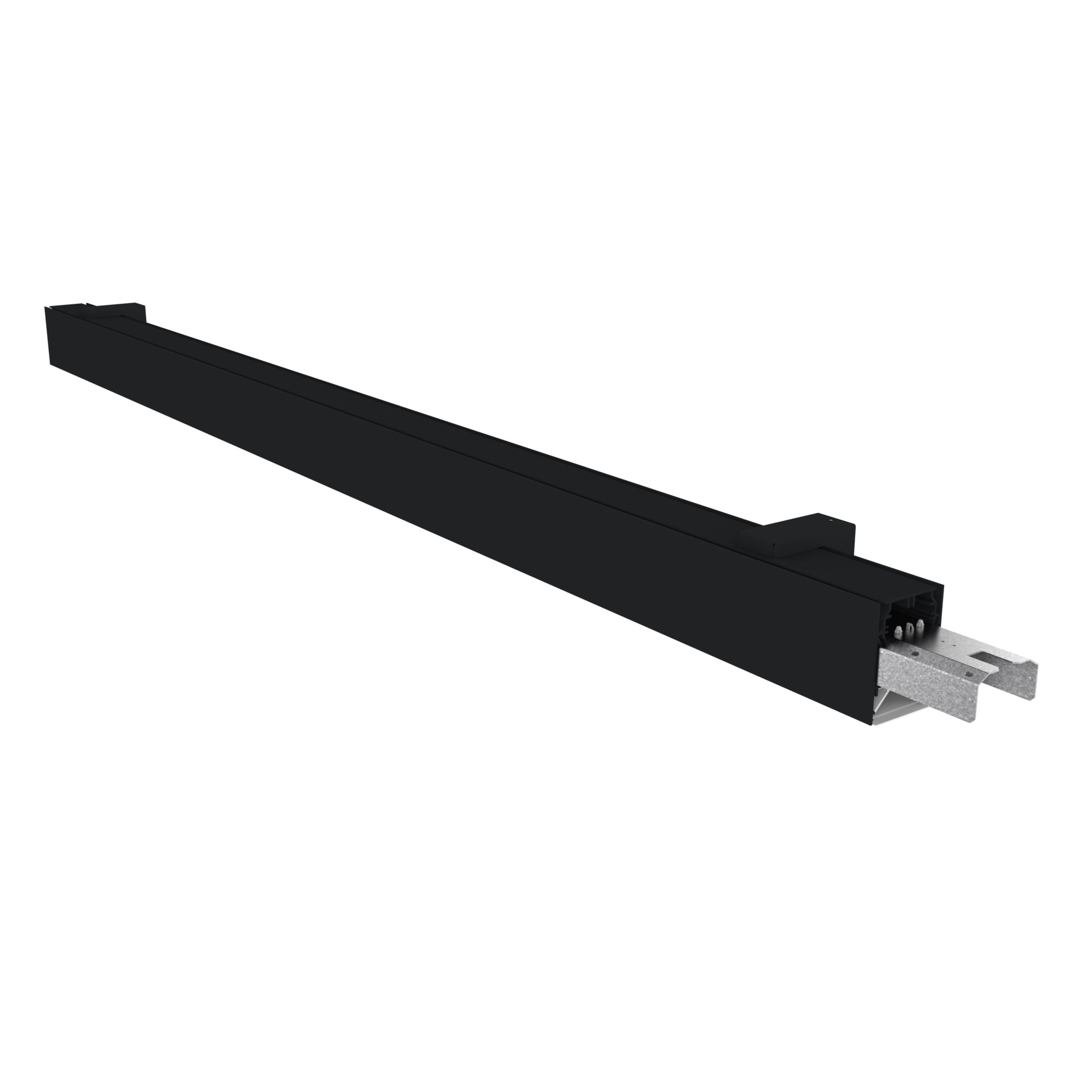

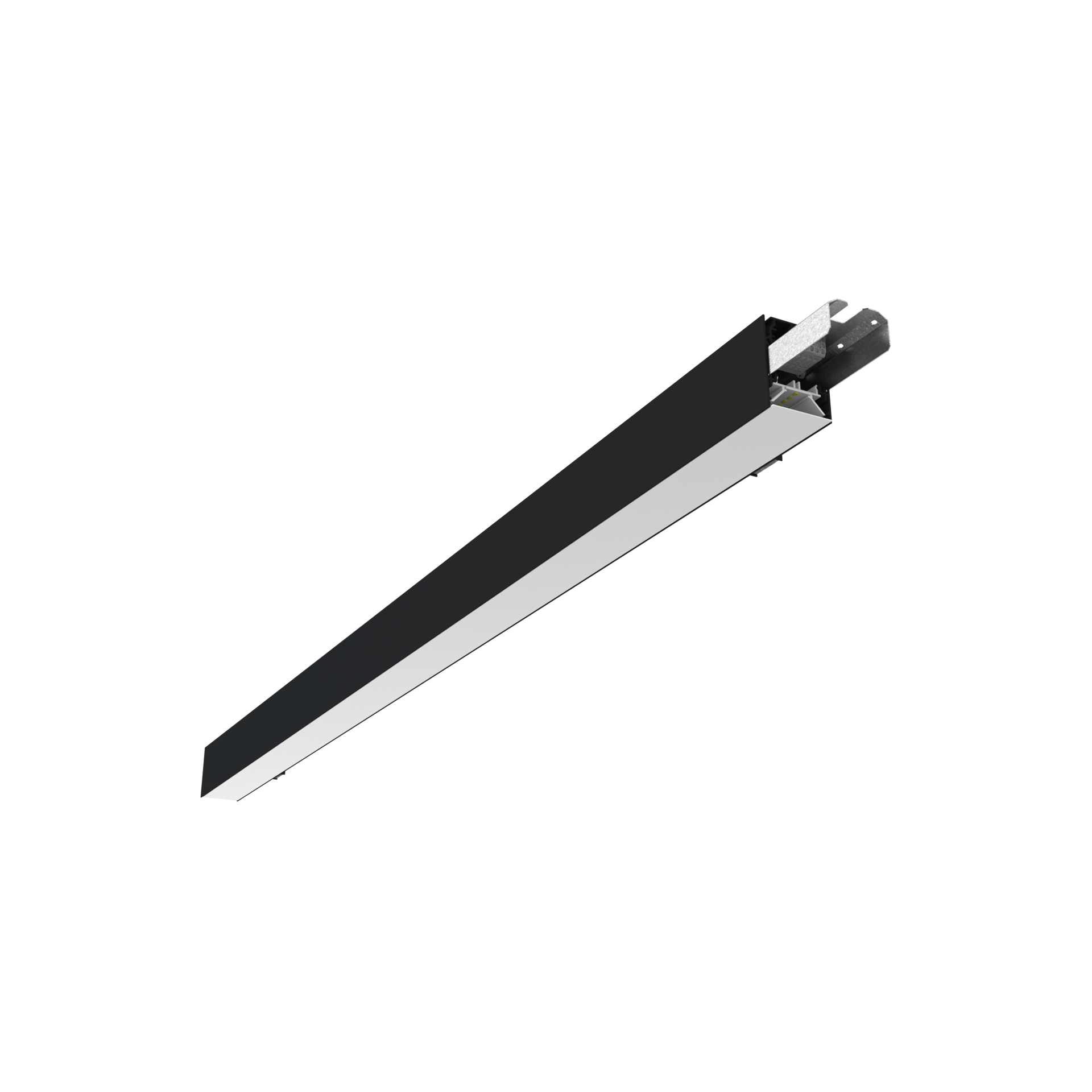

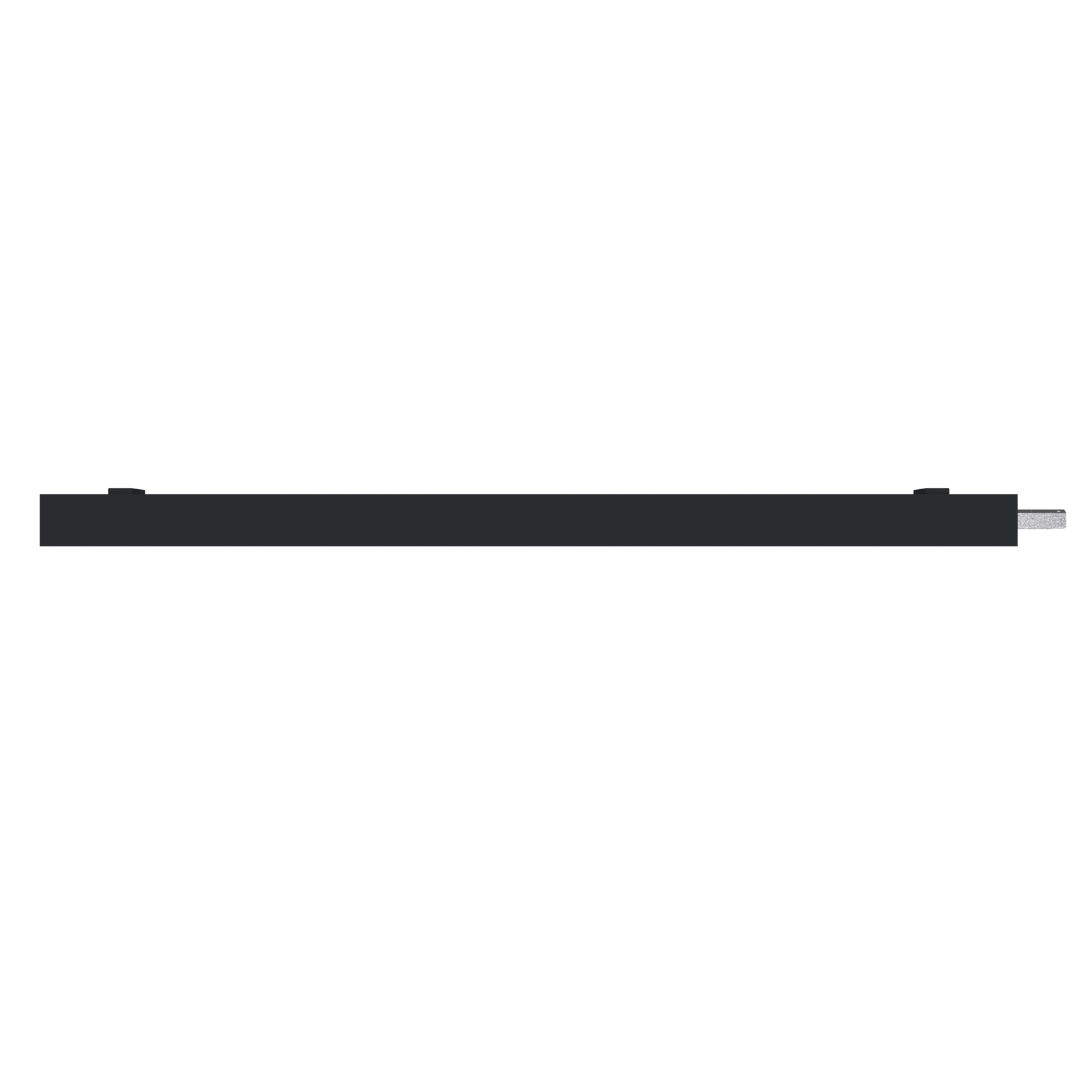

VOLICA 2.0 LED SYSTEM WALL
Decorative system luminaire for LED light sources; aluminium profile in RAL9011, equipped with an efficient lighting system, optimised for indoor use. Luminaire in wall-mounted version, using special brackets from the accessory.



Maintenance-free operation
Dedicated LED light sources
Perfect combination of aesthetics and ergonomics
Luminaire body made of aluminum
Fast and easy mounting
Possible illuminance control
Modern design
Passive cooling system
Well thought-out installation concept
High efficacy

Application

auditorium, boutiques, galleries, hotels, museums, offices, reception desks

Luminous flux range

2100 - 8600 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
directly on the wall, with mounting brackets (on request)
Length [mm]
600, 800, 1200, 1500, 2400
Body colour
black
Operating temperature range
0˚C ... +35˚C
RAL
9011
Body
aluminum profile

Electrical data

Power supply efficiency
≤88%
Electrical connection
max 5x1,5 mm² wire
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
23 - 90
Output current [mA]
433, 450, 493
Type of equipment
DALI
Maximum number of luminaires in the circuit with a 10A fuse (B)
8 - 15
Maximum number of luminaires in the circuit with a 16A fuse (B)
13 - 24

Optical data

Light distribution
symmetric
Way of lighting
direct
Type of optic
diffuser
Diffuser
opal smooth (PLX)
Colour temperature [K]
4000
CRI/Ra
90
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
2100 - 8600
Efficacy [lm/W]
81 - 96
Photobiological risk group
RG0
SVM
≤0.4
PstLM
≤1
Number of LEDs
80, 180, 210, 320

General data

Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxH Pallet quantity Quantity in package Net weight [kg]
600x80x60 360x40 120 1 2.6
800x80x60 560x40 120 1 2.9
800x80x60 560x40 120 1 3.2
1200x80x60 960x40 120 1 3.9
1500x80x60 1240x40 120 1 4.5
2400x80x60 2140x40 120 1 6.4
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Length [mm]
Clear Filters
Compare Code Length [mm] Body colour Diffuser Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range Emergency operating time Light output in emergency mode [lm] Luminaire power EM [W]
900150.02260 600 black opal smooth (PLX) DALI 23 2100 91 4000 90 0˚C ... +35˚C
900150.02261 1500 black opal smooth (PLX) DALI 59 5400 92 4000 90 0˚C ... +35˚C
900150.02264 2400 black opal smooth (PLX) DALI 90 8600 96 4000 90 0˚C ... +35˚C
900150.02265 1500 black opal smooth (PLX) DALI 59 5400 92 4000 90 0˚C ... +35˚C
900150.02266 800 black opal smooth (PLX) DALI 33 2900 88 4000 90 0˚C ... +35˚C
900150.02269 1500 black opal smooth (PLX) DALI 59 5400 92 4000 90 0˚C ... +35˚C
900150.02270 2400 black opal smooth (PLX) DALI 90 8600 96 4000 90 0˚C ... +35˚C
900150.02271 800 black opal smooth (PLX) DALI 33 2900 88 4000 90 0˚C ... +35˚C
900150.02272B 1500 black opal smooth (PLX) DALI 59 5400 92 4000 90 0˚C ... +35˚C 3h 550 3
900150.02273B 800 black opal smooth (PLX) DALI 36 2900 81 4000 90 0˚C ... +35˚C 3h 300 3
Compare selected
Shown 10 / 13
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
