VOLICA 2.0 LED SYSTEM ROLL

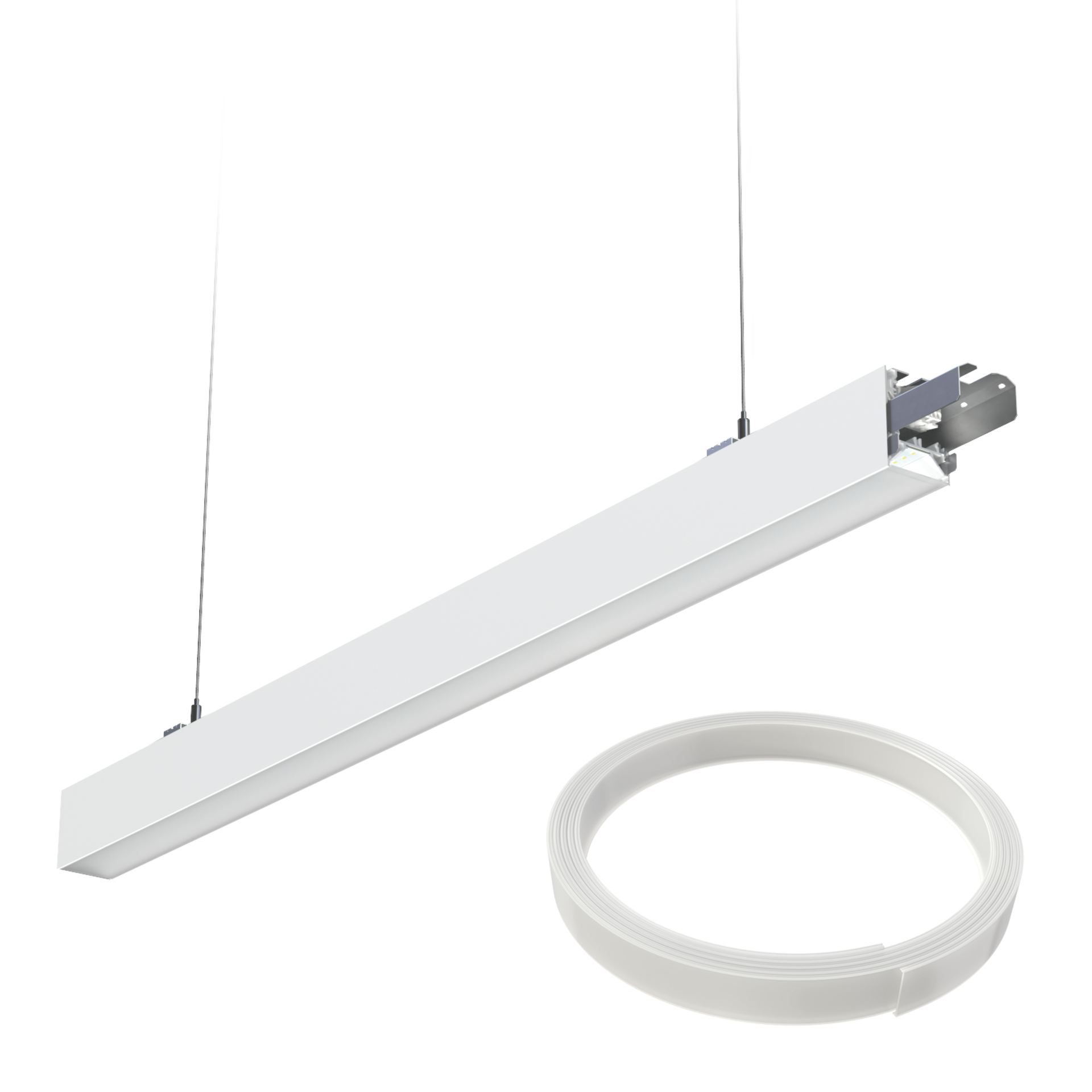

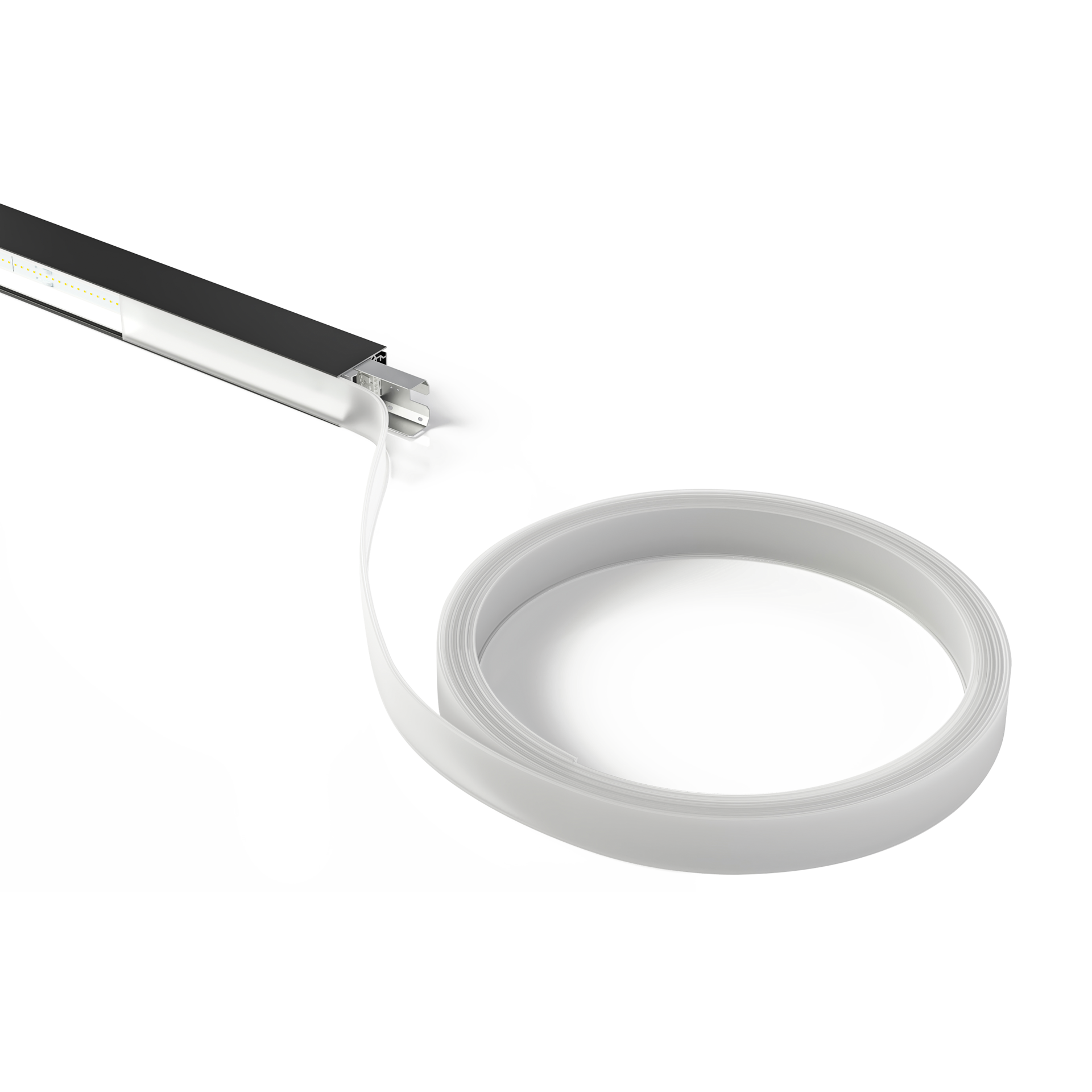

Luminaire with diffuser ordered separately as an accessory (20m roll). Decorative system luminaire for LED light sources; aluminum profile available in various colors, equipped with an efficient lighting system, optimized for indoor use. The luminaire is available in surface-mounted or suspended version, depending on the purchased accessories.



High efficacy to 127 lm/W
Maintenance-free operation
Dedicated LED light sources
Perfect combination of aesthetics and ergonomics
Luminaire body made of aluminum
Fast and easy mounting
Possible illuminance control
Modern design
Passive cooling system
Well thought-out installation concept

Application

auditorium, boutiques, galleries, hotels, museums, offices, reception desks

Available on request

DALI

Luminous flux range

1650 - 9050 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (on request), surface mounted
Length [mm]
600, 1200, 1500, 2400
Body colour
anode C-0, black, white
Operating temperature range
0 ... +35
RAL
9003, 9005
Body
aluminum profile
Type
HIGH - recommended for use with ceilings over 3m high, LOW - recommended for use in ceilings up to 3m high

Electrical data

Power supply efficiency
≤87%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
14 - 71
Output current [mA]
350, 700, 1050, 1400
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
34
Maximum number of luminaires in the circuit with a 16A fuse (B)
13 - 56

Optical data

Way of lighting
direct
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
1650 - 9050
Efficacy [lm/W]
118 - 127

General data

Additional equipment

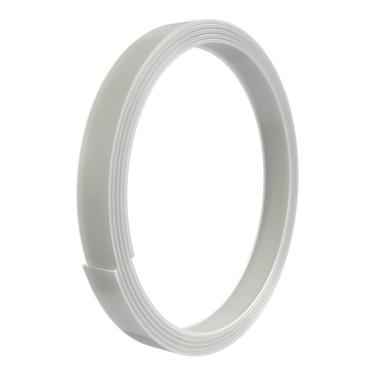

diffuser available as a 20m roll; diffuser must be ordered separately (accessory)
Additional information
Safe power supply with low voltage SELV
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Net weight [kg]
600x60x80 120 2.6
1200x60x80 120 3.9
1500x60x80 120 4.5
2400x60x80 120 6.4
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Body colour
anode C-0
black
white
Length [mm]
Clear Filters
Compare Code Length [mm] Body colour Luminaire power [W] Type of equipment Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
010501.5L01.101 600 white 14 ED 1650 118 3000 ≥80 0 ... +35
010501.5L02.101 600 white 14 ED 1750 125 4000 ≥80 0 ... +35
010501.5L03.102 1200 white 28 ED 3350 120 3000 ≥80 0 ... +35
010501.5L04.102 1200 white 28 ED 3550 127 4000 ≥80 0 ... +35
010501.5L05.103 1500 white 35 ED 4200 120 3000 ≥80 0 ... +35
010501.5L06.103 1500 white 35 ED 4400 126 4000 ≥80 0 ... +35
010501.5L07.104 2400 white 56 ED 6700 120 3000 ≥80 0 ... +35
010501.5L08.104 2400 white 56 ED 7050 126 4000 ≥80 0 ... +35
010501.5L09.101 600 white 18 ED 2150 119 3000 ≥80 0 ... +35
010501.5L10.101 600 white 18 ED 2250 125 4000 ≥80 0 ... +35
Compare selected
Shown 10 / 48
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
