VOLICA 42 DOT LED

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact

Other parameters available View variants

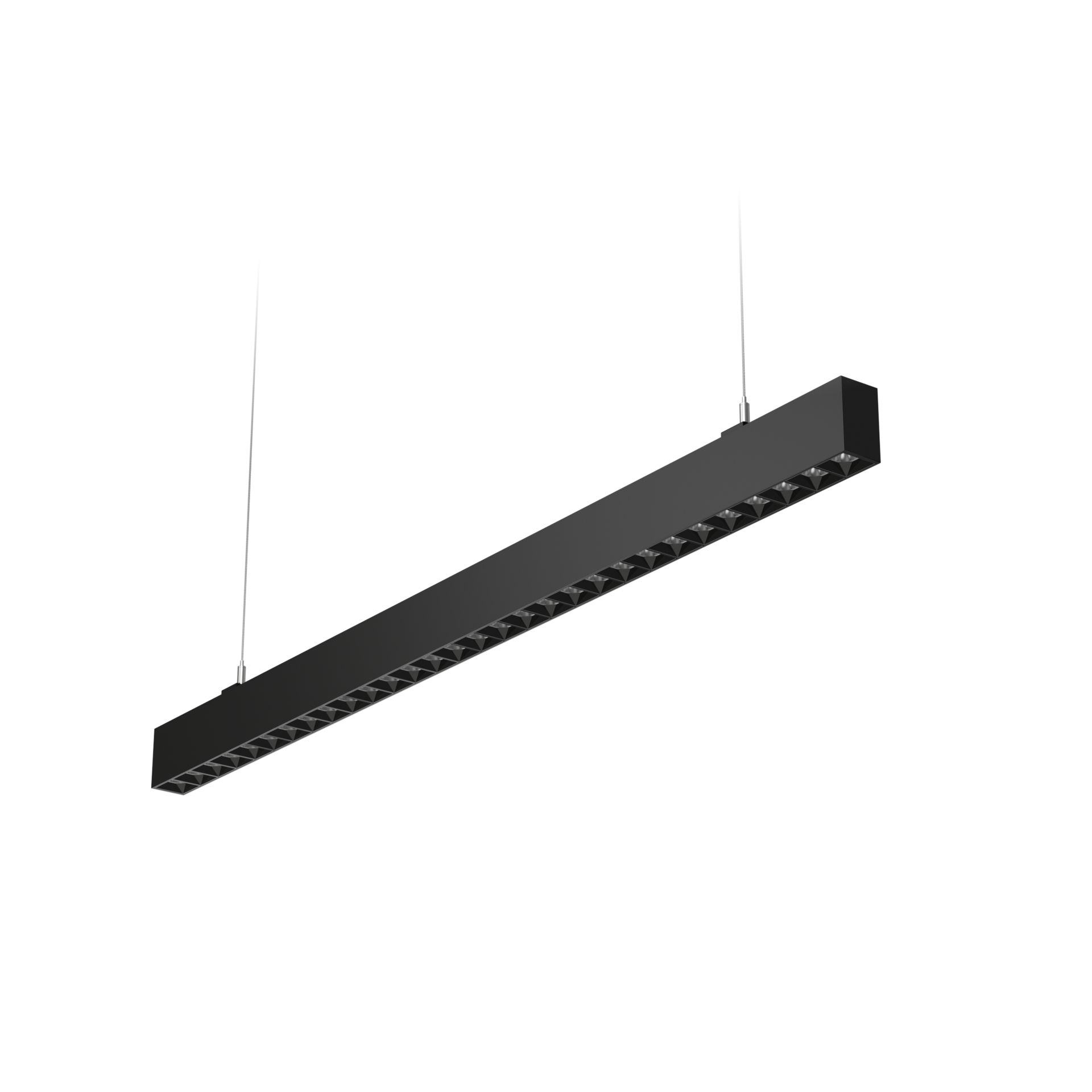

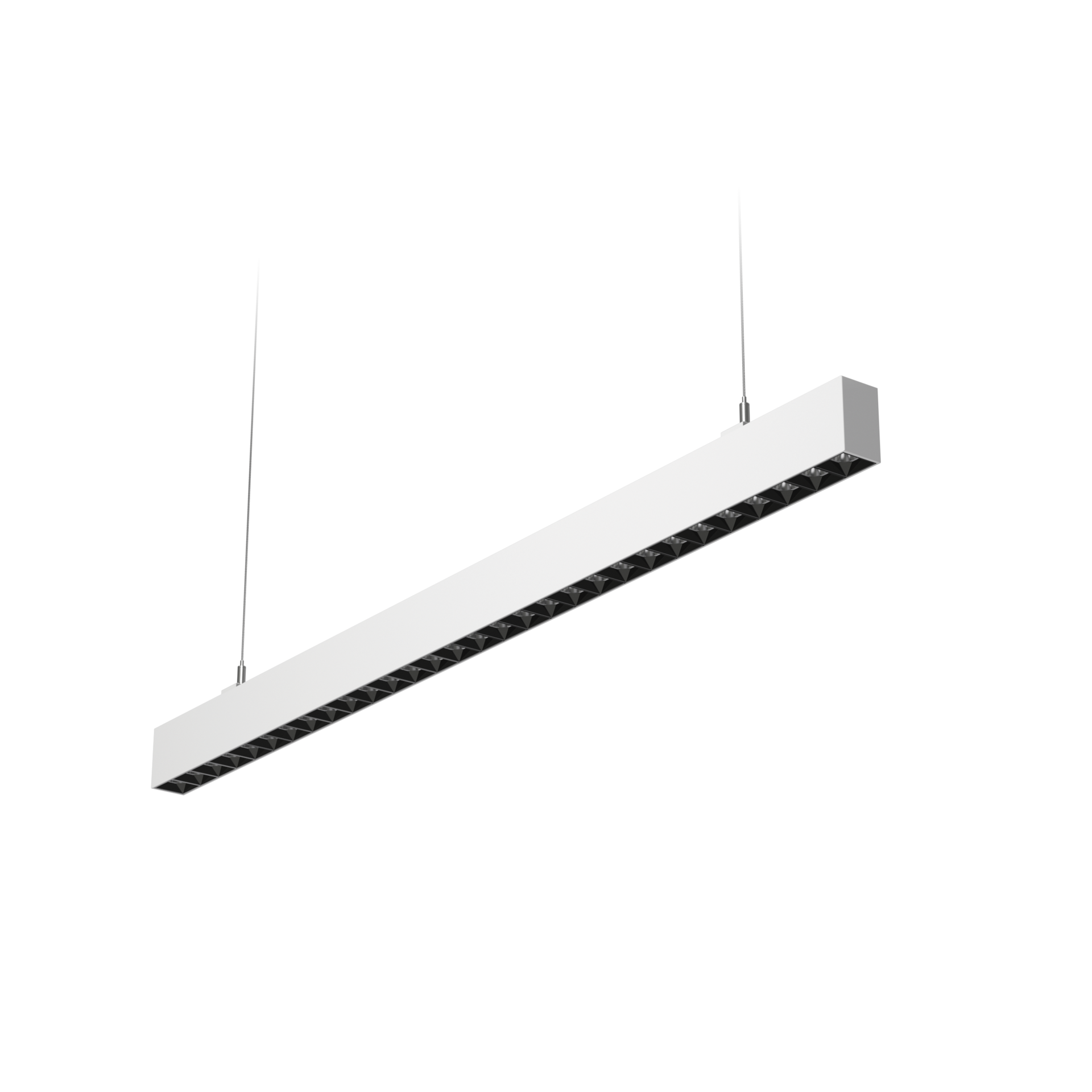

VOLICA 42 DOT LED

Decorative suspended luminaire for LED light sources, equipped with precise lighting systems. Efficient lighting system made of extruded aluminium and highest quality materials, suitable for use in modern office rooms.

High efficacy to 120 lm/W

Dedicated LED light sources

Perfect combination of aesthetics and ergonomics

Luminaire body made of aluminum

Fast and easy mounting

Modern design

Well thought-out installation concept

Application

auditorium, boutiques, galleries, hotels, museums, offices, reception desks

Luminous flux range

1850 - 5000 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

suspended, on wire suspension (on request)

Length [mm]

1147, 1717

Body colour

anode C-0, black, white

Surface finish

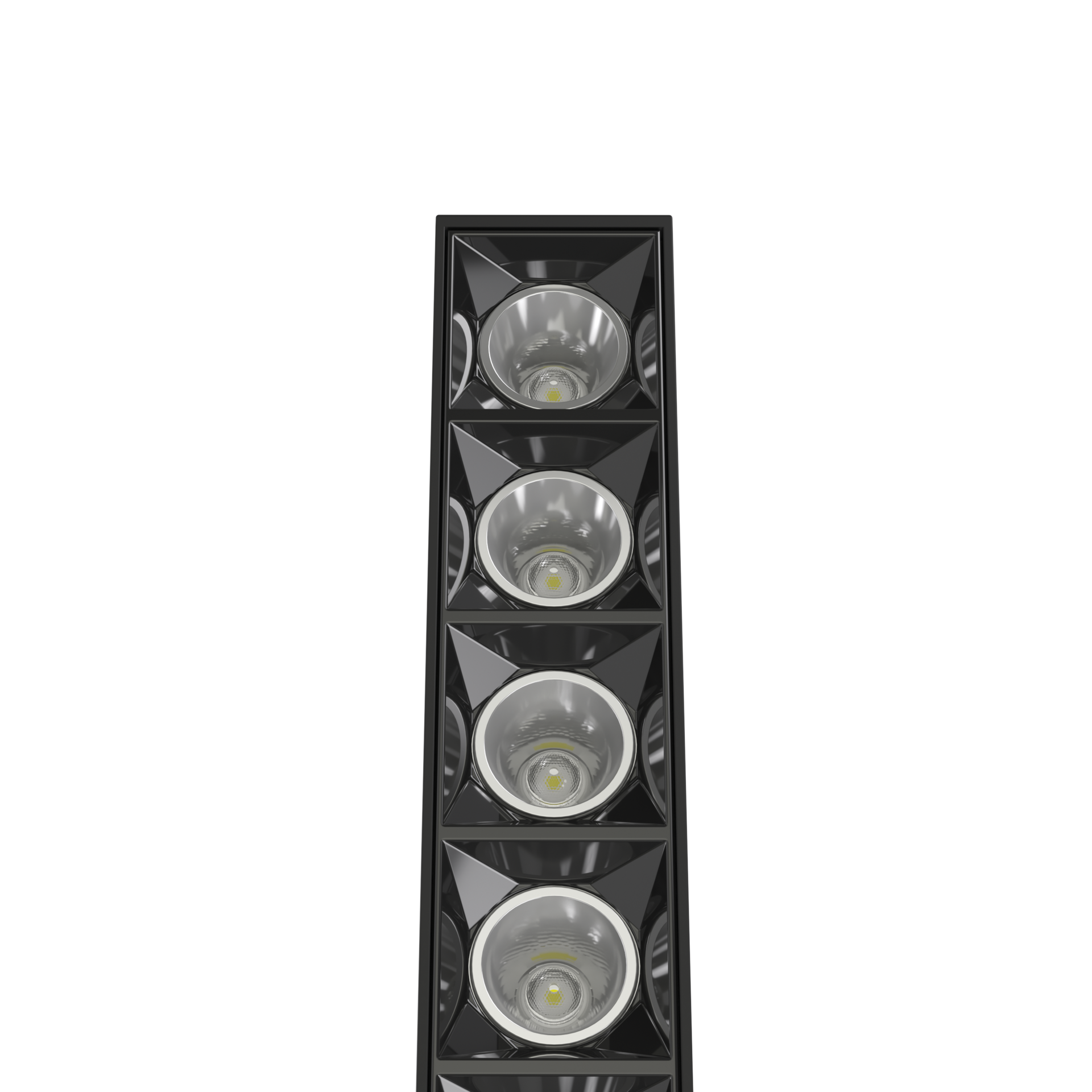

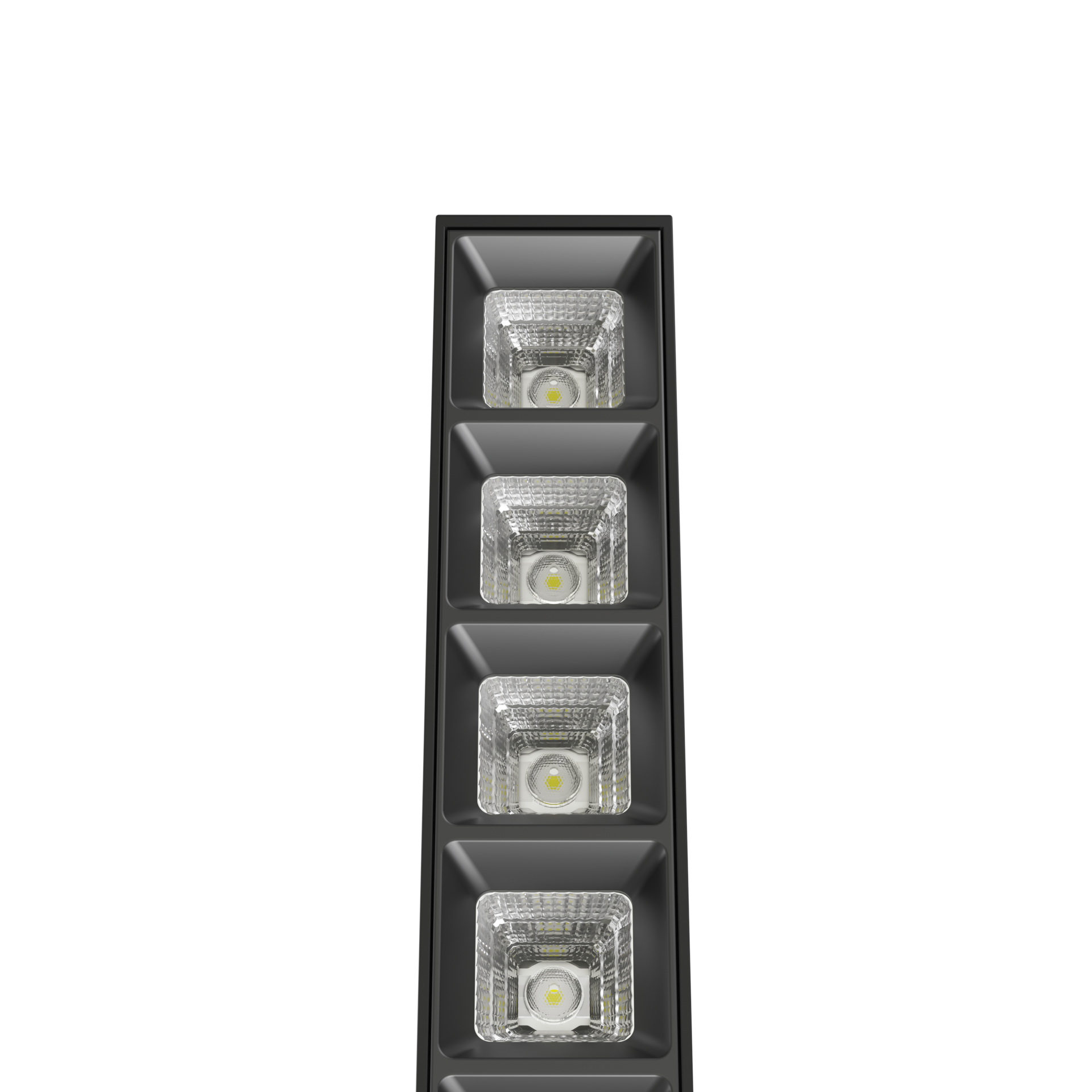

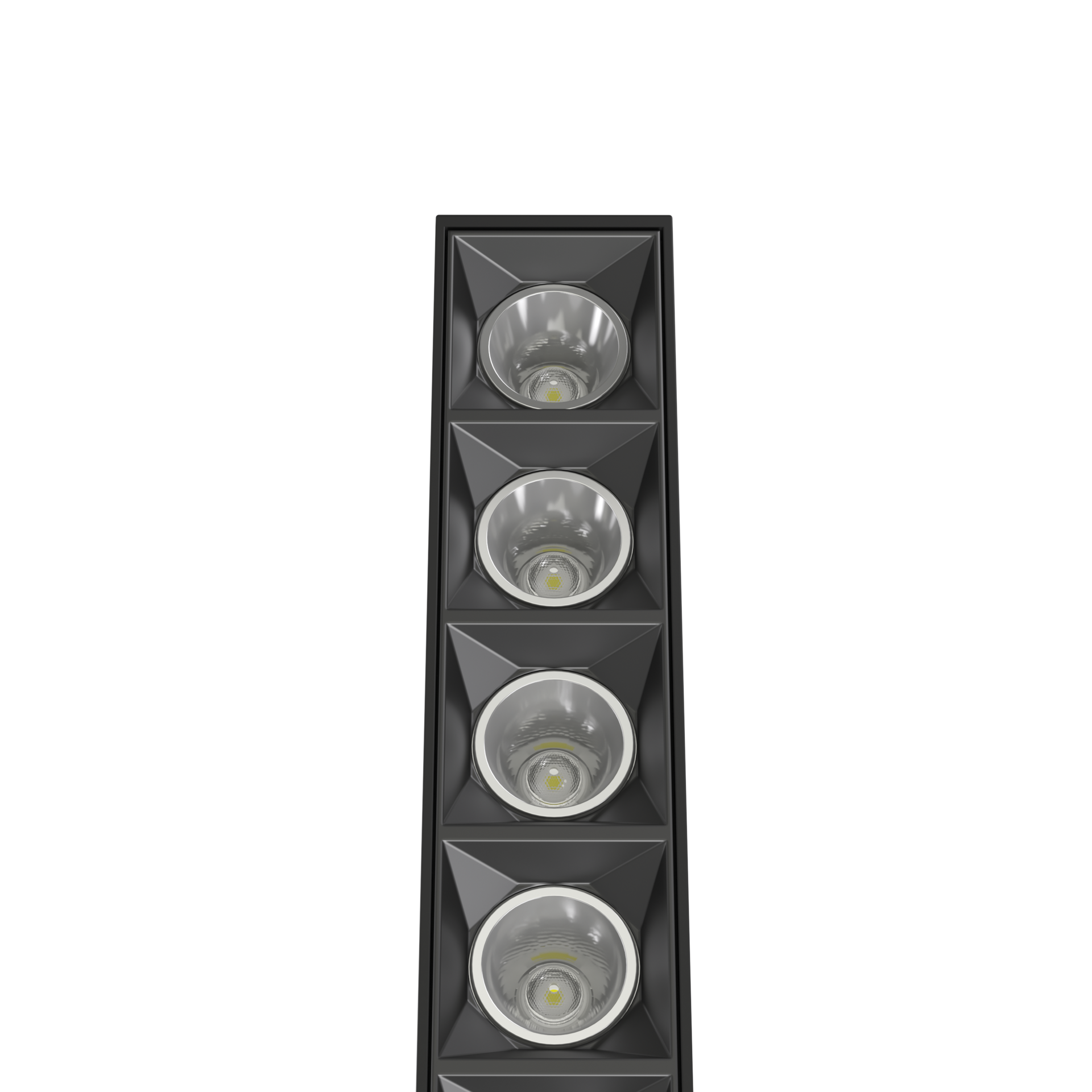

50° gloss louvre, 50° matt louvre, 70° gloss louvre, 70° matt louvre

Operating temperature range

0 ... +35

RAL

9003, 9005

Body

aluminum profile

Electrical data

Power supply efficiency

≤90%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

17 - 46

Output current [mA]

250

Type of equipment

DALI, ED

Maximum number of luminaires in the circuit with a 10A fuse (B)

Maximum number of luminaires in the circuit with a 16A fuse (B)

25 - 56

Optical data

Way of lighting

direct

Type of optic

lens

Colour temperature [K]

3000, 4000

Beam angle

50°, 70°

CRI/Ra

≥80

UGR

<19

Lumen luminaire [lm]

1850 - 5000

Efficacy [lm/W]

100 - 120

Photobiological risk group

RG1

General data

Lifetime L80B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Pallet quantity	Net weight [kg]
1147x42x70	160		2.4
1717x42x70	160		3.3

Code	Length [mm]	Body colour	Type of equipment	Surface finish	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	UGR	Operating temperature range
010511.3L01.121	1717	white	DALI	70° matt louvre	25	2850	114	3000	≥80	<19	0 ... +35
010511.3L01.131	1717	white	DALI	50° matt louvre	25	2800	112	3000	≥80	<19	0 ... +35
010511.3L01.151	1717	white	DALI	70° gloss louvre	25	2850	114	3000	≥80	<19	0 ... +35
010511.3L01.161	1717	white	DALI	50° gloss louvre	25	2800	112	3000	≥80	<19	0 ... +35
010511.3L02.121	1717	white	DALI	70° matt louvre	25	3000	120	4000	≥80	<19	0 ... +35
010511.3L02.131	1717	white	DALI	50° matt louvre	25	2950	118	4000	≥80	<19	0 ... +35
010511.3L02.151	1717	white	DALI	70° gloss louvre	25	3000	120	4000	≥80	<19	0 ... +35
010511.3L02.161	1717	white	DALI	50° gloss louvre	25	2950	118	4000	≥80	<19	0 ... +35
010511.3L03.121	1717	white	DALI	70° matt louvre	35	3800	109	3000	≥80	<19	0 ... +35
010511.3L03.131	1717	white	DALI	50° matt louvre	35	3700	106	3000	≥80	<19	0 ... +35

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
