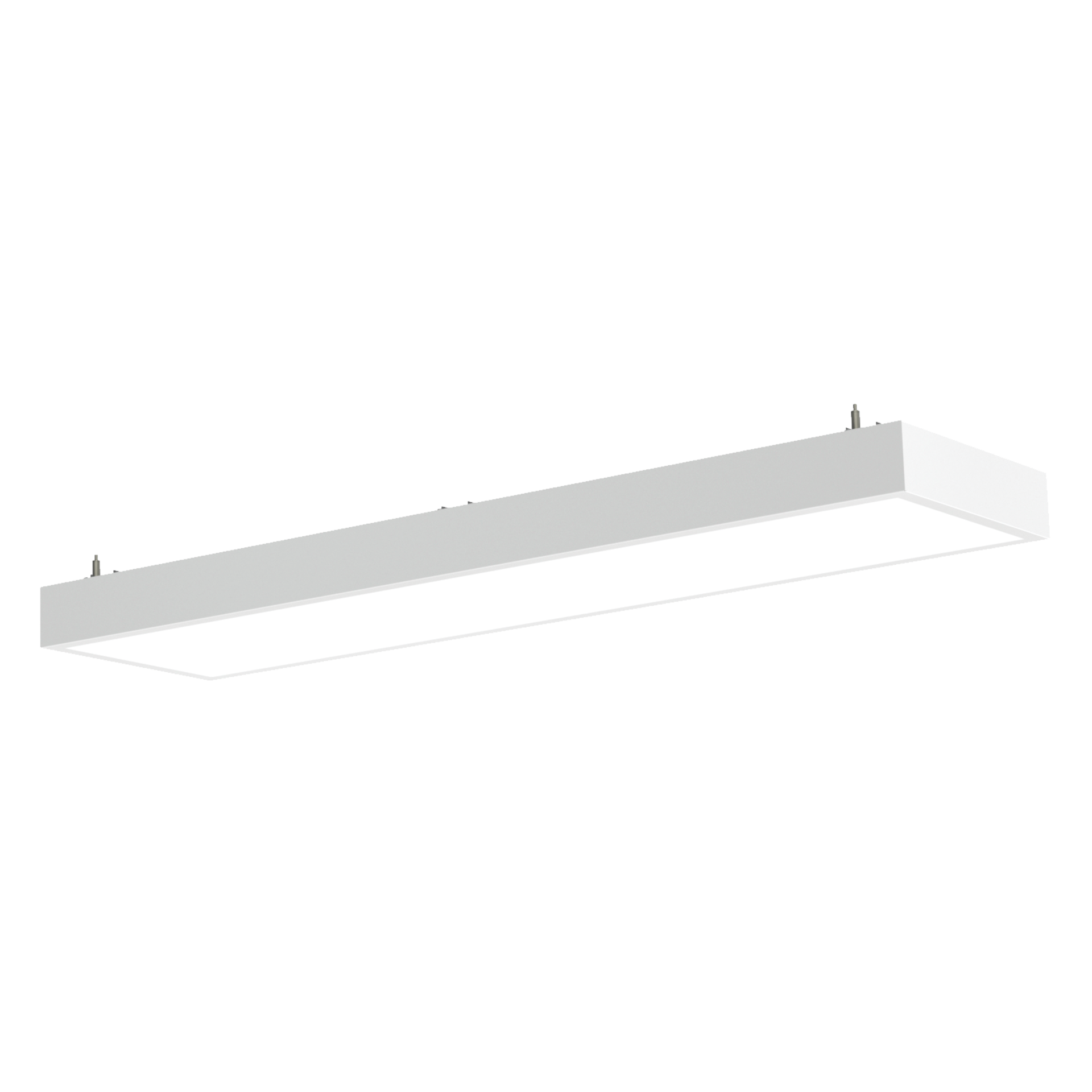

LUGCLASSIC LB LED PENDANT
Modern suspended luminaire on LED light sources. The subject of the modification is the adaptation of the luminaire to the suspended version with the dimensions 1200x300 and 1200x600.



High efficacy to 126 lm/W
Maintenance-free operation
Universal design

Application

auditorium, classrooms, offices

Luminous flux range

4400 - 9200 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
suspended
Body colour
white
Operating temperature range
0˚C ... +40˚C
RAL
9003
Body
powder-painted steel sheet
Type
1200x300, 1200x600

Electrical data

Power supply efficiency
89%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
35 - 81
Type of equipment
ED

Optical data

Way of lighting
direct
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
4000
CRI/Ra
≥80
Lumen luminaire [lm]
4400 - 9200
Efficacy [lm/W]
114 - 126

General data

Lifetime L80B10
100 000 h
Lifetime L90B10
30 000 h
Warranty
3 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW
1200x300x105 1200x300
1200x600x105 1200x600
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type
1200x300
1200x600
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
903061.00888 81 9200 114 4000 ≥80
903061.00889 35 4400 126 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150210.00605
Mounting frame for plasterboard ceilings 595x595 (mounting hole 615x615)
150231.00964
Mounting frame for surface mounting of the recessed LUGCLASSIC LB LED 595x595 (frame size: 635x635)
