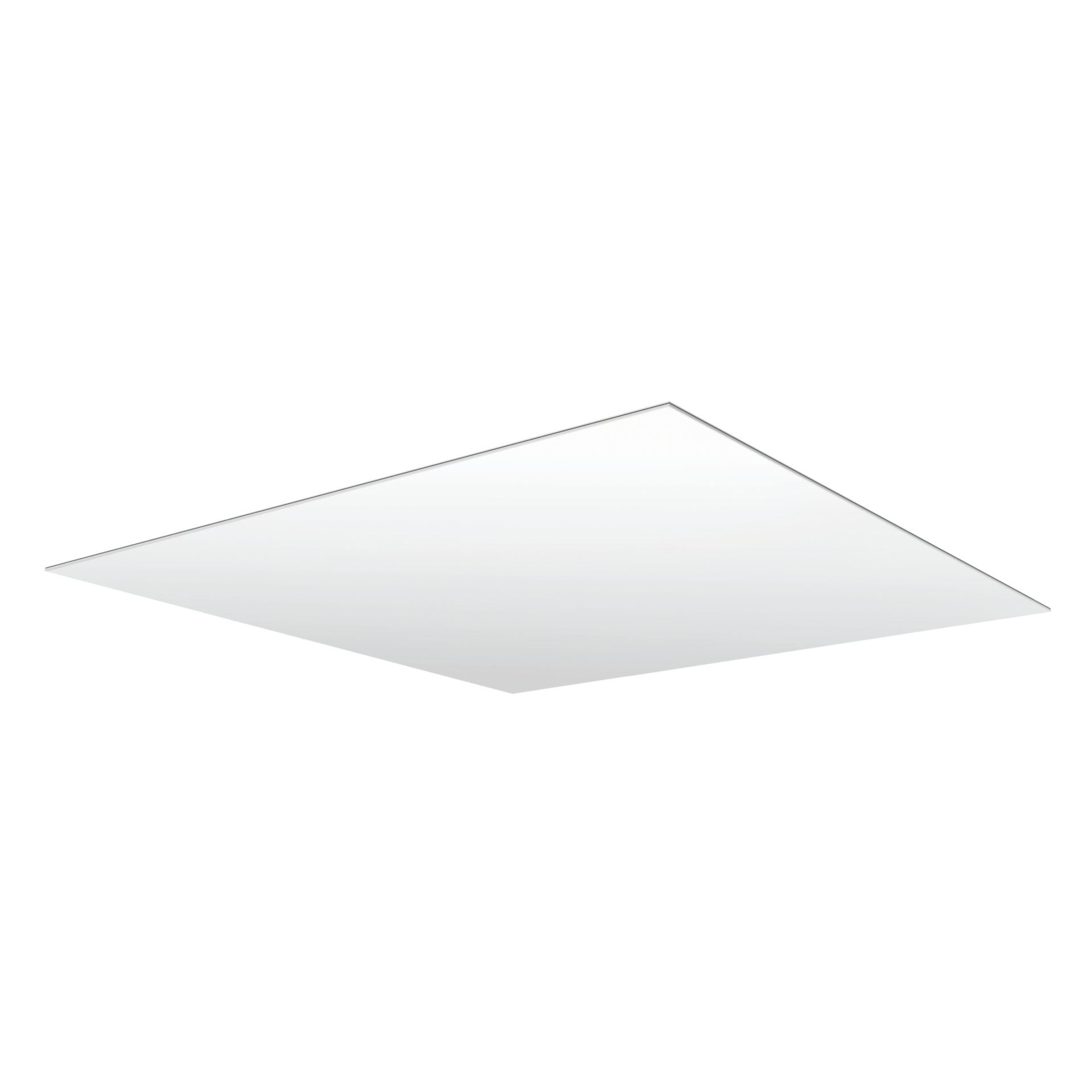

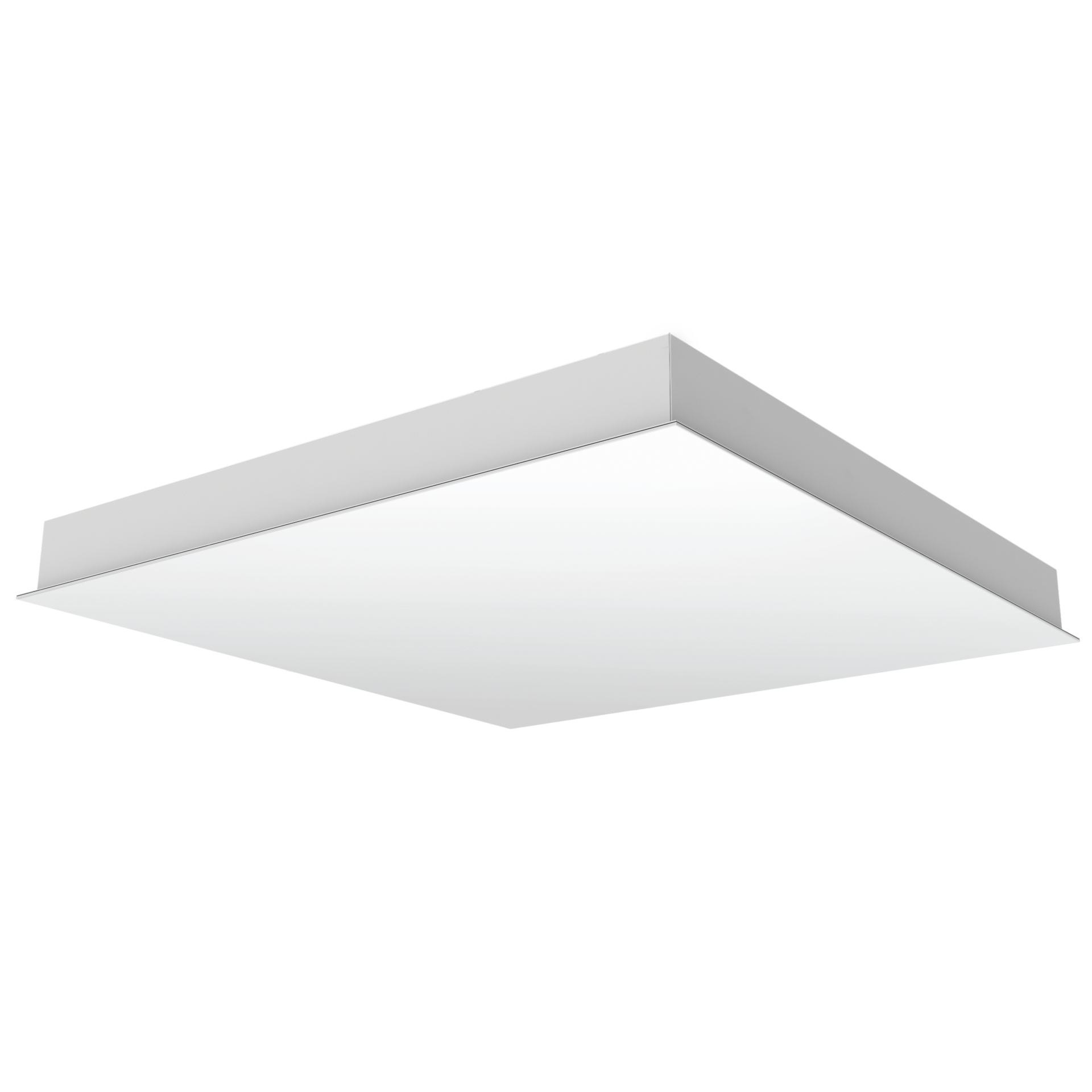

LUGCLASSIC LED p/t SAS 130 EASY CONNECT
Modern recessed luminaire for modular suspended ceilings for LED light sources. Luminaire for SAS 130 ceiling mount with EASY CONNECT connector.



High efficacy to 120 lm/W
Maintenance-free operation
Universal design

Application

auditorium, classrooms, hospitals, laboratories, offices, supermarkets

Available on request

DALI, LED emergency module, luminaires for KNAUF, AMF, ROCKFON ceilings (on request)

Luminous flux range

4800 - 9200 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Operating temperature range
0˚C ... +25˚C
RAL
9003
Body
powder-painted steel sheet
Type
600x600

Electrical data

Power supply efficiency
>84%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
40 - 82
Output current [mA]
750
Type of equipment
ED

Optical data

Way of lighting
direct
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
4000
CRI/Ra
≥80
Lumen luminaire [lm]
4800 - 9200
Efficacy [lm/W]
112 - 120

General data

Additional information
The possibility of using one or more power supplies in the luminaire.
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW Pallet quantity Quantity in package Net weight [kg]
594x594x115 600x600 32 1 4.5
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
900061.00591 82 9200 112 4000 ≥80
900061.00592 40 4800 120 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Colour temperature tolerance +/- 5%.
