LUGCLASSIC SLIM LB LED HE

Product description

Technical parameters

To download

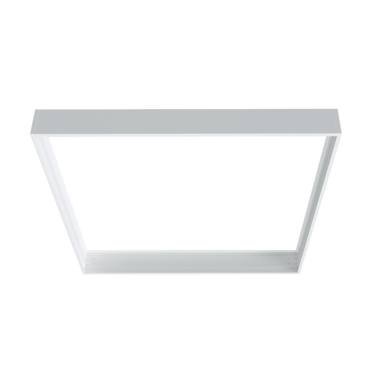

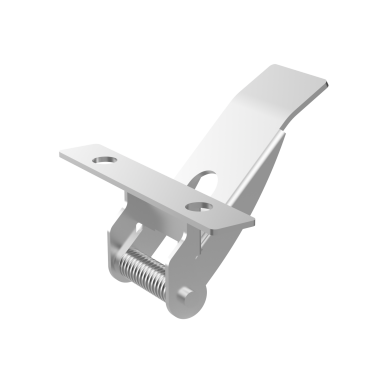

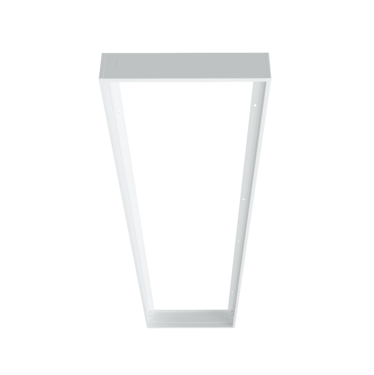

Accessories

Explore services Customisation Support and contact

Other parameters available View variants

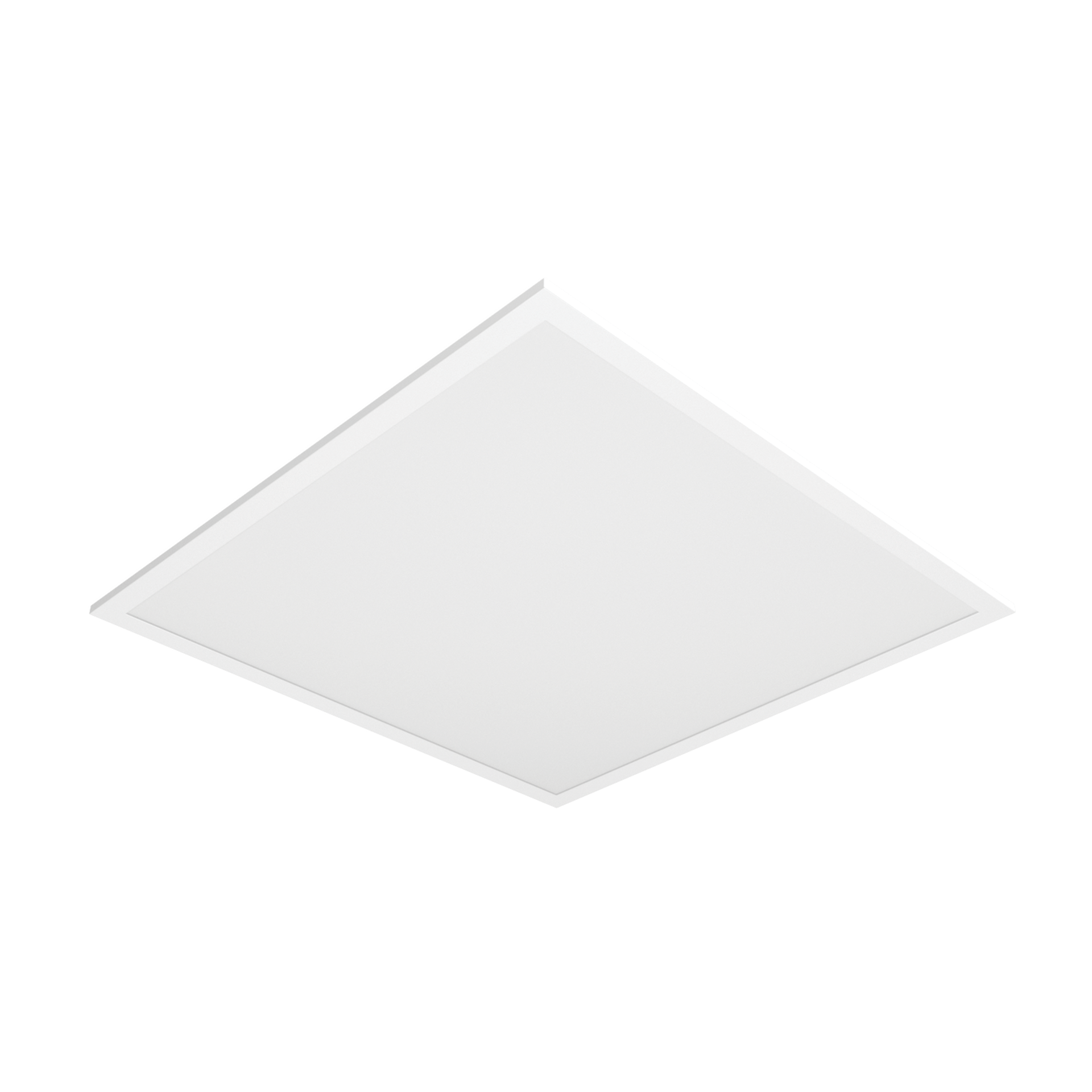

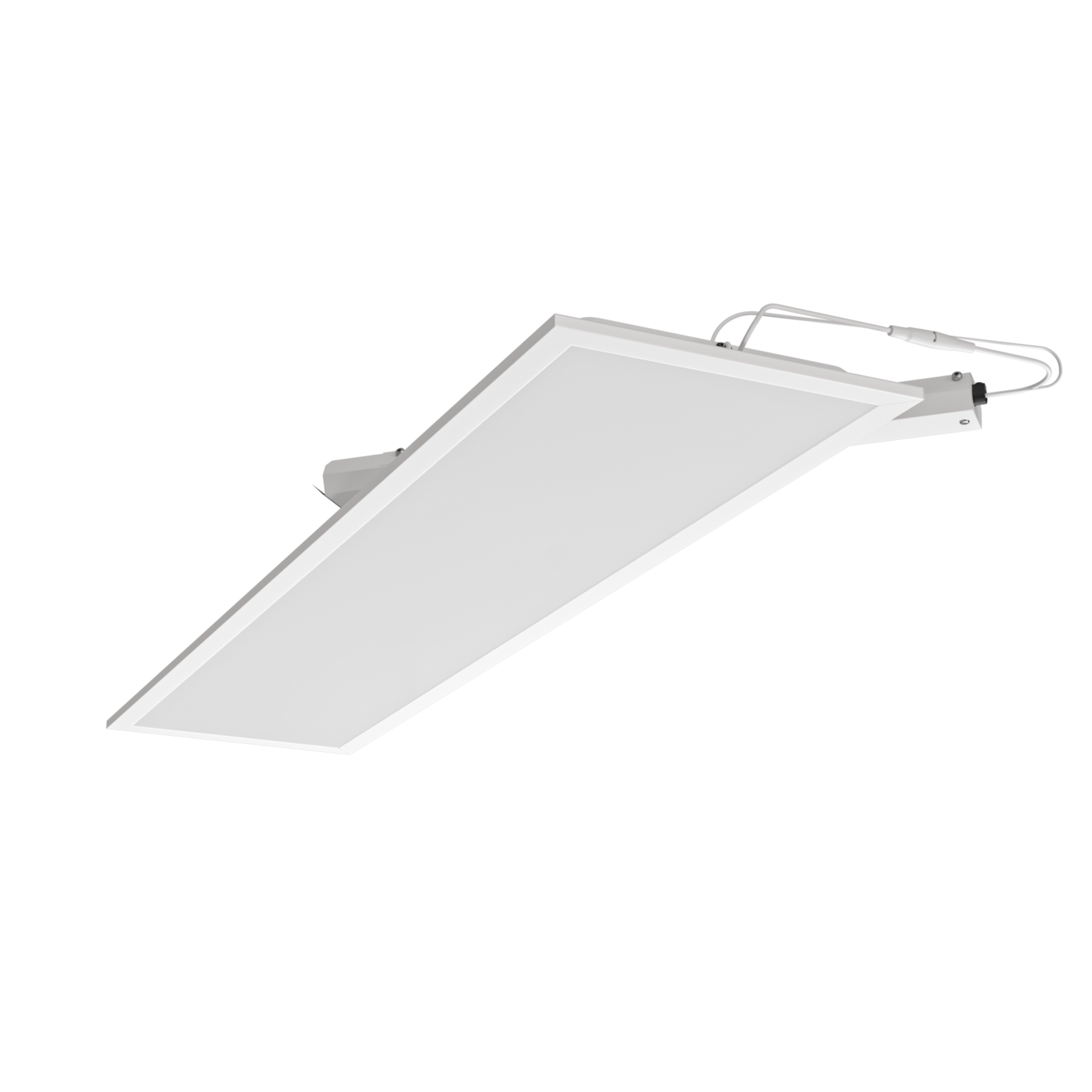

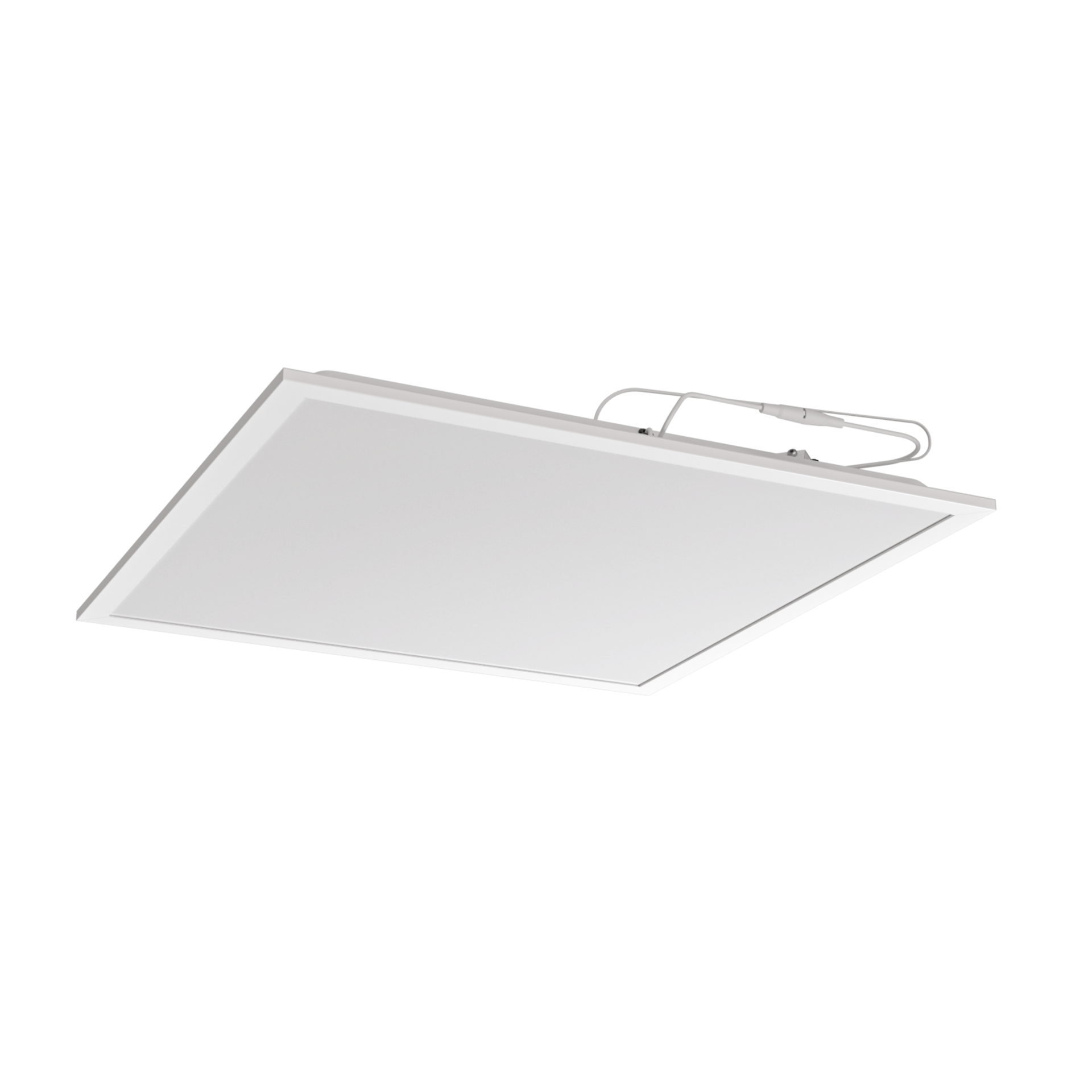

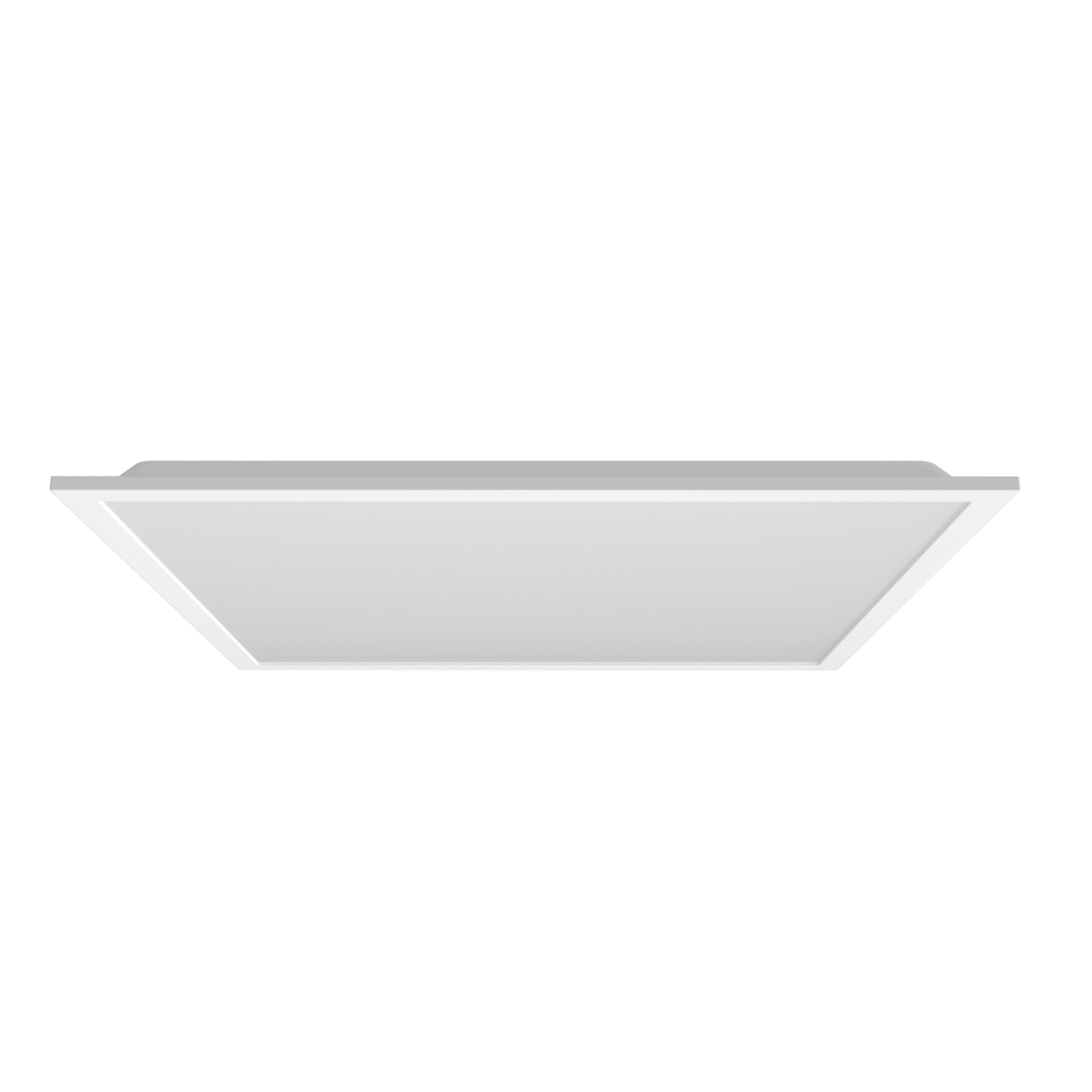

LUGCLASSIC SLIM LB LED HE

Modern recessed luminaire for LED light sources.

Fast and easy mounting

Possible illuminance control

High efficacy to 136 lm/W

Application

boutiques, classrooms, delicatessen, exhibitions, exhibitions, galleries, jeweler, museums, offices, public utility facilities, shopping centers

Luminous flux range

3000 - 4450 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

in the ceiling

Body colour

white

Operating temperature range

0 ... +35

RAL

9003, 9016

Body

powder-painted steel sheet

Type

1200x300, 600x600

Electrical data

Power supply efficiency

≤87%

Power

230-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

22 - 36

Output current [mA]

600, 900

Type of equipment

DALI, ED

Maximum number of luminaires in the circuit with a 10A fuse (B)

Maximum number of luminaires in the circuit with a 16A fuse (B)

Maximum number of luminaires in the circuit with a 25A fuse (B)

Optical data

Way of lighting

direct

Diffuser

microprismatic diffuser (MPRM)

Colour temperature [K]

4000

CRI/Ra

≥80

UGR

<19

MacAdam's steps

ULOR / DLOR

0/100

Lumen luminaire [lm]

3000 - 4450

Efficacy [lm/W]

124 - 136

Photobiological risk group

RG0

Number of LEDs

General data

Additional information

UGR <19, CRI/Ra ≥80

Other remarks

Kit chantier - 1m long suspension wire; wire length with brackets 0.8m

Lifetime L70B50

50 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Mounting dimensions [mm] LxW	Pallet quantity	Quantity in package	Net weight [kg]
595x595x35	600x600	80	2	3.5
595x595x35	600x600	40	1	4

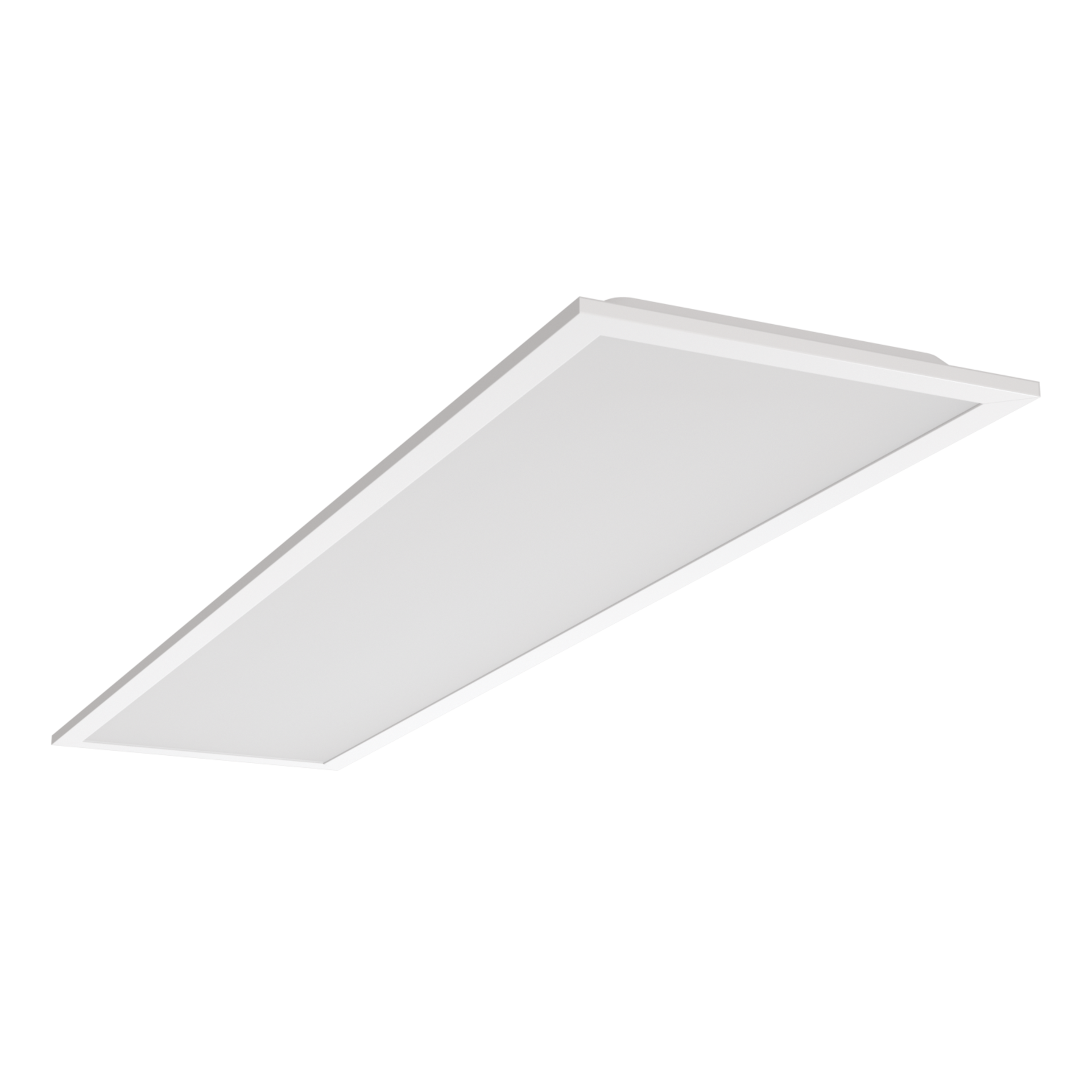

1195x295x35	1200x300	80	2	3.5
1195x295x35	1200x300	40	1	4

Available variants

Code	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range	UGR	Emergency kit	Emergency operating time	Light output in emergency mode [lm]
060341.3L07.311	DALI	34	4450	131	4000	≥80	0 ... +35	<19		-
060341.3L07.351	DALI	34	4450	131	4000	≥80	0 ... +35	<19		-
060341.5L06.311	ED	22	3000	136	4000	≥80	0 ... +35	<19		-
060341.5L06.351	ED	22	3000	136	4000	≥80	0 ... +35	<19		-
060341.5L06B.311	ED	24	3000	125	4000	≥80	0 ... +35	<19	yes	3h	300
060341.5L06B.351	ED	24	3000	125	4000	≥80	0 ... +35	<19	yes	3h	300
060341.5L07.311	ED	34	4450	131	4000	≥80	0 ... +35	<19		-
060341.5L07.351	ED	34	4450	131	4000	≥80	0 ... +35	<19		-
060341.5L07B.311	ED	36	4450	124	4000	≥80	0 ... +35	<19	yes	3h	300
060341.5L07B.351	ED	36	4450	124	4000	≥80	0 ... +35	<19	yes	3h	300

Compare selected

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
