LUGCLASSIC SQUARE LED n/t

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants

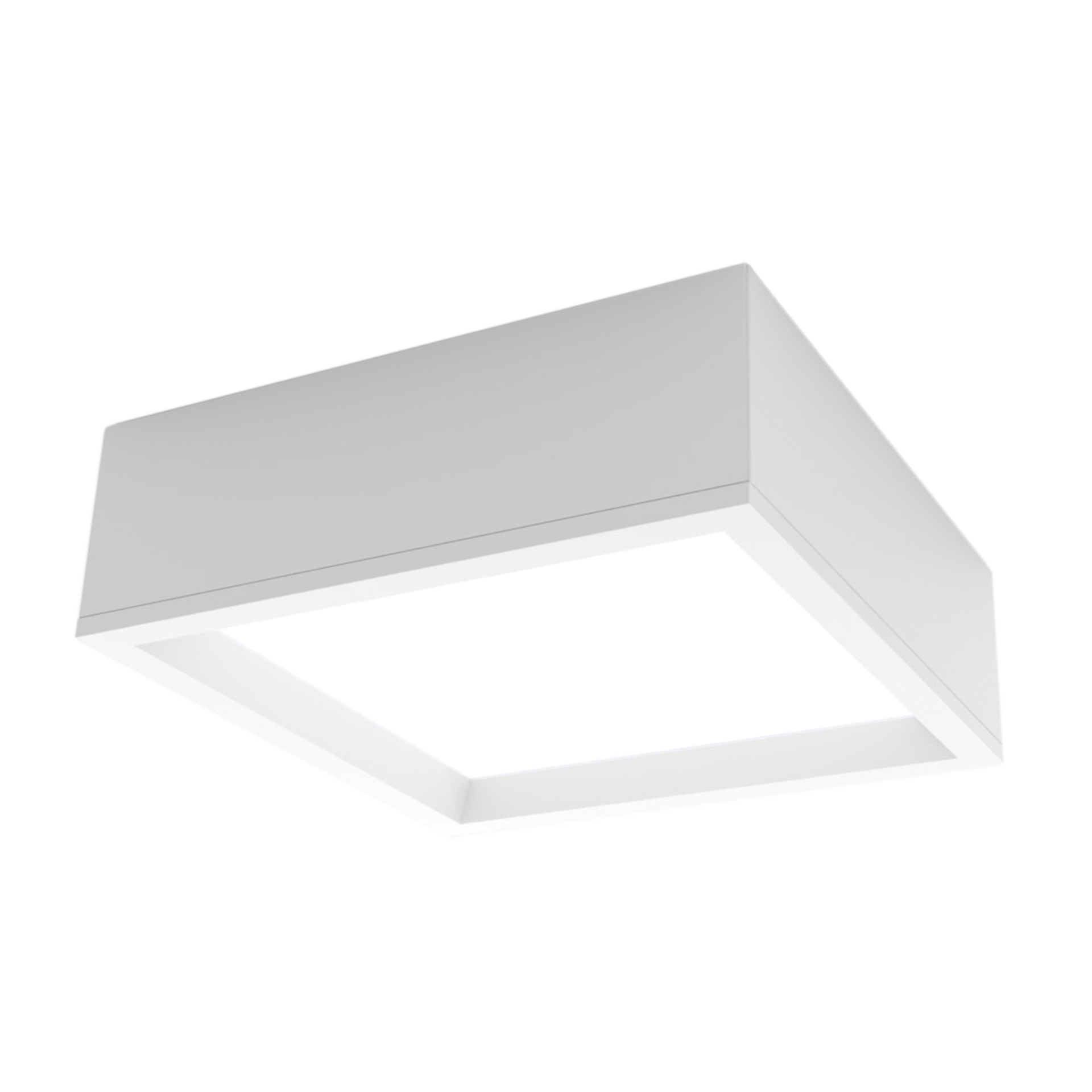

LUGCLASSIC SQUARE LED n/t
Modern surface mounted luminaire for LED light sources.



High efficacy to 111 lm/W
Maintenance-free operation
Universal design

Application

classrooms, conference rooms, conference rooms, hotels, offices, public utility facilities

Available on request

DALI

Luminous flux range

2200 - 7300 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
directly on the ceiling
Body colour
white
Operating temperature range
0˚C ... +30˚C
RAL
9003
Body
powder-painted steel sheet

Electrical data

Power supply efficiency
≤84%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
21 - 67
Output current [mA]
350, 500, 700, 925, 1250
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
15 - 16
Maximum number of luminaires in the circuit with a 16A fuse (B)
24 - 26

Optical data

Way of lighting
direct
Diffuser
LOW-UGR microprismatic diffuser (MPRM), opal plexiglass (PLX)
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
2200 - 7300
Efficacy [lm/W]
100 - 111

General data

Lifetime L80B10
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
350x350x115 60 1 3.4
350x350x115 60 1 3.7
350x350x115 60 1 3.8
350x350x115 60 1 4
595x595x115 60 1 8.2
595x595x115 60 1 8.5
595x595x115 60 1 8.7
595x595x115 60 1 9.1
595x595x115 60 1 9.2
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
IK
IK06
IK07
IK09
Diffuser
LOW-UGR microprismatic diffuser (MPRM)
opal plexiglass (PLX)
Clear Filters
Compare Code Type of equipment IK Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Diffuser
060281.5L01.211 ED IK07 21 2200 105 3000 ≥80 opal plexiglass (PLX)
060281.5L01.212 ED IK06 21 2200 105 3000 ≥80 LOW-UGR microprismatic diffuser (MPRM)
060281.5L02.211 ED IK07 21 2300 110 4000 ≥80 opal plexiglass (PLX)
060281.5L02.212 ED IK06 21 2300 110 4000 ≥80 LOW-UGR microprismatic diffuser (MPRM)
060281.5L03.211 ED IK07 27 2900 107 3000 ≥80 opal plexiglass (PLX)
060281.5L03.212 ED IK06 27 2900 107 3000 ≥80 LOW-UGR microprismatic diffuser (MPRM)
060281.5L04.211 ED IK07 27 3000 111 4000 ≥80 opal plexiglass (PLX)
060281.5L04.212 ED IK06 27 3000 111 4000 ≥80 LOW-UGR microprismatic diffuser (MPRM)
060281.5L05.211 ED IK07 35 3600 103 3000 ≥80 opal plexiglass (PLX)
060281.5L05.212 ED IK06 35 3600 103 3000 ≥80 LOW-UGR microprismatic diffuser (MPRM)
Compare selected
Shown 10 / 20
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products

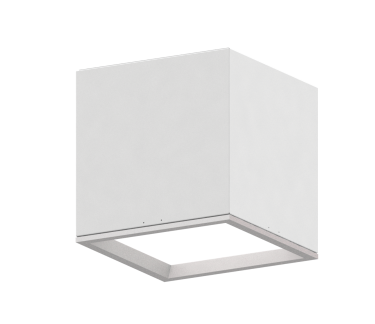

LUGCLASSIC SQUARE LED n/t 350
Modern surface mounted luminaire for LED light sources. Color change to RAL 7016 and body height to 350mm.
View
