LUGCLASSIC TUNABLE WHITE

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

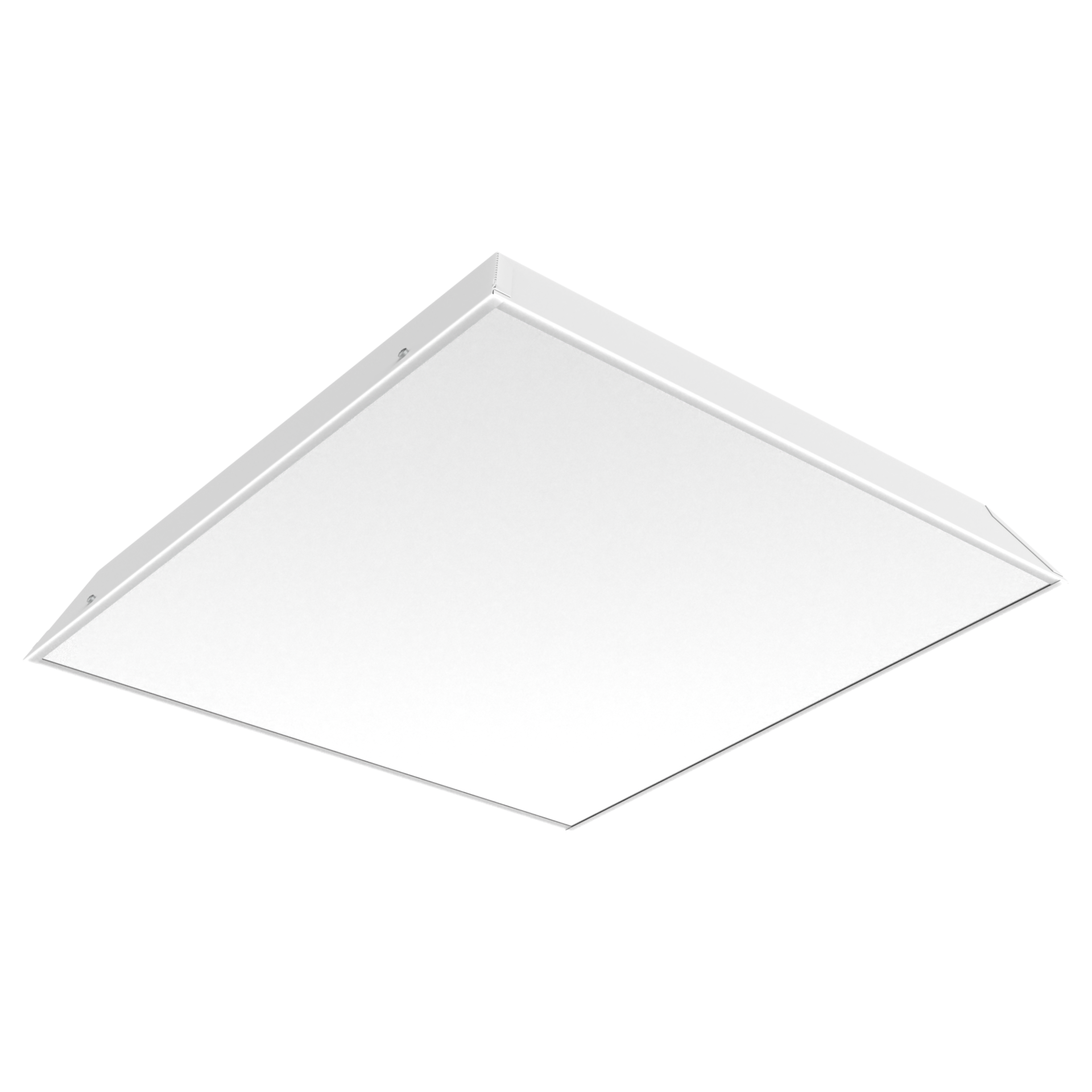

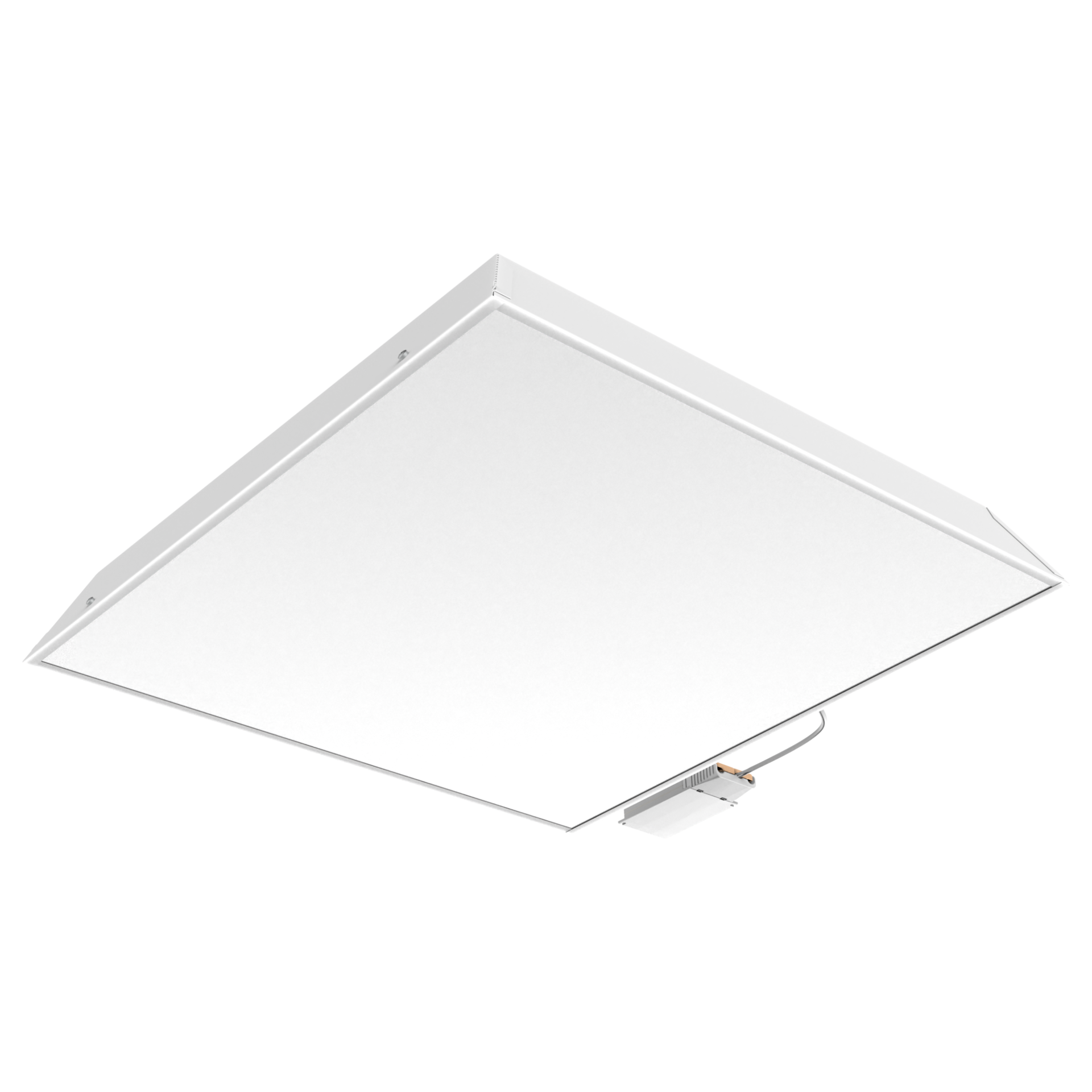

LUGCLASSIC TUNABLE WHITE
A luminaire with an LED source using Tunable White technology, which allows the colour temperature to be adjusted from warm to cold white light. The colour temperature adjusted to people's diurnal rhythm together with the right light intensity improves our mood and affects our efficiency. Especially recommended for offices, schools, universities and medical facilities.



Maintenance-free operation
Dedicated LED light sources
Fast and easy mounting
Possible illuminance control
Colour temperature control system available
Well thought-out installation concept

Application

auditorium, classrooms, galleries, offices

Luminous flux range

3000 - 5250 [lm]

Variable color temperature

2700 - 6500 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Detail
white
Operating temperature range
0 ... +40
RAL
9003
Body
powder-painted steel sheet

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
23 - 42
Output current [mA]
350 - 1050
Type of equipment
DALI
Maximum number of luminaires in the circuit with a 10A fuse (B)
22
Maximum number of luminaires in the circuit with a 16A fuse (B)
36

Optical data

Way of lighting
direct
Diffuser
opal matt (PMMA)
Colour temperature [K]
2700 - 6500
CRI/Ra
≥90
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
3000 - 5250
Photobiological risk group
RG0

General data

Other remarks
control system available to order separately
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW Pallet quantity Quantity in package Net weight [kg]
595x595x80 600x600 40 1 3.7
X

Available variants

Code
Luminaire power [W]
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Colour temperature [K] CRI/Ra Operating temperature range
060361.3L01.311 DALI 23 3000-3100 2700 - 6500 ≥90 0 ... +40
060361.3L02.311 DALI 33 4200-4300 2700 - 6500 ≥90 0 ... +40
060361.3L03.311 DALI 42 5150-5250 2700 - 6500 ≥90 0 ... +40
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150210.00605
Mounting frame for plasterboard ceilings 595x595 (mounting hole 615x615)
150231.00964
Mounting frame for surface mounting of the recessed LUGCLASSIC LB LED 595x595 (frame size: 635x635)
