OFFICE FLOW LED
Modern luminaire for modular ceilings for LED light sources.



High efficacy to 105 lm/W

Application

auditorium, classrooms, offices

Luminous flux range

4200 - 5200 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

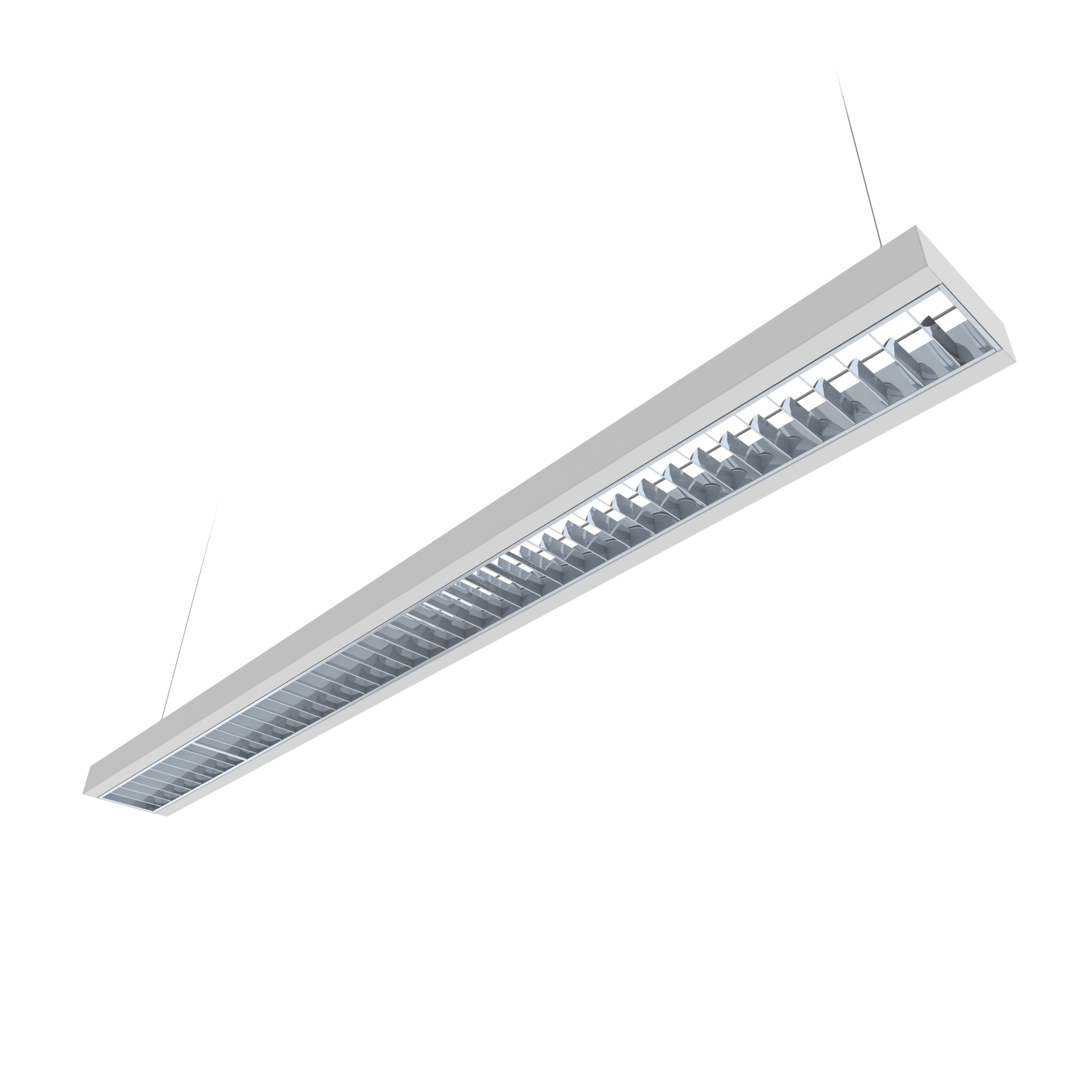

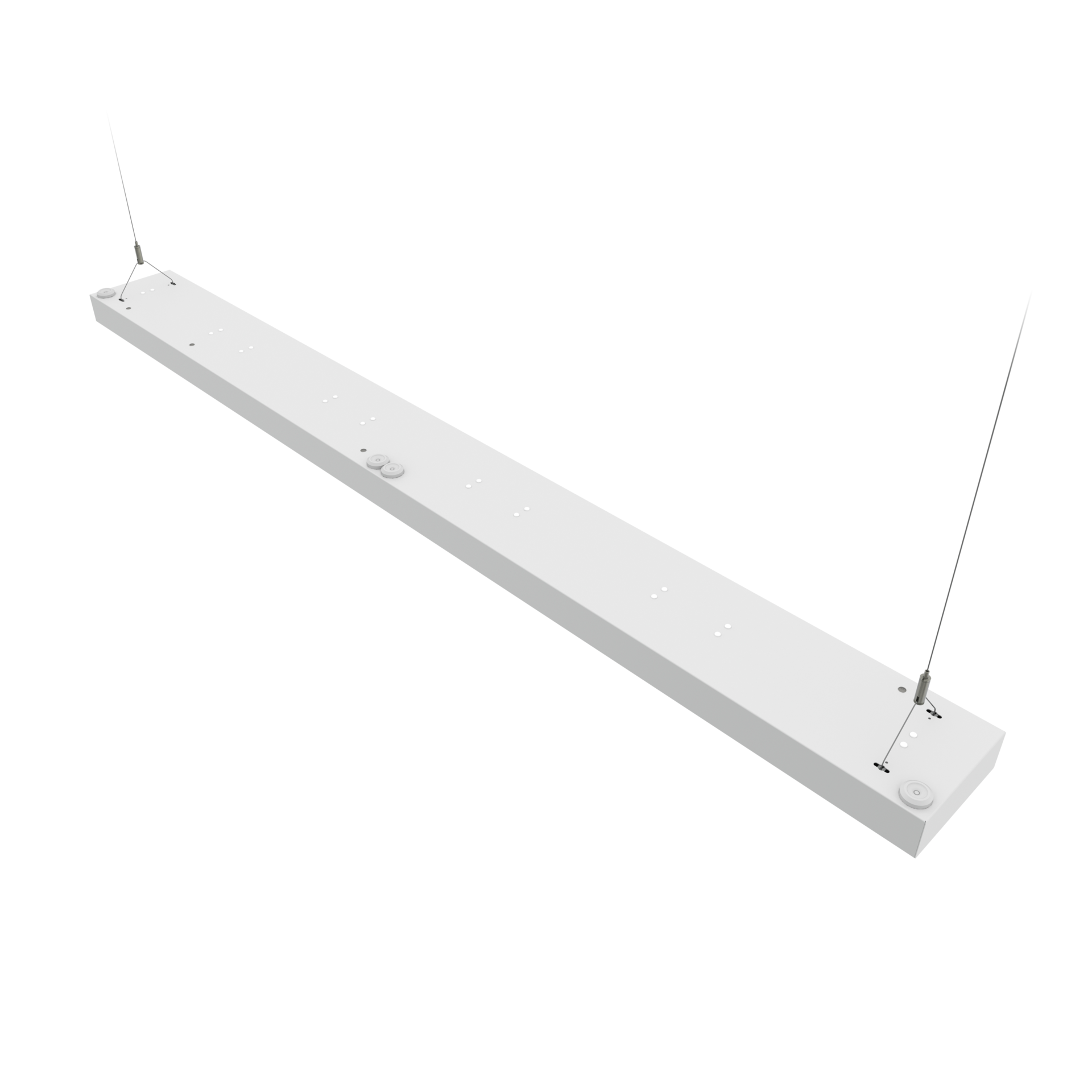

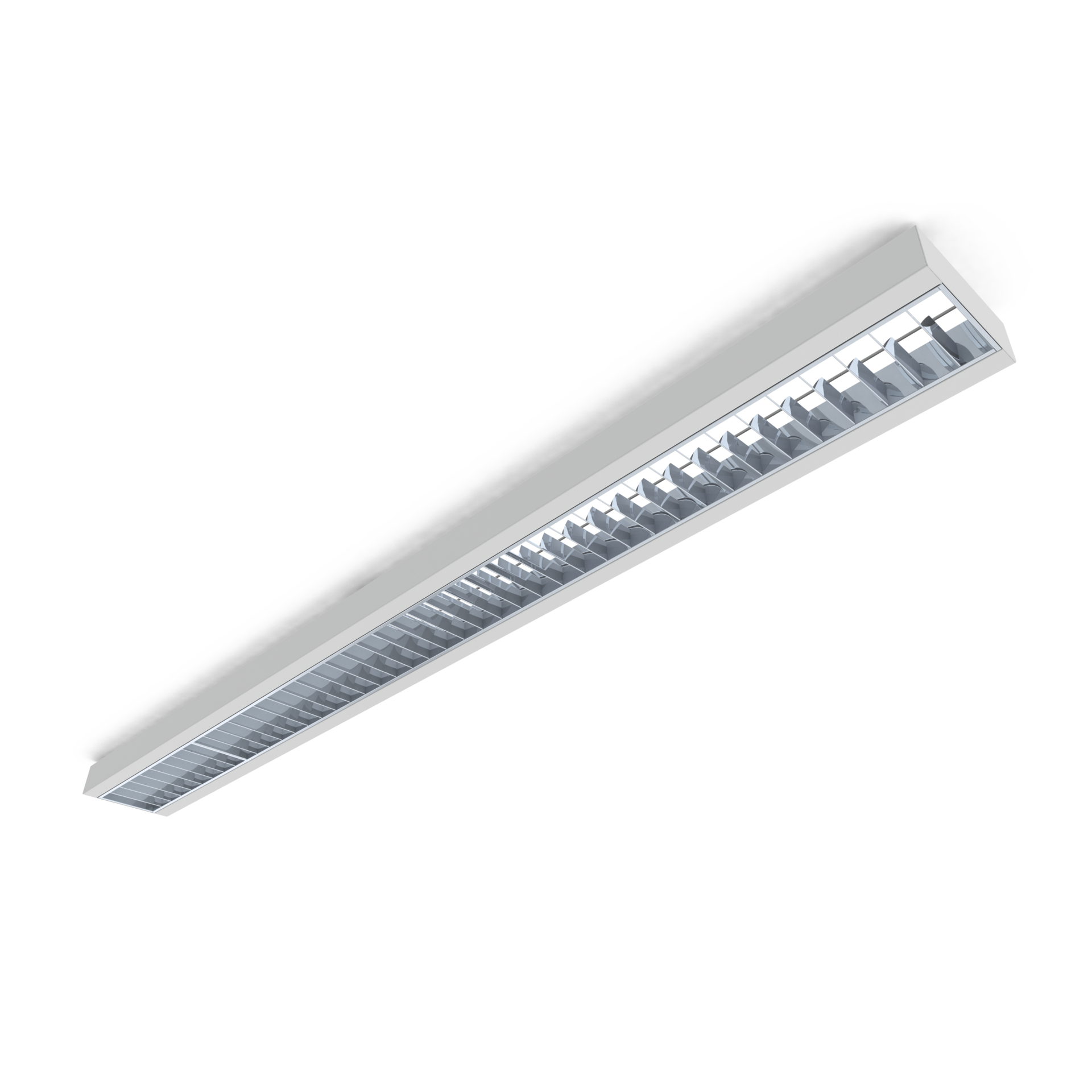

directly in the ceiling construction, directly on the ceiling, on wire suspension (on request), with mounting brackets (on request)
Body colour
white
Operating temperature range
0˚C ... +40˚C
RAL
9003
Body
powder-painted steel sheet

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
40 - 51
Type of equipment
DALI, ED

Optical data

Way of lighting
direct
Louver
aluminum mat
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
4000
CRI/Ra
≥80
Lumen luminaire [lm]
4200 - 5200
Efficacy [lm/W]
102 - 105

General data

Additional information
RAL 9003 matte
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
1168x142x48 30 1 5.8
1468x142x48 30 1 6.1
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
060351.3L01.211 DALI 40 4200 105 4000 ≥80
060351.3L02.212 DALI 51 5200 102 4000 ≥80
060351.5L01.211 ED 40 4200 105 4000 ≥80
060351.5L02.212 ED 51 5200 102 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150231.01077
Mounting frame for recessed mounting of OFFICE FLOW LED 1195x145 (frame size: 1200x150)
150231.01078
Mounting frame for recessed mounting of OFFICE FLOW LED 1495x145 (frame size: 1500x150)
150230.01079

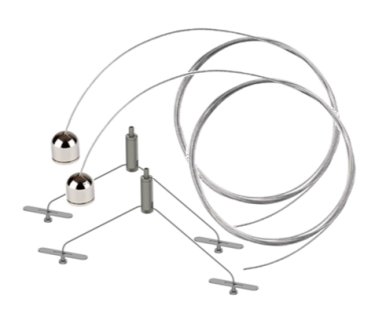

Y-type suspension - set (2 pcs)
