ARCHILINE 2.35 WALL

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact

Other parameters available View variants

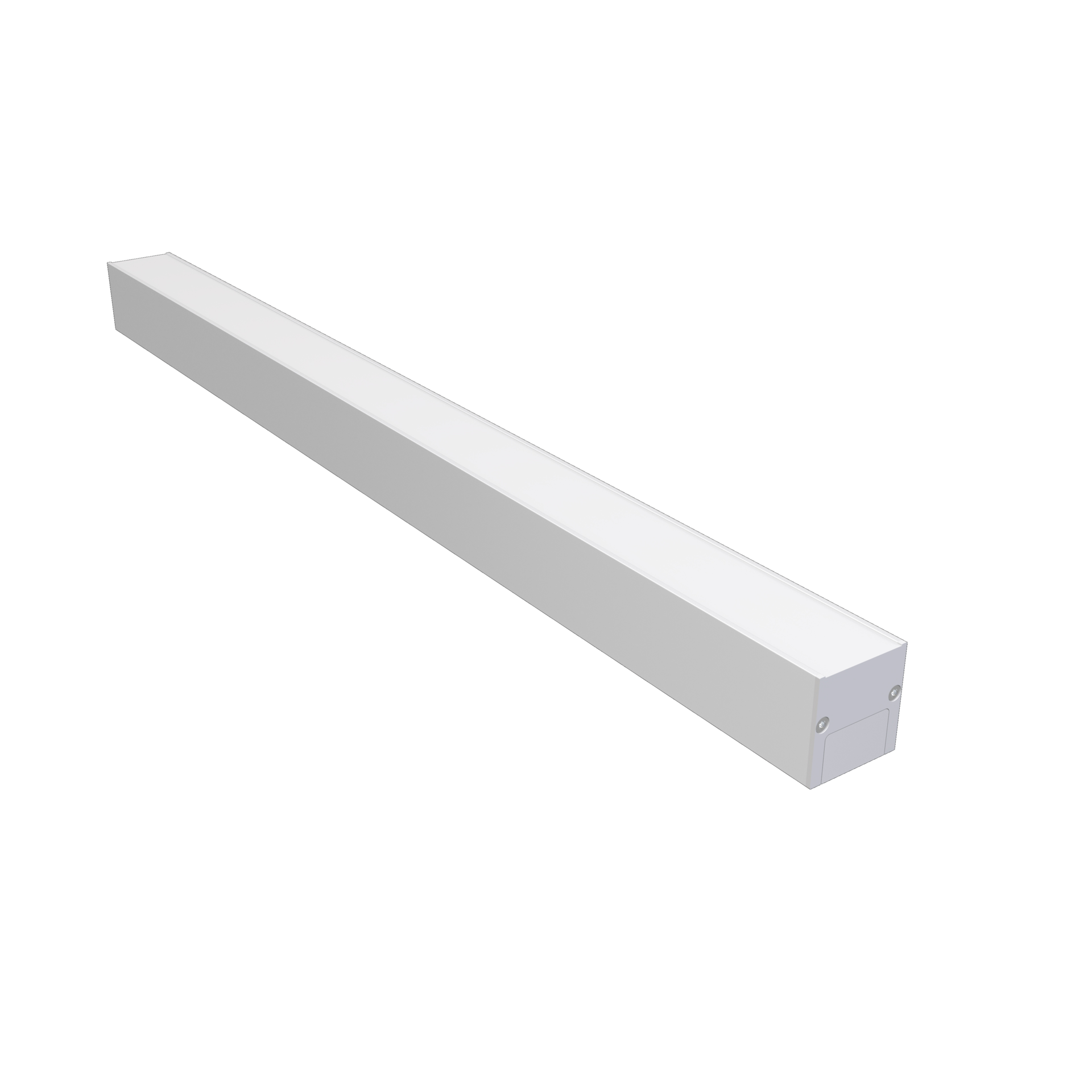

ARCHILINE 2.35 WALL

Architectural luminaire for LED light sources dedicated to wall and ceiling mounting.

High efficacy to 148 lm/W

Increased weather resistance

The ideal luminaire for tough working conditions

Dedicated LED light sources

Maintenance-free operation

Fast and easy mounting

Application

Railway stations, avenues, corridors, cycle paths, exhibitions, galleries, halls, promenade, residential, shopping centers

Luminous flux range

850 - 2350 [lm]

Variable color temperature

3000 - 4300 [K]

Mechanical data

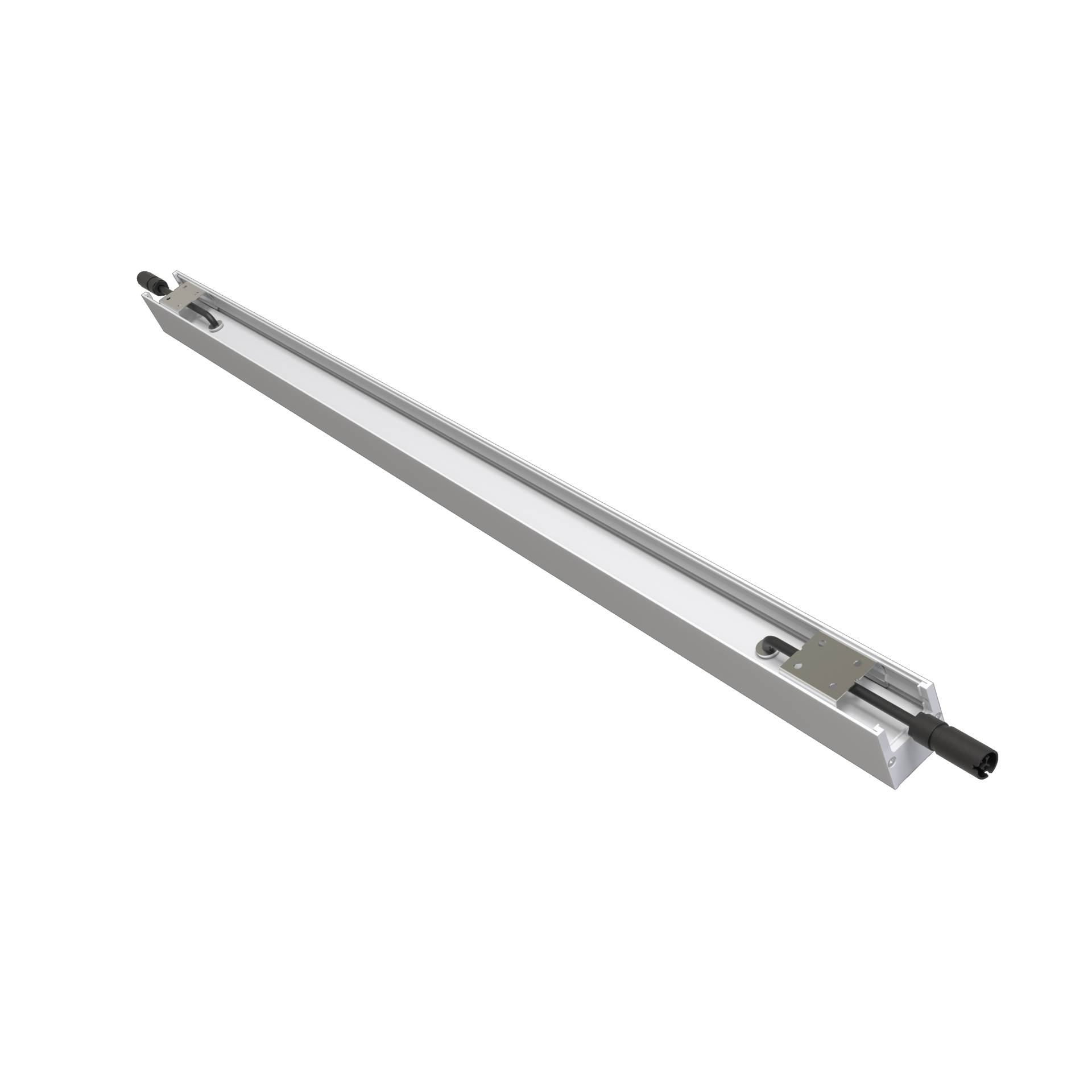

Mounting

with mounting brackets (included)

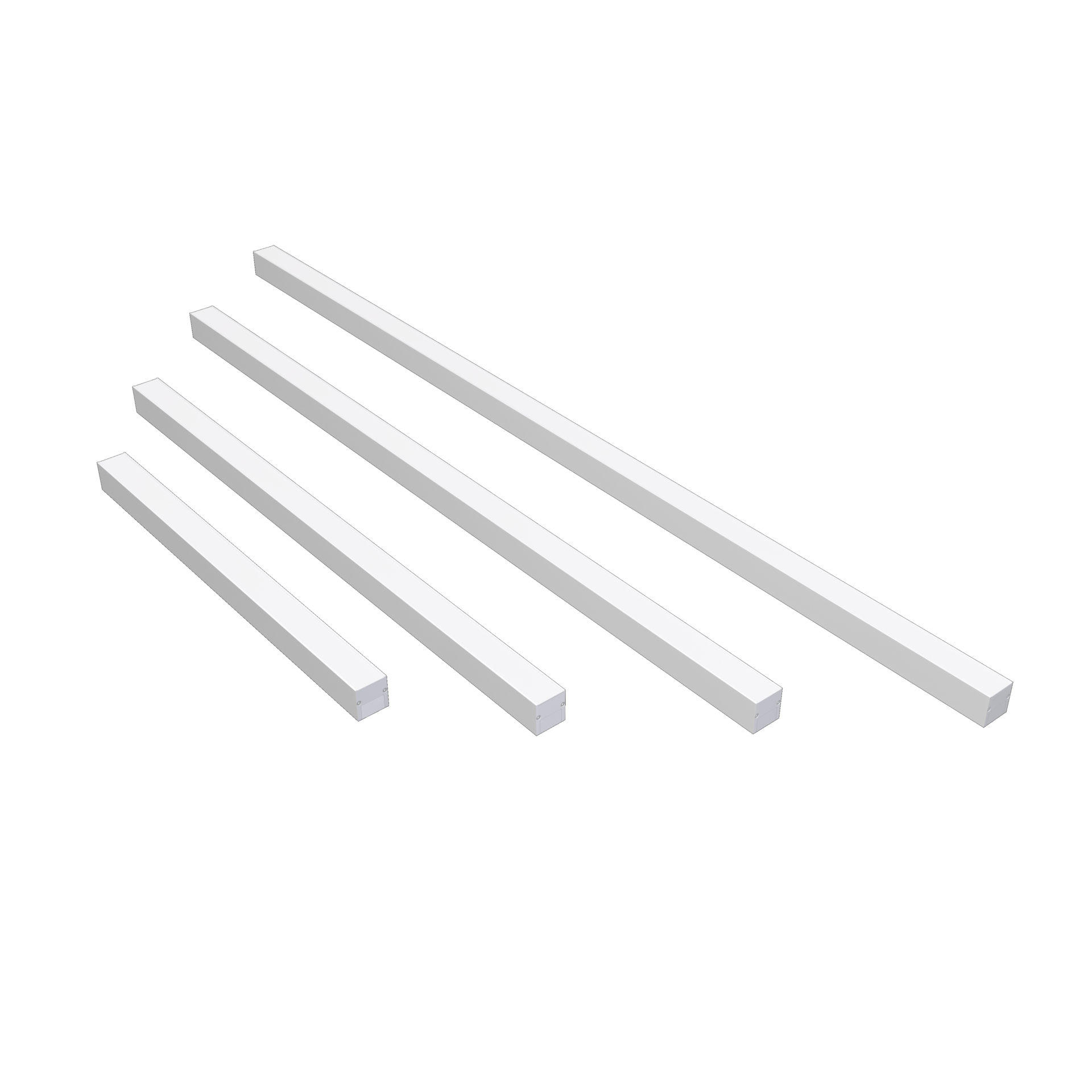

Length [mm]

600, 900, 1200, 1500

Body colour

white

RAL

9016

Body

extruded aluminum

Electrical data

Power

24V DC

Includes light source

yes

Luminaire power [W]

6.4 - 16.2

Output current [mA]

270, 405, 540, 675

Type of equipment

on request

Optical data

Way of lighting

direct

Diffuser

polyurethane resin

Colour temperature [K]

3000, 4300

CRI/Ra

MacAdam's steps

ULOR / DLOR

100/0

Lumen luminaire [lm]

850 - 2350

Efficacy [lm/W]

128 - 148

Photobiological risk group

RG0

Number of LEDs

120, 180, 240, 300

General data

Additional information

Safe power supply with low voltage SELV

Other remarks

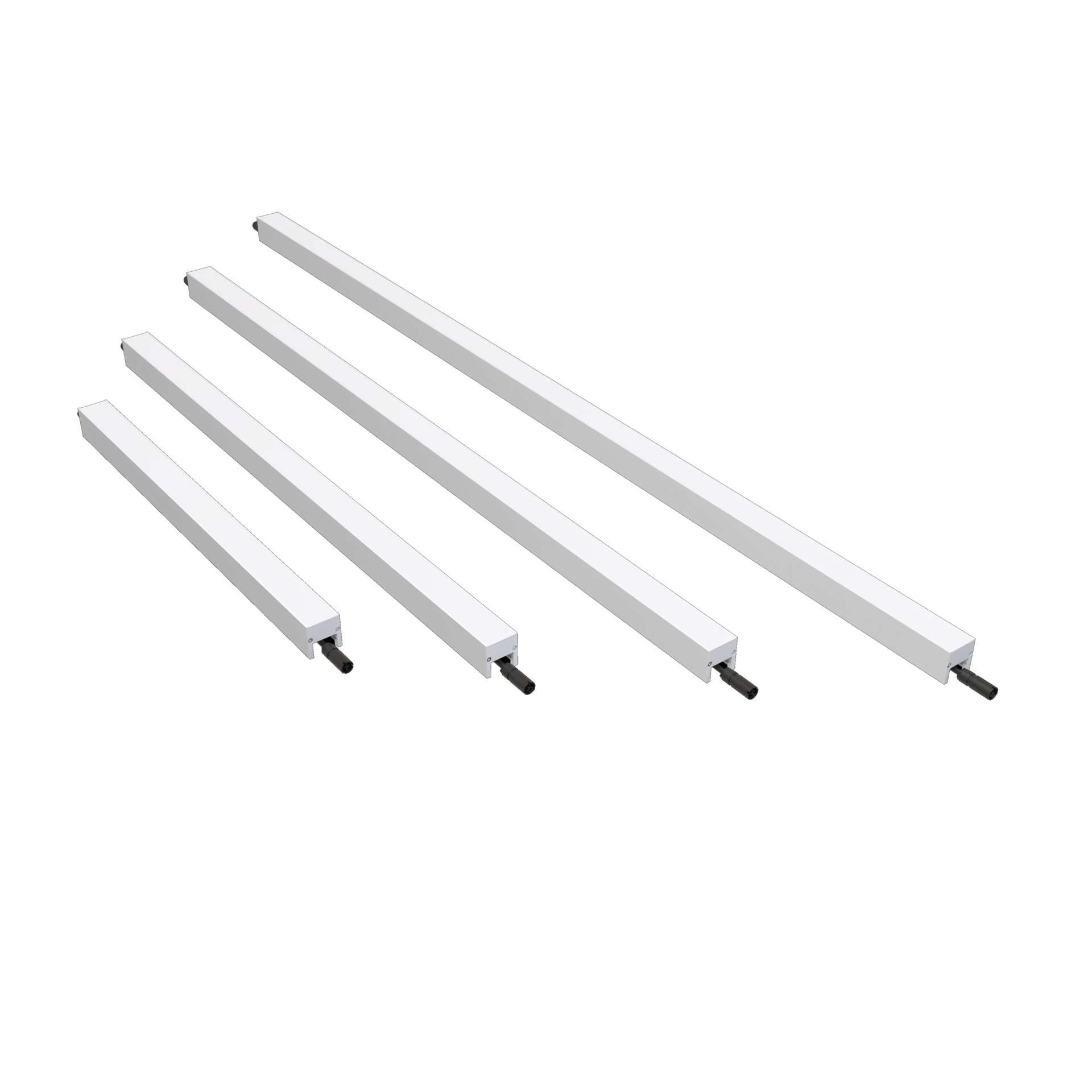

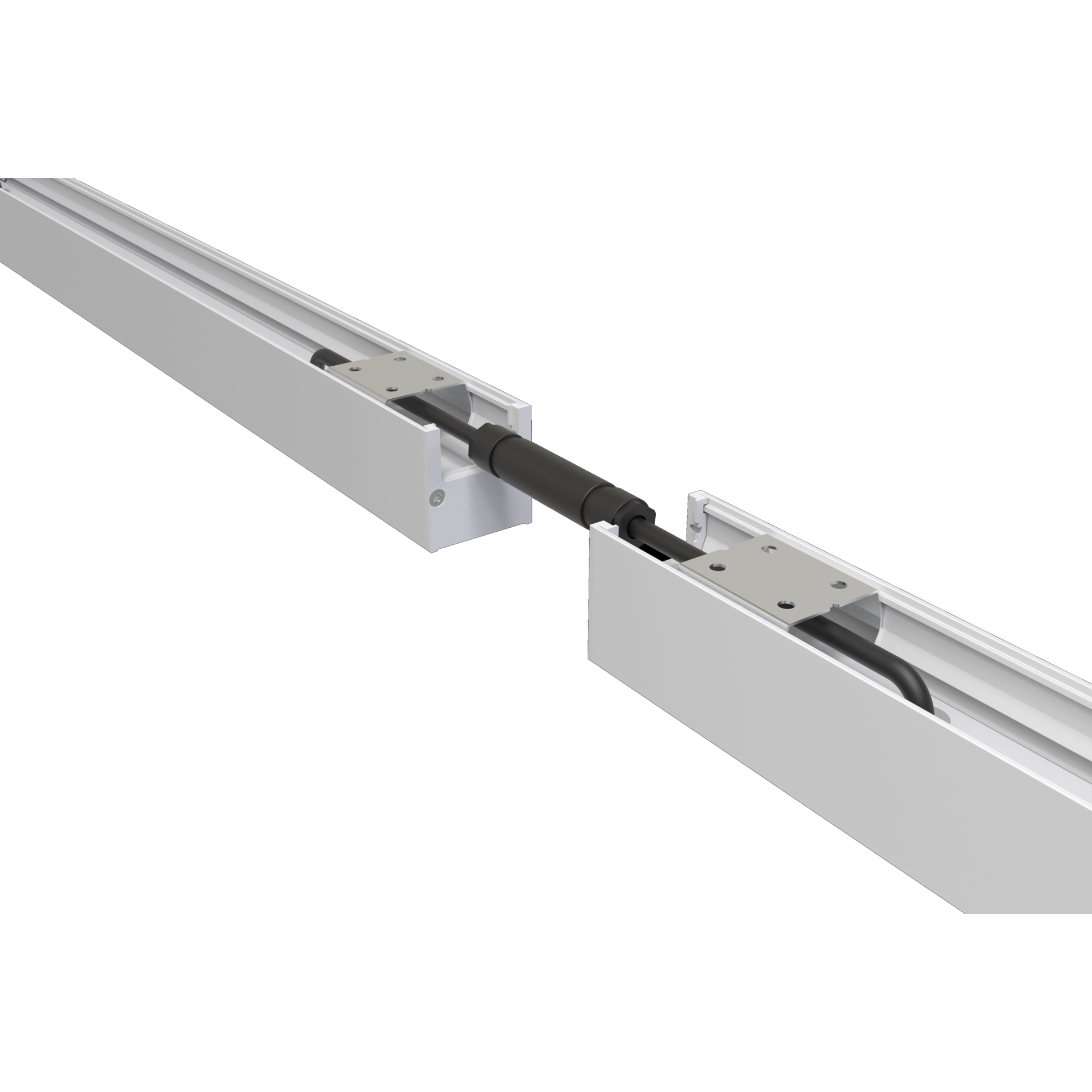

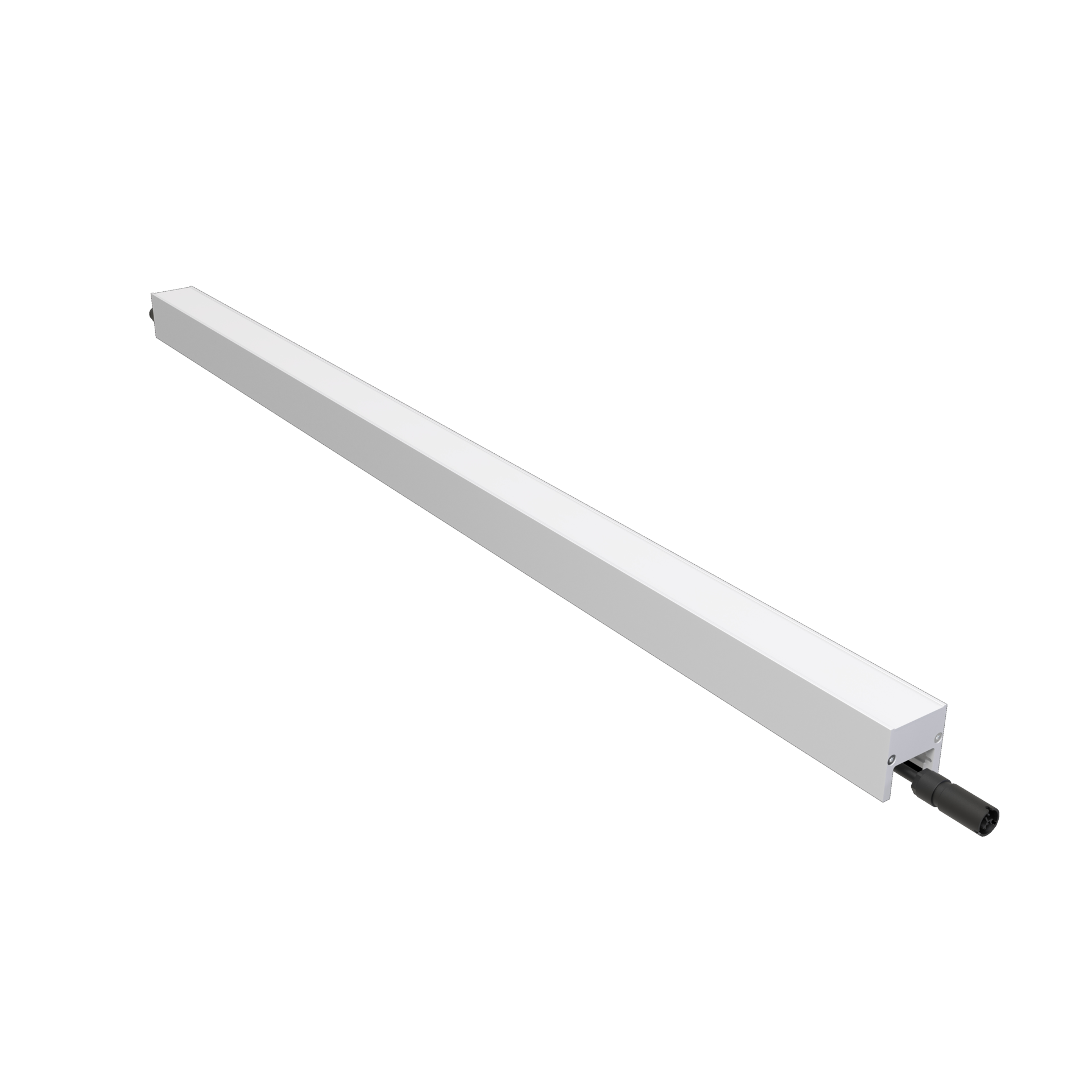

dedicated connector with pin protection inside the connector IP68

Lifetime L80B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Mounting dimensions [mm] LxW	Pallet quantity	Quantity in package	Net weight [kg]
600x40x42	600x40	238	1	1
900x40x42	900x40	170	1	1.4
1200x40x42	1200x40	170	1	1.9
1500x40x42	1500x40	170	1	2.4

Available variants

Code	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra
140751.0L01.120	on request	6,4	850	133	3000	80
140751.0L02.120	on request	6,4	950	148	4300	80
140751.0L03.130	on request	9,8	1250	128	3000	80
140751.0L04.130	on request	9,8	1400	143	4300	80
140751.0L05.140	on request	12,8	1750	137	3000	80
140751.0L06.140	on request	12,8	1900	148	4300	80
140751.0L07.150	on request	16,2	2150	133	3000	80
140751.0L08.150	on request	16,2	2350	145	4300	80

Compare selected

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The proposed accessories are not an integral part of the luminaires in accordance with PN EN 60598-1.
It is not necessary to use the suggested power supplies.
Only power supplies that meet the requirements of SELV galvanic separation, 24V DC output voltage and are properly selected in terms of power should be used to power the luminaire.
Colour temperature tolerance +/- 5%.
