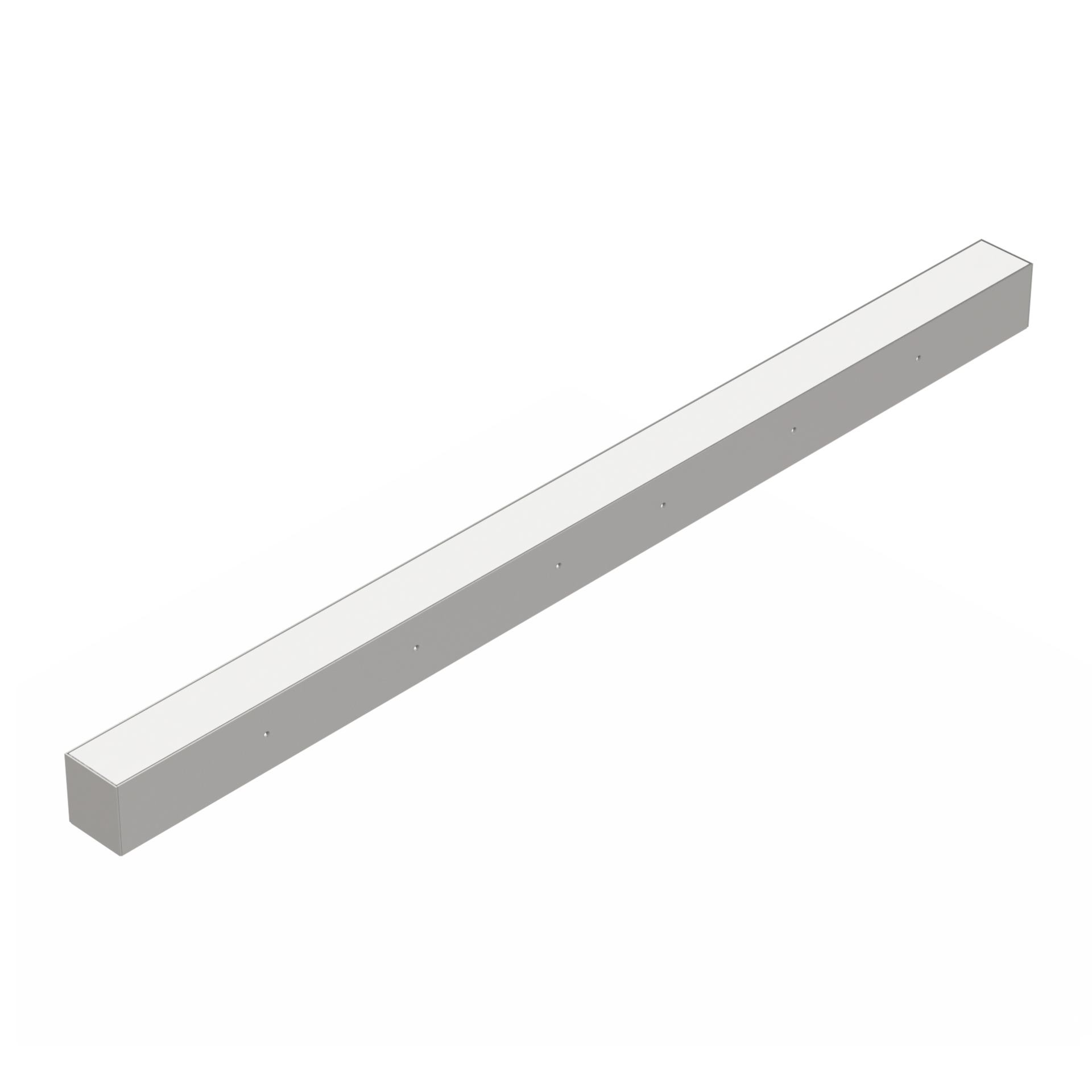

ARCHILINE GROUND LED
Modern architectural luminaire for LED light sources, for mounting in the ceiling and in the wall.



Increased weather resistance

Application

Railway stations, building facades, pathways, shopping centers, staircases

Available on request

DALI

Luminous flux range

400 - 1250 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
in the ceiling, in the wall
Body colour
gray
Operating temperature range
-40 ... +50
Body
aluminum profile
Type
Version with a width of 18 mm

Electrical data

Power
24V DC
Includes light source
yes
Luminaire power [W]
12 - 24
Type of equipment
ED

Optical data

Way of lighting
direct
Colour temperature [K]
4000
CRI/Ra
>80
Lumen luminaire [lm]
400 - 1250
Efficacy [lm/W]
33 - 52

General data

Additional information
mounting bracket included, SELV low voltage supply
Lifetime L90B10
50 000 h (ED); 43 000 h (DALI)
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
611x68x77 60 1 4.5
1215x68x77 60 1 8
1808x68x77 60 1 12.5
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
900140.00194 ED 24 1250 52 4000 >80 -40 ... +50
900140.00195 ED 17 850 50 4000 >80 -40 ... +50
900140.00196 ED 12 400 33 4000 >80 -40 ... +50
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The proposed accessories are not an integral part of the luminaires in accordance with PN EN 60598-1.
It is not necessary to use the suggested power supplies.
Only power supplies that meet the requirements of SELV galvanic separation, 24V DC output voltage and are properly selected in terms of power should be used to power the luminaire.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
900150.00391

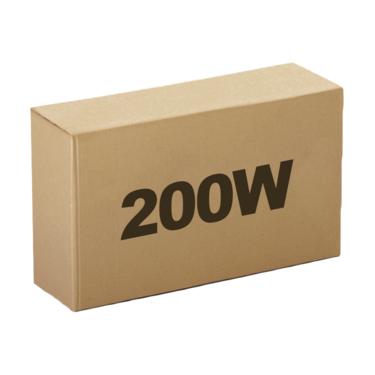

200W power supply + a set of connectors
900150.00427

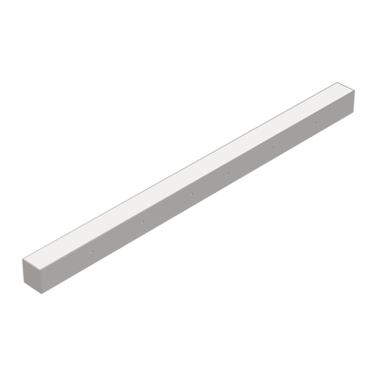

Mounting trough 1800
900150.00428
Mounting trough 1200
900150.00429
Mounting trough 600
150190.01034
Wire 2x0,75mm² PVC 100 meters
