GROUNDLINE 2.0 RGBW

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

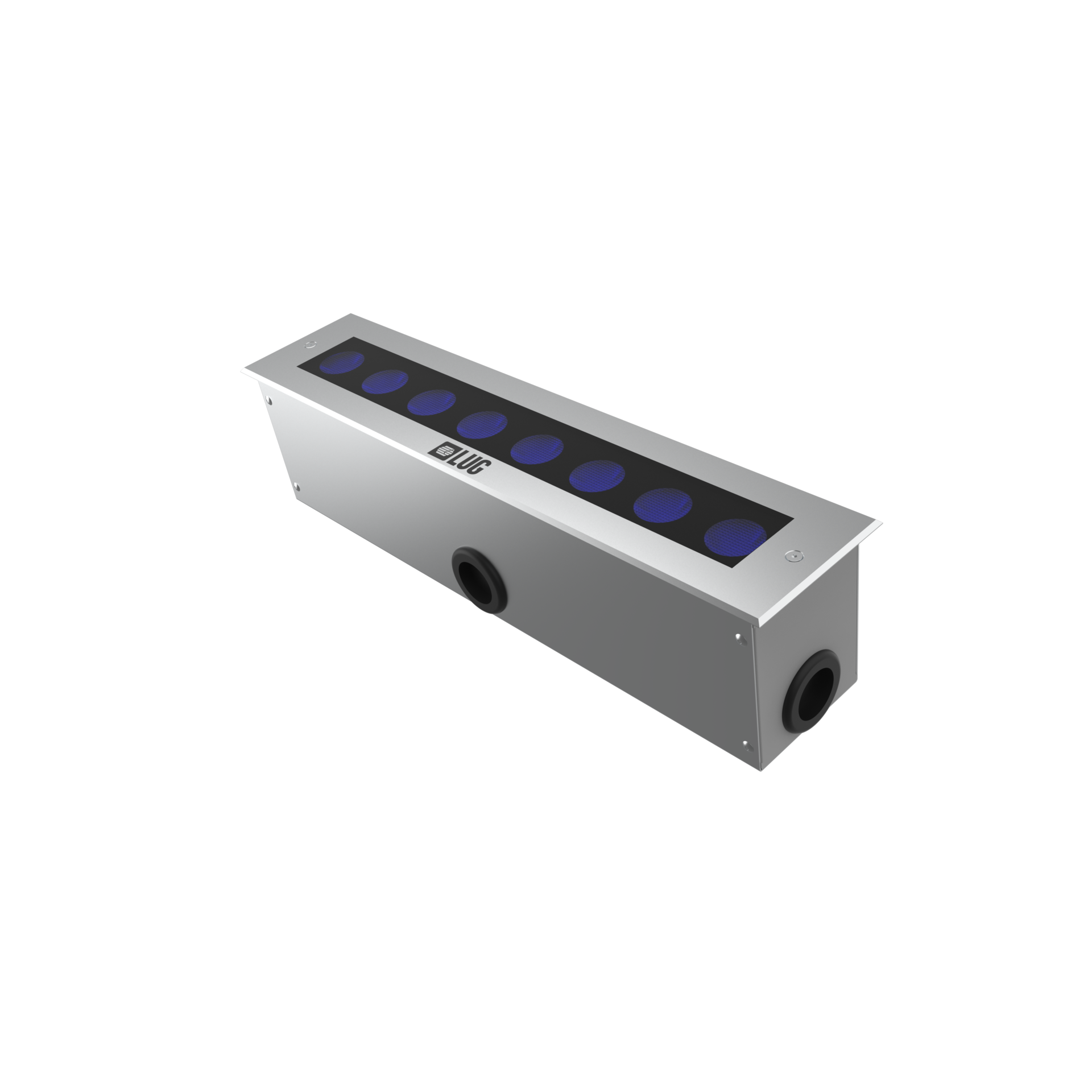

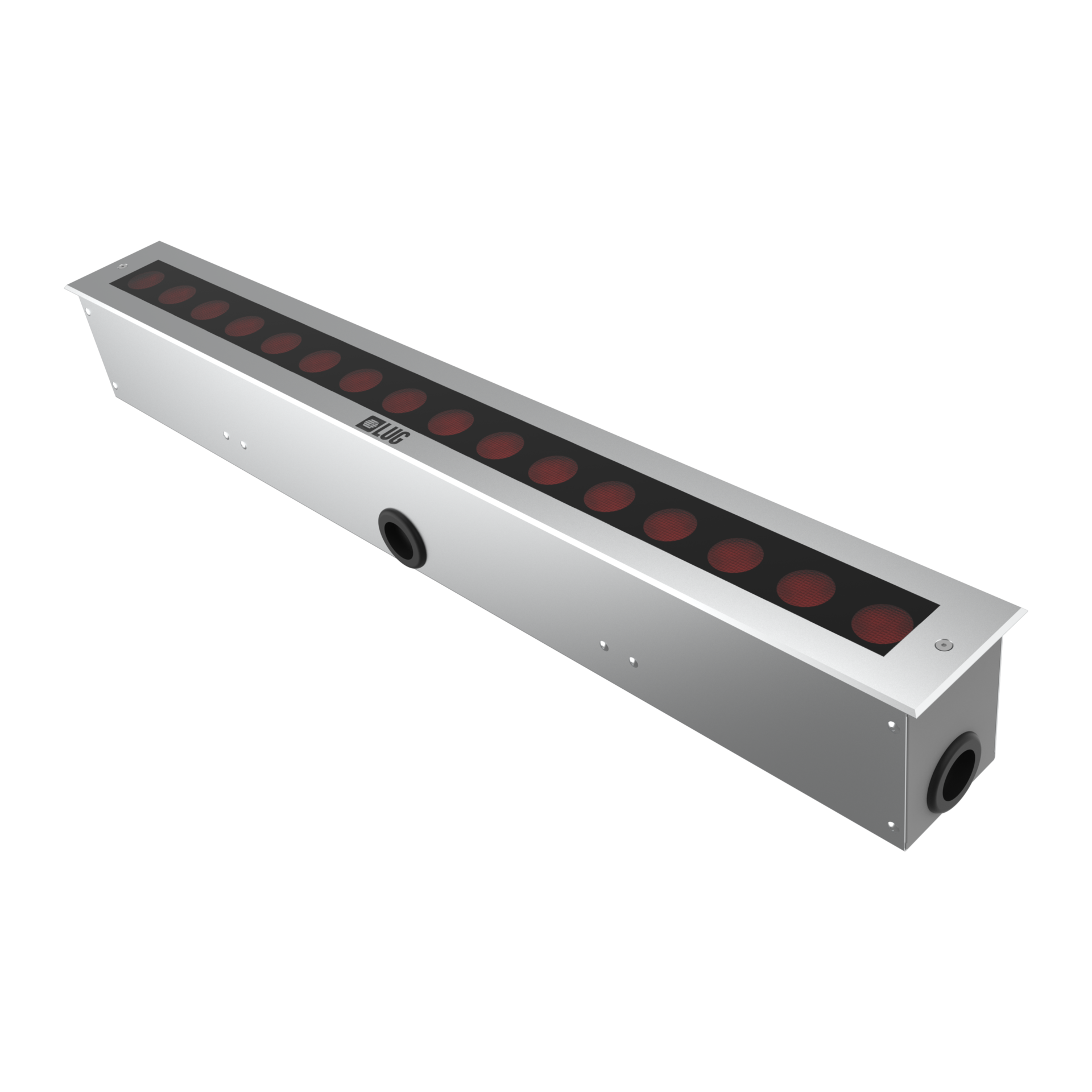

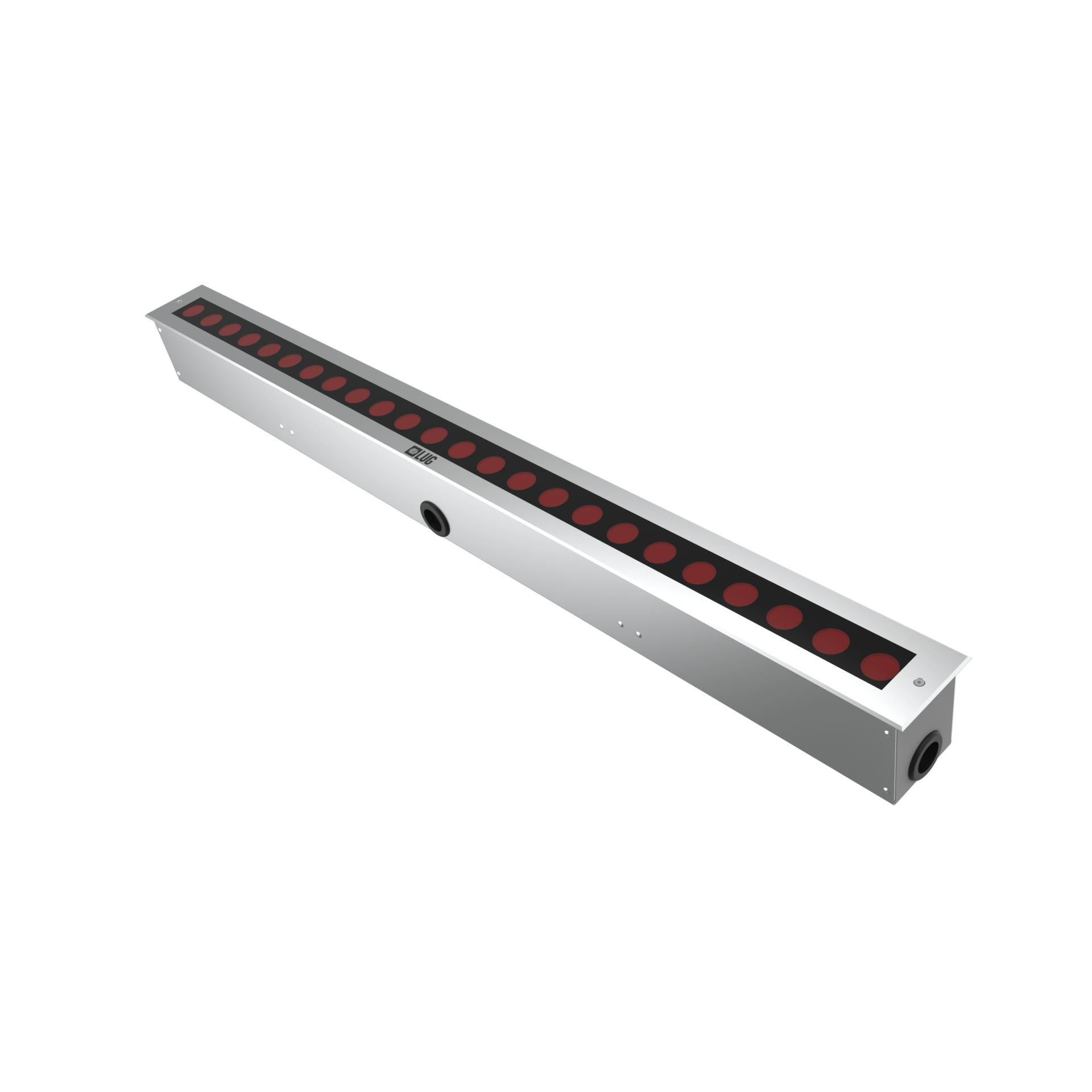

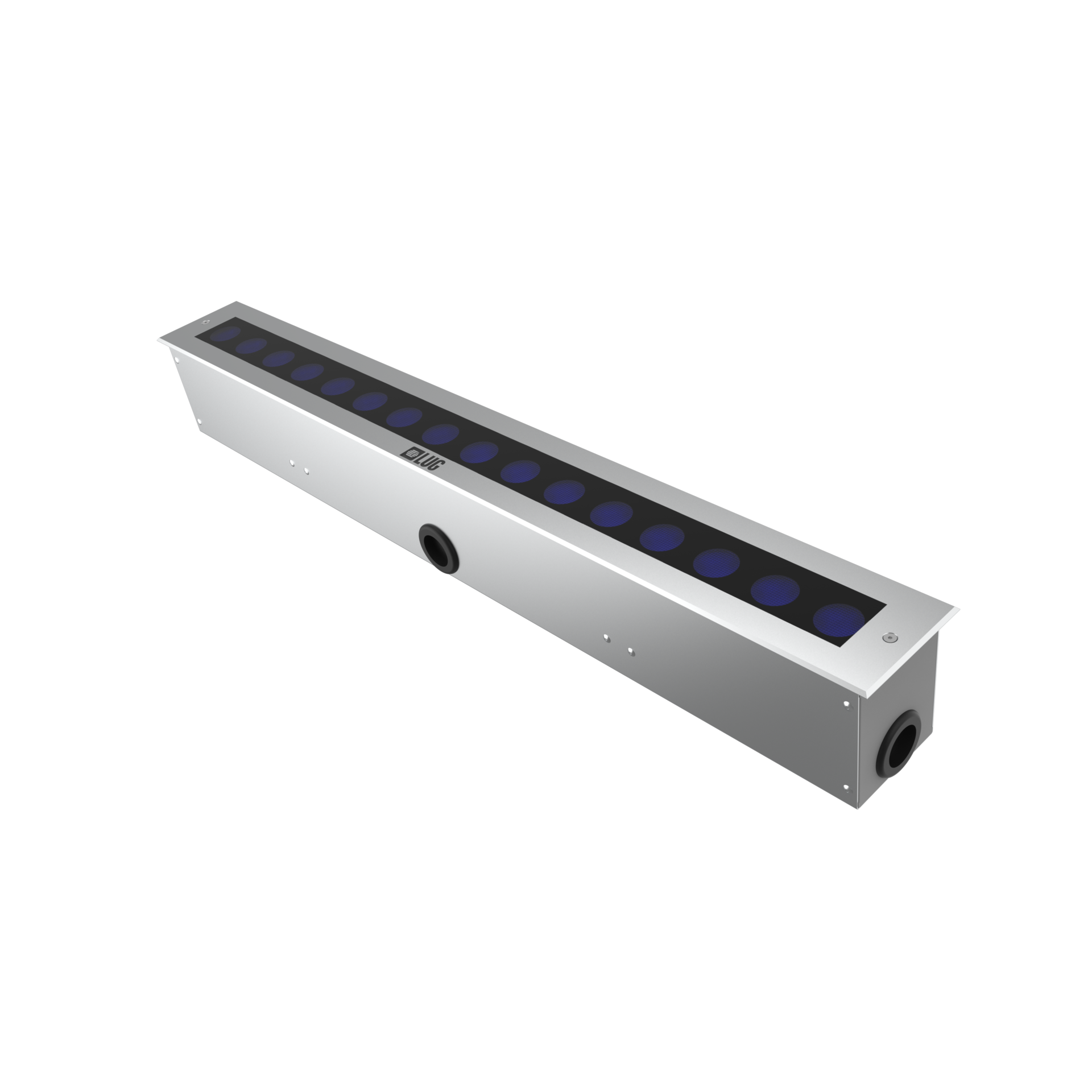

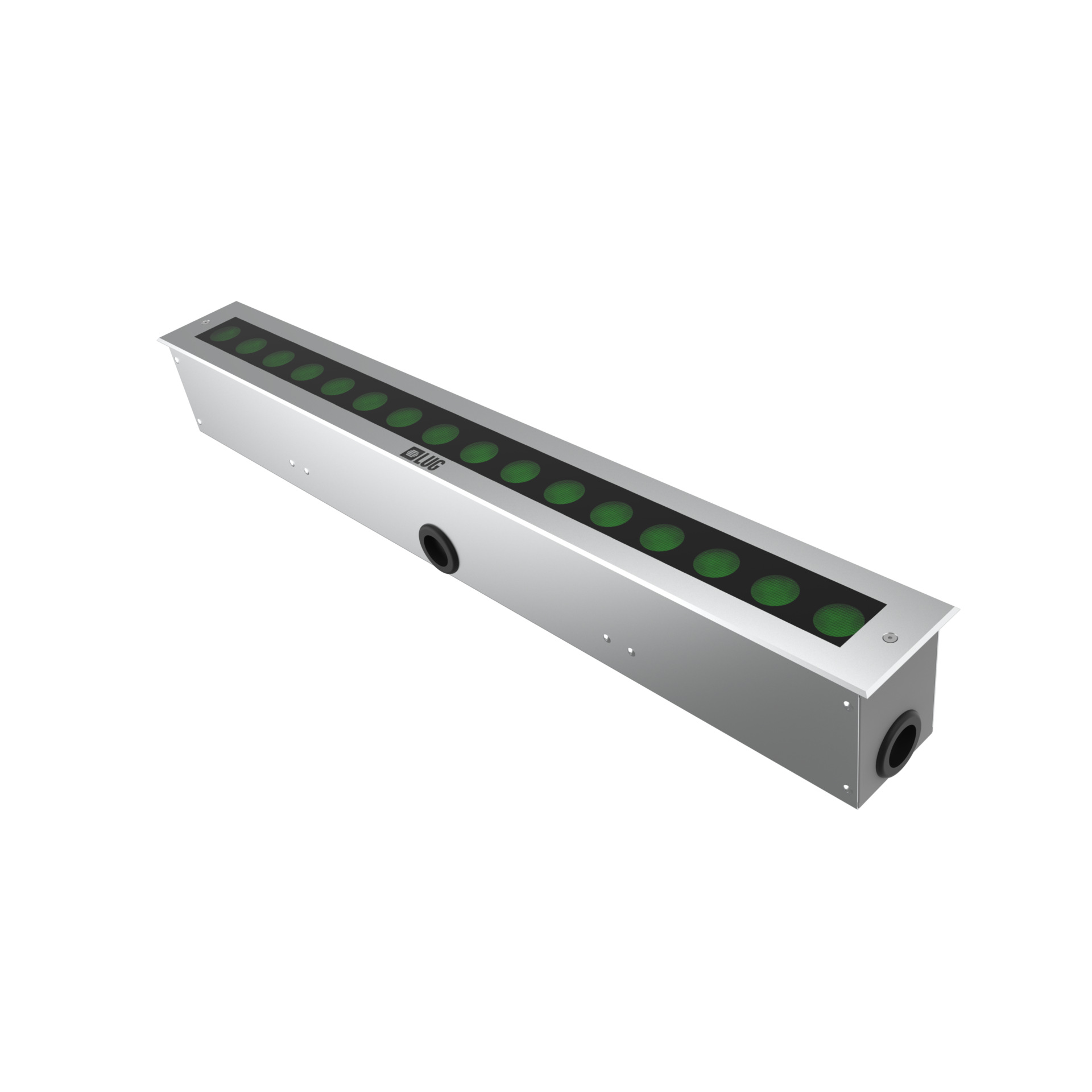

GROUNDLINE 2.0 RGBW
Decorative architectural luminaire, with high IP67 protection, impact-resistant, equipped with high-quality LED light sources 4in1 RGBW.



Maintenance-free operation
Dedicated LED light sources
Perfect combination of aesthetics and ergonomics
The ideal luminaire for tough working conditions
Classic elegance
Fast and easy mounting
Available in a variety of sizes
Perfect lighting for highlighting the architectural values of buildings
Increased weather resistance
Colour temperature control system available

Application

Railway stations, avenues, parks, public spaces

Luminous flux range

910 - 3070 [lm]

Variable color temperature

RGBW [K]

Mechanical data

Mounting
in the substrate
Body colour
inox
Detail
inox
Operating temperature range
'-25˚C ... +35˚C
Body
extruded aluminium, toughened glass, stainless steel sheet

Electrical data

Electrical connection
luminaire fitted with 2x2mm²; 2x0.35mm² cable, shielded, 35 cm long, WIELAND 5 pole RST16I5
Power
24V DC
Includes light source
yes
Luminaire power [W]
20 - 56.5
Type of equipment
DMX

Optical data

Light distribution
symmetric
Way of lighting
direct
Type of optic
lens
Colour temperature [K]
RGBW
Beam angle
20°, 30°x15°, 40°, 60°
CRI/Ra
80
MacAdam's steps
3
ULOR / DLOR
100/0
Lumen luminaire [lm]
910 - 3070
Efficacy [lm/W]
46 - 58
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
8, 16, 24

General data

Lifetime L70B10
60 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxWxH Pallet quantity Net weight [kg]
460x100x114 449x92x111 140 3.65
860x100x114 849x92x111 70 6.44
1260x100x114 1249x92x111 70 9.2
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
20°
30°x15°
40°
60°
Clear Filters
Compare Code Length [mm] Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
140800.9L01.001 DMX 20° 20 1020 51 RGBW 80 '-25˚C ... +35˚C
140800.9L01.003 DMX 40° 20 960 48 RGBW 80 '-25˚C ... +35˚C
140800.9L01.004 DMX 60° 20 910 46 RGBW 80 '-25˚C ... +35˚C
140800.9L01.006 DMX 30°x15° 20 970 49 RGBW 80 '-25˚C ... +35˚C
140800.9L02.001 DMX 20° 35.4 2040 58 RGBW 80 '-25˚C ... +35˚C
140800.9L02.003 DMX 40° 35.4 1920 54 RGBW 80 '-25˚C ... +35˚C
140800.9L02.004 DMX 60° 35.4 1830 52 RGBW 80 '-25˚C ... +35˚C
140800.9L02.006 DMX 30°x15° 35.4 1940 55 RGBW 80 '-25˚C ... +35˚C
140800.9L03.001 DMX 20° 56.5 3070 54 RGBW 80 '-25˚C ... +35˚C
140800.9L03.003 DMX 40° 56.5 2880 51 RGBW 80 '-25˚C ... +35˚C
Compare selected
Shown 10 / 12
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Mounting instruction
Accessories
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150200.01396
MODENA 2.0 RGBW Connector 5-pole socket

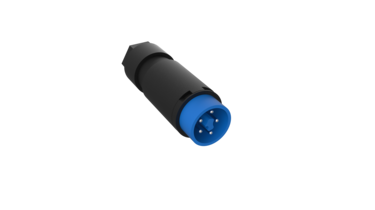

150200.01397
MODENA 2.0 RGBW Connector 5-pole plug
150200.01355
MODENA 2.0 RGBW DMX Terminator
150200.01398

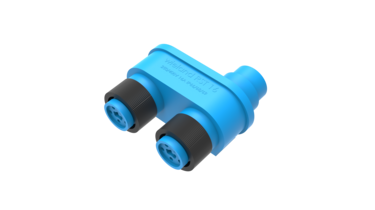

MODENA 2.0 RGBW 3x5-field splitter

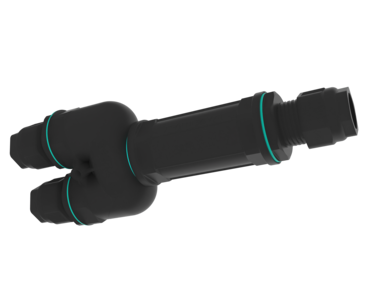

150200.01401
MODENA 2.0 RGBW triple connector
150203.01321
Splitter handle surface-mounted black
150200.01400
MODENA 2.0 RGBW Cable H07RN-F [2LIY2.0m²+(2LY0.35m²)
150200.01282
Stainless steel 90° adjustable bracket (set - 2 pcs.)
150190.01030
Power supply 40W 220..240/24V
150190.01031
Power supply 60W 220..240/24V
150190.01032
Power supply 100W 220..240/24V
150200.01194
Power supply 250W 200..240/24V
150200.01468
Controller DMX 64 DIN 35 Controller with 64 channels. Up to 16 RGBW luminaires can be connected. Has 8 programmes (32 scenes). For mounting on a 35mm DIN rail.
150200.01469
Controller DMX 128 DIN 35 Controller with 128 channels. Up to 32 RGBW luminaires can be connected. Has 512 programmes (251000 scenes). For mounting on a 35mm DIN rail.
150200.01470
Controller DMX 512 DIN 35 Controller with 512 channels. Up to 128 luminaires can be connected. Has 512 programmes (251000 scenes). For mounting on a 35mm DIN rail.
150200.01472
RDM controller Controller for addressing RGBW luminaires using the RDM protocol.
150200.01473
DMX 4CH DIN35 splitter Signal splitter for 4 independent branches. For mounting on a 35mm DIN rail.
150200.01474
DMX Splitter 3-PIN 4CH RACK 19’. Signal splitter for 4 independent branches. For mounting on a 19’ rack.
