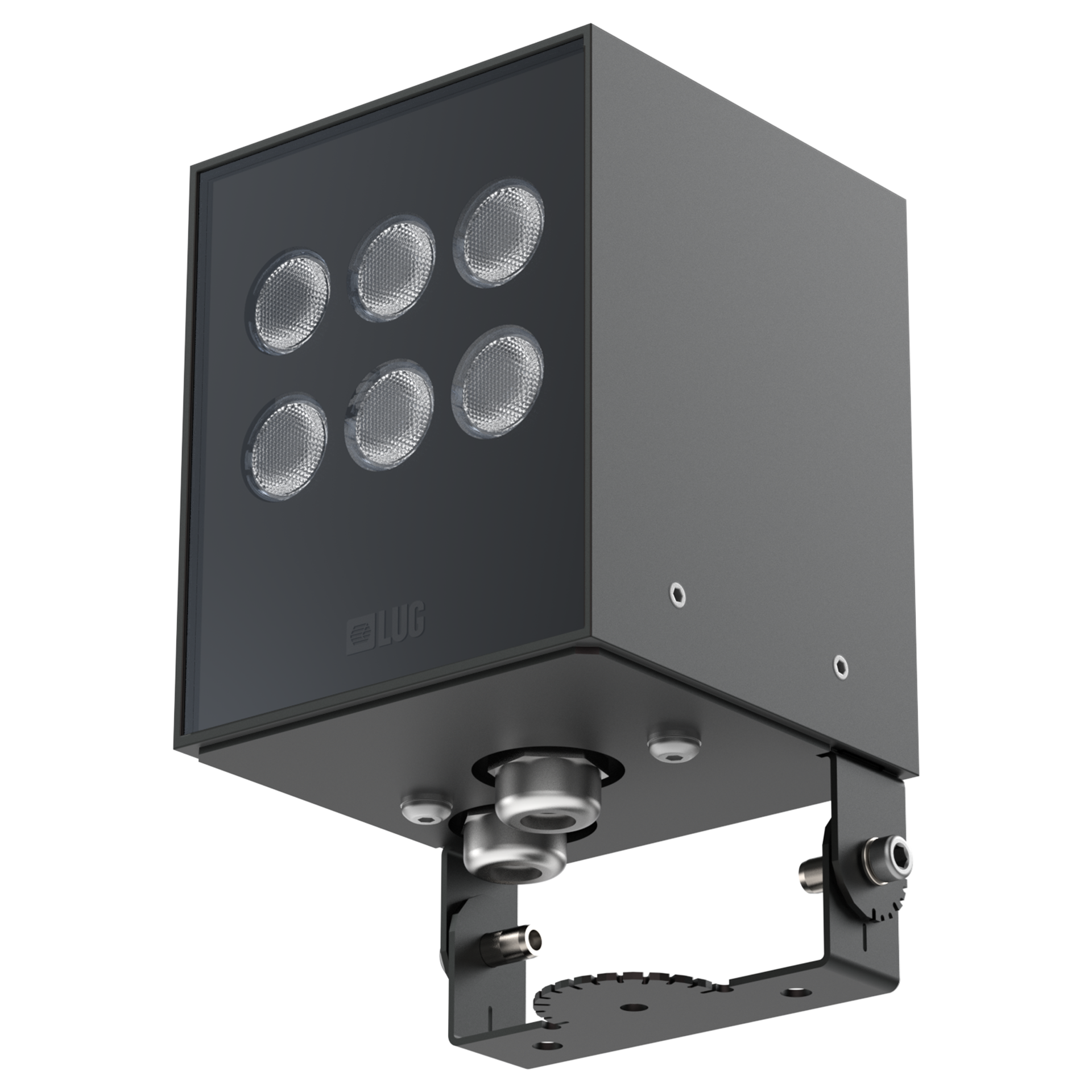

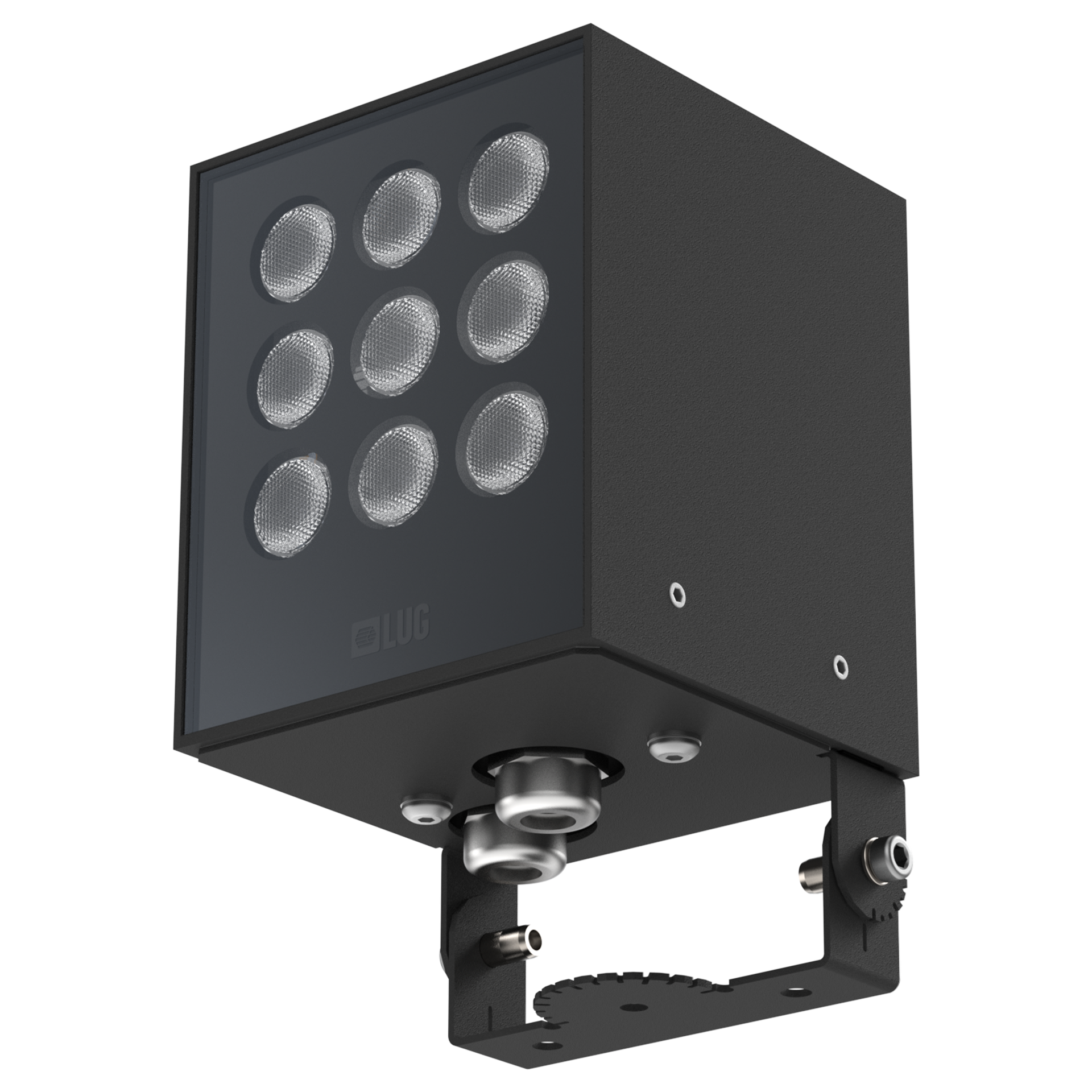

ICE CUBE 2.0 R

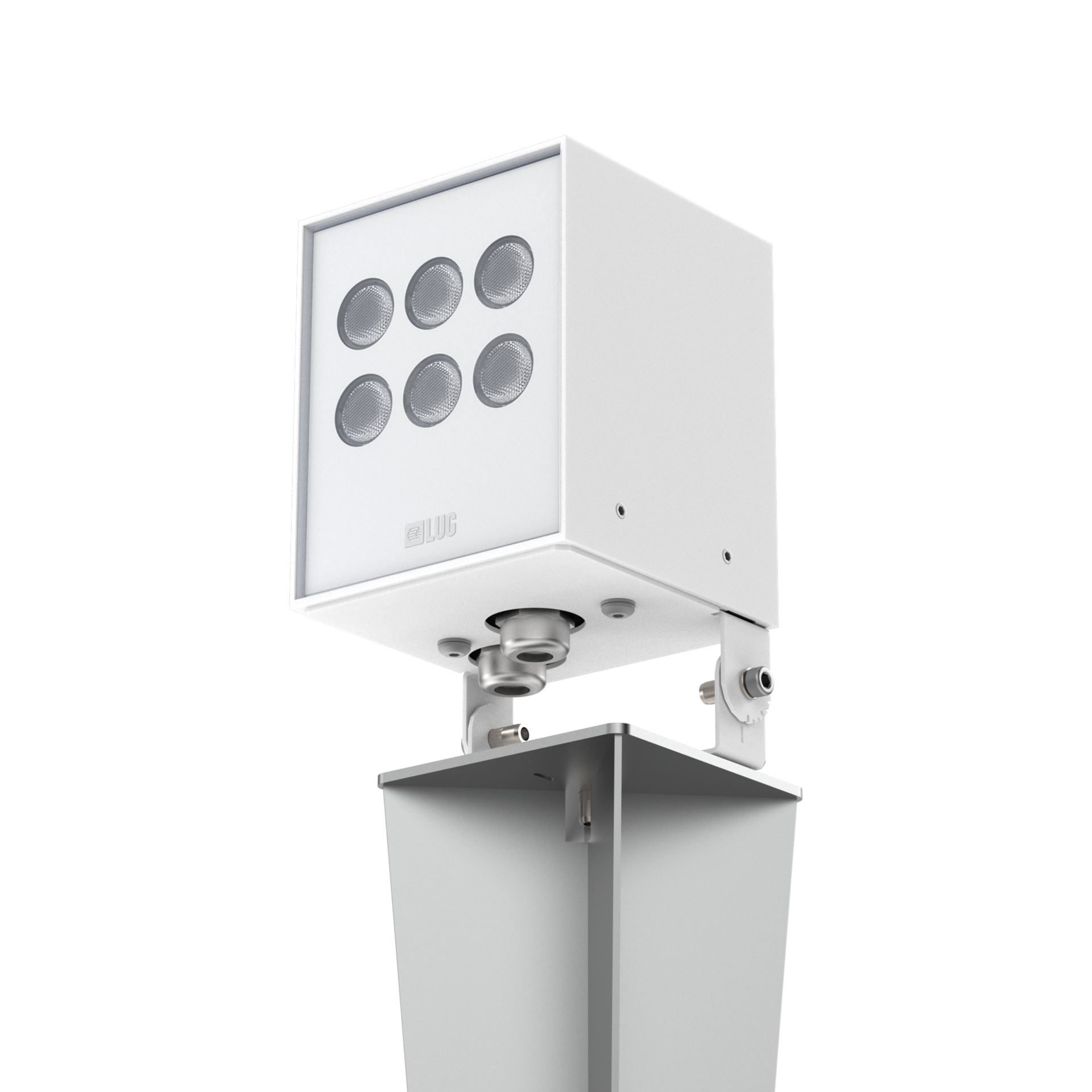

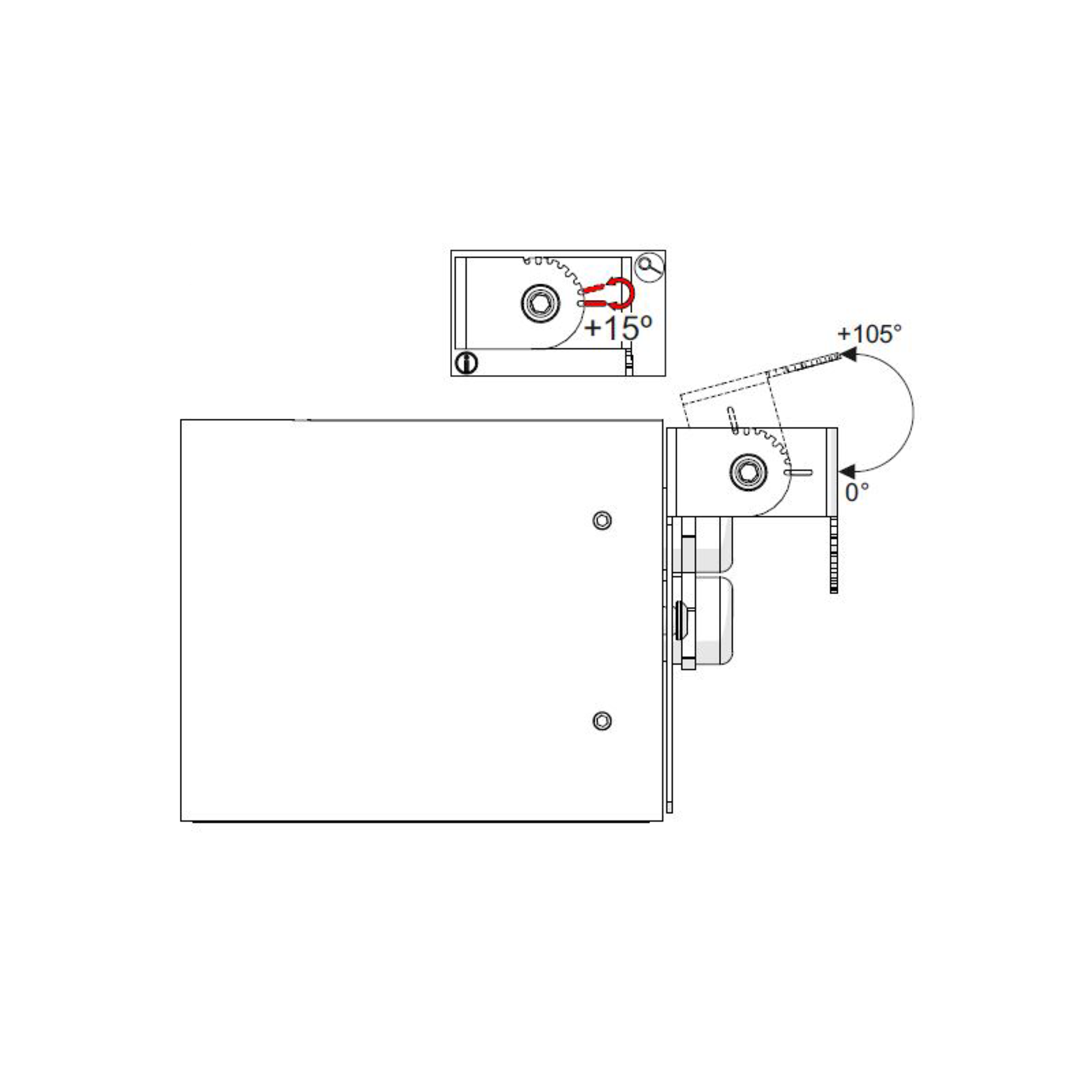

External architectural luminaire for anchor and pole mounting using dedicated brackets. Specially tailored accessories allow for ground or façade mounting. Carefully considered design, adjustable bracket and a wide range of luminaire angles allow for a flexible approach in the design of architectural buildings.



Wide range of colors
Luminaire body made of aluminum
Modern design
Perfect lighting for highlighting the architectural values of buildings

Application

area lighting, avenues, building facades, facades, parks, promenade, public spaces, residential

Available on request

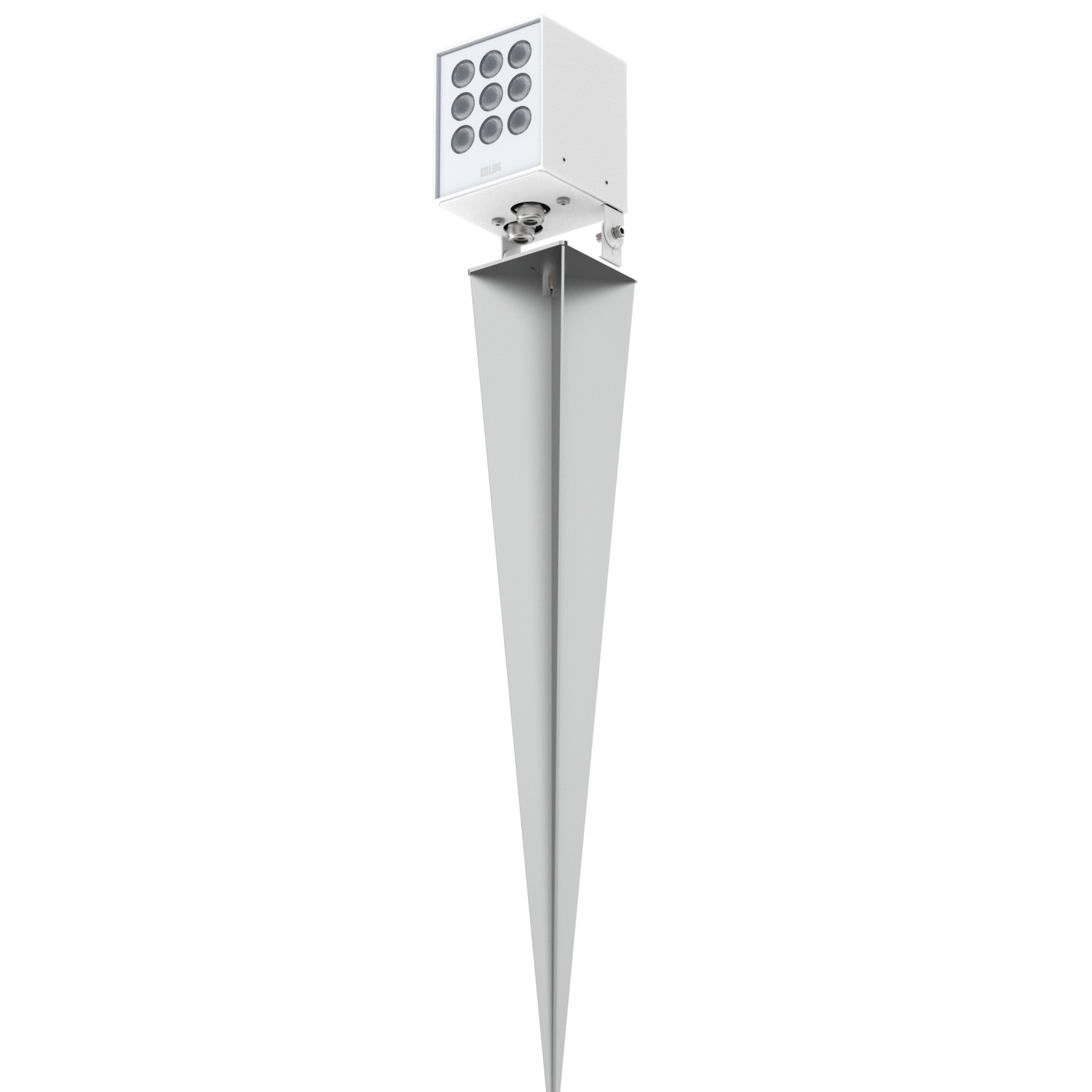

mounting bracket, ground anchor

Luminous flux range

280 - 1400 [lm]

Variable color temperature

2700 - red [K]

Mechanical data

Mounting
on the substrate, with mounting brackets (included), pole and wall mounted version
Body colour
black, gray, white
Surface finish
gloss
Detail
black
Operating temperature range
-20 ... +45
RAL
7024, 9003, 9005
Body
high pressure die-cast aluminum
Type
6 lenses, 9 lenses

Electrical data

Power supply efficiency
≤79%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
8 - 11.1
Output current [mA]
250, 350, 500
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
50
Maximum number of luminaires in the circuit with a 16A fuse (B)
78

Optical data

Way of lighting
direct
Type of optic
lens
Diffuser
tempered glass
Colour temperature [K]
2700, 3000, 4000, 5700, blue, green, red
Beam angle

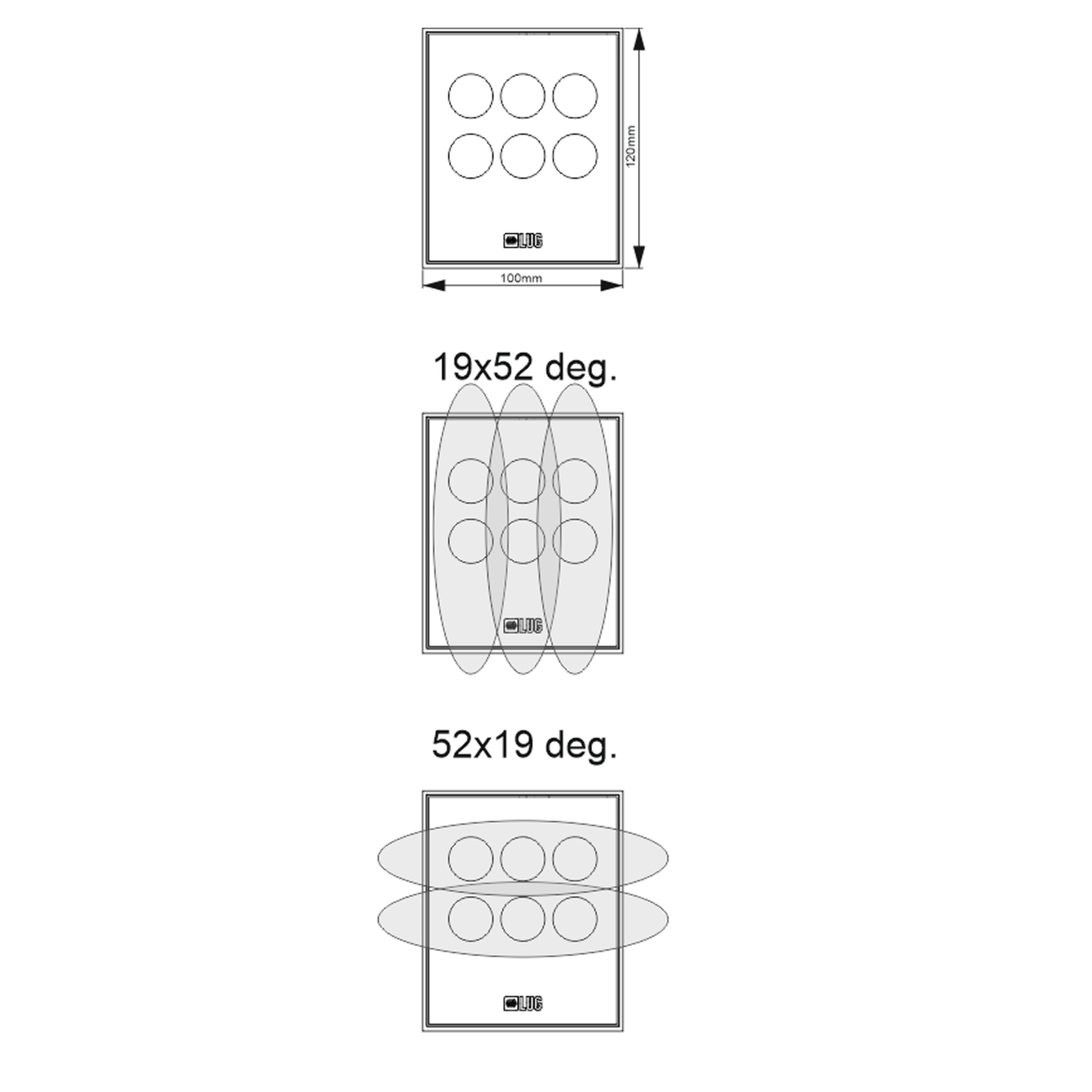

10°, 15°, 19°x52°, 30°, 52°x19°, 58°
CRI/Ra
≥80
MacAdam's steps
5
ULOR / DLOR
100/100
Lumen luminaire [lm]
280 - 1400
Efficacy [lm/W]
26 - 128
Photobiological risk group
RG1
Number of LEDs
6, 9

General data

Additional information
Safe power supply with low voltage SELV
Lifetime L90B10
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD Mounting dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
100x100x160x120 100x120x100 770 1 1.6
100x100x160x120 100x120x100 770 1 1.7
X

Available variants

Code
Colour temperature [K]
2700
3000
4000
5700
blue
green
red
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
10°
15°
19°x52°
30°
52°x19°
58°
Body colour
black
gray
white
Clear Filters
Compare Code Type of equipment Body colour Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
140711.5L01.0001 ED white 10° 10,6 1000 94 2700 ≥80 -20 ... +45
140711.5L01.0002 ED white 15° 10,6 1100 104 2700 ≥80 -20 ... +45
140711.5L01.0003 ED white 30° 10,6 1000 94 2700 ≥80 -20 ... +45
140711.5L01.0004 ED white 58° 10,6 950 90 2700 ≥80 -20 ... +45
140711.5L01.0005 ED white 19°x52° 10,6 950 90 2700 ≥80 -20 ... +45
140711.5L01.0006 ED white 52°x19° 10,6 950 90 2700 ≥80 -20 ... +45
140711.5L02.0001 ED white 10° 10,6 1150 108 3000 ≥80 -20 ... +45
140711.5L02.0002 ED white 15° 10,6 1250 118 3000 ≥80 -20 ... +45
140711.5L02.0003 ED white 30° 10,6 1150 108 3000 ≥80 -20 ... +45
140711.5L02.0004 ED white 58° 10,6 1100 104 3000 ≥80 -20 ... +45
Compare selected
Shown 10 / 252
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150200.01333

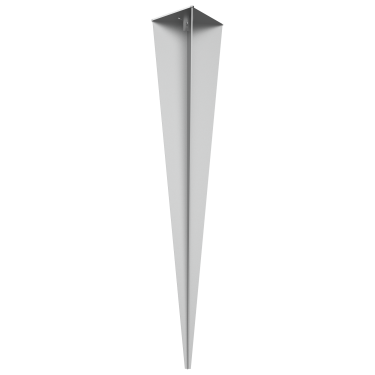

Anchor for ground mounting
