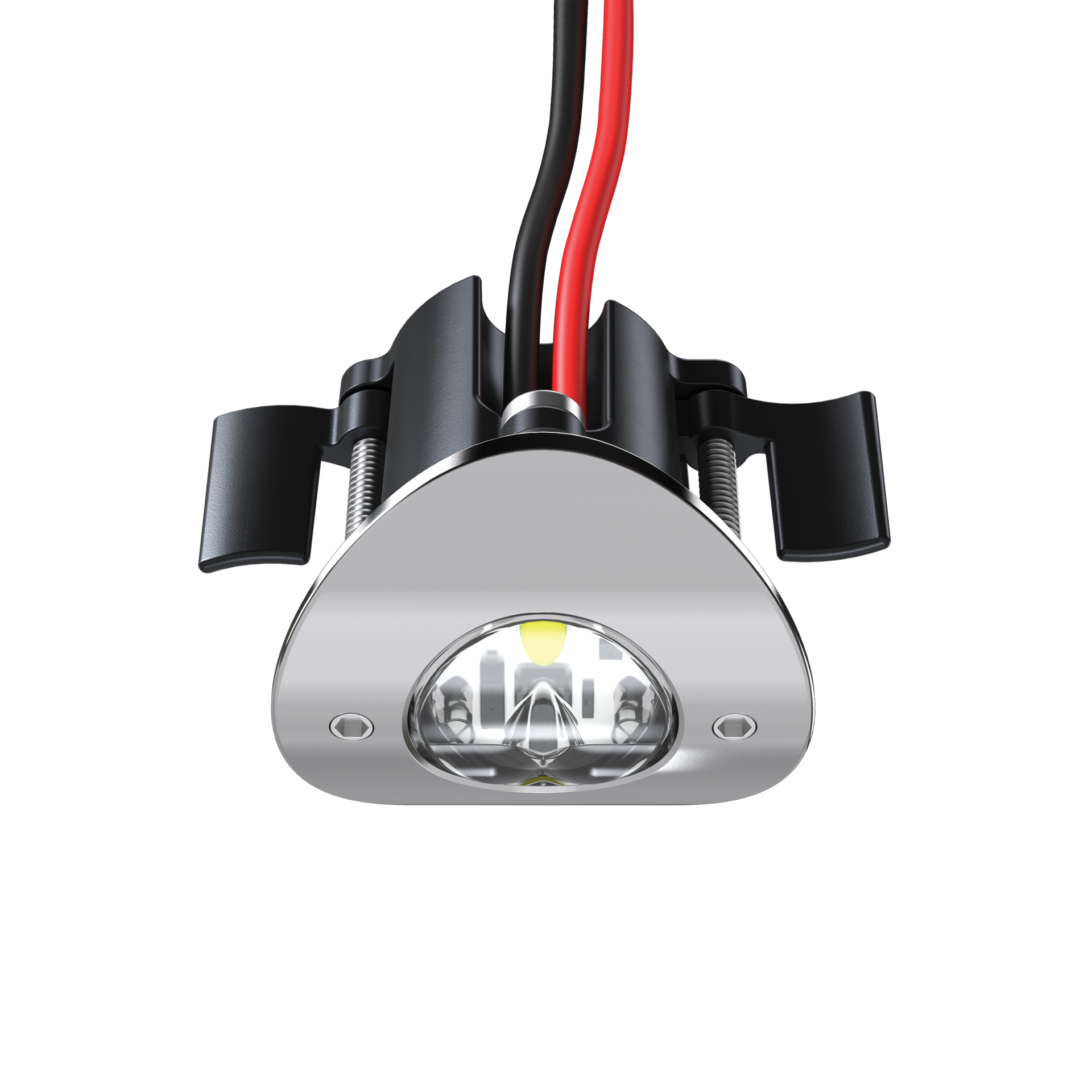

MANO LED

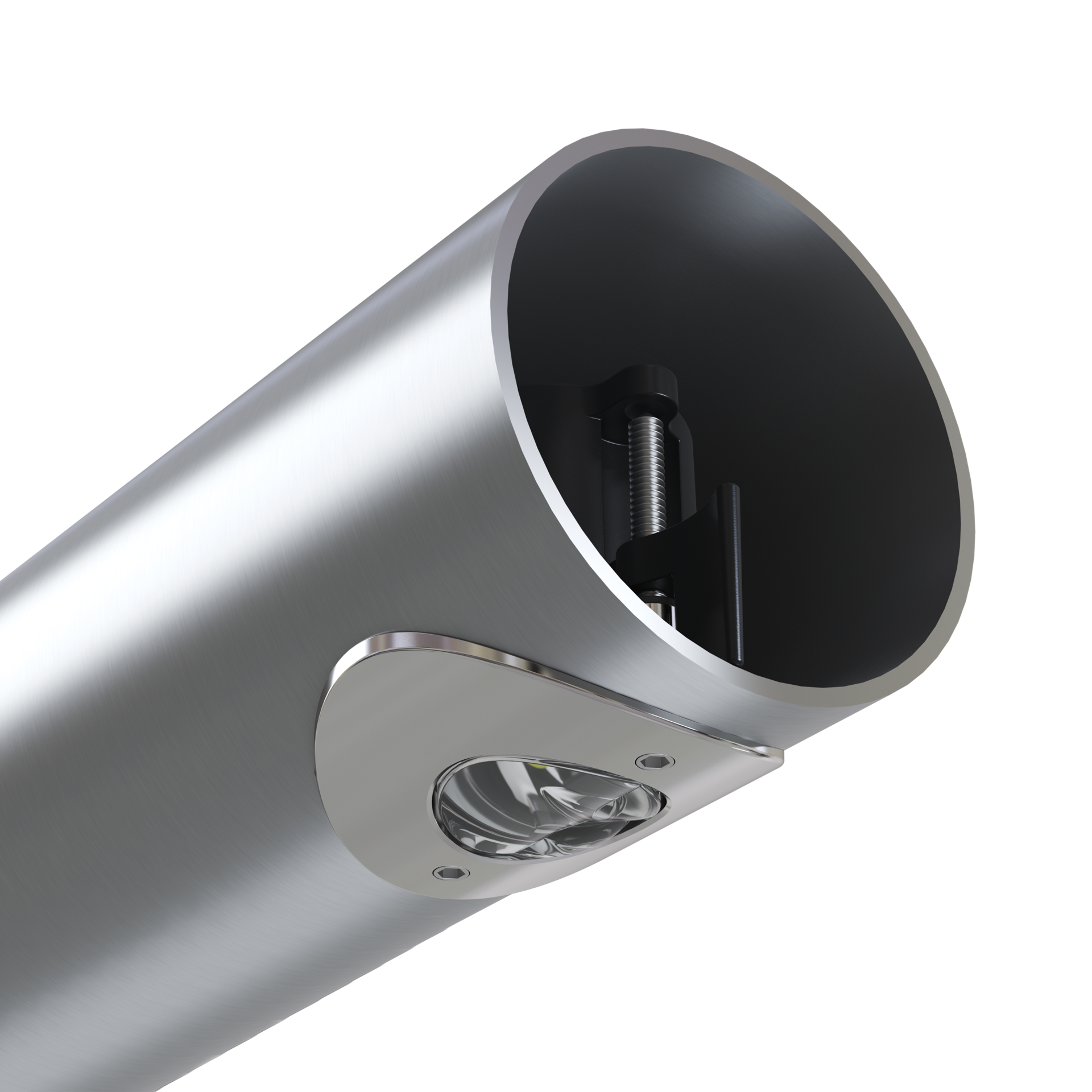

Decorative fixture in a modern form for LED light sources, adapted for mounting in handrails with diameters of ø42,4, ø48,3 and ø61,5, and a minimum thickness of 2mm.



Application

handrails, staircases

Luminous flux range

185 - 199 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in handrails and handles
Body colour
silver
Operating temperature range
-30 ... +50
Body
high pressure die-cast aluminum
Type
ø42,4, ø48,3, ø61,5

Electrical data

Power supply efficiency
≤85%
Power
24V DC
Includes light source
yes
Luminaire power [W]
2.4
Output current [mA]
100
Type of equipment
ED

Optical data

Way of lighting
direct
Type of optic
lens
Diffuser
transparent glass
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
185 - 199
Efficacy [lm/W]
77 - 83
Photobiological risk group
RG1
Number of LEDs
1

General data

Additional information
the luminaire is adapted for mounting in handrails with a minimum thickness of 2mm and a diameter of ø42,4, ø48,3 and ø61,5
Other remarks
Power supply output with safety extra-low voltage SELV
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] ØS Pallet quantity Quantity in package Net weight [kg]
36x35 33 672 1 0.055
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type
ø42,4
ø48,3
ø61,5
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range Type of optic Type
140620.5L01.301 ED 2,4 199 83 3000 ≥80 -30 ... +50 lens ø48,3
140620.5L01.302 ED 2,4 199 83 3000 ≥80 -30 ... +50 lens ø42,4
140620.5L01.303 ED 2,4 199 83 3000 ≥80 -30 ... +50 lens ø61,5
140620.5L02.301 ED 2,4 185 77 4000 ≥80 -30 ... +50 lens ø48,3
140620.5L02.302 ED 2,4 185 77 4000 ≥80 -30 ... +50 lens ø42,4
140620.5L02.303 ED 2,4 185 77 4000 ≥80 -30 ... +50 lens ø61,5
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150190.01015
Power supply 20W 220..240/24V. Up to 8 luminaires up to 20 meters can be connected (for cable ø1,5 mm²).
150190.01016
Power supply 40W 220..240/24V. Up to 16 luminaires up to 40 meters can be connected (for cable ø1,5 mm²).
150190.01017
Power supply 60W 220..240/24V. Up to 24 luminaires up to 24 meters can be connected (for cable ø1,5 mm²).
150190.01019

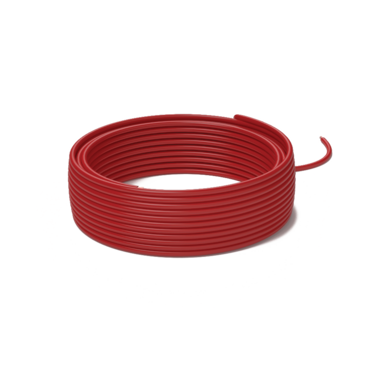

Red wire LGY 1,5 450/700V 100 meters.
150190.01020
Black wire LGY 1,5 450/700V 100 meters.
