MODENA 2.0 RGBW

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants
MODENA 2.0 RGBW
Decorative architectural RGBW luminaire for indoor and outdoor applications, featuring precision optics.



Maintenance-free operation
Dedicated LED light sources
Perfect combination of aesthetics and ergonomics
Classic elegance
Fast and easy mounting
Available in a variety of sizes
Perfect lighting for highlighting the architectural values of buildings
Increased weather resistance
Colour temperature control system available
Dynamic lighting control
DMX control
Evenness of illumination

Application

building facades, exhibitions, exhibitions, facades, galleries, hotels, metro, public utility facilities, shopping centers

Luminous flux range

950 - 4080 [lm]

Variable color temperature

RGBW [K]

Mechanical data

Mounting
with mounting brackets (to be ordered seperately), surface mounted, surface mounted (sconce), on the substrate
Length [mm]
400, 800, 1200, 1600
Body colour
black anode B35
Operating temperature range
-25 ... +35
Body
extruded aluminium, toughened glass, high pressure die-cast aluminum

Electrical data

Electrical connection
luminaire equipped with a 35 cm long hybrid cable
Power
24V DC
Includes light source
yes
Luminaire power [W]
20 - 78.5
Type of equipment
DMX

Optical data

Light distribution
symmetric
Way of lighting
direct
Type of optic
lens
Diffuser
tempered glass
Colour temperature [K]
RGBW
Beam angle
20°, 30°x15°, 40°, 60°
CRI/Ra
80
MacAdam's steps
3
ULOR / DLOR
100/0
Lumen luminaire [lm]
950 - 4080
Efficacy [lm/W]
48 - 58
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
8, 16, 24, 32

General data

Lifetime L70
60 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
400x59x59 288 1 1.2
800x59x59 144 1 2.2
1200x59x59 96 1 3.2
1600x59x59 96 1 4.2
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
20°
30°x15°
40°
60°
Length [mm]
Clear Filters
Compare Code Type of equipment Length [mm] Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
140783.9L01.001 DMX 400 20° 20 1020 51 RGBW 80 -25 ... +35
140783.9L01.003 DMX 400 40° 20 990 50 RGBW 80 -25 ... +35
140783.9L01.004 DMX 400 60° 20 950 48 RGBW 80 -25 ... +35
140783.9L01.006 DMX 400 30°x15° 20 980 49 RGBW 80 -25 ... +35
140783.9L02.001 DMX 800 20° 35.4 2040 58 RGBW 80 -25 ... +35
140783.9L02.003 DMX 800 40° 35.4 1980 56 RGBW 80 -25 ... +35
140783.9L02.004 DMX 800 60° 35.4 1900 54 RGBW 80 -25 ... +35
140783.9L02.006 DMX 800 30°x15° 35.4 1970 56 RGBW 80 -25 ... +35
140783.9L03.001 DMX 1200 20° 56.5 3060 54 RGBW 80 -25 ... +35
140783.9L03.003 DMX 1200 40° 56.5 2980 53 RGBW 80 -25 ... +35
Compare selected
Shown 10 / 16
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150200.01396

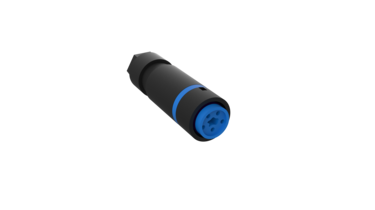

MODENA 2.0 RGBW Connector 5-pole socket
150200.01397
MODENA 2.0 RGBW Connector 5-pole plug
150200.01355
MODENA 2.0 RGBW DMX Terminator
150200.01398
MODENA 2.0 RGBW 3x5-field splitter
150200.01401
MODENA 2.0 RGBW triple connector
150203.01321
Splitter handle surface-mounted black
150200.01400
MODENA 2.0 RGBW Cable H07RN-F [2LIY2.0m²+(2LY0.35m²)
150200.01282
Stainless steel 90° adjustable bracket (set - 2 pcs.)
150190.01030
Power supply 40W 220..240/24V
150190.01031
Power supply 60W 220..240/24V
150190.01032
Power supply 100W 220..240/24V
150200.01194
Power supply 250W 200..240/24V
150200.01468

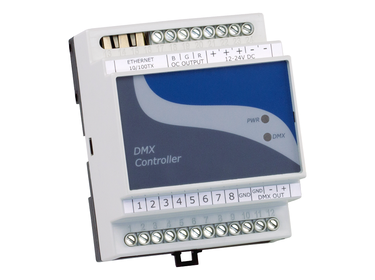

Controller DMX 64 DIN 35 Controller with 64 channels. Up to 16 RGBW luminaires can be connected. Has 8 programmes (32 scenes). For mounting on a 35mm DIN rail.
150200.01469

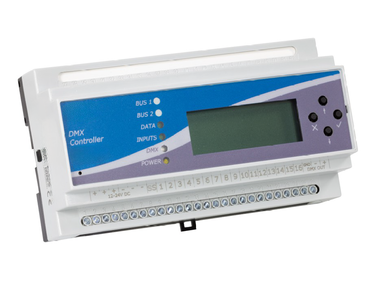

Controller DMX 128 DIN 35 Controller with 128 channels. Up to 32 RGBW luminaires can be connected. Has 512 programmes (251000 scenes). For mounting on a 35mm DIN rail.
150200.01470

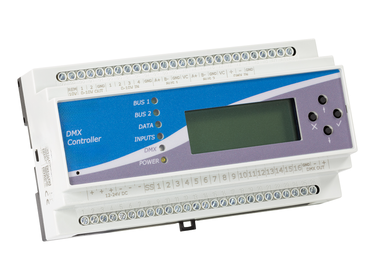

Controller DMX 512 DIN 35 Controller with 512 channels. Up to 128 luminaires can be connected. Has 512 programmes (251000 scenes). For mounting on a 35mm DIN rail.
150200.01472

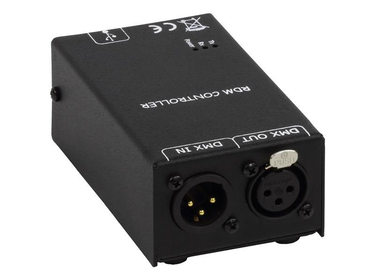

RDM controller Controller for addressing RGBW luminaires using the RDM protocol.
150200.01473
DMX 4CH DIN35 splitter Signal splitter for 4 independent branches. For mounting on a 35mm DIN rail.
150200.01474

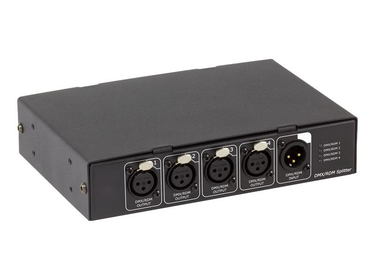

DMX Splitter 3-PIN 4CH RACK 19’. Signal splitter for 4 independent branches. For mounting on a 19’ rack.
