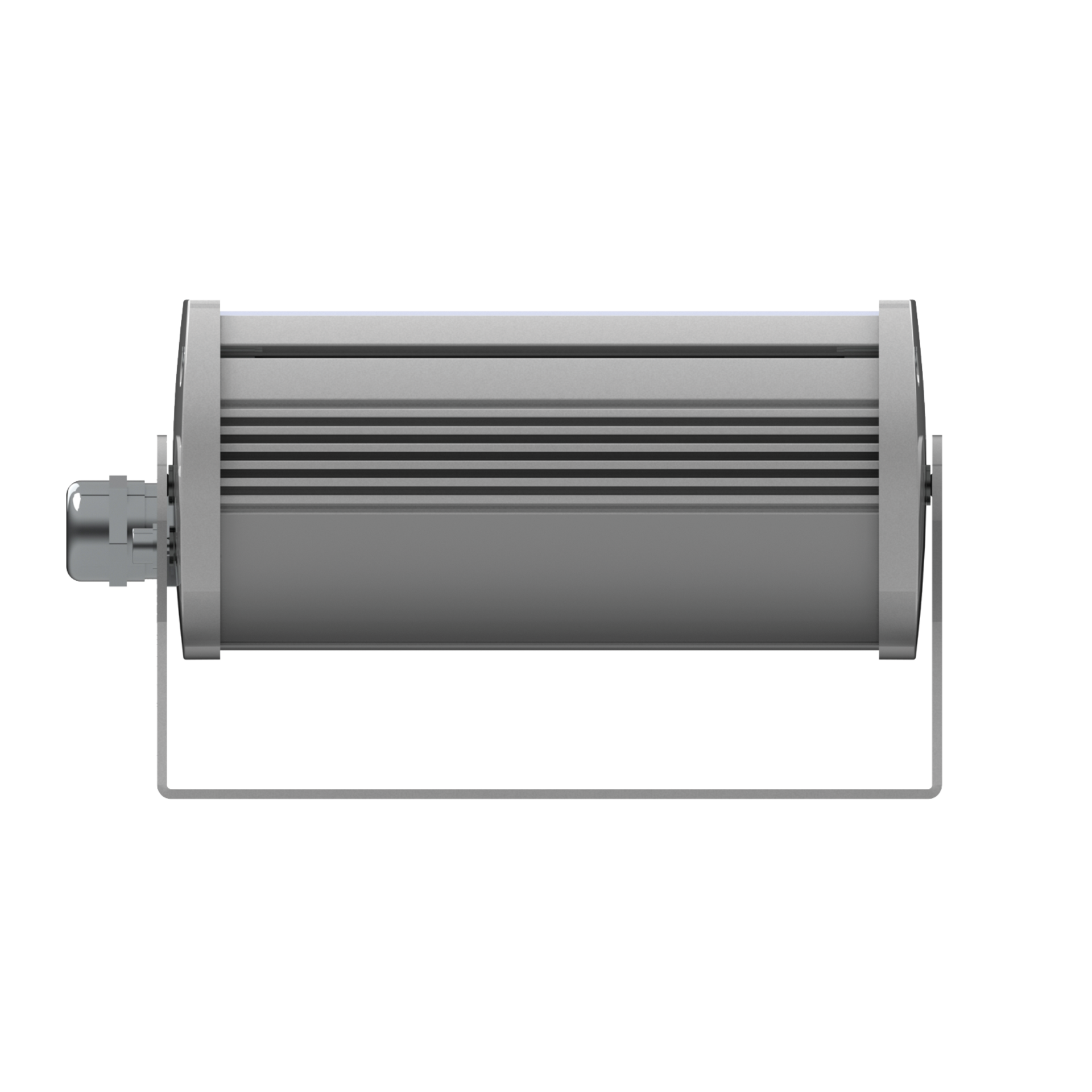

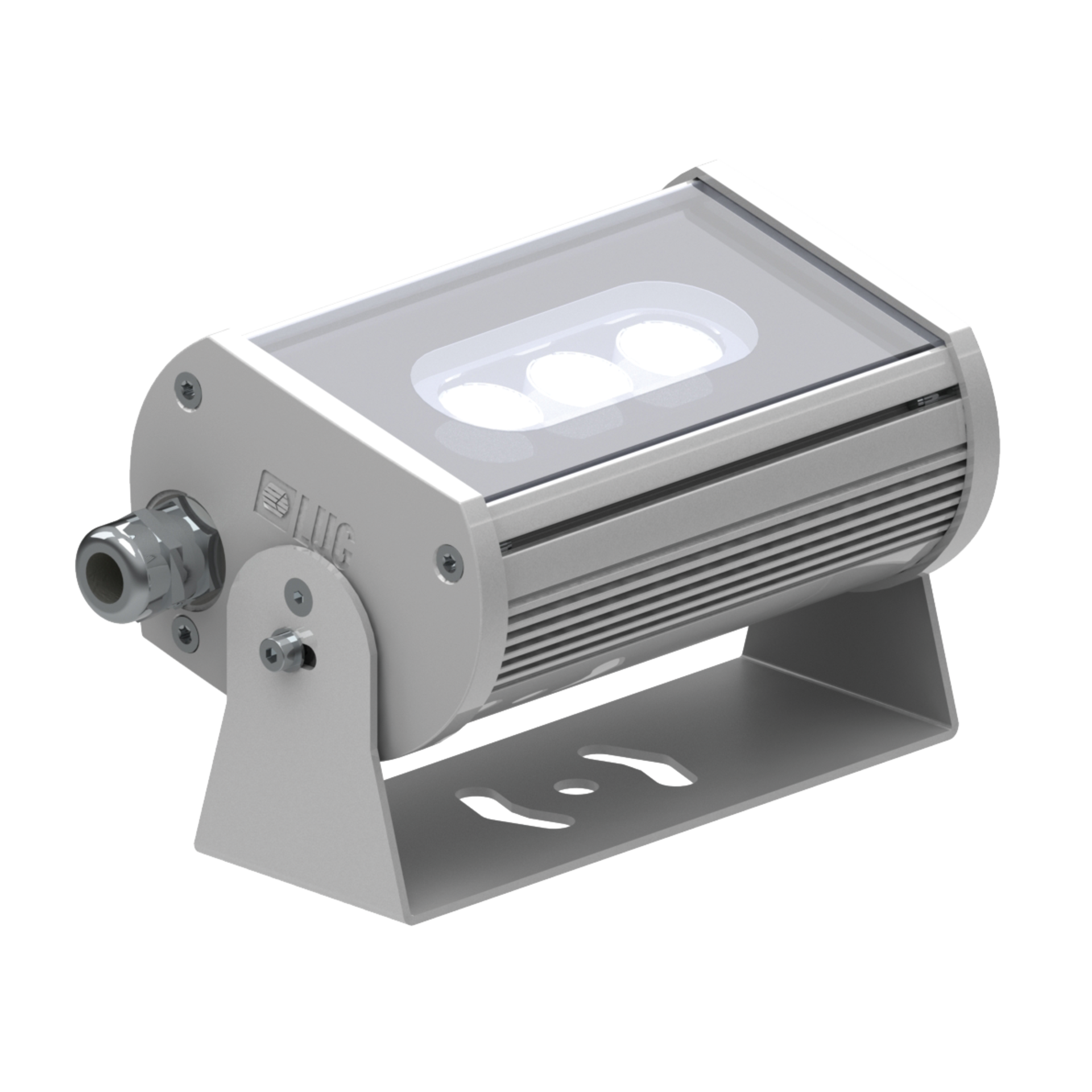

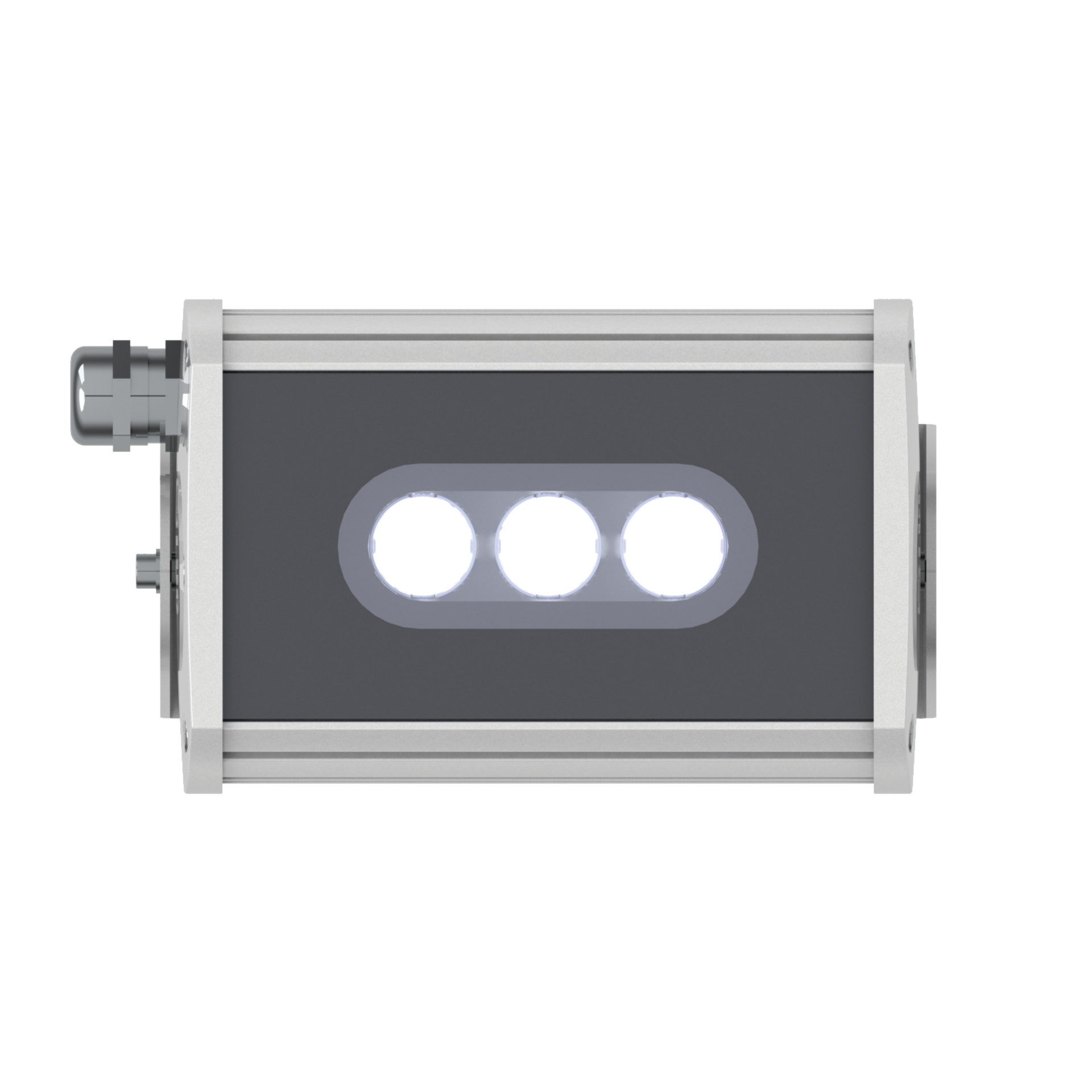

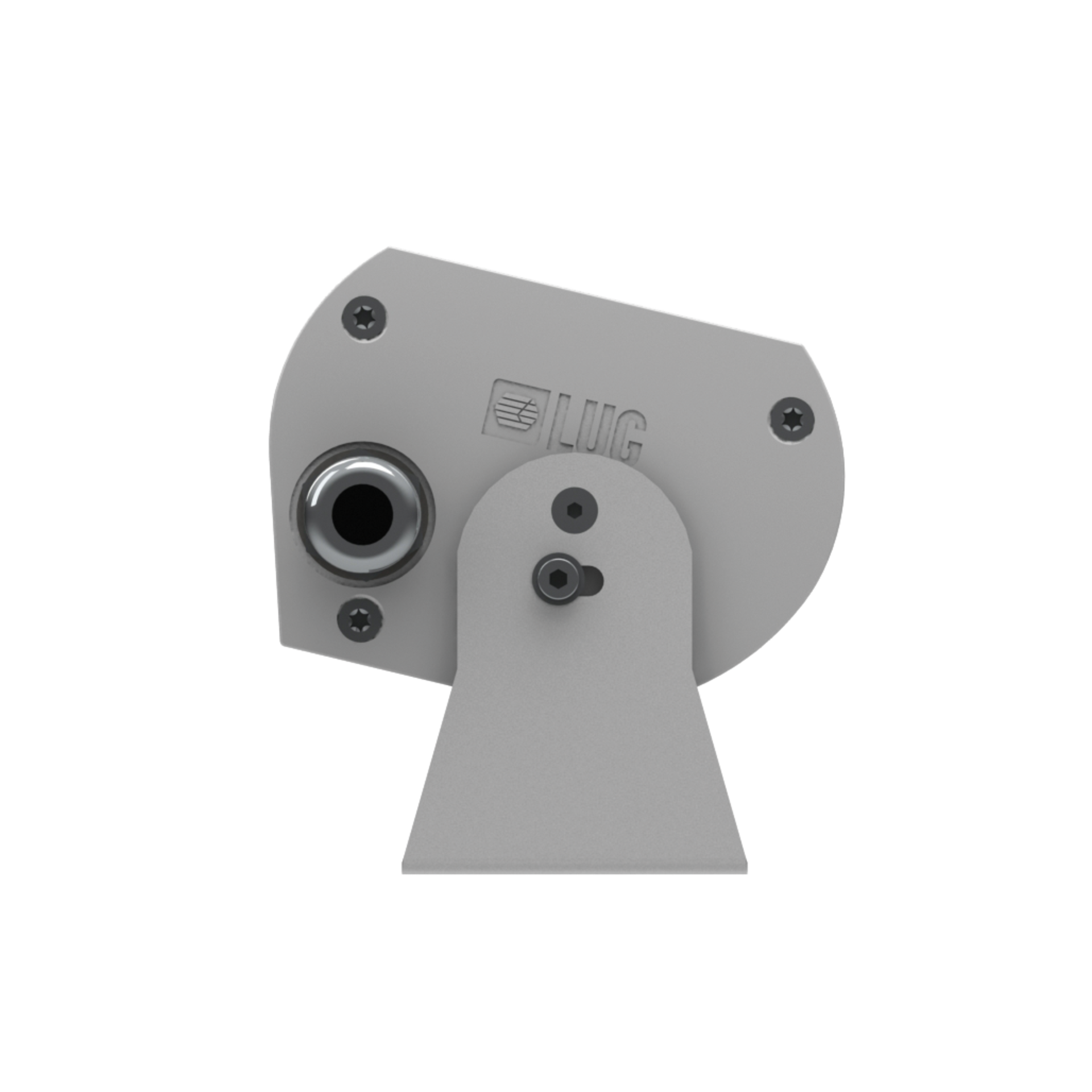

MODENA LED 160 7,5°
Decorative wall luminaire IP65 for architectonic indoor and outdoor applications, featuring high quality LED light sources. The subject of the modification is the change of the beam angle, dimensions of the luminaire and the mounting bracket.



High efficacy to 84 lm/W

Application

car showrooms, facades, hotels, metro, shopping centers

Luminous flux range

420 [lm]

Variable color temperature

2700 [K]

Mechanical data

Mounting
directly on the wall, directly on the wall, with mounting brackets (included)
Length [mm]
155
Body colour
white
Operating temperature range
-30 ... +35
RAL
9016
Body
aluminum profile

Electrical data

Power supply efficiency
≤75%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
5
Type of equipment
DALI, ED

Optical data

Way of lighting
direct
Type of optic
lens
Colour temperature [K]
2700
Beam angle
7,5°
CRI/Ra
80
Lumen luminaire [lm]
420
Efficacy [lm/W]
84

General data

Additional information
For external use in working conditions exposed to UV radiation and high humidity.
Other remarks
The luminaire is equipped with a 3 m power cord with a free end. Choke on the left - indexes: 900140.00137, 900140.00138; choke on the right side - indexes: 900140.00139, 900140.00140
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] DxØS
155x99x99 20x9
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Length [mm]
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Beam angle Operating temperature range
900140.00137 DALI 5 420 84 2700 80 7,5° -30 ... +35
900140.00138 ED 5 420 84 2700 80 7,5° -30 ... +35
900140.00139 DALI 5 420 84 2700 80 7,5° -30 ... +35
900140.00140 ED 5 420 84 2700 80 7,5° -30 ... +35
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Colour temperature tolerance +/- 5%.
