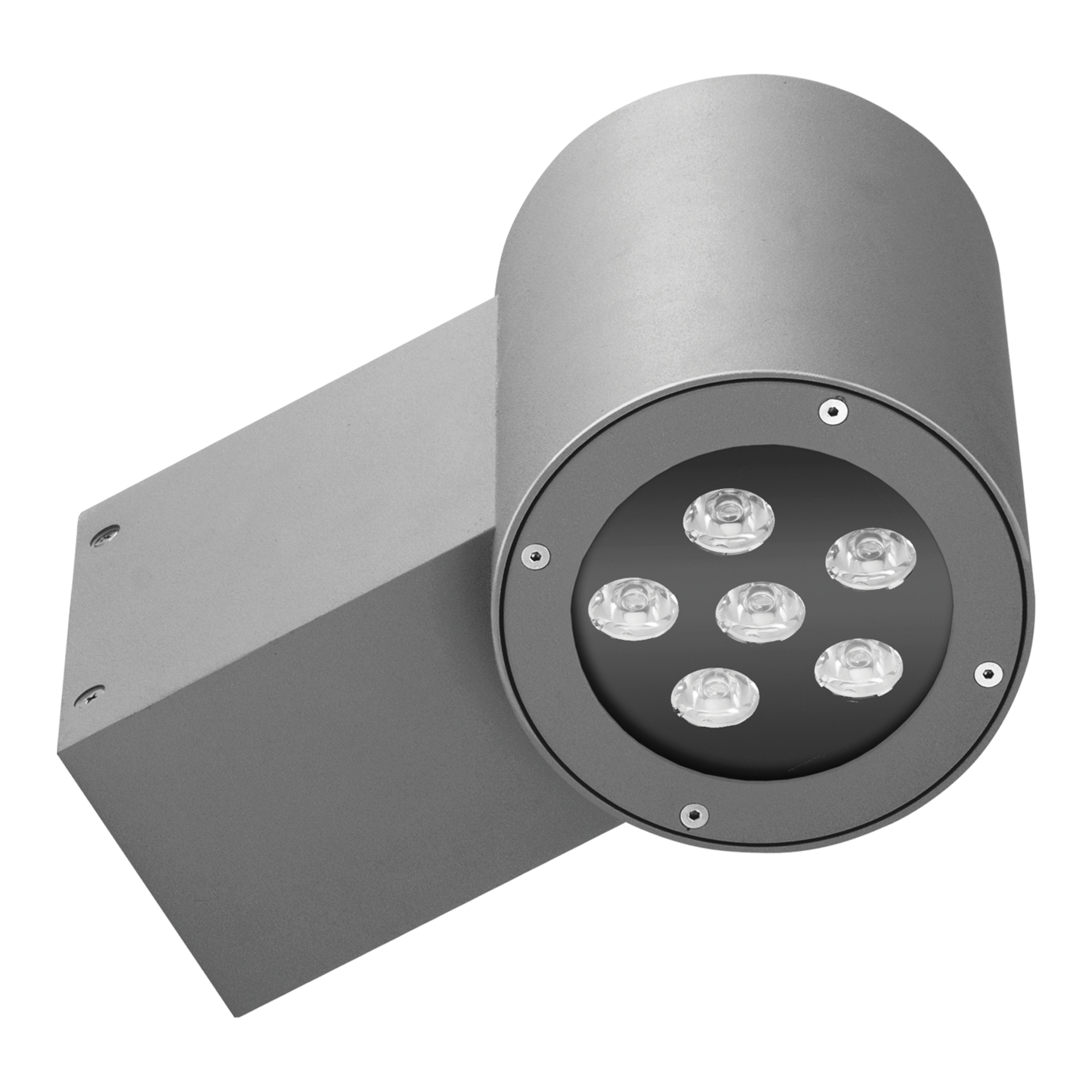

ROTUNDA 1 LED
Decorative facade luminaire equipped with high quality LED light sources.



High efficacy to 79 lm/W

Application

car showrooms, facades, hotels, metro, museums, restaurants, shopping centers

Luminous flux range

170 - 630 [lm]

Variable color temperature

3000 - red [K]

Mechanical data

Mounting
directly on the wall, directly on the wall
Body colour
gray
Operating temperature range
'-30˚C ... +40˚C
Body
high pressure die-cast aluminum

Electrical data

Power supply efficiency
≤71%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
8
Output current [mA]
350
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
5
Maximum number of luminaires in the circuit with a 16A fuse (B)
8

Optical data

Way of lighting
direct
Diffuser
tempered glass
Colour temperature [K]
3000, 6000, amber, blue, green, red
Beam angle
10°, 22°, 45°
CRI/Ra
>60, ≥80
Lumen luminaire [lm]
170 - 630
Efficacy [lm/W]
21 - 79

General data

Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD Pallet quantity Quantity in package Net weight [kg]
270x150x200x100 112 1 3.2
X

Available variants

Code
Colour temperature [K]
3000
6000
amber
blue
green
red
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
10°
22°
45°
CRI/Ra
>60
≥80
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Beam angle
140012.5L011.604 ED 8 435 54 3000 ≥80 45°
140012.5L011.607 ED 8 450 56 3000 ≥80 10°
140012.5L011.608 ED 8 450 56 3000 ≥80 22°
140012.5L012.604 ED 8 610 76 6000 >60 45°
140012.5L012.607 ED 8 630 79 6000 >60 10°
140012.5L012.608 ED 8 630 79 6000 >60 22°
140012.5L013.604 ED 8 200 25 red 45°
140012.5L013.607 ED 8 200 25 red 10°
140012.5L013.608 ED 8 200 25 red 22°
140012.5L014.604 ED 8 390 49 green 45°
Compare selected
Shown 10 / 18
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
