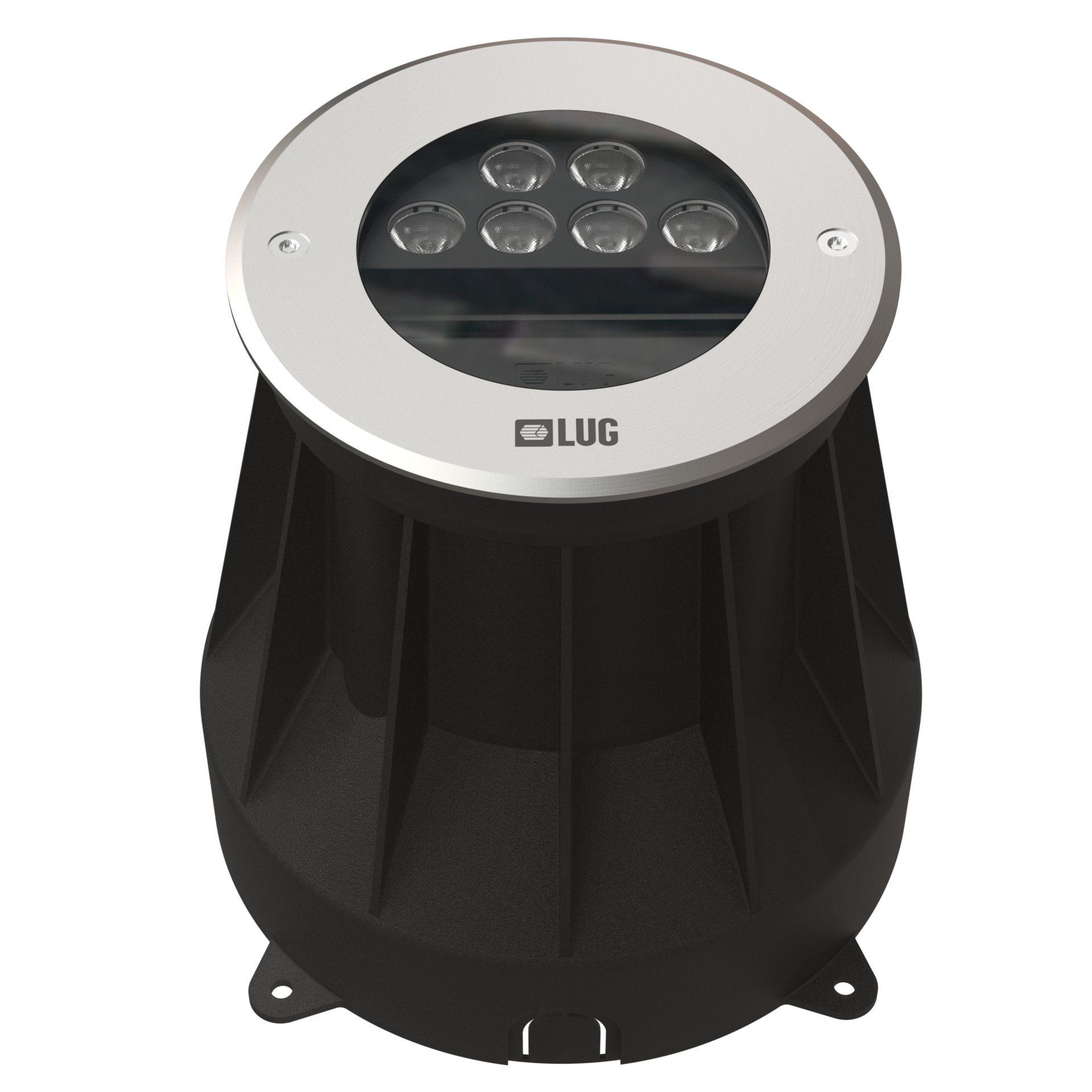

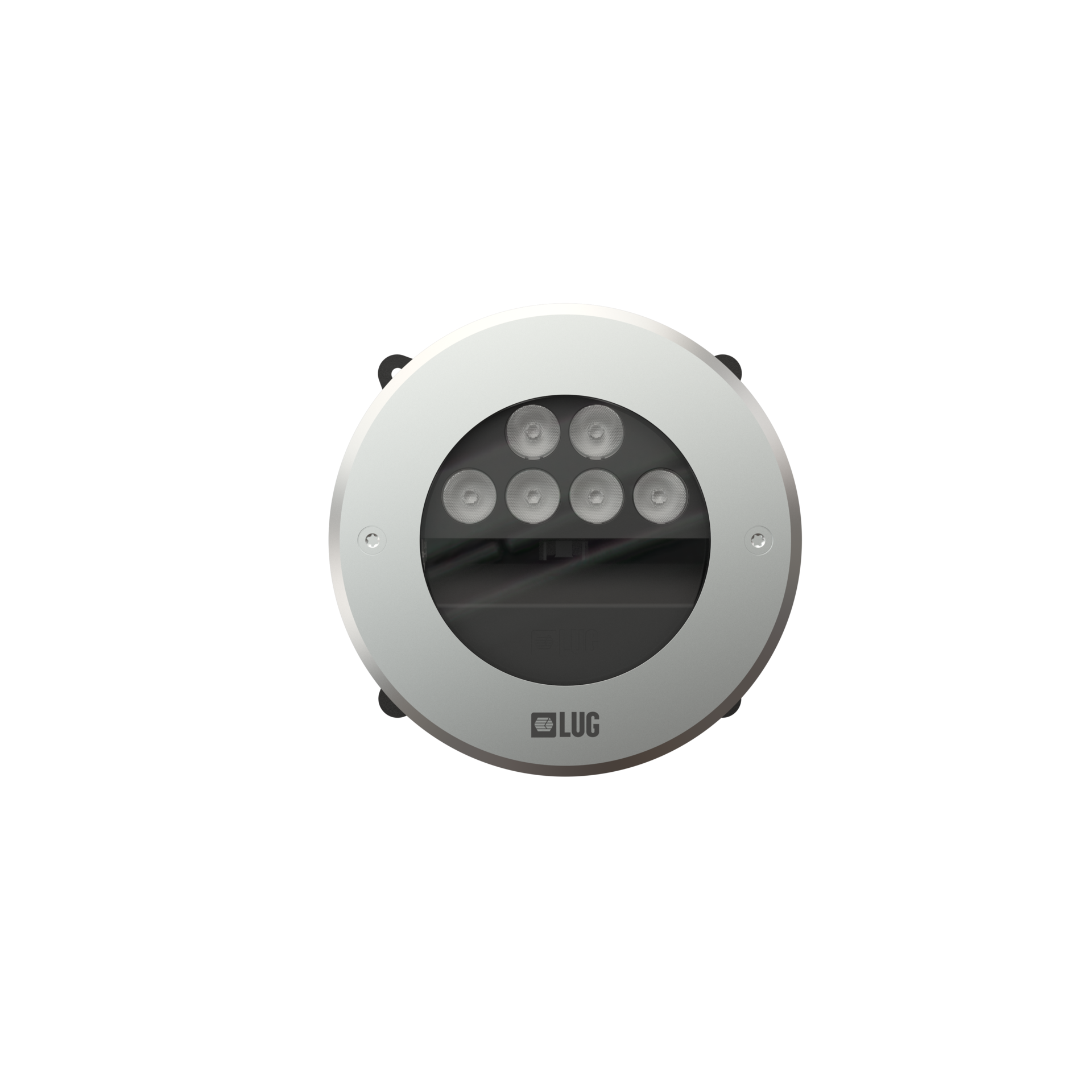

RUNA 2.0 160 R
Architectural ground-mounted luminaire equipped with an innovative magnetic lens adjustment system. The luminaire is distinguished by its exceptional resistance to harsh weather conditions, mechanical damage and UV radiation, guaranteeing long-lasting and reliable operation. Thanks to its energy-saving technology and the variety of available illumination angles, it is the ideal solution for the effective and economical illumination of outdoor facilities.



Universal design
Increased weather resistance
Luminaire body made of aluminum
Variety of beam angles
Innovative magnetic lens adjustment system

Application

Railway stations, hotels, parking areas, parks, pathways, playgrounds, promenade, public spaces, residential

Luminous flux range

600 - 900 [lm]

Variable color temperature

3000 - 5700 [K]

Mechanical data

Mounting
in the substrate
Detail
black
Operating temperature range
'-20˚C ... +50˚C
Body
high-pressure injected aluminium, toughened glass, plastic
Type
adjustable lenses

Electrical data

Power supply efficiency
≤85%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
8
Output current [mA]
350
Power supply power factor [λ]
0,95
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
26
Maximum number of luminaires in the circuit with a 16A fuse (B)
41
Maximum number of luminaires in the circuit with a 25A fuse (B)
52

Optical data

Light distribution
omnidirectional
Way of lighting
direct
Type of optic
lens
Diffuser
tempered glass
Colour temperature [K]
3000, 4000, 5700
Beam angle
15°, 19°x54°, 27°, 46°
CRI/Ra
80
ULOR / DLOR
100/0
Lumen luminaire [lm]
600 - 900
Efficacy [lm/W]
75 - 113
Photobiological risk group
RG1
SVM
<0,9
PstLM
≤1
Number of LEDs
6

General data

Additional information
Length of cable from luminaire approx. 20cm; safe supply of the LED module with low SELV voltage
Lifetime LED L90
118 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxHxD Mounting dimensions [mm] WxH Pallet quantity Quantity in package Net weight [kg]
200x205x98 200x201 120 1 2.2
X

Available variants

Code
Colour temperature [K]
3000
4000
5700
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Beam angle
15°
19°x54°
27°
46°
Clear Filters
Compare Code Type Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Beam angle
140790.3L01.001 adjustable lenses DALI 8 800 100 3000 80 15°
140790.3L01.002 adjustable lenses DALI 8 750 94 3000 80 27°
140790.3L01.003 adjustable lenses DALI 8 650 81 3000 80 46°
140790.3L01.004 adjustable lenses DALI 8 600 75 3000 80 19°x54°
140790.3L02.001 adjustable lenses DALI 8 900 113 4000 80 15°
140790.3L02.002 adjustable lenses DALI 8 850 106 4000 80 27°
140790.3L02.003 adjustable lenses DALI 8 750 94 4000 80 46°
140790.3L02.004 adjustable lenses DALI 8 650 81 4000 80 19°x54°
140790.3L03.001 adjustable lenses DALI 8 800 100 5700 80 15°
140790.3L03.002 adjustable lenses DALI 8 800 100 5700 80 27°
Compare selected
Shown 10 / 24
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories

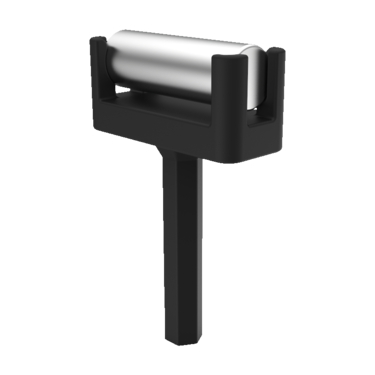

150200.01354
Accessory for lens angle adjustment
