RUNA 2.0 210

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants

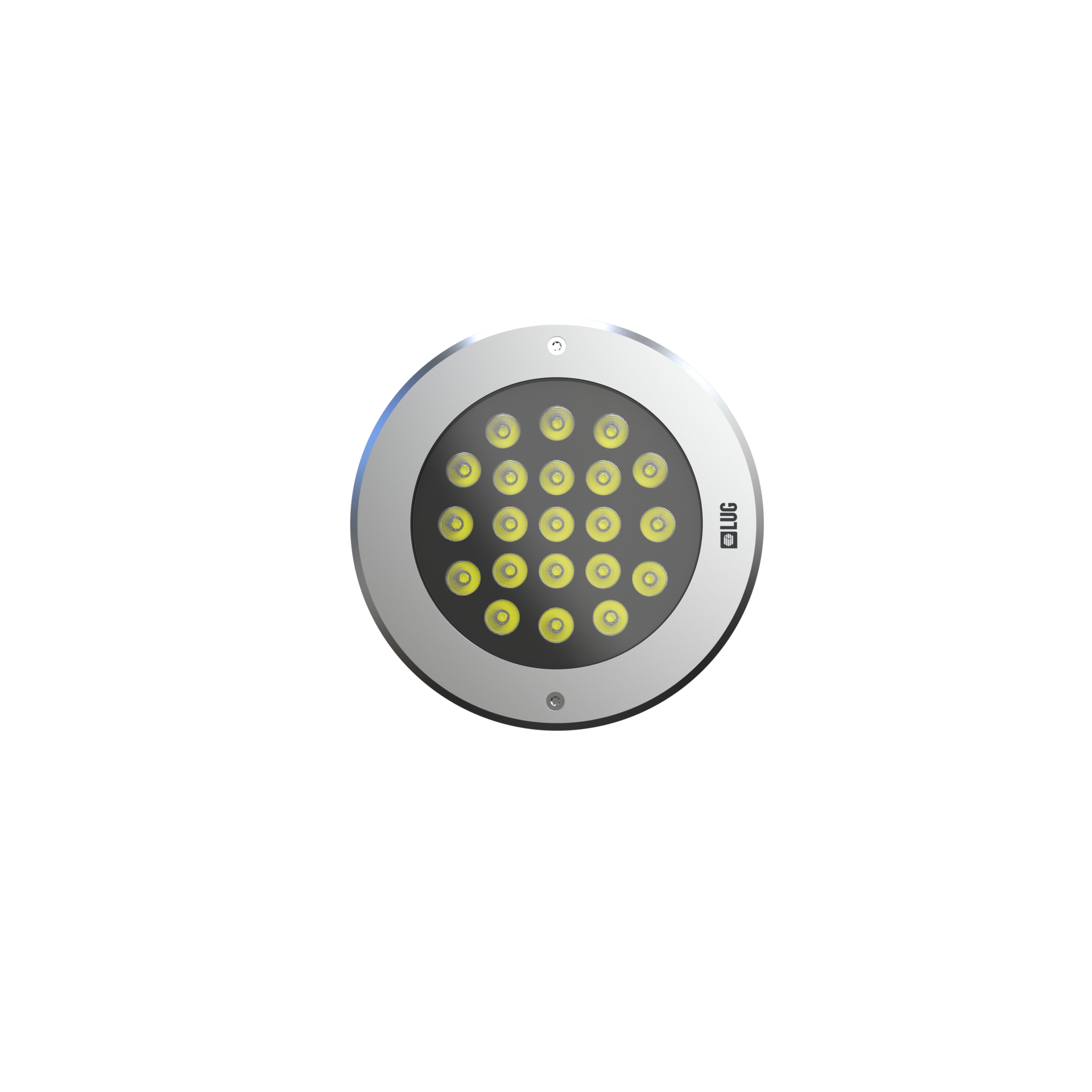

RUNA 2.0 210

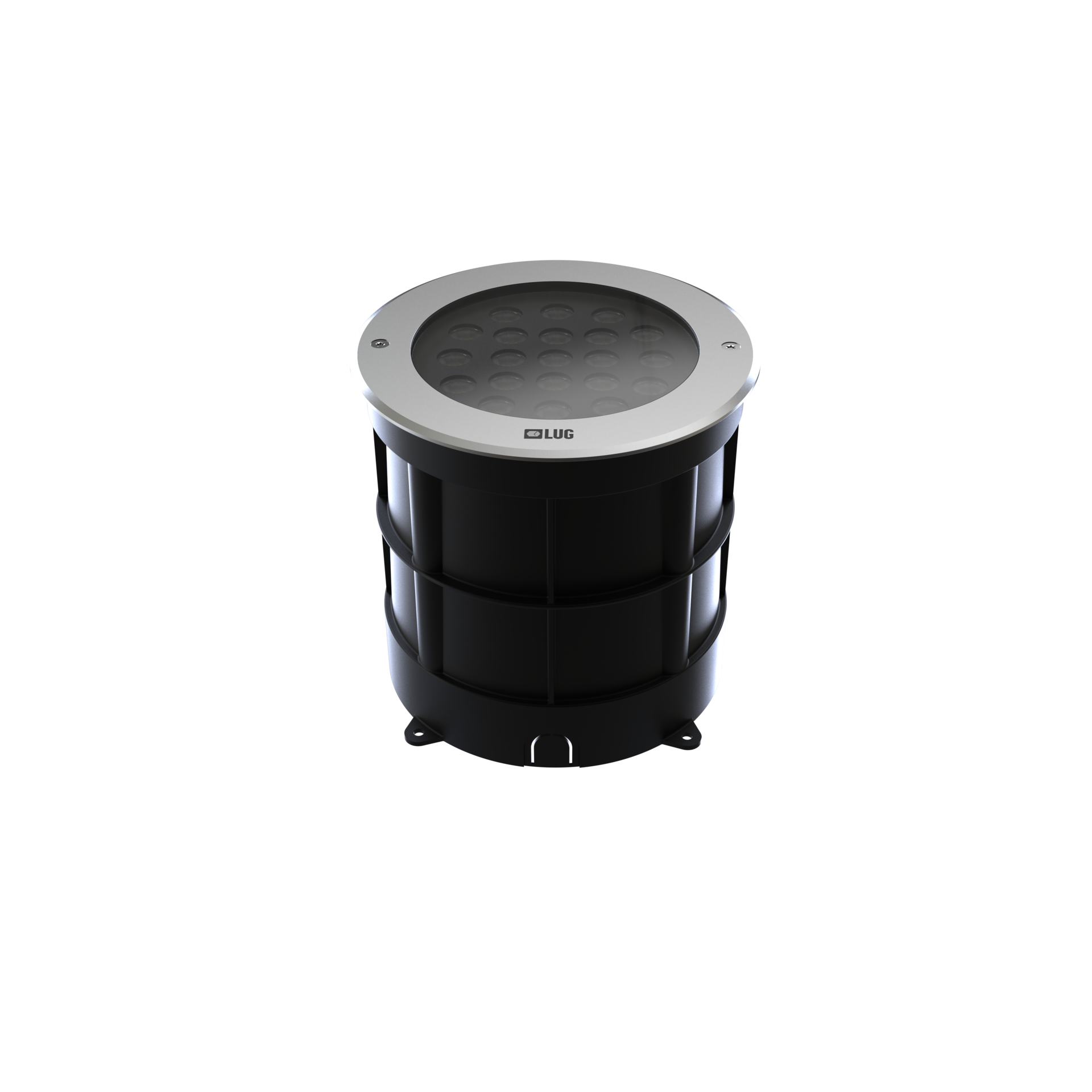

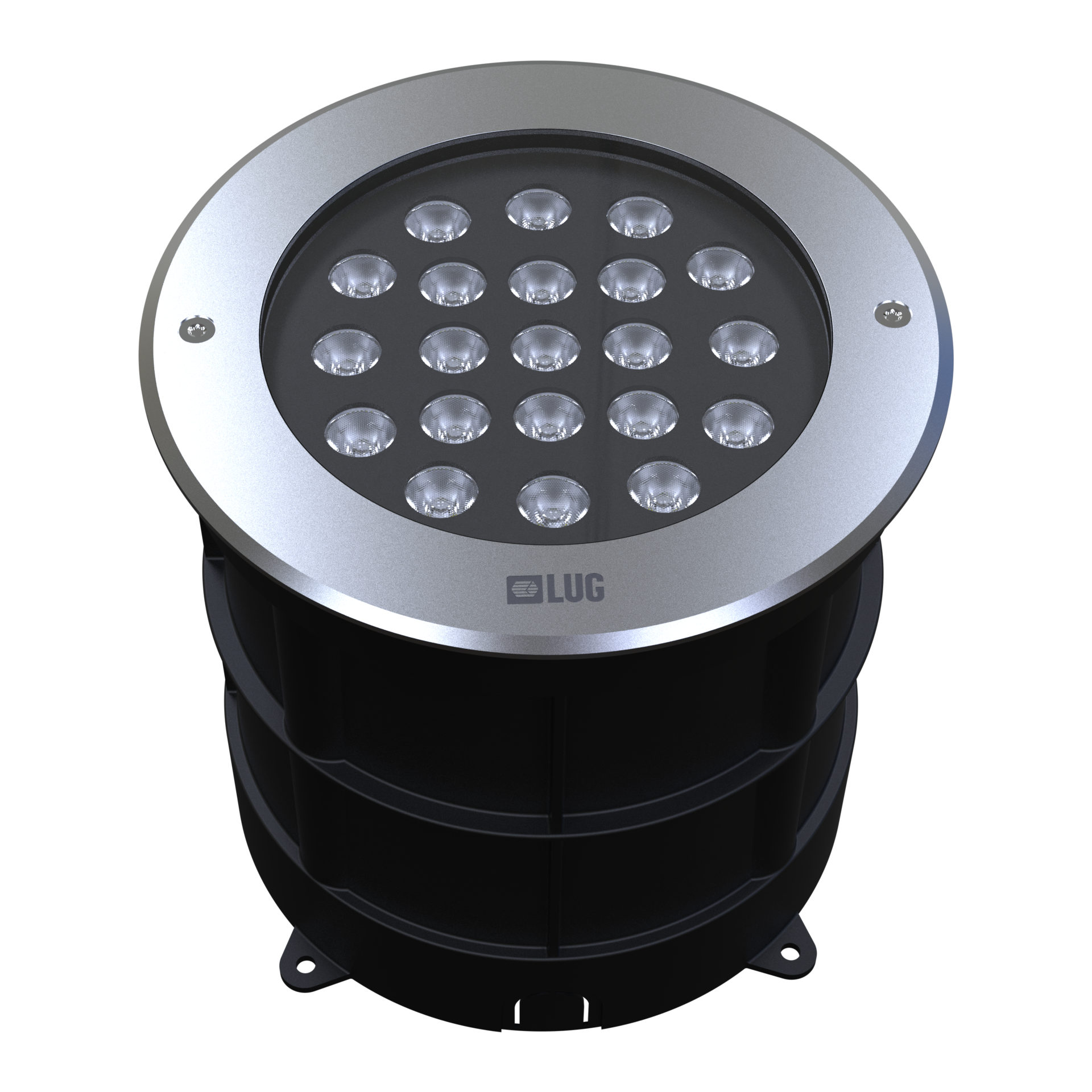

A ground-mounted architectural luminaire characterised by high resistance to outdoor conditions (IP68), resistance to mechanical damage (IK10) and the ability to handle loads of up to 5,000 kg. In addition, its UV resistance guarantees long-lasting aesthetics, while a luminous efficiency of more than 130 lm/W ensures energy-efficient lighting. The variety of light distribution allows precise adaptation to the environment, making it the perfect solution for modern architectural projects.



Universal design
Increased weather resistance
Luminaire body made of aluminum
Variety of beam angles
The ideal luminaire for tough working conditions

Application

Railway stations, hotels, parking areas, parks, pathways, playgrounds, promenade, public spaces, residential

Luminous flux range

1900 - 3250 [lm]

Variable color temperature

3000 - 5700 [K]

Mechanical data

Mounting
in the substrate
Detail
black
Operating temperature range
'-20˚C ... +50˚C
Body
high-pressure injected aluminium, toughened glass, plastic

Electrical data

Power supply efficiency
≤85%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
24
Output current [mA]
350
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
12 - 31
Maximum number of luminaires in the circuit with a 16A fuse (B)
19 - 49
Maximum number of luminaires in the circuit with a 25A fuse (B)
31 - 79

Optical data

Way of lighting
direct
Type of optic
lens
Diffuser
tempered glass
Colour temperature [K]
3000, 4000, 5700
Beam angle
15°, 19°x54°, 27°, 46°
CRI/Ra
80
ULOR / DLOR
100/0
Lumen luminaire [lm]
1900 - 3250
Efficacy [lm/W]
79 - 135
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
21

General data

Additional information
Length of cable from luminaire approx. 30cm
Lifetime LED L90
118 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxHxD Mounting dimensions [mm] WxH Pallet quantity Quantity in package Net weight [kg]
210x205x196 196x201 120 1 3.6
X

Available variants

Code
Colour temperature [K]
3000
4000
5700
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Beam angle
15°
19°x54°
27°
46°
Clear Filters
Compare Code Type Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Beam angle
140810.3L01.001 DALI 24 2950 123 3000 80 15°
140810.3L01.002 DALI 24 2850 119 3000 80 27°
140810.3L01.003 DALI 24 2350 98 3000 80 46°
140810.3L01.004 DALI 24 1900 79 3000 80 19°x54°
140810.3L02.001 DALI 24 3250 135 4000 80 15°
140810.3L02.002 DALI 24 3150 131 4000 80 27°
140810.3L02.003 DALI 24 2600 108 4000 80 46°
140810.3L02.004 DALI 24 2100 88 4000 80 19°x54°
140810.3L03.001 DALI 24 3050 127 5700 80 15°
140810.3L03.002 DALI 24 2900 121 5700 80 27°
Compare selected
Shown 10 / 24
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
