RUNA 2.0 160

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants
RUNA 2.0 160

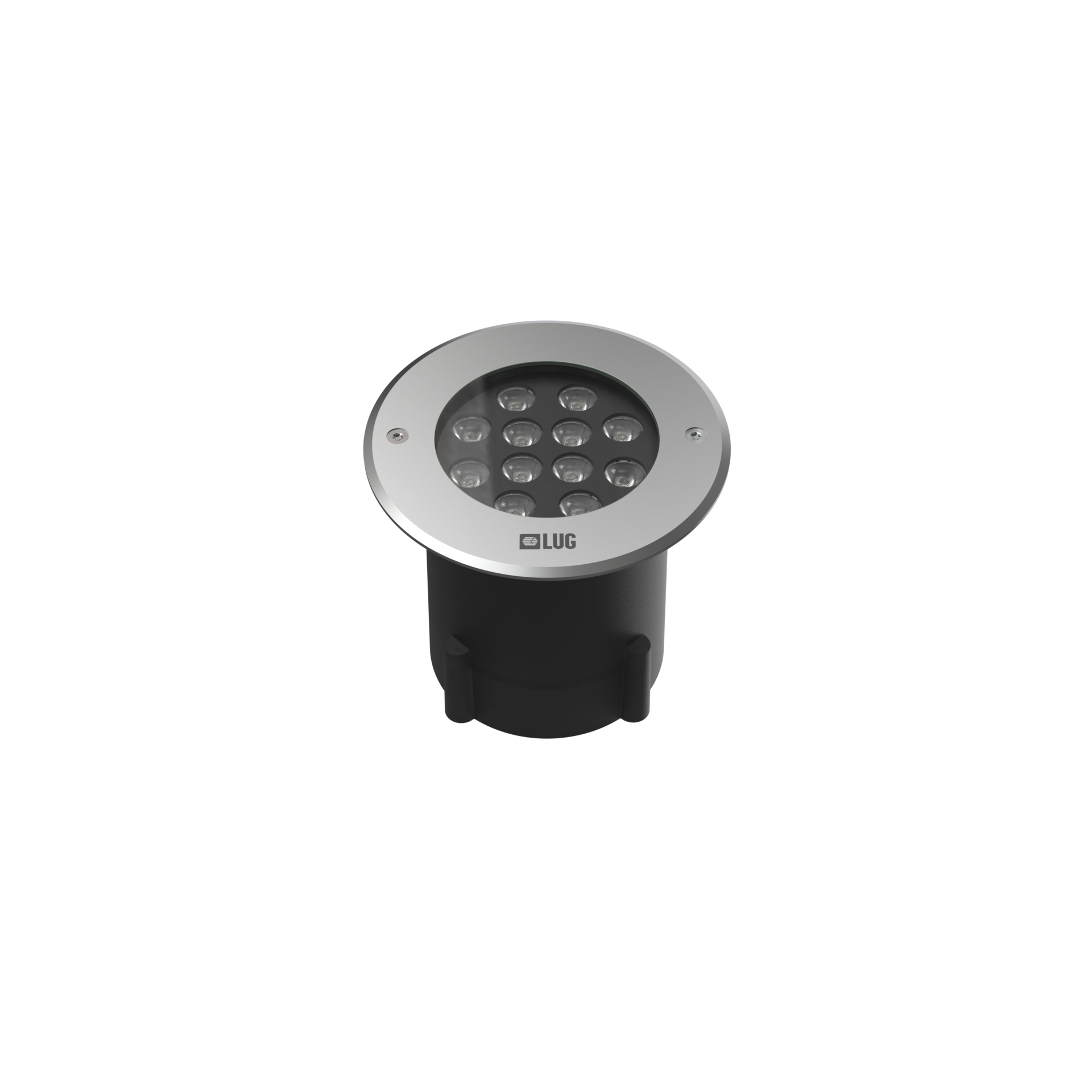

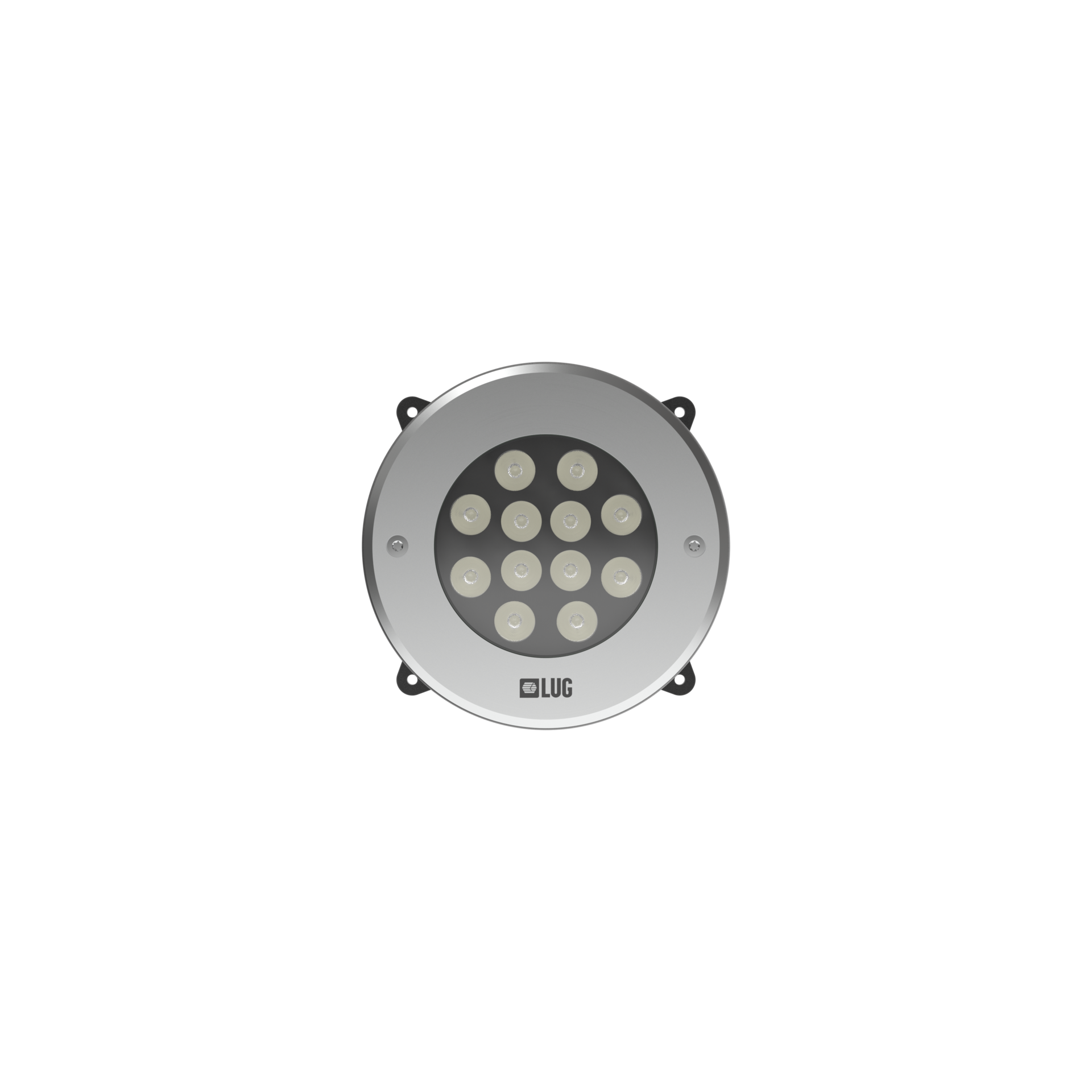

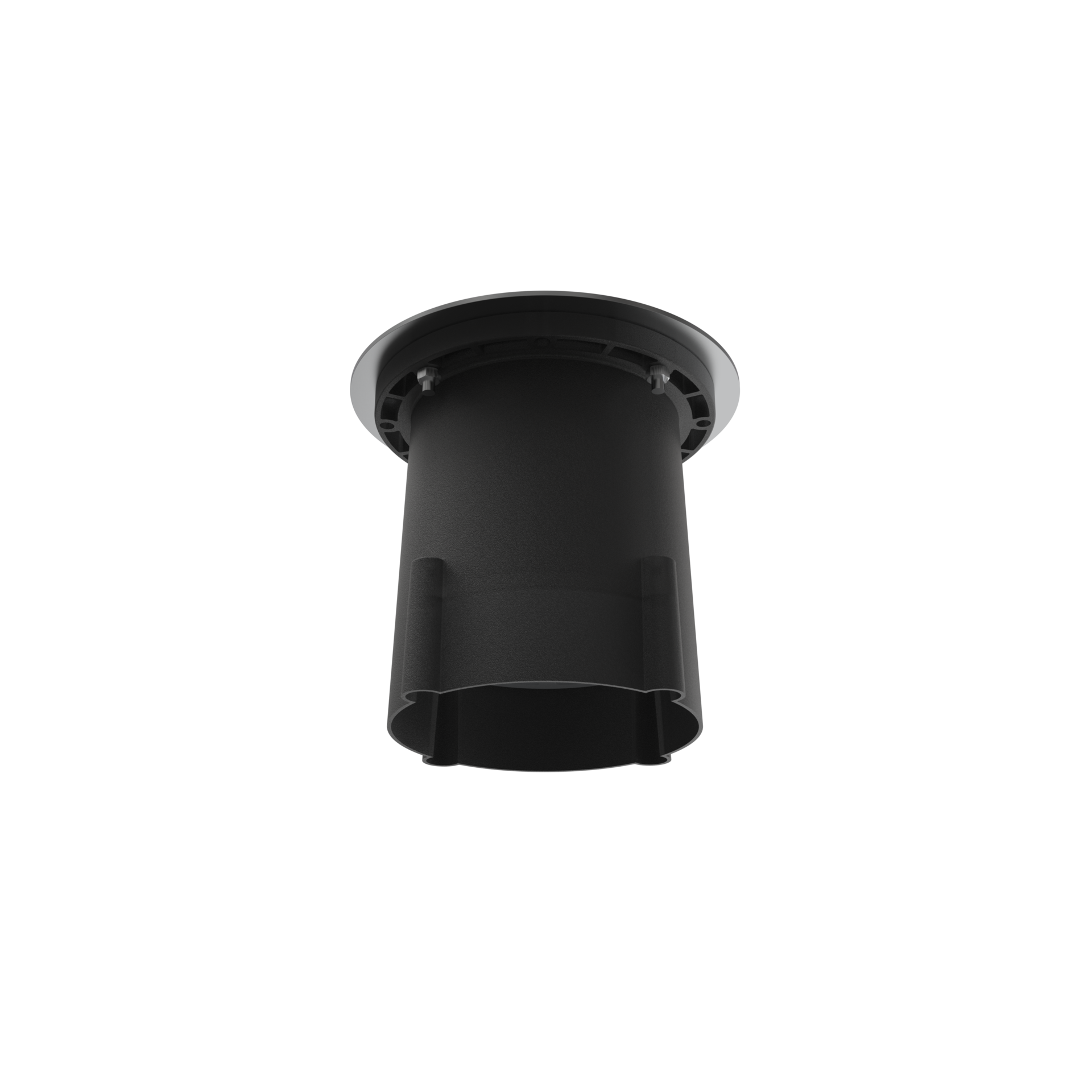

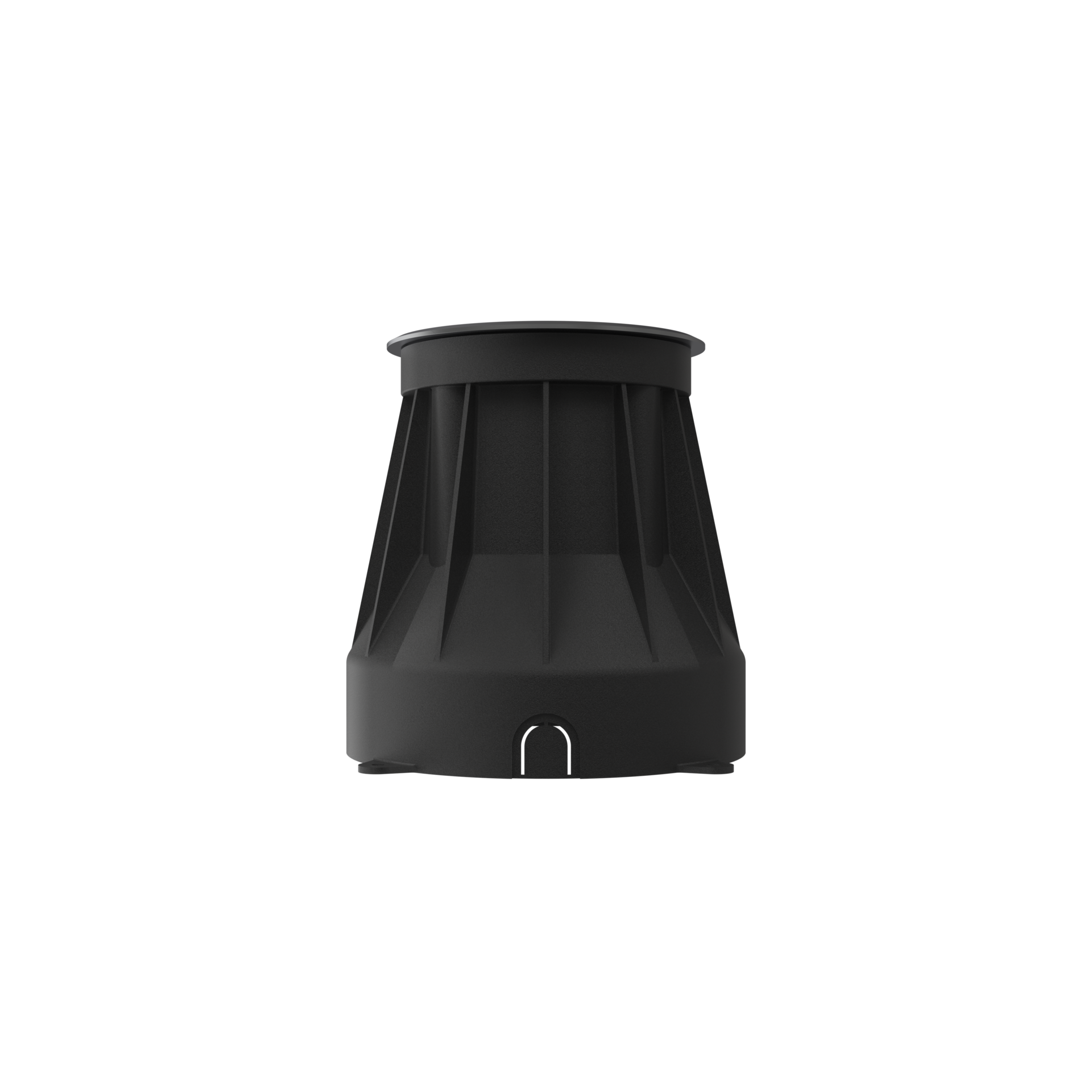

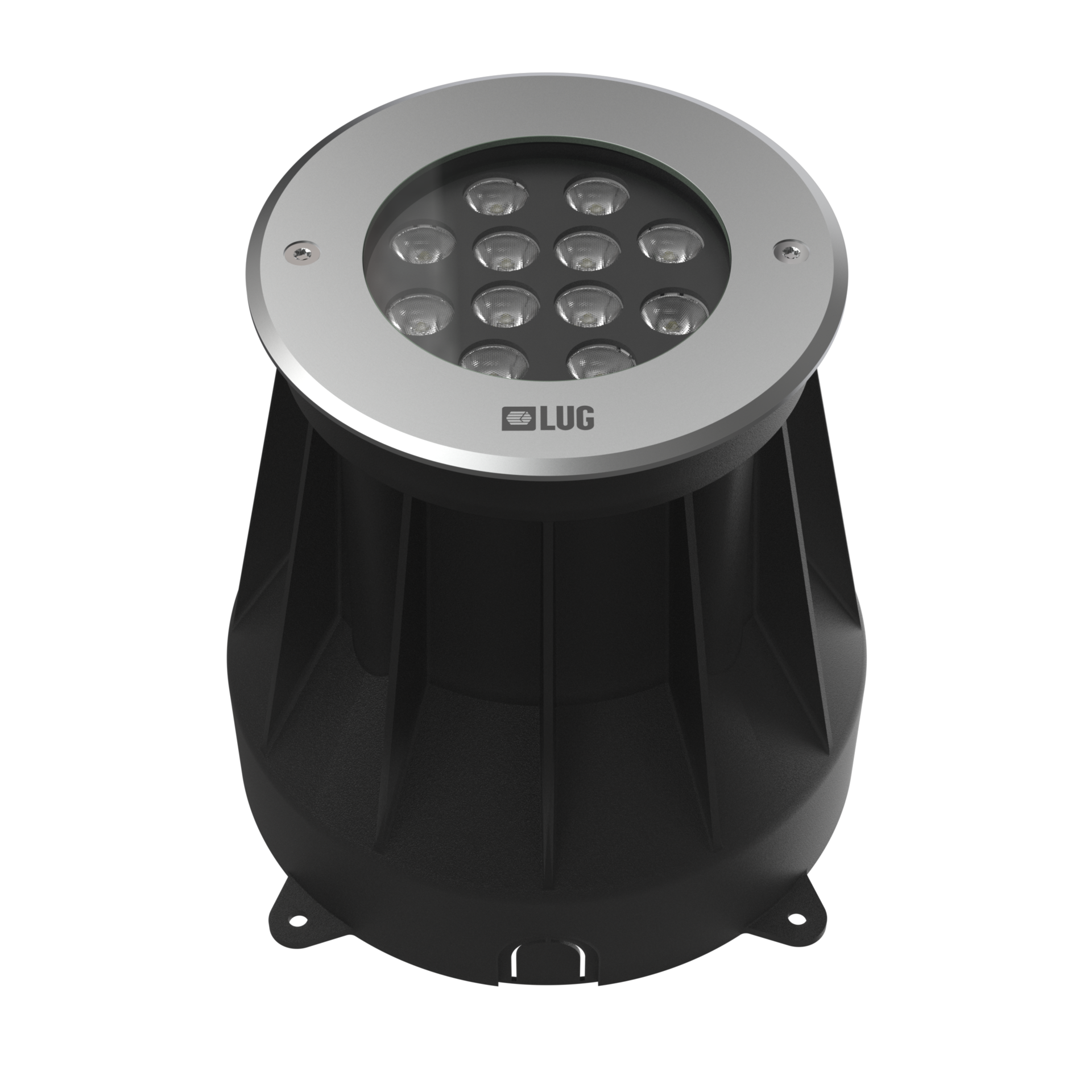

A ground-mounted architectural luminaire characterised by high resistance to outdoor conditions (IP68), resistance to mechanical damage (IK10) and the ability to handle loads of up to 5,000 kg. In addition, its UV resistance guarantees long-lasting aesthetics, while a luminous efficiency of more than 130 lm/W ensures energy-efficient lighting. The variety of light distribution allows precise adaptation to the environment, making it the perfect solution for modern architectural projects.



Universal design
Increased weather resistance
Luminaire body made of aluminum
Variety of beam angles

Application

Railway stations, hotels, parking areas, parks, pathways, playgrounds, promenade, public spaces, residential

Luminous flux range

900 - 1250 [lm]

Variable color temperature

3000 - 5700 [K]

Mechanical data

Mounting
in the substrate
Detail
black
Operating temperature range
'-20˚C ... +50˚C
Body
high-pressure injected aluminium, toughened glass, plastic
Type
standard

Electrical data

Power supply efficiency
≤85%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
10
Output current [mA]
250
Power supply power factor [λ]
0,95
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
26
Maximum number of luminaires in the circuit with a 16A fuse (B)
41
Maximum number of luminaires in the circuit with a 25A fuse (B)
52

Optical data

Light distribution
omnidirectional
Way of lighting
direct
Type of optic
lens
Diffuser
tempered glass
Colour temperature [K]
3000, 4000, 5700
Beam angle
15°, 19°x54°, 27°, 46°
CRI/Ra
80
ULOR / DLOR
100/0
Lumen luminaire [lm]
900 - 1250
Efficacy [lm/W]
90 - 125
Photobiological risk group
RG1
SVM
<0,9
PstLM
≤1
Number of LEDs
12

General data

Additional information
Length of cable from luminaire approx. 20cm; safe supply of the LED module with low SELV voltage
Lifetime LED L90
118 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxHxD Mounting dimensions [mm] WxH Pallet quantity Quantity in package Net weight [kg]
200x205x98 200x201 120 1 2.2
X

Available variants

Code
Colour temperature [K]
3000
4000
5700
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Beam angle
15°
19°x54°
27°
46°
Clear Filters
Compare Code Type Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Beam angle
140760.3L01.001 standard DALI 10 1150 115 3000 80 15°
140760.3L01.002 standard DALI 10 1100 110 3000 80 27°
140760.3L01.003 standard DALI 10 950 95 3000 80 46°
140760.3L01.004 standard DALI 10 900 90 3000 80 19°x54°
140760.3L02.001 standard DALI 10 1250 125 4000 80 15°
140760.3L02.002 standard DALI 10 1200 120 4000 80 27°
140760.3L02.003 standard DALI 10 1050 105 4000 80 46°
140760.3L02.004 standard DALI 10 1000 100 4000 80 19°x54°
140760.3L03.001 standard DALI 10 1200 120 5700 80 15°
140760.3L03.002 standard DALI 10 1150 115 5700 80 27°
Compare selected
Shown 10 / 24
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
