RUNA 2 LED DALI

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants
RUNA 2 LED DALI
In-ground 'drive over' decorative luminaire IP67 supplied with high quality LED light sources. The subject of the modification is a series connection of luminaires - min 4 luminaires - max 8 luminaires.



High efficacy to 78 lm/W

Application

Railway stations, hotels, parking areas, pathways, shopping centers

Luminous flux range

770 [lm]

Variable color temperature

3000 [K]

Mechanical data

Mounting
in the substrate
Body colour
black
Operating temperature range
'-30˚C ... +40˚C
Body
stainless steel, high pressure die-cast
Type
Optical module, Power supply module 96W IP67, 90-285 V, 350 mA

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
12
Output current [mA]
350
Type of equipment
LED driver is in a seperate box (included)

Optical data

Way of lighting
direct
Diffuser
tempered glass
Colour temperature [K]
3000
Beam angle
45°
CRI/Ra
≥80
Lumen luminaire [lm]
770
Efficacy [lm/W]
64

General data

Additional equipment

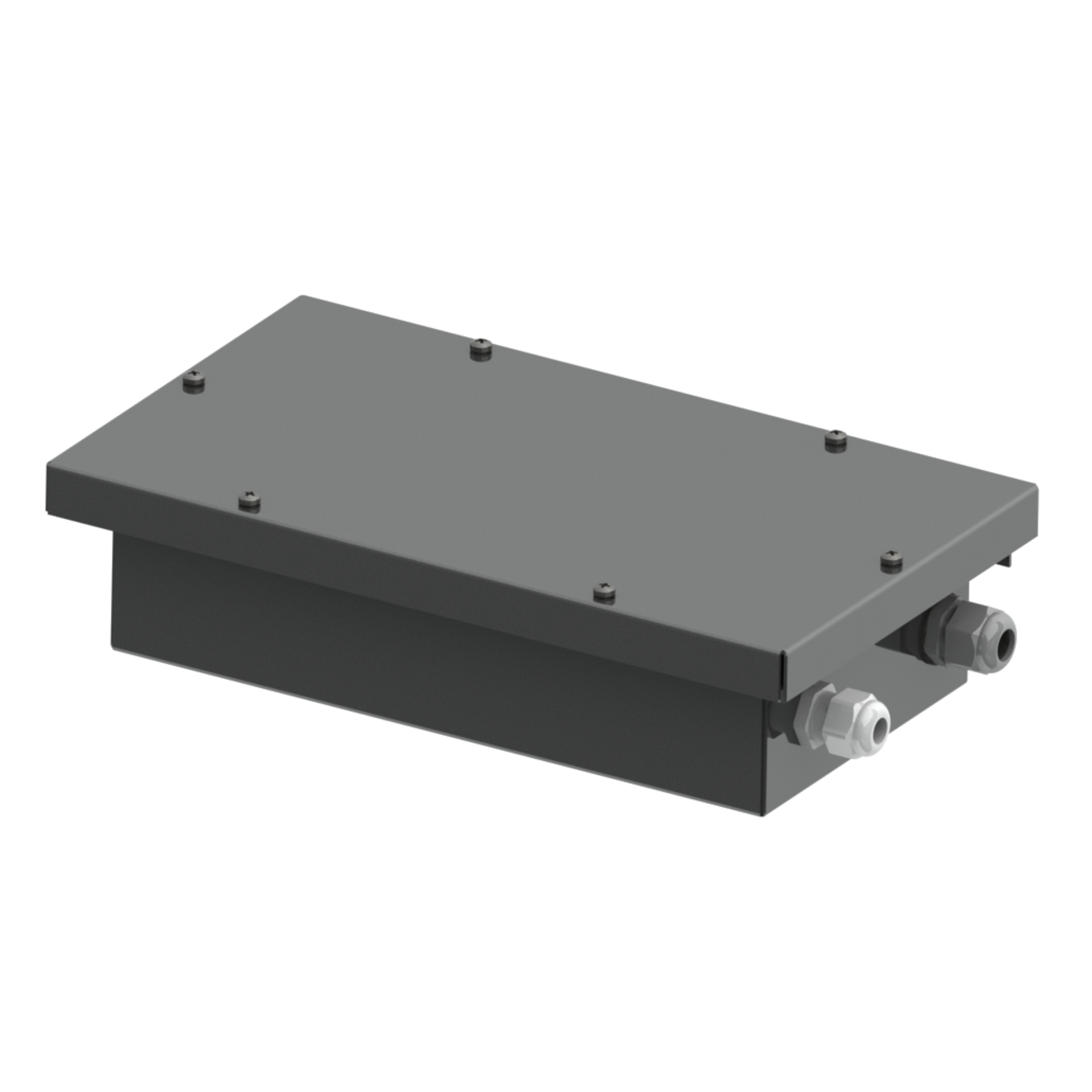

independent power supply cover - 900143.00132 (in a set)
Additional information
DALI; protection class in connection with the power supply casing - I class
Other remarks
lack of access to power feeders after installing the housing on solid surface (concrete, paving, etc.) without interfering with its structure
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] Pallet quantity Quantity in package Net weight [kg]
160x108 231 1 1.8
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Beam angle
900143.00132
900150.00231 12 770 64 3000 ≥80 45°
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Colour temperature tolerance +/- 5%.
