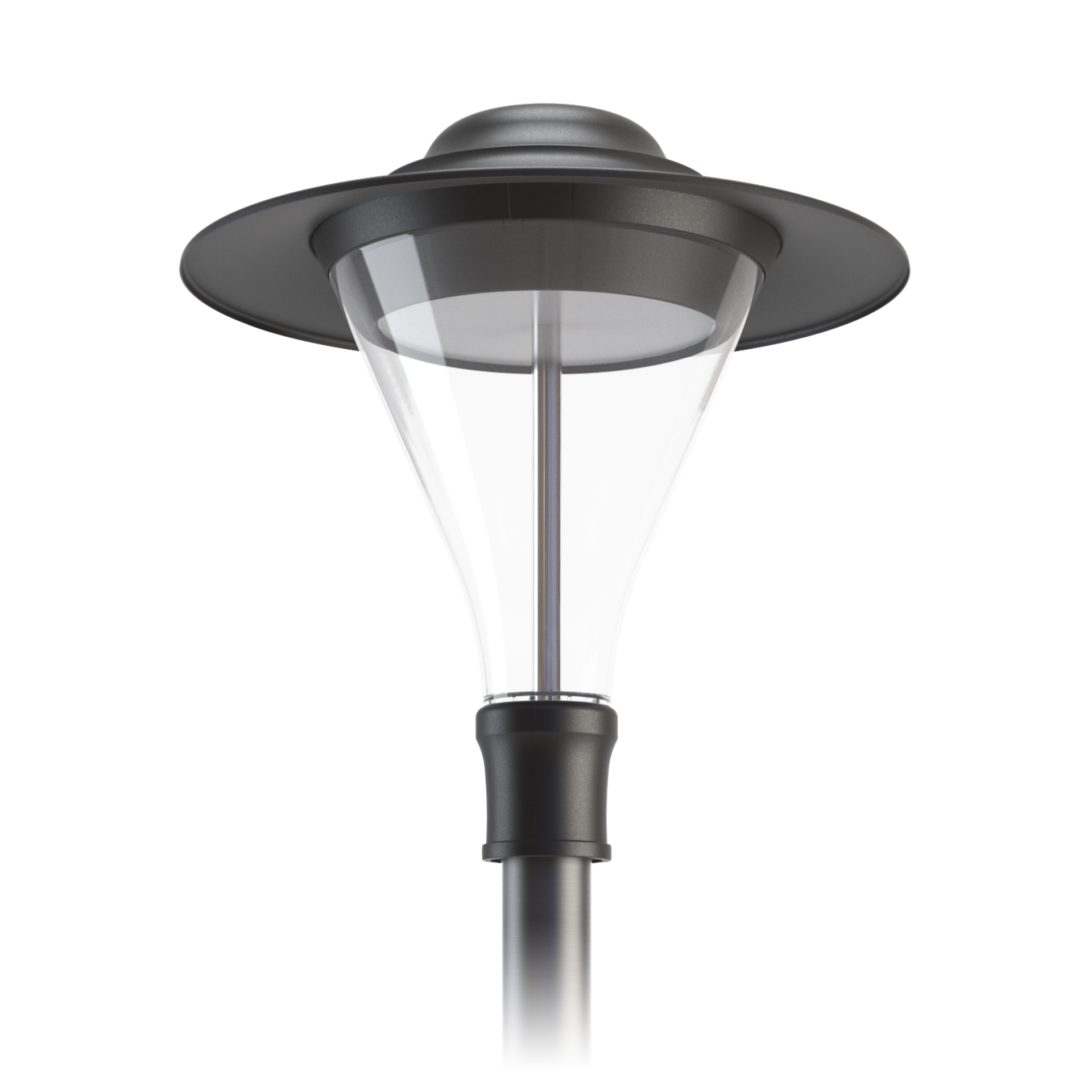

AVENIDA HERITAGE LED
P version
Stylized park luminaire, based on the architecture of AVENIDA LED luminaires and referring in character to classic decorative luminaires.



High efficacy to 132 lm/W
Modern design
Reliability

Application

Railway stations, avenues, facades, parks, promenade, public spaces, residential, residential area roads, roads, sidewalks

Available on request

10kV surge protection, CLO, NEMA connector, NTC, ZHAGA connector, extension of the warranty to 10 years

Luminous flux range

1750 - 4400 [lm]

Variable color temperature

2200 - 4000 [K]

Mechanical data

Mounting
on pillar ø60-76mm, with mounting bracket (included)
Body colour

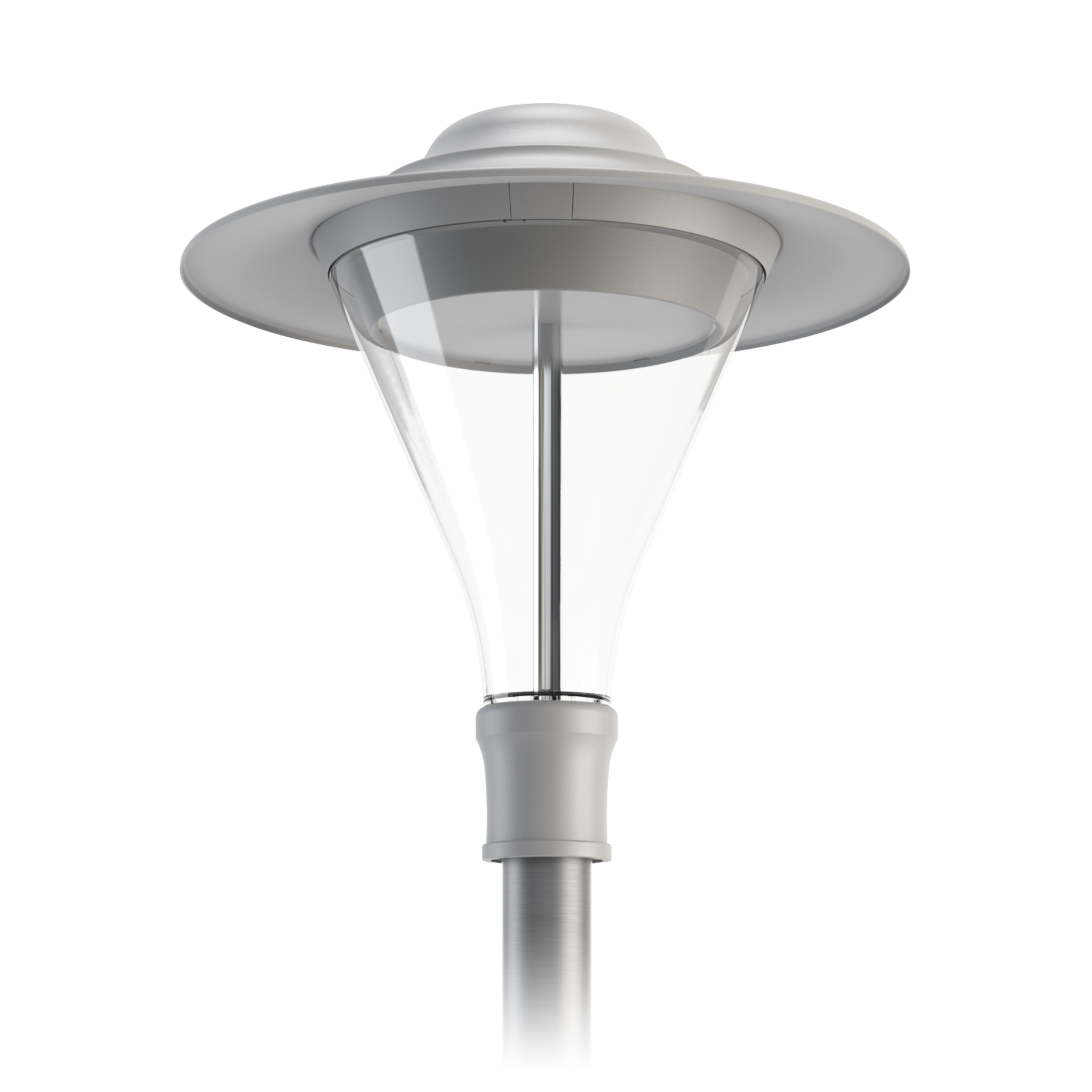

graphite, gray
Operating temperature range
-40 ... +50, -40 ... +55
RAL
7035
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0,111 m²
Type
AVENIDA HERITAGE LED P, LED lifetime: (L80B10) 100 000

Electrical data

Power supply efficiency
≤89%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
19 - 34
Output current [mA]
700
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 16A fuse (B)
21

Optical data

Way of lighting
direct
Diffuser
polycarbonate
Colour temperature [K]
2200, 2700, 3000, 4000
CRI/Ra
>80
MacAdam's steps
3
ULOR / DLOR
2,1/98, 2,2/97,8, 2,3/97,7, 2,3/97,8, 2,4/97,7, 2/98
Lumen luminaire [lm]
1750 - 4400
Efficacy [lm/W]
92 - 132
Photobiological risk group
RG0
Number of LEDs
60, 84, 108

General data

Additional information
photobiological risk group RG0; the luminaire is fitted with a cable which must not be exposed to UV radiation
Other remarks
the pole is not part of the luminaire
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxH Pallet quantity Quantity in package Net weight [kg]
561x570 12 1 6.15
X

Available variants

Code
Colour temperature [K]
2200
2700
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Body colour
graphite
gray
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra ULOR / DLOR Operating temperature range LED lifetime [h]
130322.3L012.011 DALI 19 2350 124 3000 >80 2/98 -40 ... +55
130322.3L022.011 DALI 19 2500 132 4000 >80 2/98 -40 ... +55
130322.3L042.011 DALI 27 3350 124 3000 >80 2,3/97,7 -40 ... +55
130322.3L052.011 DALI 27 3500 130 4000 >80 2,3/97,7 -40 ... +55
130322.3L072.011 DALI 34 4250 125 3000 >80 2,2/97,8 -40 ... +50
130322.3L082.011 DALI 34 4400 129 4000 >80 2,2/97,8 -40 ... +50
130322.3L102.011 DALI 19 1750 92 2200 >80 2,1/98 -40 ... +55
130322.3L112.011 DALI 19 2100 111 2700 >80 2,1/98 -40 ... +55
130322.3L122.011 DALI 27 2500 93 2200 >80 2,4/97,7 -40 ... +55
130322.3L132.011 DALI 27 3000 111 2700 >80 2,4/97,7 -40 ... +55
Compare selected
Shown 10 / 48
Show all
Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Please note that the standard luminaire is not intended for use in an environment with a high degree of salinity. If it is required to adapt the luminaire to work in such an environment, please contact our Sales Department to confirm the possibility of using an additional protective coating.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150175.00982
150172.00966
Cover masking ø60 mm
150245.01095
150242.01094

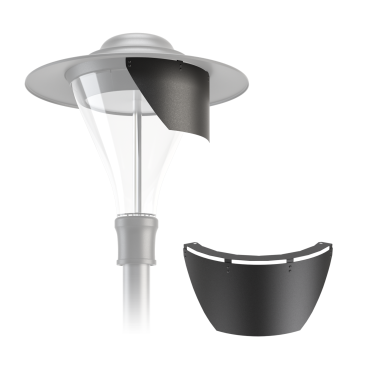

Louver for AVENIDA HERITAGE LED luminaires
