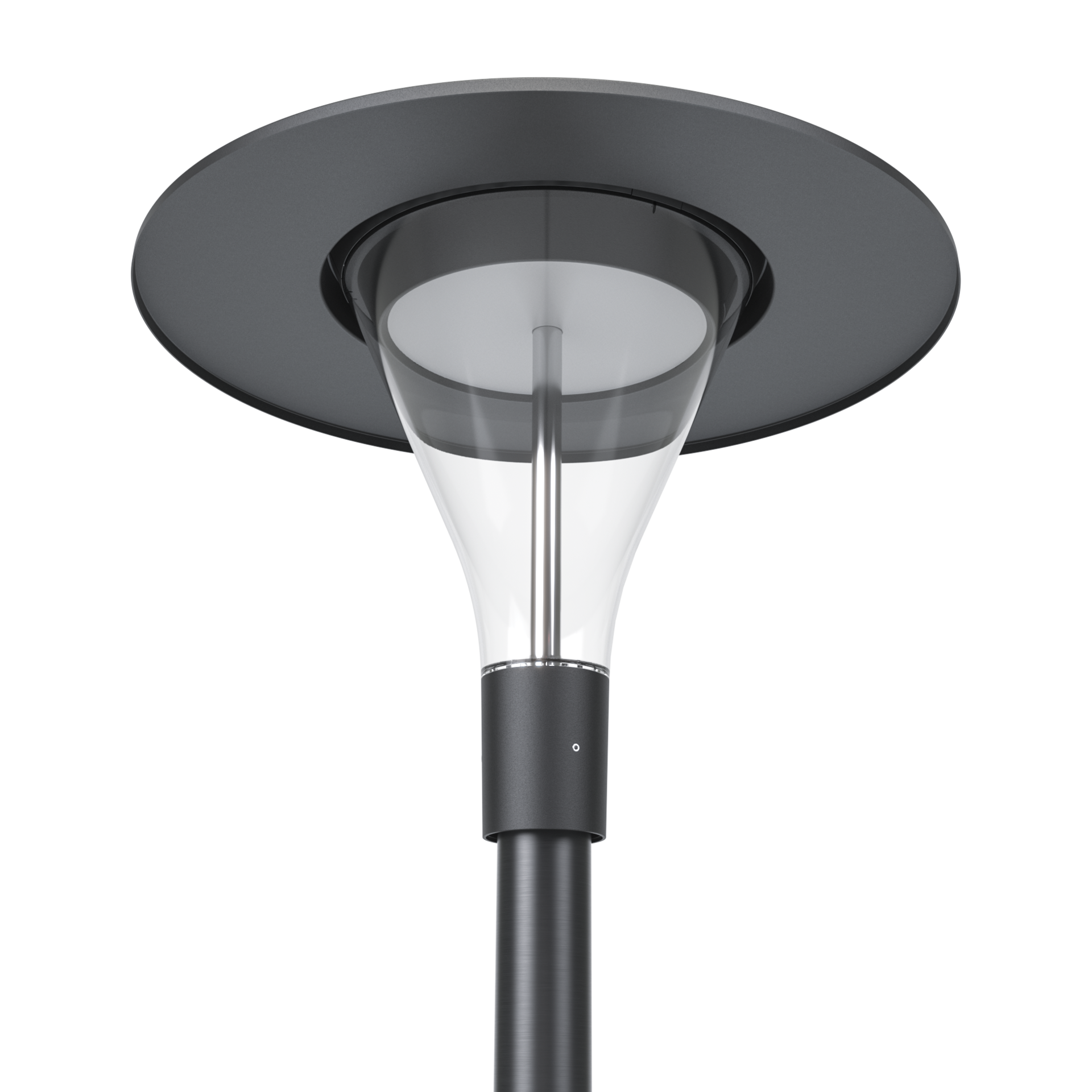

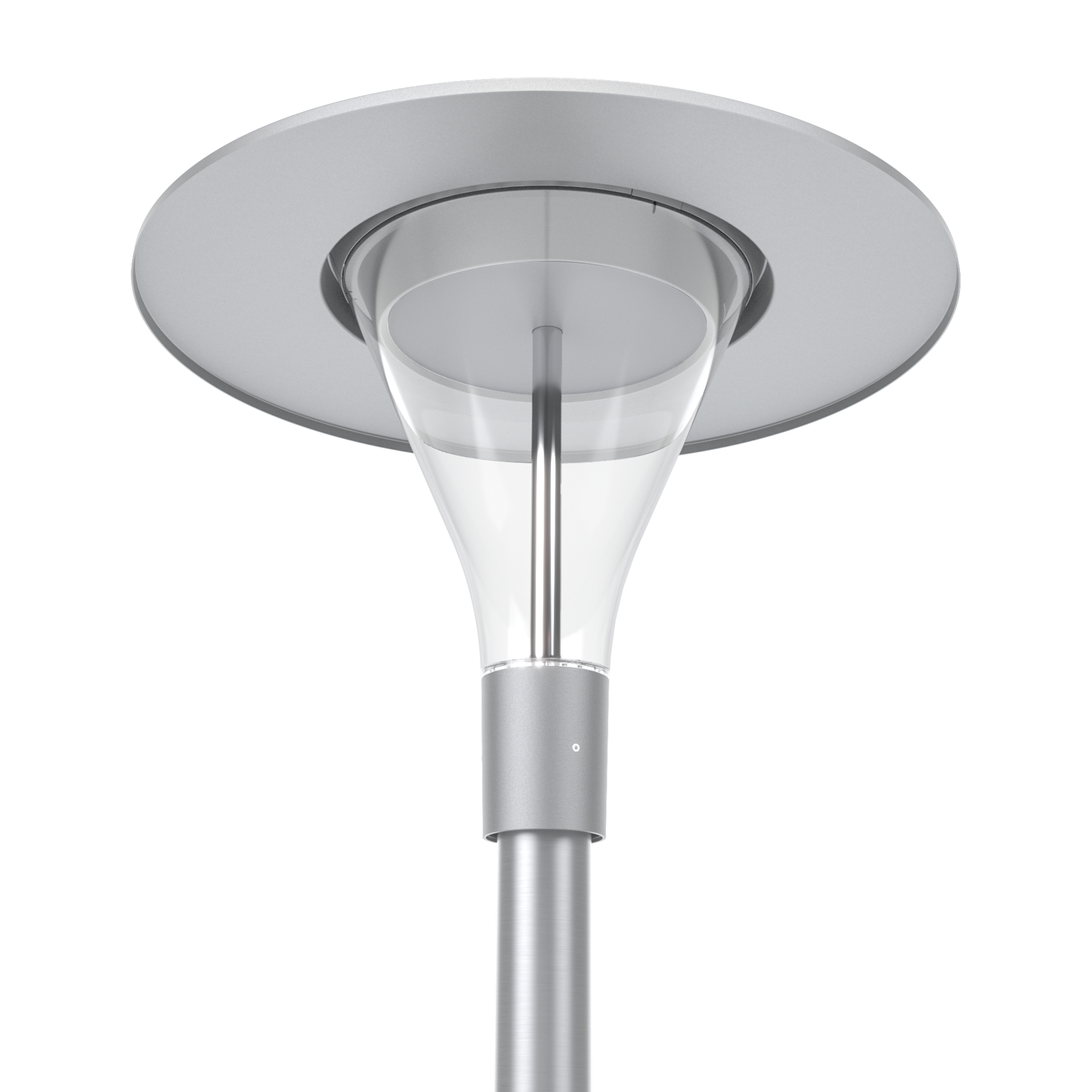

AVENIDA LED
Modern hat version
Park luminaire in modern form for LED light sources.



High efficacy to 132 lm/W
Possible illuminance control
Modern design
Reliability

Application

avenues, parks, playgrounds, promenade, public spaces, residential, residential area roads, sidewalks

Available on request

10kV surge protection, CLO, NEMA connector, NTC, ZHAGA connector, extension of the warranty to 10 years, twilight sensor

Luminous flux range

2350 - 4400 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
on pillar ø48-76mm, with mounting bracket (included)
Body colour
graphite, gray
Operating temperature range
-40 ... +50, -40 ... +55
RAL
7035
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0,088 m²
Type
Modern hat

Electrical data

Power supply efficiency
≤89%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
19 - 34
Output current [mA]
600
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 16A fuse (B)
21

Optical data

Way of lighting
direct
Type of optic
diffuser
Diffuser
polycarbonate
Colour temperature [K]
3000, 4000
CRI/Ra
>80
Lumen luminaire [lm]
2350 - 4400
Efficacy [lm/W]
124 - 132
Photobiological risk group
RG0

General data

Additional information
photobiological risk group RG0; the luminaire is fitted with a cable which must not be exposed to UV radiation
Other remarks
the pole is not part of the luminaire
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxH Mounting dimensions [mm] ØS Pallet quantity Quantity in package Net weight [kg]
665x486 76 12 1 6.1
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Way of mounting
on pillar ø48-76mm
with mounting bracket (included)
Body colour
graphite
gray
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range Type of equipment
130262.3L012.011.846 19 2350 124 3000 >80 -40 ... +55 DALI
130262.3L022.011.846 19 2500 132 4000 >80 -40 ... +55 DALI
130262.3L042.011.846 27 3350 124 3000 >80 -40 ... +55 DALI
130262.3L052.011.846 27 3500 130 4000 >80 -40 ... +55 DALI
130262.3L072.011.846 34 4250 125 3000 >80 -40 ... +50 DALI
130262.3L082.011.846 34 4400 129 4000 >80 -40 ... +50 DALI
130262.5L012.011.846 19 2350 124 3000 >80 -40 ... +55 ED
130262.5L022.011.846 19 2500 132 4000 >80 -40 ... +55 ED
130262.5L042.011.846 27 3350 124 3000 >80 -40 ... +55 ED
130262.5L052.011.846 27 3500 130 4000 >80 -40 ... +55 ED
Compare selected
Shown 10 / 24
Show all
Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Please note that the standard luminaire is not intended for use in an environment with a high degree of salinity. If it is required to adapt the luminaire to work in such an environment, please contact our Sales Department to confirm the possibility of using an additional protective coating.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
