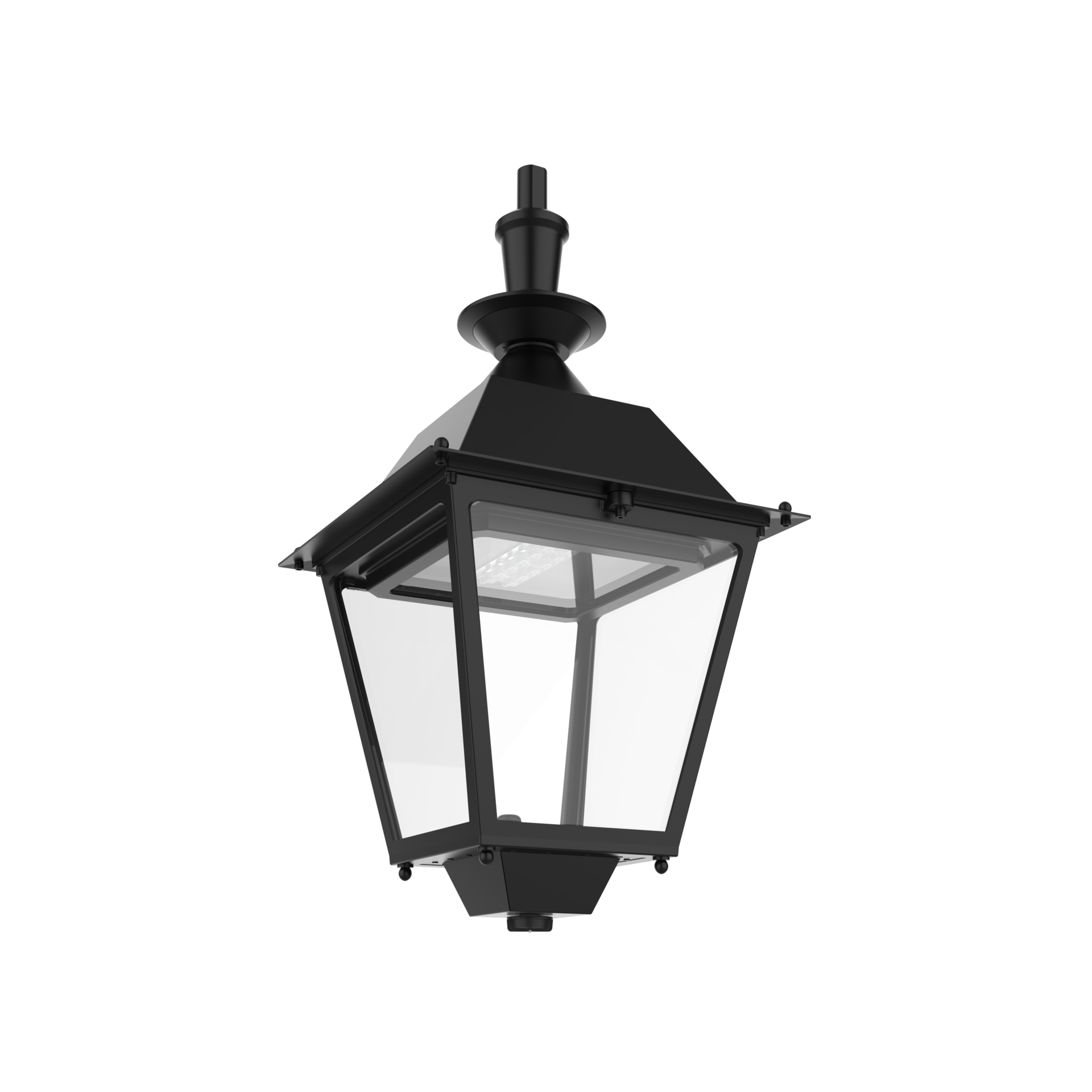

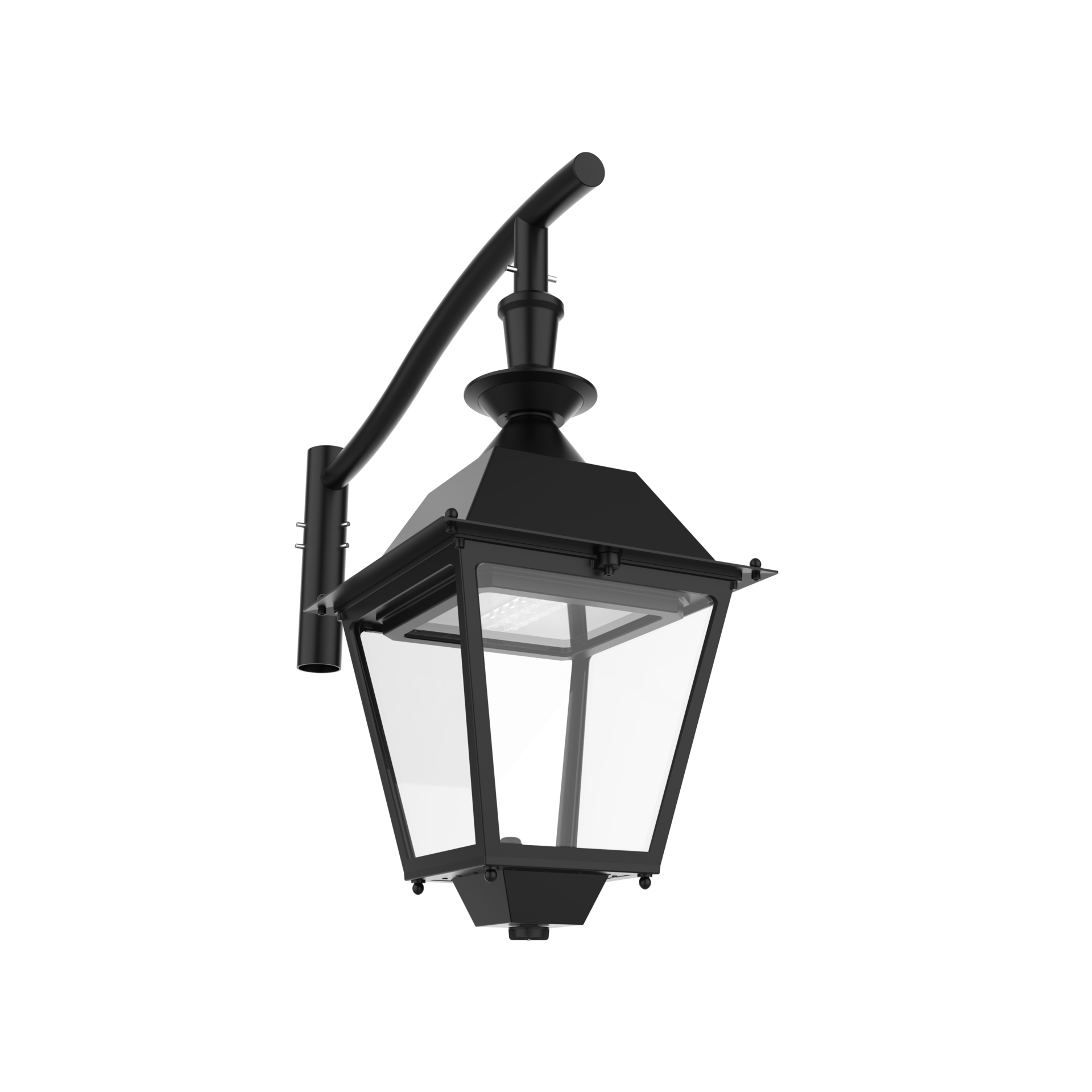

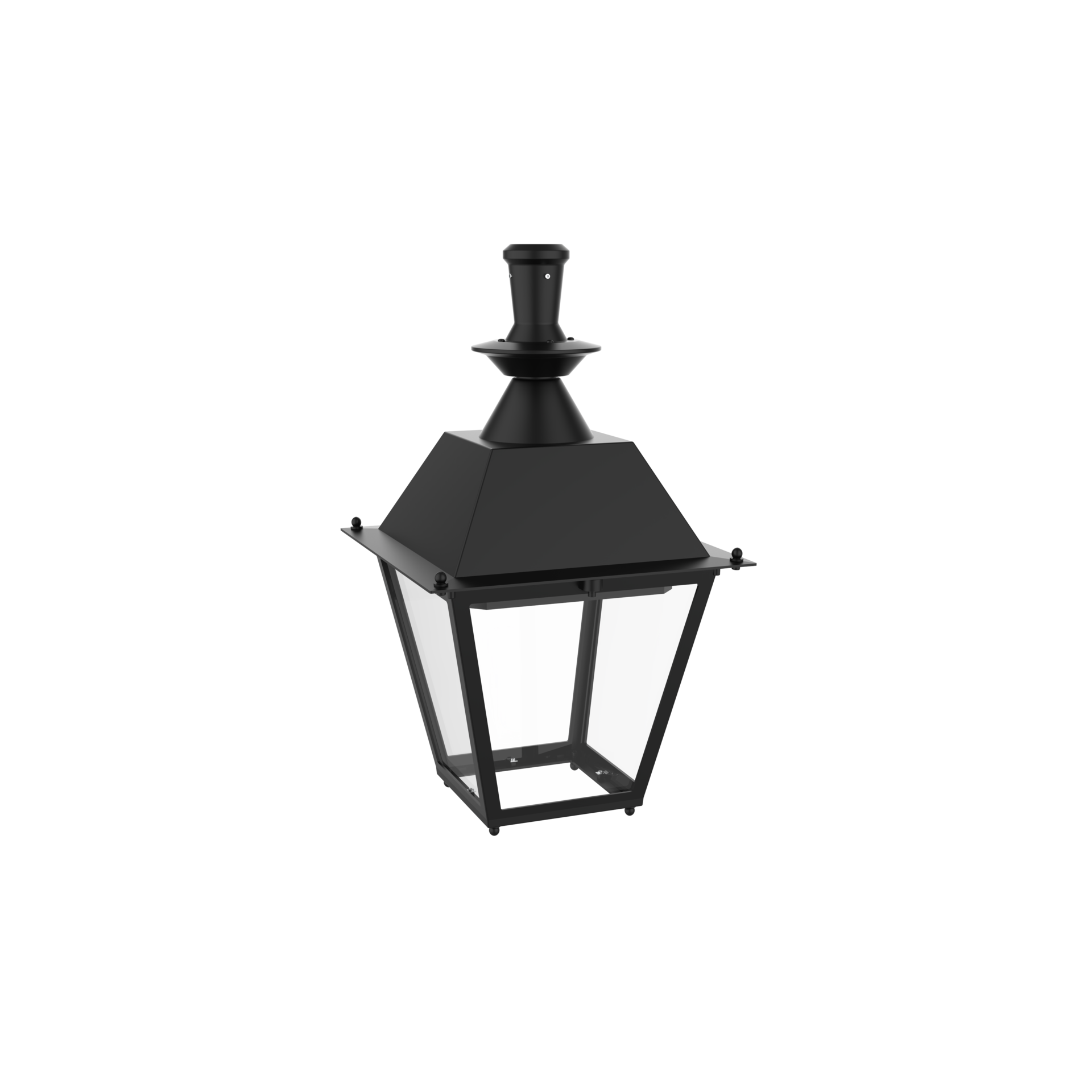

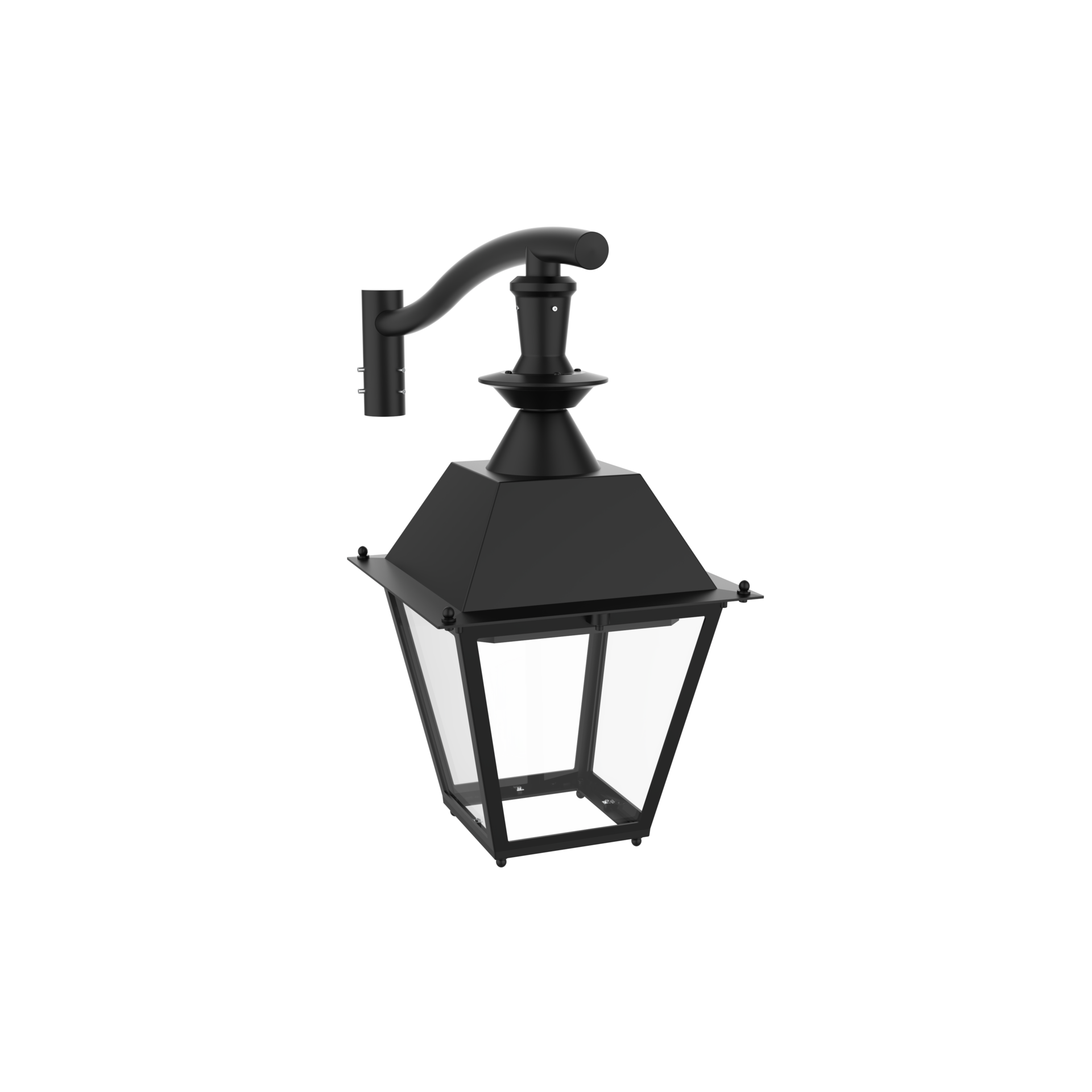

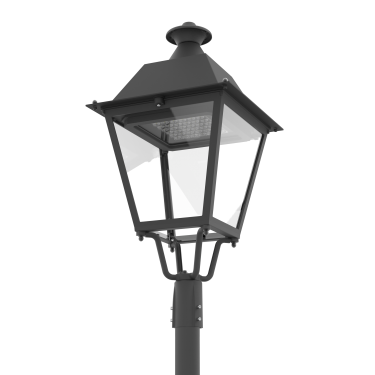

LUCERA LED
S version

A classic urban lantern with LED light source. The timeless style, the range of accessory shade variants and the superior quality of the finish allow the luminaire to be integrated into a variety of urban spaces. In a dedicated version also for use in environments with increased corrosive exposure in the highest class C5-M.

High efficacy to 138 lm/W

Classic elegance

Synergy of design and technology

Application

Railway stations, avenues, facades, local roads, parking areas, parks, playgrounds, promenade, residential, residential area roads, roads, town roads

Available on request

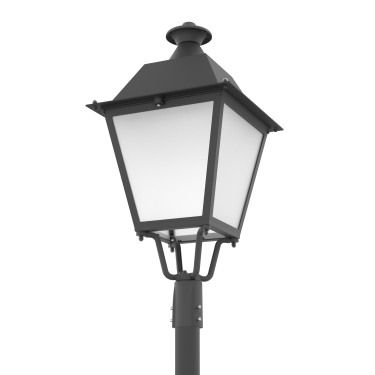

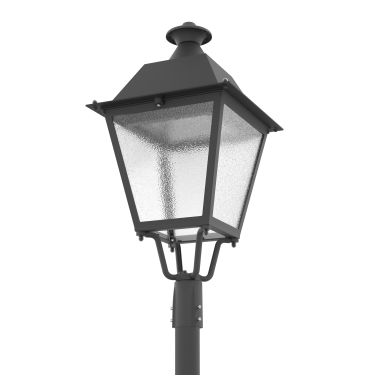

2x ZHAGA connector, CLO, NEMA connector, extension of the warranty to 10 years, gas connector 3/4" thread, glass diffuser (opal, transparent, structured), version with increased corrosion resistance in accordance with class C5

Luminous flux range

1950 - 10450 [lm]

Variable color temperature

2200 - 4000 [K]

Mechanical data

Mounting

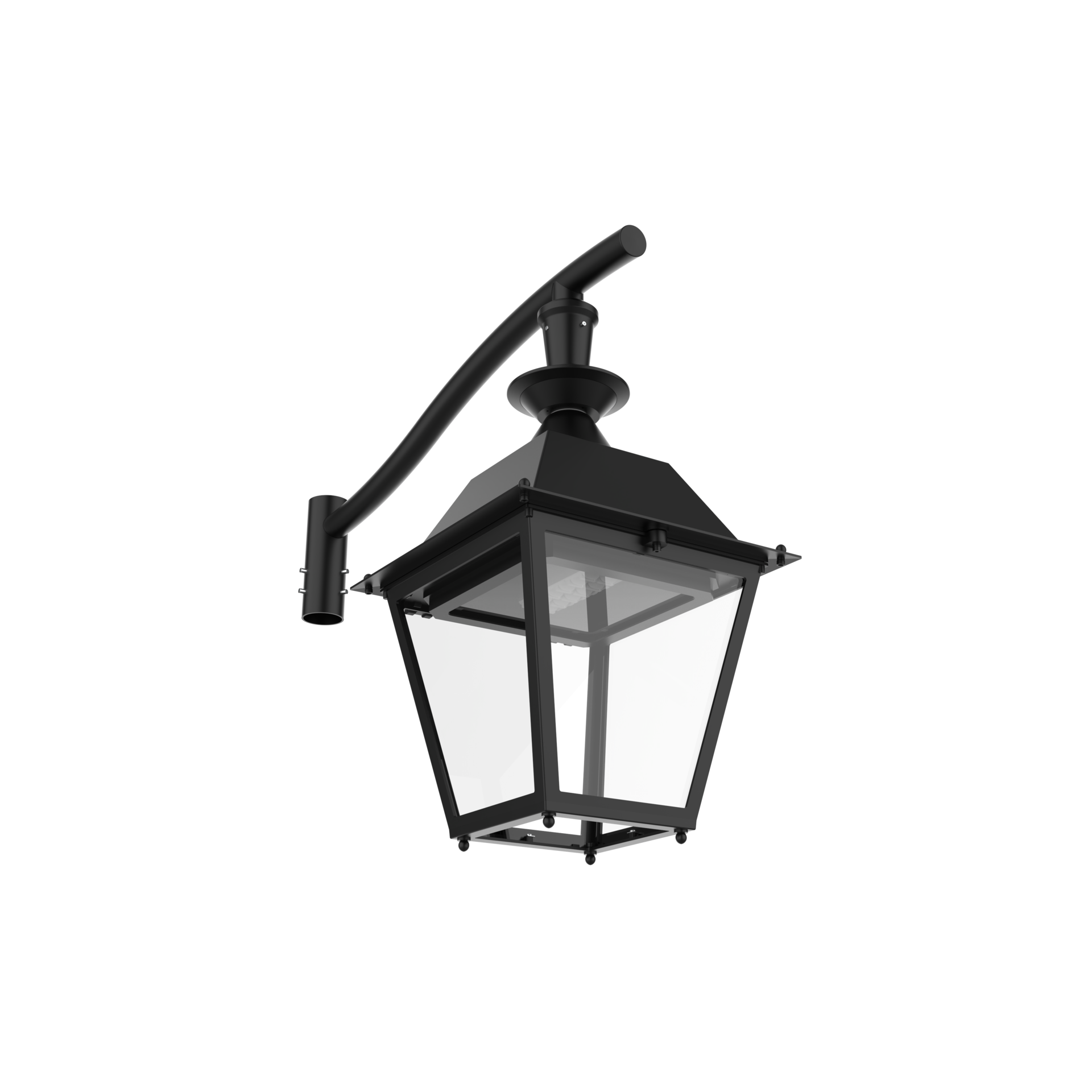

suspended, with accessories (to be ordered separately)

Body colour

black

Operating temperature range

'-40˚C ... +50˚C

RAL

9005

Body

high pressure die-cast aluminum

Lateral Surface Wind Exposed

0,085 m²; 0,090 m² (ZHAGA D4i)

Electrical data

Power supply efficiency

≤93%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

22 - 76

Output current [mA]

500, 550, 700

Type of equipment

DALI, ED, ZHAGA D4i

Maximum number of luminaires in the circuit with a 10A fuse (B)

8 - 17

Maximum number of luminaires in the circuit with a 16A fuse (B)

12 - 28

Maximum number of luminaires in the circuit with a 25A fuse (B)

20 - 44

Optical data

Way of lighting

direct

Type of optic

O1, O2, O3, O4, O5, O6

Colour temperature [K]

2200, 2700, 3000, 4000

CRI/Ra

>70

MacAdam's steps

ULOR / DLOR

0% / 100%

Lumen luminaire [lm]

1950 - 10450

Efficacy [lm/W]

89 - 138

Photobiological risk group

RG1

Number of LEDs

12, 24, 36

General data

Additional information

Safe power supply with low voltage SELV; the standard version of the luminaire is corrosion resistant according to class C3

Other remarks

the pole and boom are not part of the luminaire

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxHxD	Marking	Pallet quantity	Quantity in package	Net weight [kg]
400x760x700	DALI, ED	8	1	9.1
400x807x747	ZHAGA D4i	8	1	9.4

Code	Type of optic	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range
130863.3L012.010	O1	DALI	22	2200	100	2200	>70	'-40˚C ... +50˚C
130863.3L012.020	O2	DALI	22	2350	107	2200	>70	'-40˚C ... +50˚C
130863.3L012.030	O3	DALI	22	2300	105	2200	>70	'-40˚C ... +50˚C
130863.3L012.040	O4	DALI	22	2300	105	2200	>70	'-40˚C ... +50˚C
130863.3L012.050	O5	DALI	22	2300	105	2200	>70	'-40˚C ... +50˚C
130863.3L012.060	O6	DALI	22	2250	102	2200	>70	'-40˚C ... +50˚C
130863.3L022.010	O1	DALI	22	2500	114	2700	>70	'-40˚C ... +50˚C
130863.3L022.020	O2	DALI	22	2650	120	2700	>70	'-40˚C ... +50˚C
130863.3L022.030	O3	DALI	22	2600	118	2700	>70	'-40˚C ... +50˚C
130863.3L022.040	O4	DALI	22	2550	116	2700	>70	'-40˚C ... +50˚C

Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Please note that the standard luminaire is not intended for use in an environment with a high degree of salinity. If it is required to adapt the luminaire to work in such an environment, please contact our Sales Department to confirm the possibility of using an additional protective coating.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.

Download Materials

Select and download the materials you are interested in

Product sheet

PDF (967.9KB)

Declarations and certificates

ZIP (1.1MB)

Light beam curves

ZIP (1.4MB)

Mounting instruction

PDF (3.8MB)

Download selected

CUSTOMISATION - OUR SETTING YOUR WAY

A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains

custom

Customisation

Bespoke - Let's develop a project together

A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains

bespoke

Bespoke

Accessories

150173.01369

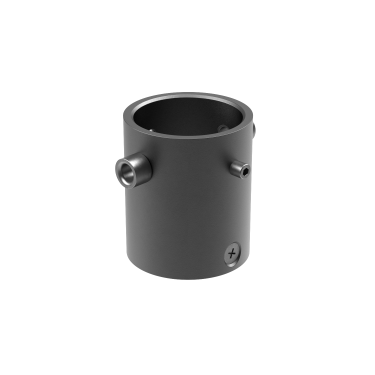

Threaded connector 1-inch female

150173.01370

Threaded connector 3/4 inch male

150173.01371

Threaded connector 3/4 inch female

150173.01372

Threaded connector ø42mm

150170.01135

Threaded fitting gauge ø42mm

150170.01283

LUCERA LED transparent glass (4 pcs.)

150170.01284

LUCERA LED opal glass (4 pcs.)

150170.01285

LUCERA LED structured glass (4 pcs.)

150170.01356

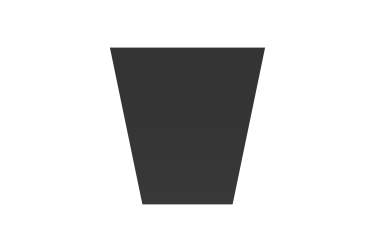

LUCERA LED glass lampshade black Backshield (1 pcs.)
