LUGLINE LB LED 3-PHASE

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

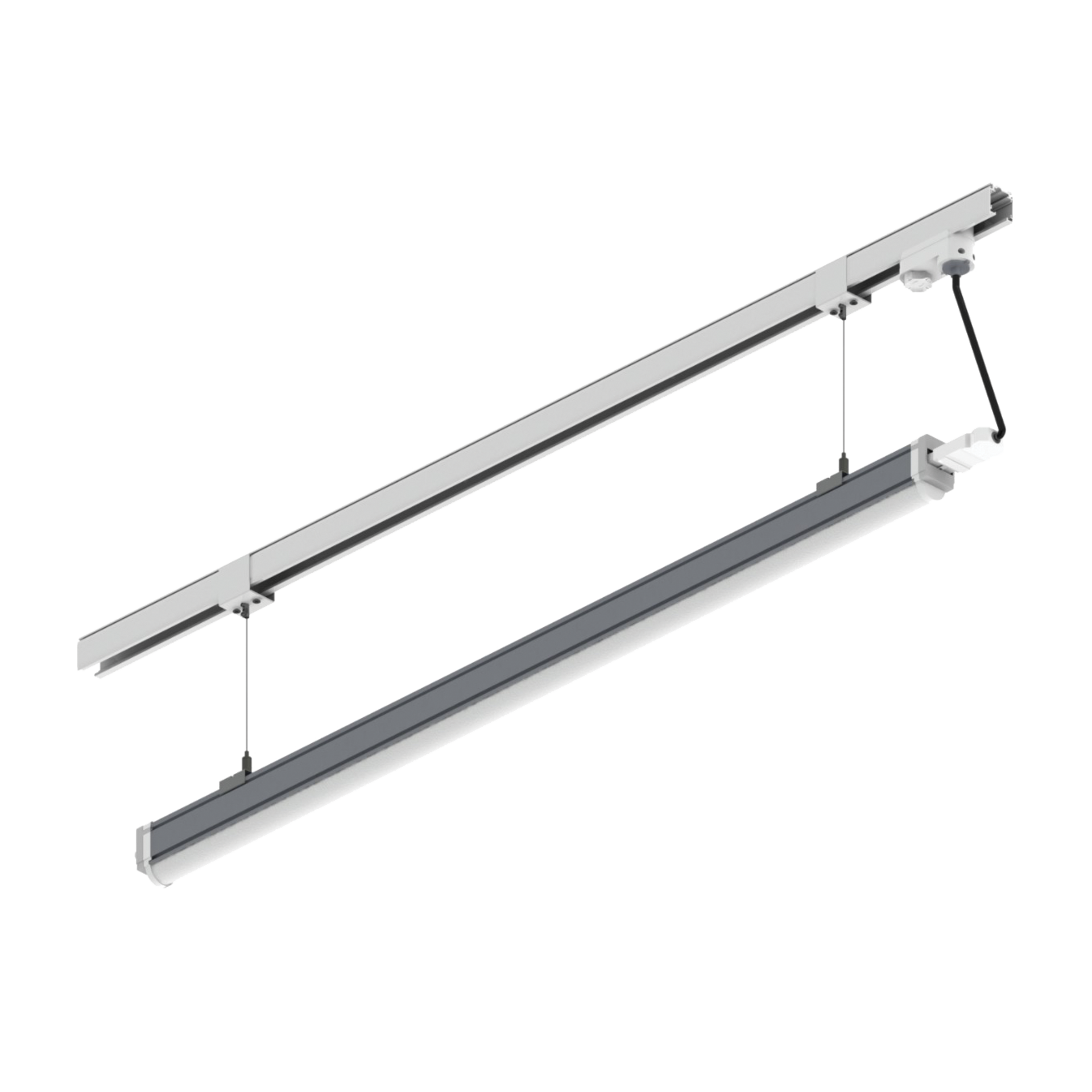

LUGLINE LB LED 3-PHASE
Modern continuous line luminaire featuring LED light sources. The subject of the modification is the possibility of assembly in a 3-phase rail.



High efficacy to 116 lm/W
Fast and easy mounting
Universal design

Application

shopping centers, supermarkets

Luminous flux range

4750 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
in 3-phase track
Body colour
white
Operating temperature range
0 … +50
RAL
9016
Body
aluminum profile

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
41
Type of equipment
DALI, ED

Optical data

Way of lighting
direct
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
4000
CRI/Ra
≥80
Lumen luminaire [lm]
4750
Efficacy [lm/W]
116

General data

Additional equipment
included mounting bracket (2 pc. for 1m luminaire)
Additional information
through wiring
Lifetime L80B10
50 000 h
Warranty
3 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Net weight [kg]
1014x40x60 432 2
X

Available variants

Code
Type of equipment
DALI
ED
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Replacement of conventional technology [W] Degree of water and dust protection Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
900081.00185 1x39W (46W) IP20 41 4750 116 4000 ≥80 0 … +50
900081.00186 1x39W (46W) IP20 41 4750 116 4000 ≥80 0 … +50
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150230.00768
Asymmetrical aluminum mirror reflector (glossy)
150230.00769
Double asymmetrical aluminum mirror reflector (glossy)
150231.00791
LUGLINE LB LED Starter KIT 3-pole (1x power connector, 2x end cap, 2x cover masking for reflector, 1x user manual)
150231.00792
LUGLINE LB LED Starter KIT 5-pole (1x power connector, 2x end cap, 2x cover masking for reflector, 1x user manual)
