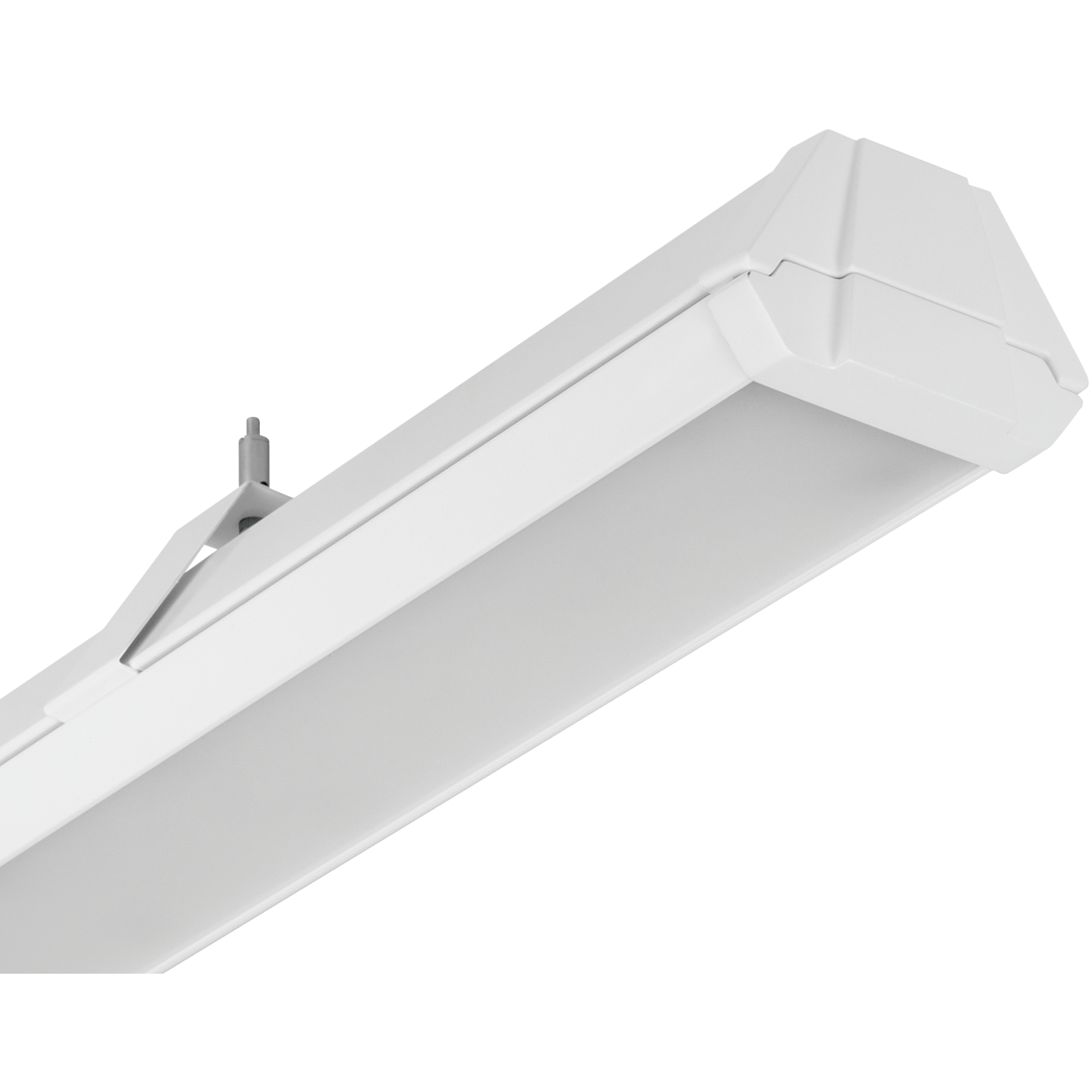

LUGTRACK 5 LED
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems (available in 1,5m and 3m-long dimension) by the usage of mounting elements.



High efficacy to 128 lm/W
Universal design
Perfect for retail lighting
Fast and easy mounting
Possible illuminance control

Application

delicatessen, industrial facilities, supermarkets, warehouses

Luminous flux range

3200 - 16200 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (on request)
Length [mm]
1500, 3000
Body colour
white
Operating temperature range
0˚C ... +45˚C
RAL
9010
Body
powder-painted steel sheet, aluminium
Type
Empty module, STANDARD

Electrical data

Power supply efficiency
≤86%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
26 - 128
Output current [mA]
250, 270, 290, 310
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
7 - 21
Maximum number of luminaires in the circuit with a 16A fuse (B)
12 - 33

Optical data

Way of lighting
direct
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
3200 - 16200
Efficacy [lm/W]
119 - 128

General data

Additional equipment
accessories
Additional information
The possibility of using one or more power supplies in the luminaire.
Other remarks
in order to supply a particular lighting system , the supply connector shall be ordered
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
1500x111x90 98 1 2.1
1500x111x90 98 1 3.7
3000x111x90 70 1 3.4
3000x111x90 70 1 7.7
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type
Pusty moduł
STANDARD
Length [mm]
Colour temperature [K]
3000
4000
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
080091.5L13.11 ED 26 3200 123 3000 ≥80
080091.5L14.11 ED 26 3300 127 4000 ≥80
080091.5L15.11 ED 38 4750 125 3000 ≥80
080091.5L16.11 ED 38 4850 128 4000 ≥80
080091.5L17.11 ED 47 5600 119 3000 ≥80
080091.5L18.11 ED 47 5700 121 4000 ≥80
080091.5L19.11 ED 64 7900 123 3000 ≥80
080091.5L20.11 ED 64 8100 127 4000 ≥80
080091.5L21.21 ED 52 6400 123 3000 ≥80
080091.5L22.21 ED 52 6600 127 4000 ≥80
Compare selected
Shown 10 / 18
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products
LUGTRACK 5 LED 3PHASE
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems by the usage of mounting elements. Application of 3-phase rail in Lugtrack 5 LED housing.
View
LUGTRACK 5 LED 6500K
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems (available in 1,5m and 3m-long dimension) by the usage of mounting elements. The subject of the modification is adaptation of the luminaire to a color temperature of 6500K, CRI> 80 and a power factor >0.9.
View
Accessories
150111.00813
LUGTRACK 5 LED Starter KIT (1x power connector, 2x module end cap, 2x profile end cap, 2x cover masking for reflector, 1x mounting bracket, 1x user manual)
150110.00223

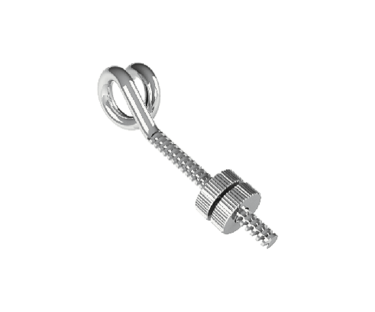

Set of safety swing hook and knurled thumb nuts for luminaire (2 pcs. for 3m luminaire)
150110.00819
Suspension chain (2m)
150110.00820
Suspension chain (4m)
