LUGTRACK EVO INDUSTRY LED
single version

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact

Other parameters available View variants

LUGTRACK EVO INDUSTRY LED
single version

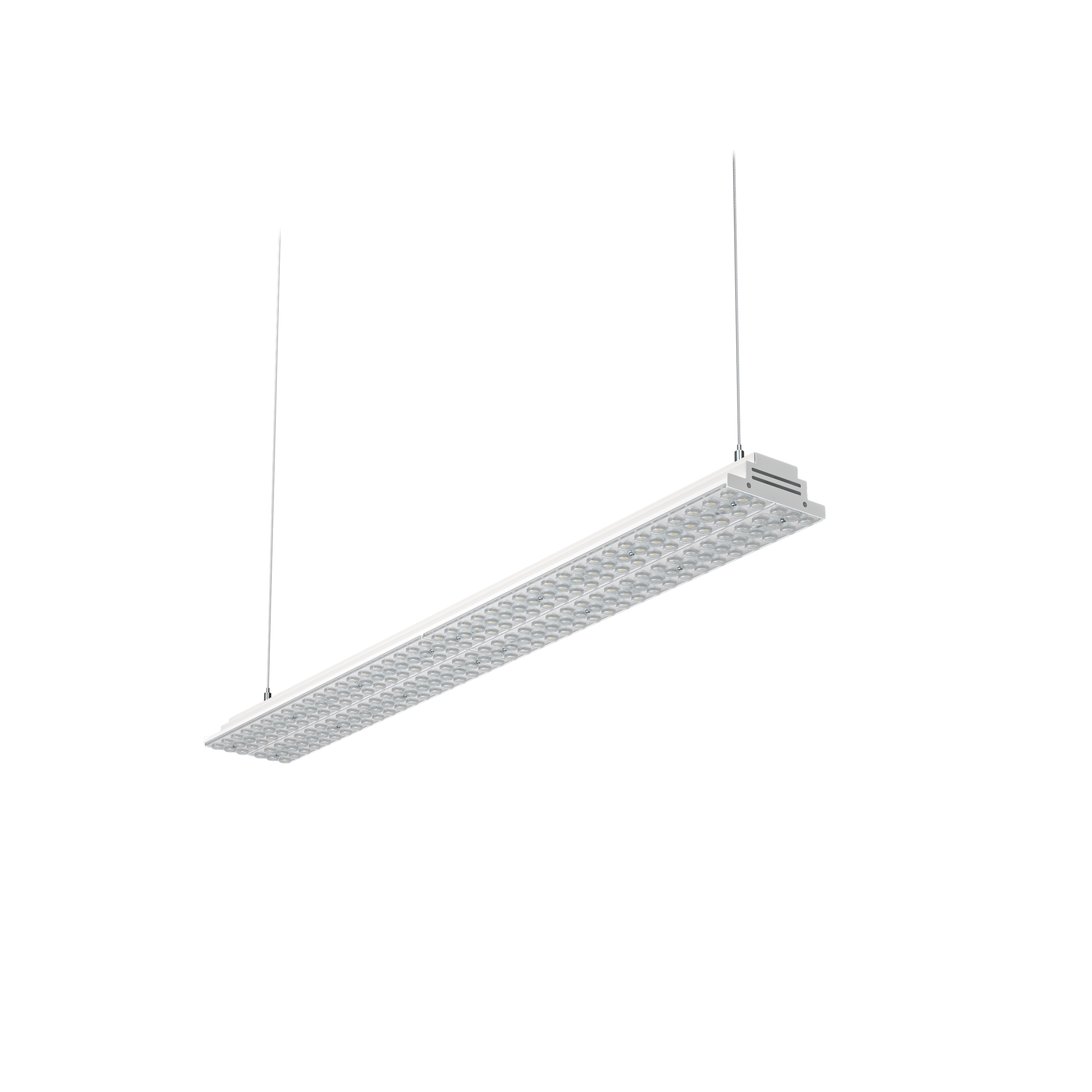

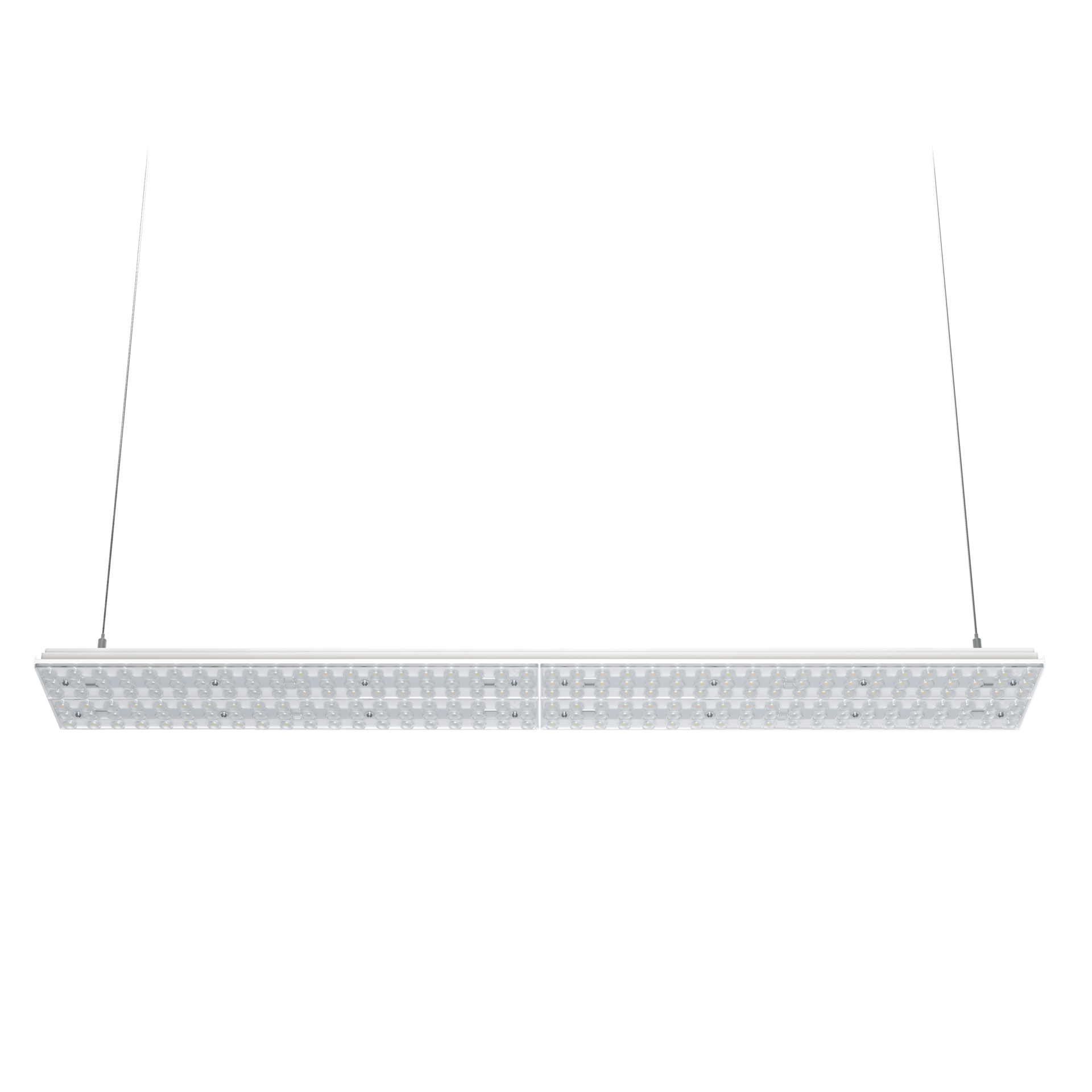

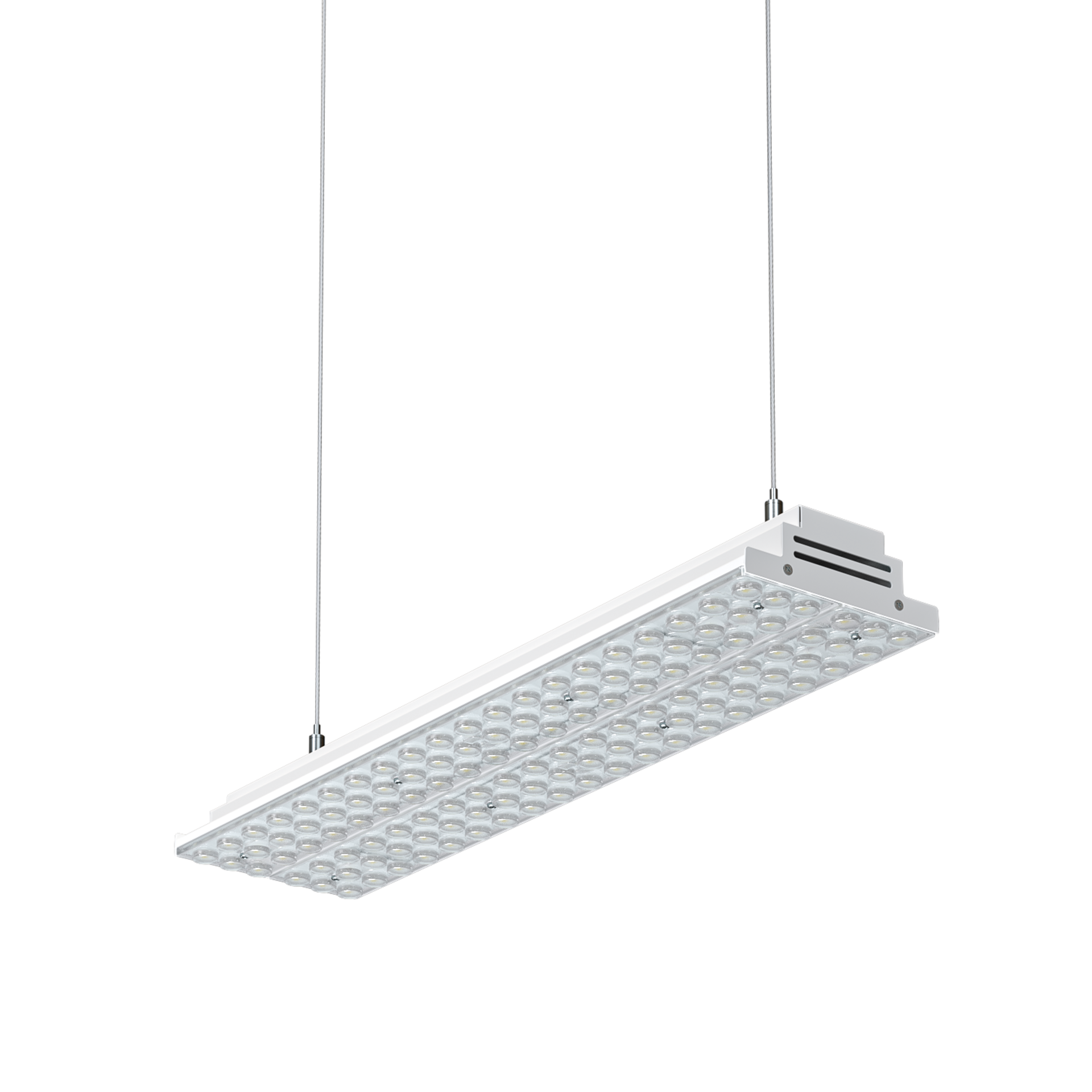

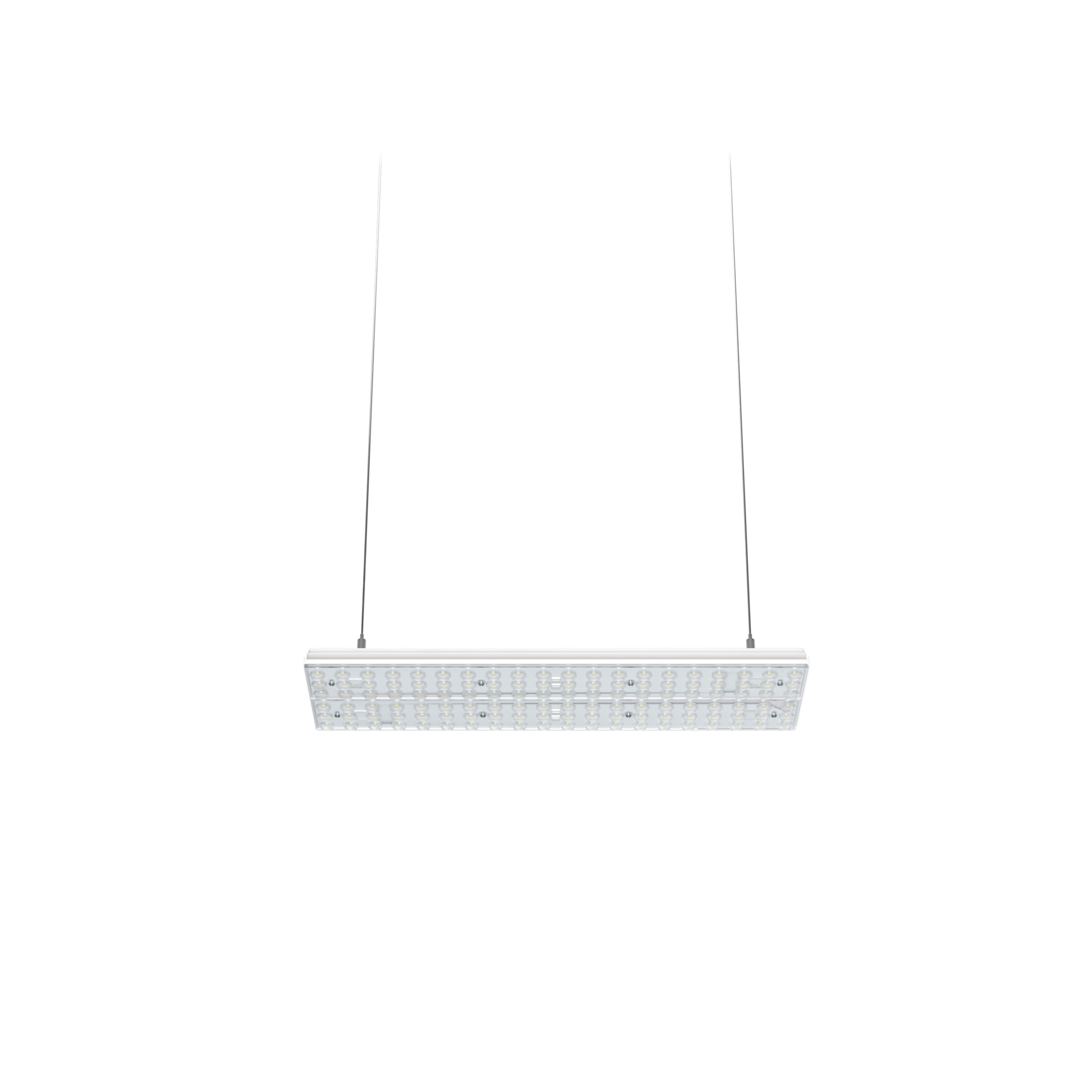

Modern LED luminaire for quick assembly; single version.

High efficacy to 176 lm/W

Dedicated LED light sources

Luminaire body made of aluminum

Fast and easy mounting

Passive cooling system

Application

logistics centers, pathways, production halls, warehouses, warehouses

Luminous flux range

9900 - 25450 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

suspended, on wire suspension (on request)

Length [mm]

500, 1000

Body colour

white

Operating temperature range

0 ... +35, 0 ... +40

RAL

9003

Body

aluminum profile

Type

Optical module

Electrical data

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

60 - 153

Output current [mA]

370, 500, 520, 650

Type of equipment

DALI, ED, WIELAND connector

Maximum number of luminaires in the circuit with a 10A fuse (B)

9 - 12

Maximum number of luminaires in the circuit with a 16A fuse (B)

15 - 20

Optical data

Way of lighting

direct

Type of optic

lens

Colour temperature [K]

4000

Beam angle

110°, 60°, 90°

CRI/Ra

≥80

MacAdam's steps

Lumen luminaire [lm]

9900 - 25450

Efficacy [lm/W]

164 - 176

General data

Lifetime L80B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Pallet quantity	Quantity in package	Net weight [kg]
500x125x50	100	1	2
1000x125x50	100	1	3.5

Available variants

Code	Type of equipment	Beam angle	Length [mm]	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range
080191.3L01.111	DALI, WIELAND connector	60°	500	60	9900	165	4000	≥80	0 ... +40
080191.3L01.121	DALI, WIELAND connector	90°	500	60	10050	168	4000	≥80	0 ... +40
080191.3L01.131	DALI, WIELAND connector	110°	500	60	10100	168	4000	≥80	0 ... +40
080191.3L02.211	DALI, WIELAND connector	60°	1000	85	14850	175	4000	≥80	0 ... +40
080191.3L02.221	DALI, WIELAND connector	90°	1000	85	15000	176	4000	≥80	0 ... +40
080191.3L02.231	DALI, WIELAND connector	110°	1000	85	15000	176	4000	≥80	0 ... +40
080191.3L03.211	DALI, WIELAND connector	60°	1000	120	20300	169	4000	≥80	0 ... +40
080191.3L03.221	DALI, WIELAND connector	90°	1000	120	20500	171	4000	≥80	0 ... +40
080191.3L03.231	DALI, WIELAND connector	110°	1000	120	20500	171	4000	≥80	0 ... +40
080191.3L04.211	DALI, WIELAND connector	60°	1000	153	25150	164	4000	≥80	0 ... +35

Compare selected

Shown 10 / 24

Show all

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
