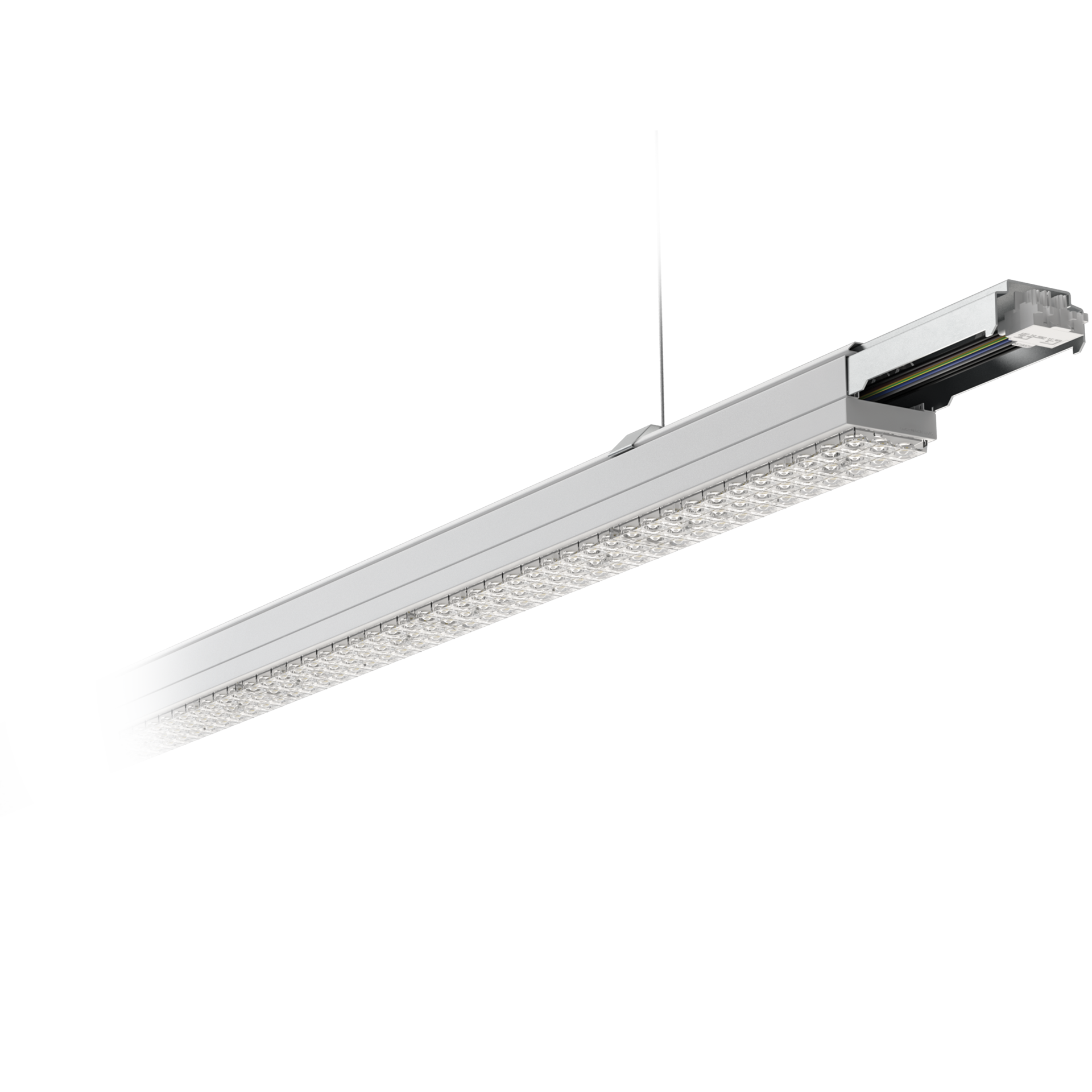

LUGTRACK EVO LED Z SOCZEWKAMI

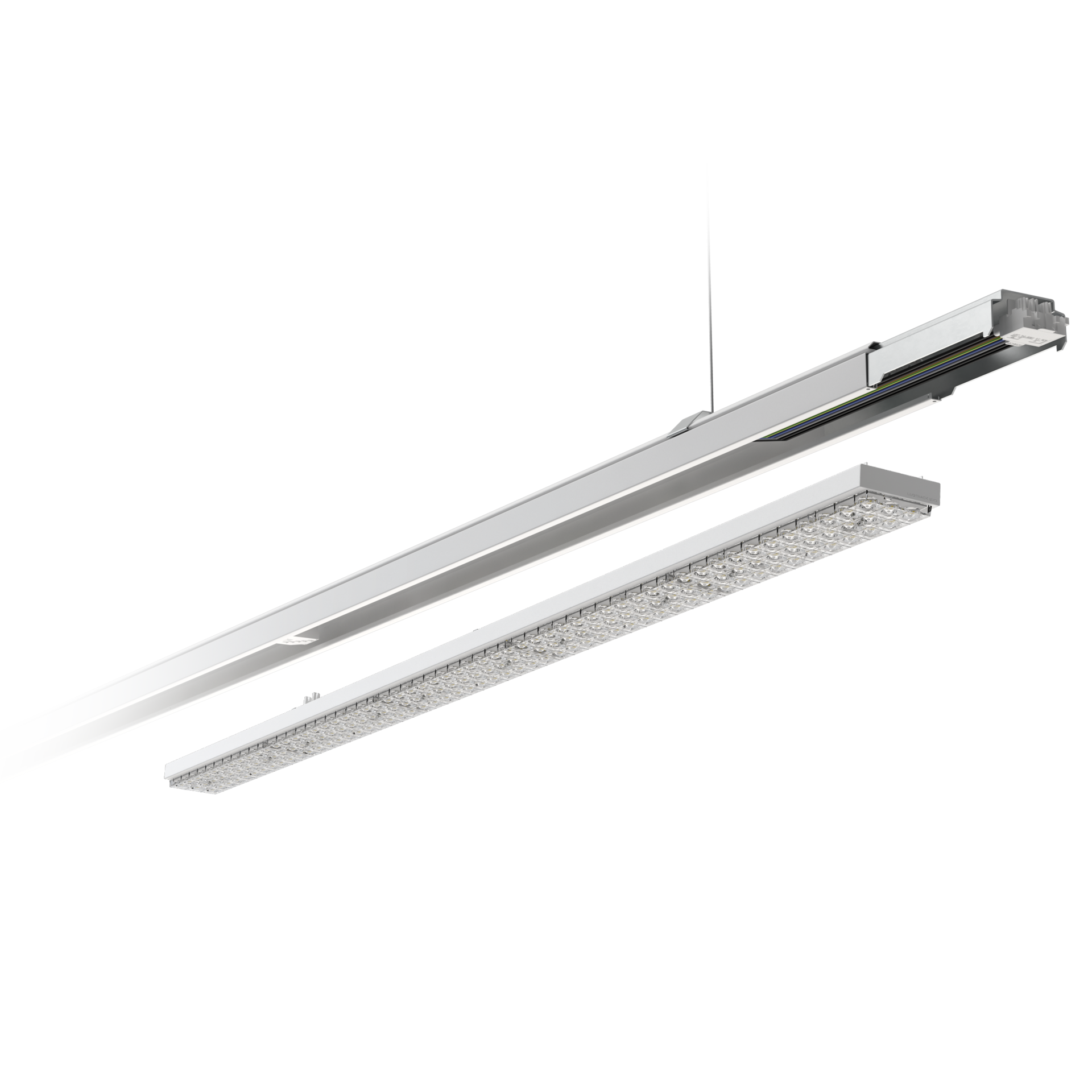

Modern LED luminaire for quick assembly; the construction of the luminaire enables quick and easy connection into long lighting systems, with easily interchangeable lighting modules.



High efficacy to 142 lm/W
Possible attaching of spotlight
Universal design
Perfect for retail lighting
Fast and easy mounting
Simple one person mounting

Application

logistics centers, pathways, production halls, supermarkets, warehouses, warehouses

Luminous flux range

6100 - 9300 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended, surface mounted
Length [mm]
1435
Body colour
white
Operating temperature range
0 ... +40, 0 ... +45, 0 ... +50
RAL
9003
Body
coated steel sheet
Type
Optical module

Electrical data

Power supply efficiency
≤92%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
43 - 71
Output current [mA]
125-550, 250
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
35
Maximum number of luminaires in the circuit with a 16A fuse (B)
56

Optical data

Way of lighting
direct
Type of optic
injection-molded lenses - asymmetric light distribution, injection-molded lenses - double asymmetric light distribution, injection-molded lenses - medium light distribution 30°, injection-molded lenses - very wide light distribution 90°, injection-molded lenses - wide light distribution 60°
Colour temperature [K]
3000, 4000
Beam angle
30°, 60°, 90°
CRI/Ra
≥80
ULOR / DLOR
0% / 100%
Lumen luminaire [lm]
6100 - 9300
Efficacy [lm/W]
131 - 142
Photobiological risk group
RG1

General data

Additional information
support rail made of sheet metal coated in RAL 9003 mat; available with 5- and 7-pole through wiring; grill
Other remarks
to power each light string, a STARTER KIT needs to be ordered; depending on the type of assembly, select and order the appropriate mounting bracket (accessories)
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Net weight [kg]
1435x75x30 180 2.2
1435x75x30 180 2.5
X

Available variants

Code
Type of equipment
DALI
ED
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Length [mm]
Beam angle
30°
60°
90°
Colour temperature [K]
3000
4000
Light distribution
asymmetric
double asymmetric
symmetric-medium
symmetric-very wide
symmetric-wide
Clear Filters
Compare Code Type of equipment Beam angle Light distribution IK Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
080161.3L01.111 DALI 30° symmetric-medium IK04 71 9300 131 3000 ≥80 0 ... +45
080161.3L01.121 DALI 60° symmetric-wide IK04 71 9300 131 3000 ≥80 0 ... +45
080161.3L01.131 DALI 90° symmetric-very wide IK04 71 9300 131 3000 ≥80 0 ... +45
080161.3L01.141 DALI asymmetric IK04 71 9300 131 3000 ≥80 0 ... +45
080161.3L01.151 DALI double asymmetric IK04 71 9300 131 3000 ≥80 0 ... +45
080161.3L02.111 DALI 30° symmetric-medium IK04 71 9300 131 4000 ≥80 0 ... +45
080161.3L02.121 DALI 60° symmetric-wide IK04 71 9300 131 4000 ≥80 0 ... +45
080161.3L02.131 DALI 90° symmetric-very wide IK04 71 9300 131 4000 ≥80 0 ... +45
080161.3L02.141 DALI asymmetric IK04 71 9300 131 4000 ≥80 0 ... +45
080161.3L02.151 DALI double asymmetric IK04 71 9300 131 4000 ≥80 0 ... +45
Compare selected
Shown 10 / 40
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
080151.0000.101
Support rail with 5-pole through wiring 1435mm 5x2,5 mm² white
080151.0000.201
Support rail with 5-pole through wiring 2870mm 5x2,5 mm² white
080151.0000.102
Support rail with 7-pole through wiring 1435mm 7x2,5 mm² white
080151.0000.202
Support rail with 7-pole through wiring 2870mm 7x2,5 mm² white
150111.00969
LUGTRACK EVO LED STARTER KIT white (1x power connector, 2x module end cap, 1x cable gland)
150111.00985
Masking frame (empty module 1435mm)
150110.00819
Suspension chain (2m)
150110.00820
Suspension chain (4m)
150110.00988
Mounting bracket LU01-C for hanging on a chain or a wire / for surface mounting (2 pcs.)
150110.00989
Mounting bracket LU02-N for hanging using a gripper (2 pcs.)
