LUGTRACK EVO LED Z SZYNĄ 3-FAZOWĄ

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

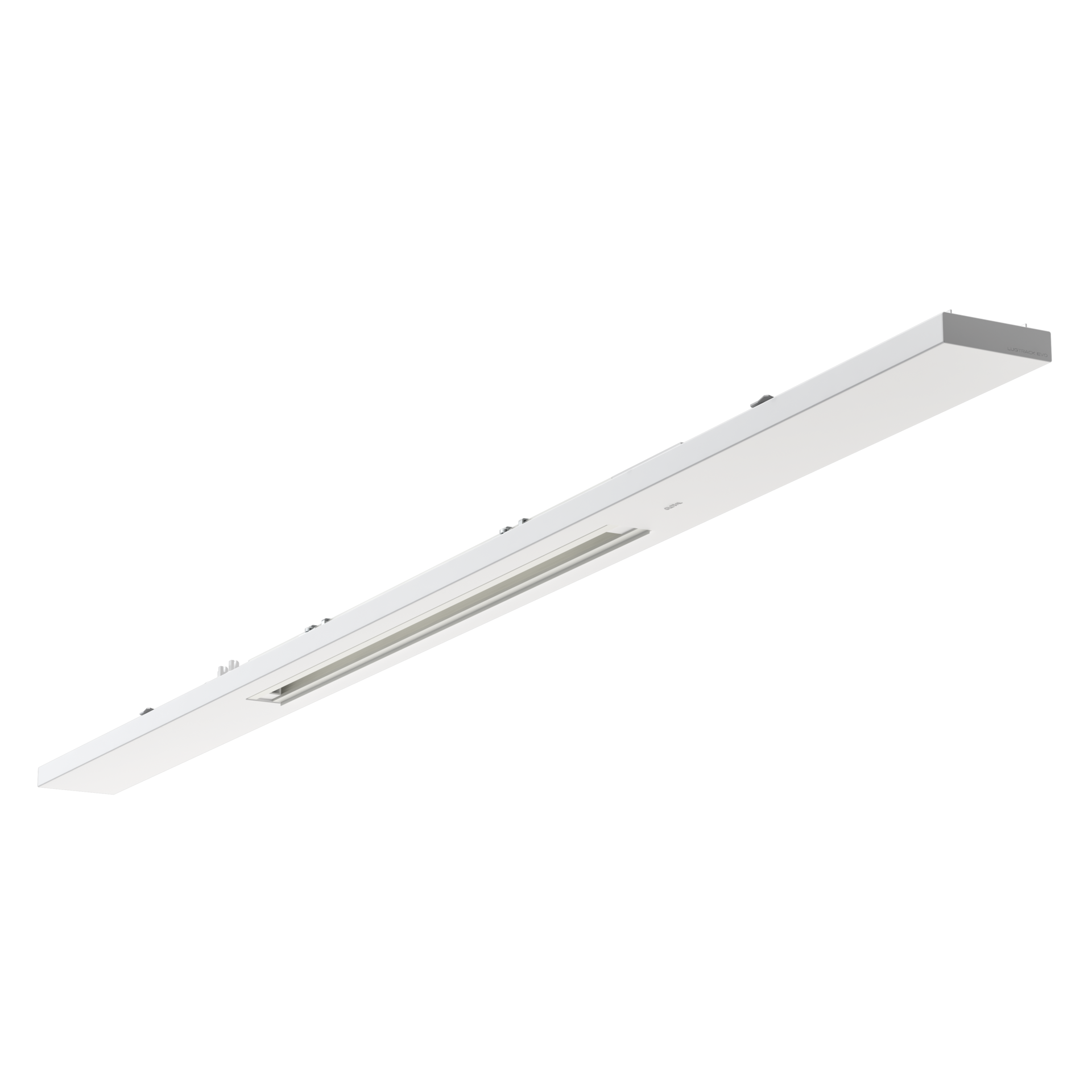

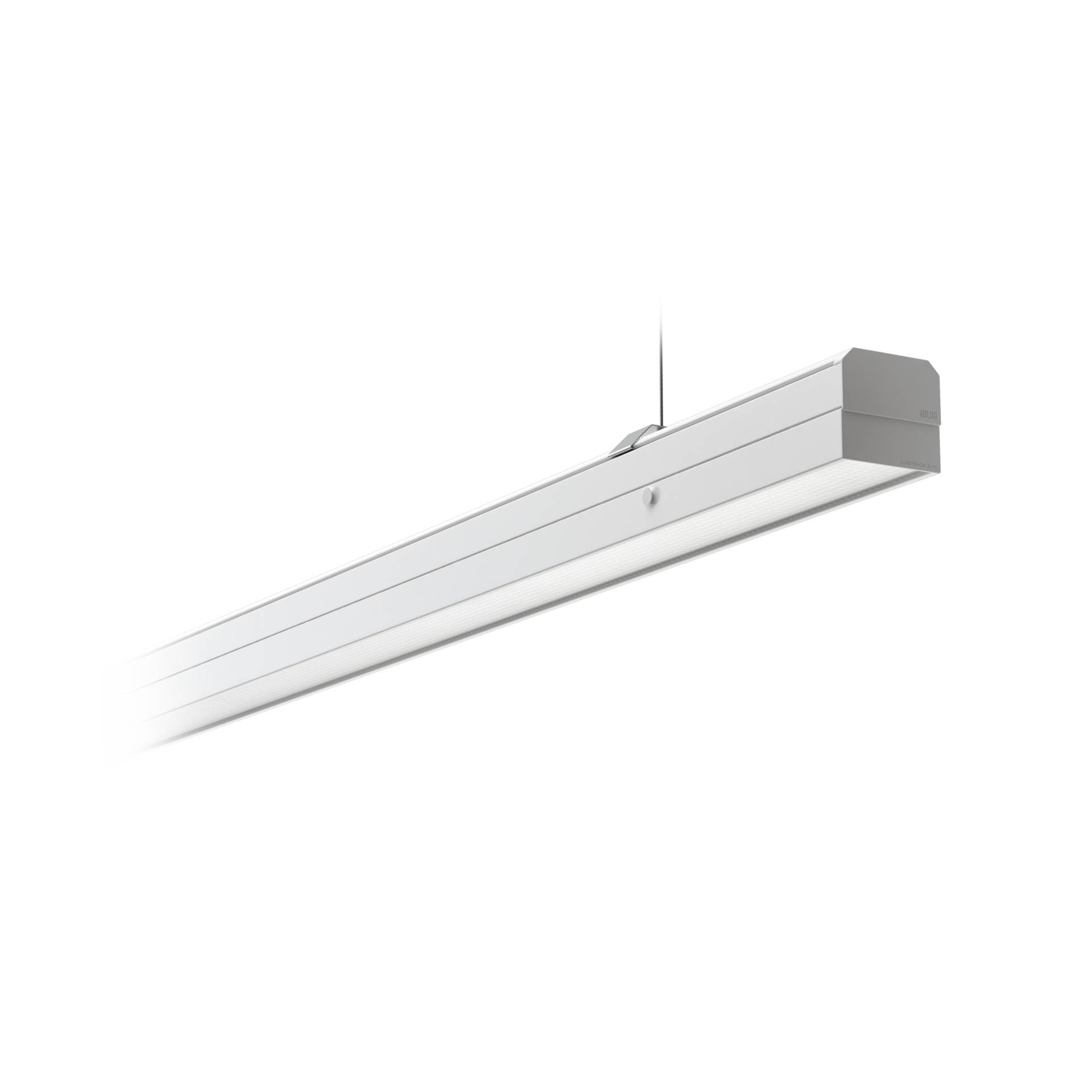

LUGTRACK EVO LED Z SZYNĄ 3-FAZOWĄ
Modern luminaire for quick assembly with a 3-phase rail, allowing the spotlights to be attached; the construction of the luminaire enables quick and easy connection into long lighting systems, with easily interchangeable lighting modules.

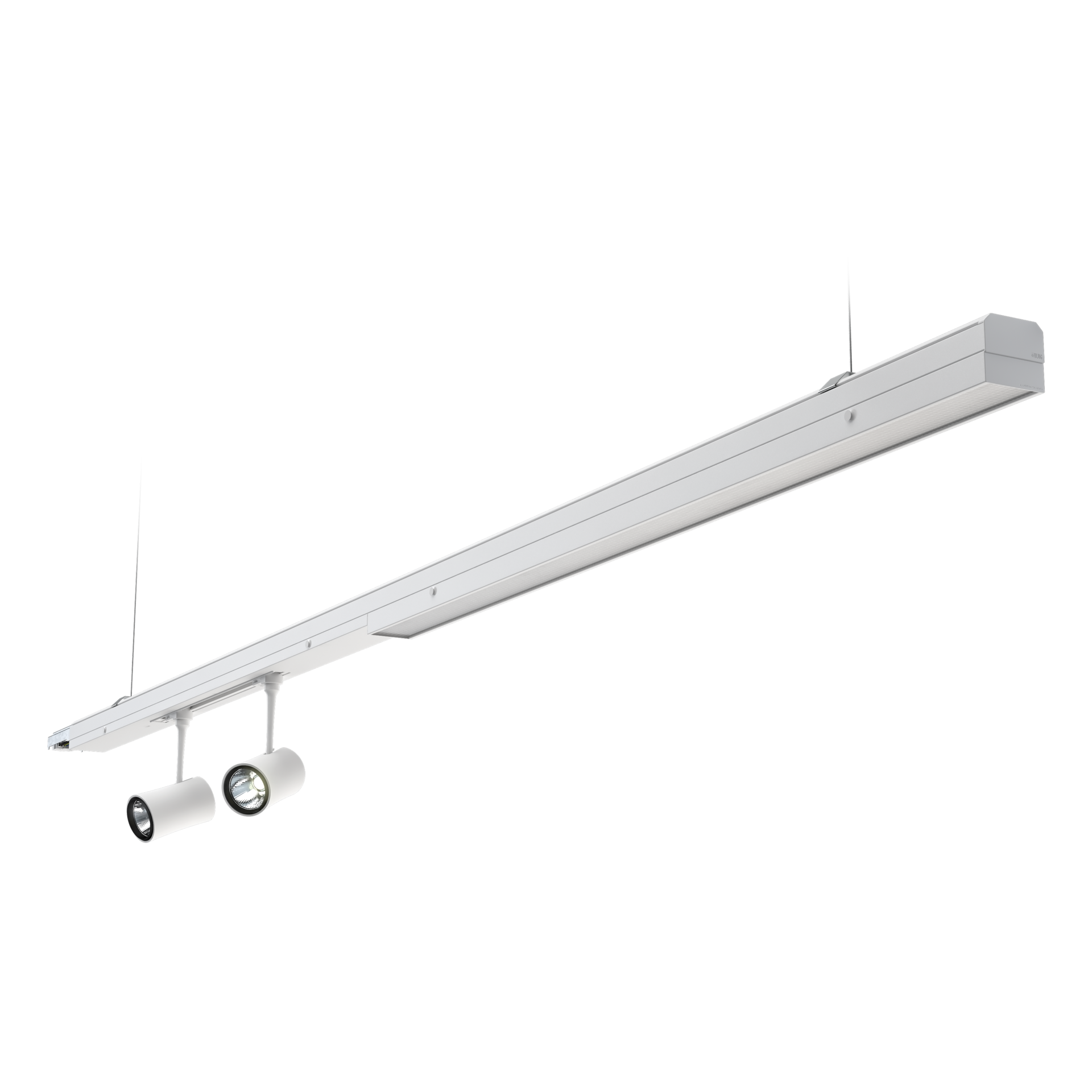

Possible attaching of spotlight
Universal design
Perfect for retail lighting
Fast and easy mounting
Simple one person mounting

Application

logistics centers, pathways, production halls, supermarkets, warehouses, warehouses

Mechanical data

Mounting
suspended, surface mounted
Length [mm]
1435
Body colour
white
RAL
9003
Body
coated steel sheet
Type
Module with 3-phase track

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes

Optical data

SVM
≤0,4
PstLM
≤1

General data

Additional information
possible attaching of spotlight; support rail made of sheet metal coated in RAL 9003 mat; available with 5- and 7-pole through wiring; grill
Other remarks
to power each light string, a STARTER KIT need to be ordered; depending on the type of assembly, select and order the appropriate mounting bracket (accessories); maximum weight of mounted spotlights: 5kg
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD Pallet quantity Quantity in package Net weight [kg]
1435x75x20x600 180 1 2
X

Available variants

Code
Length [mm]
Clear Filters
Compare Code IK
080151.0000.17 IK04
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
080151.0000.101
Support rail with 5-pole through wiring 1435mm 5x2,5 mm² white
080151.0000.201
Support rail with 5-pole through wiring 2870mm 5x2,5 mm² white
080151.0000.102
Support rail with 7-pole through wiring 1435mm 7x2,5 mm² white
080151.0000.202
Support rail with 7-pole through wiring 2870mm 7x2,5 mm² white
150111.00969
LUGTRACK EVO LED STARTER KIT white (1x power connector, 2x module end cap, 1x cable gland)
150111.00985
Masking frame (empty module 1435mm)
150110.00819
Suspension chain (2m)
150110.00820
Suspension chain (4m)
150110.00988
Mounting bracket LU01-C for hanging on a chain or a wire / for surface mounting (2 pcs.)
150110.00989
Mounting bracket LU02-N for hanging using a gripper (2 pcs.)
