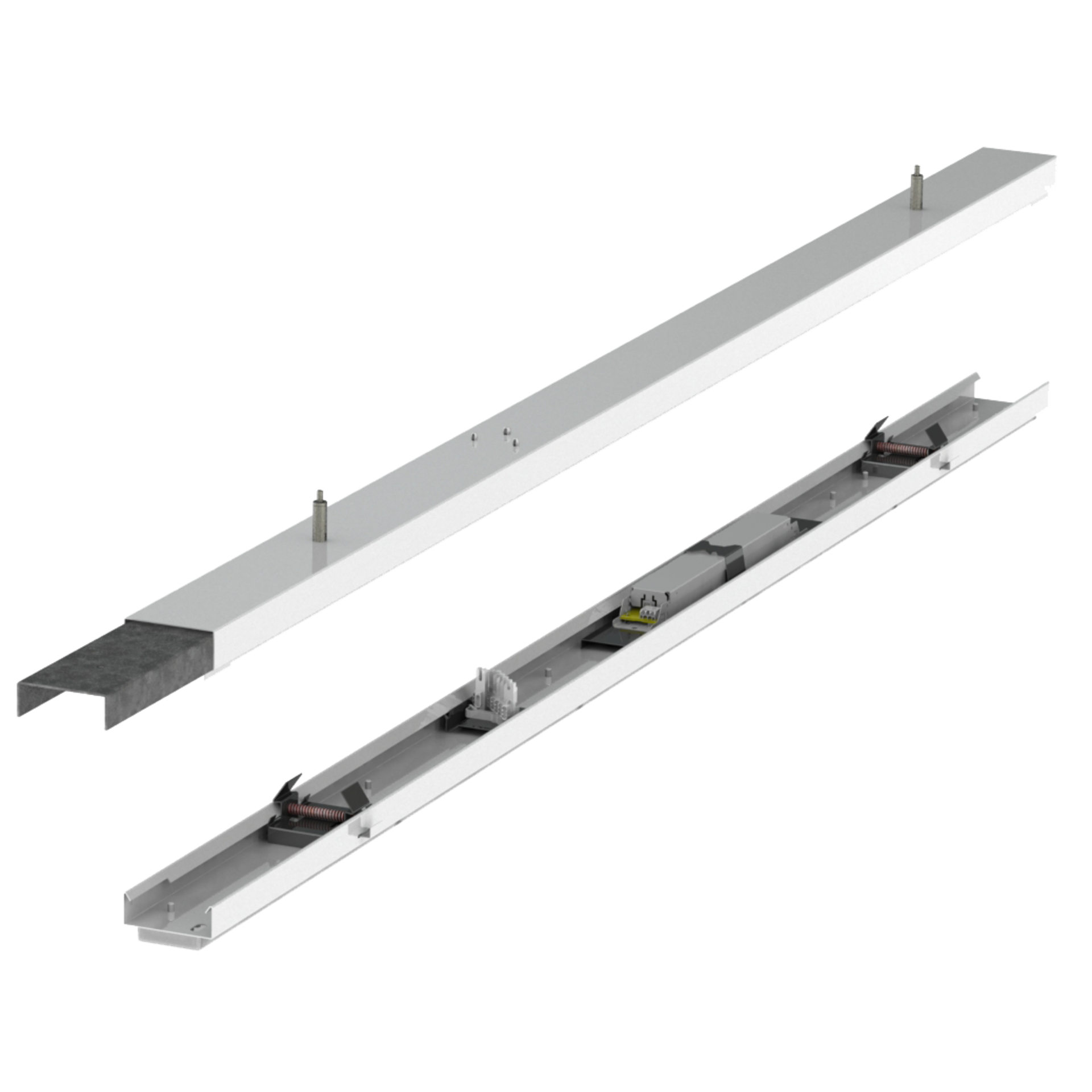

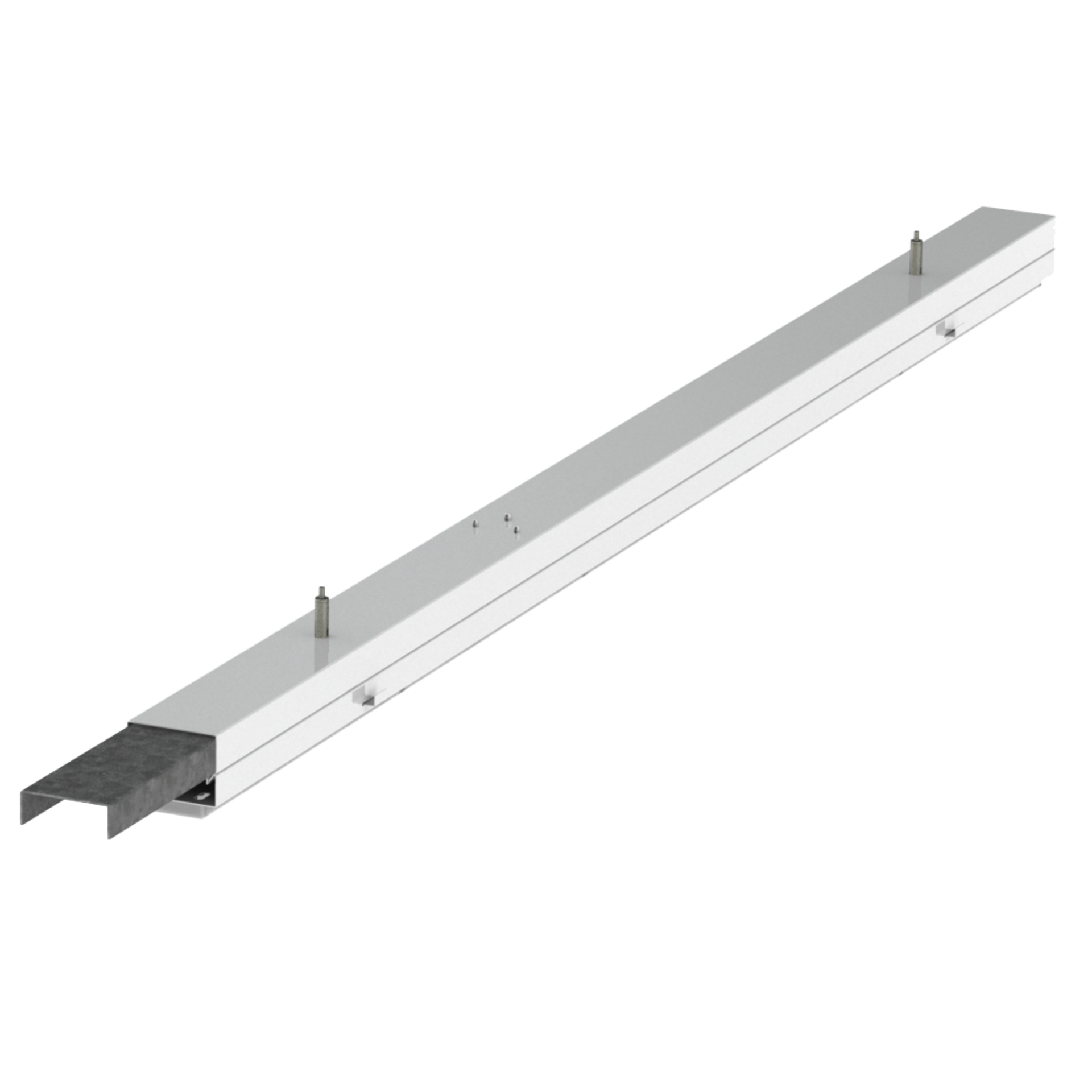

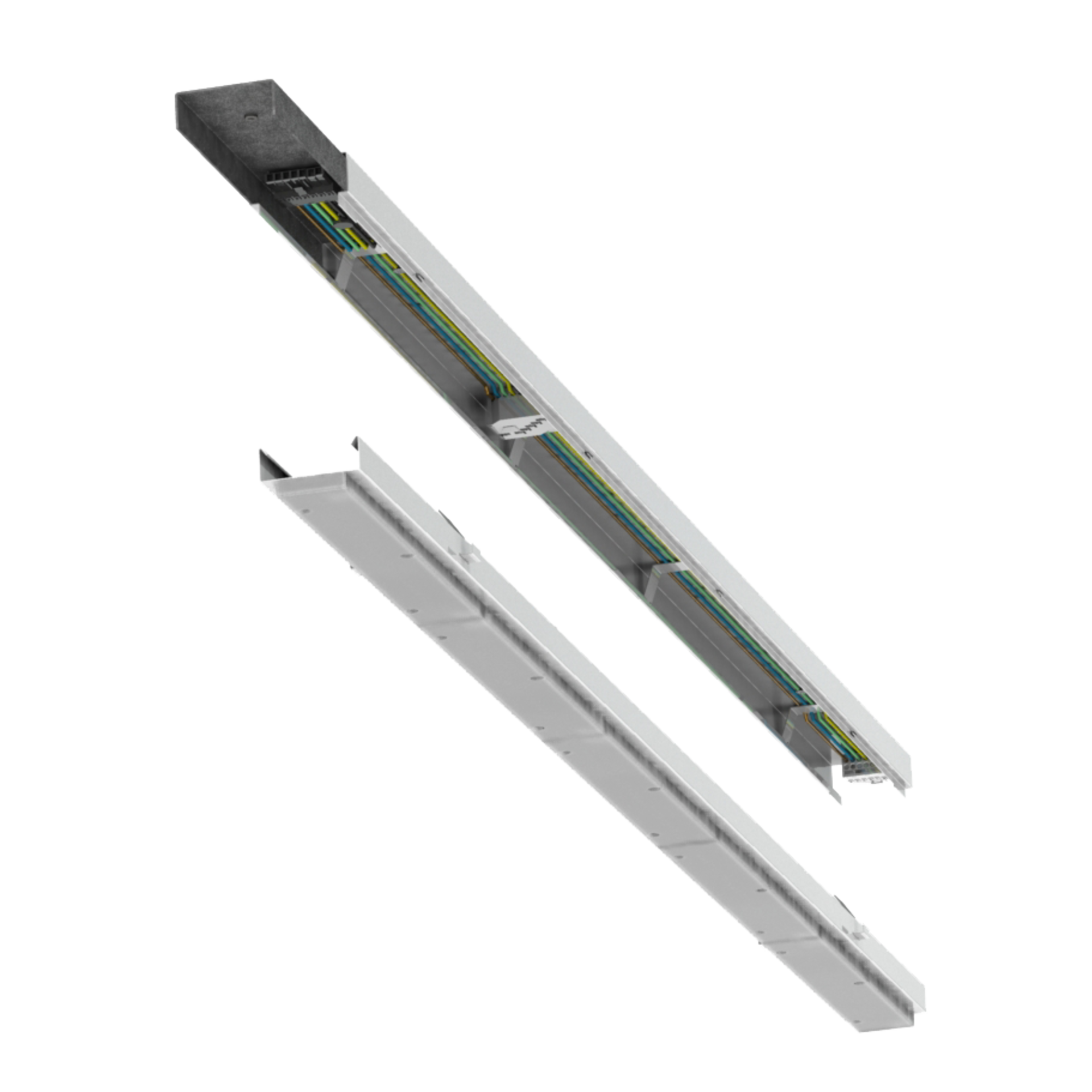

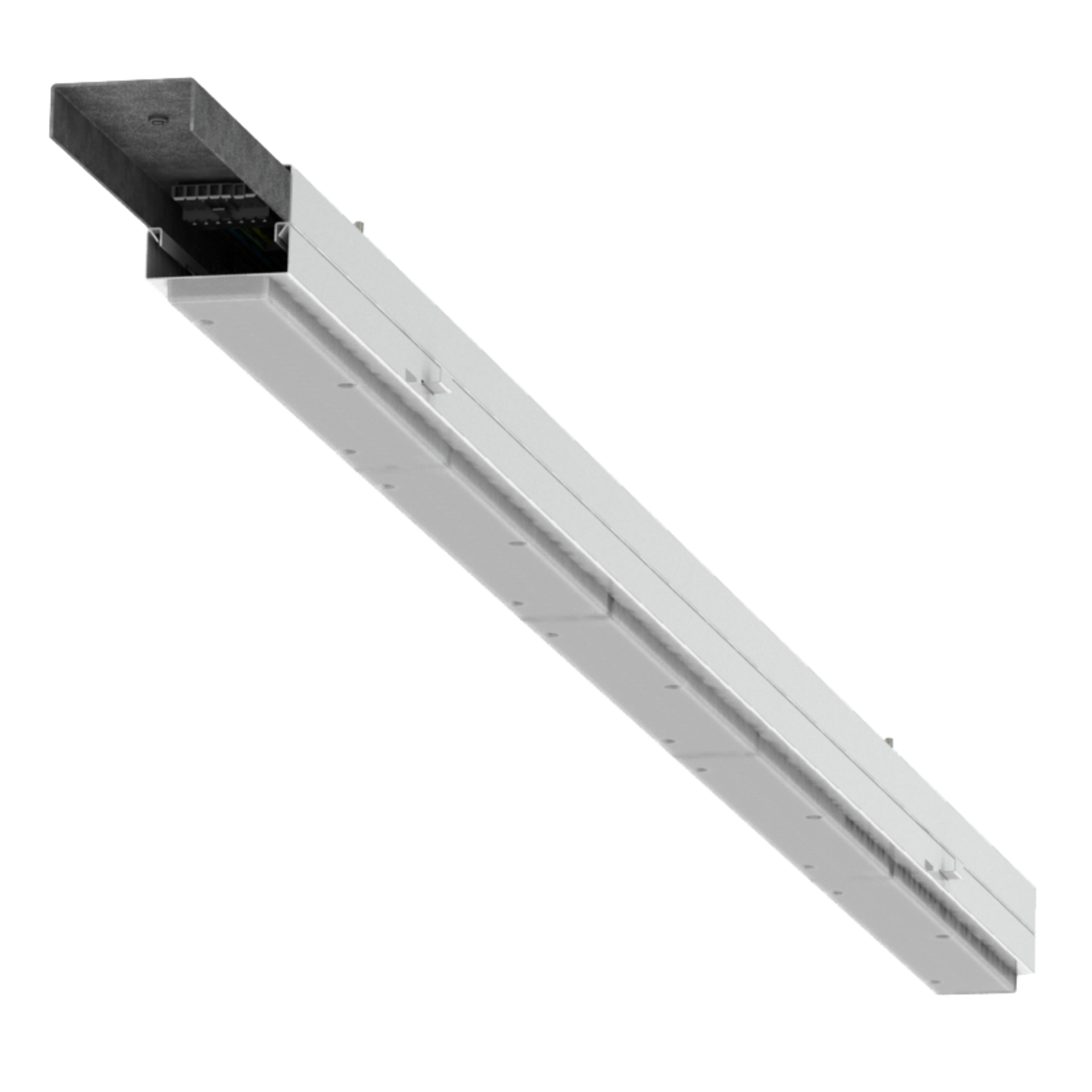

LUGTRACK LED
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems. NEW.



Universal design
Perfect for retail lighting
Fast and easy mounting
Possible illuminance control

Application

logistics centers, production halls, supermarkets, warehouses, warehouses

Available on request

DALI

Luminous flux range

5100 - 6900 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (on request)
Body colour
white
Operating temperature range
0˚C ... +35˚C
Body
powder-painted steel sheet

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
41 - 57
Type of equipment
ED

Optical data

Way of lighting
direct
Type of optic
lens
Colour temperature [K]
4000
Lumen luminaire [lm]
5100 - 6900
Efficacy [lm/W]
121 - 124

General data

Additional information
LENS type optics
Lifetime L80B10
60 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] L Net weight [kg]
1418x56x62 1000 6
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Light distribution
asymmetric
double asymmetric
symmetric
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
LUGTRACK MOD SYSTEM a 41 5100 124 4000
LUGTRACK MOD SYSTEM b 41 5100 124 4000
LUGTRACK MOD SYSTEM c 41 5100 124 4000
LUGTRACK MOD SYSTEM d 57 6900 121 4000
LUGTRACK MOD SYSTEM e 57 6900 121 4000
LUGTRACK MOD SYSTEM f 57 6900 121 4000
Compare selected
Luminous flux tolerance +/- 10%.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150111.00763
LUGTRACK LENS LED Starter KIT (set of power connectors, 2x end cap, 1x mounting bracket, 1x user manual)
150110.00765
Hook
150110.00819
Suspension chain (2m)
150110.00820
Suspension chain (4m)
