LUGTRACK SLIM LENS

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

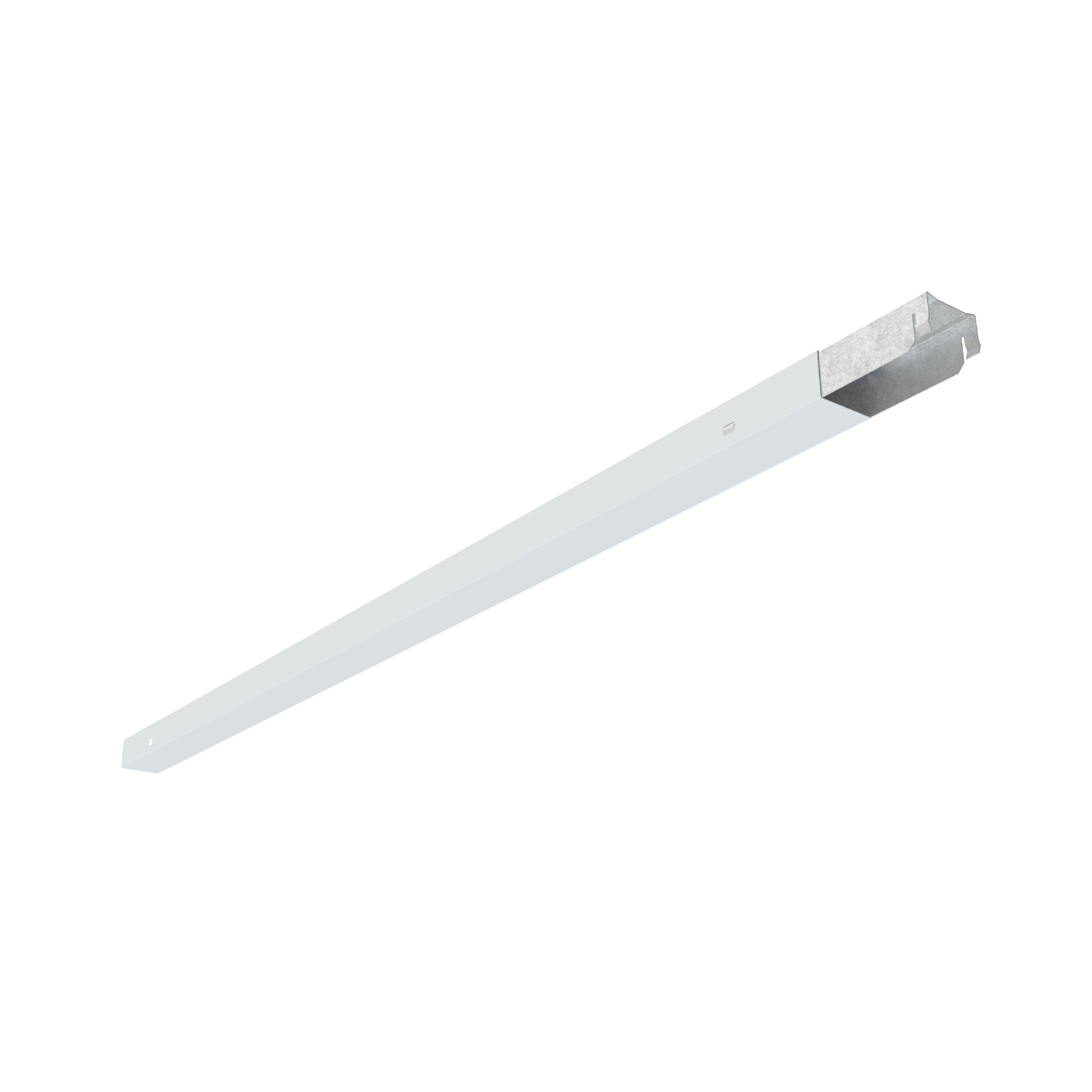

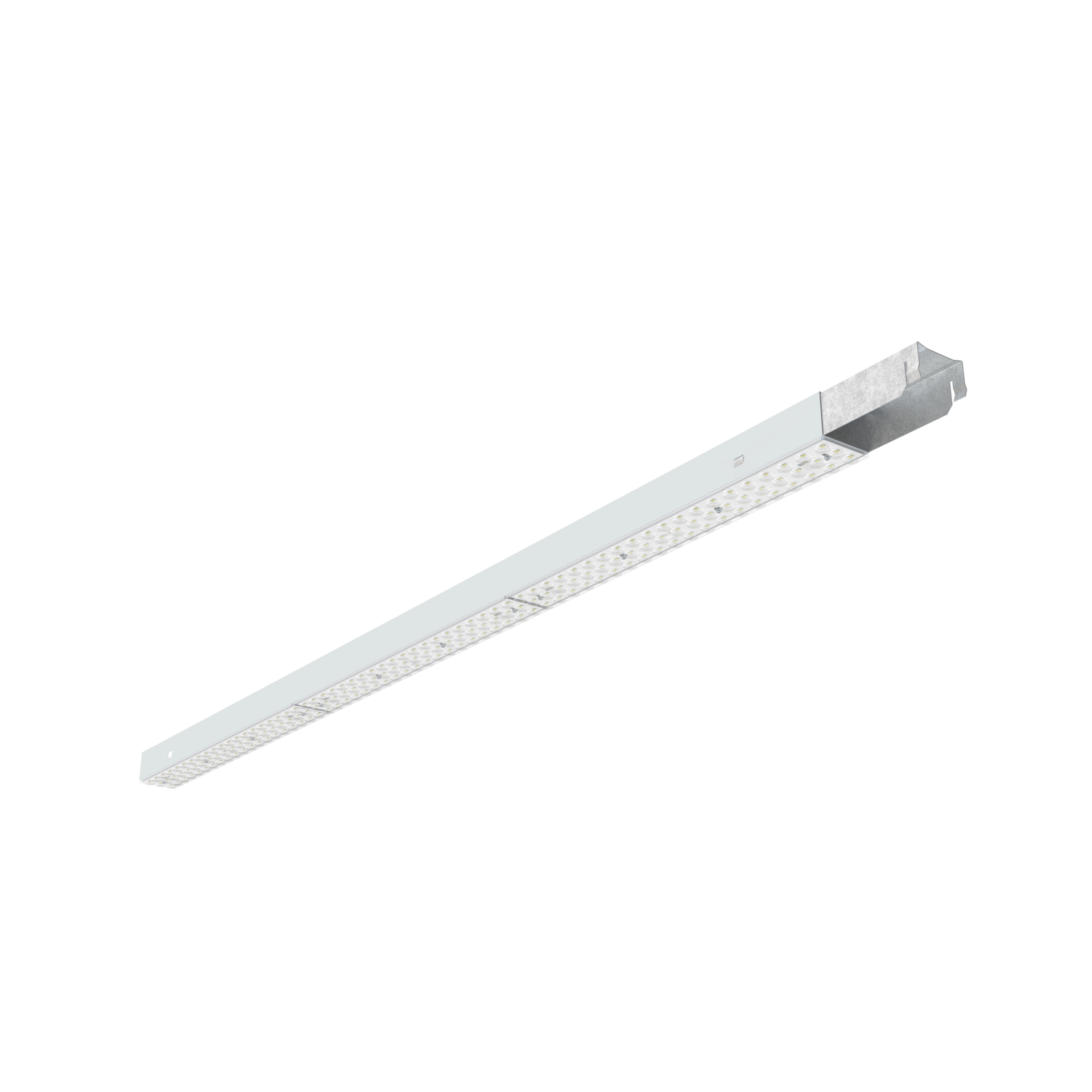

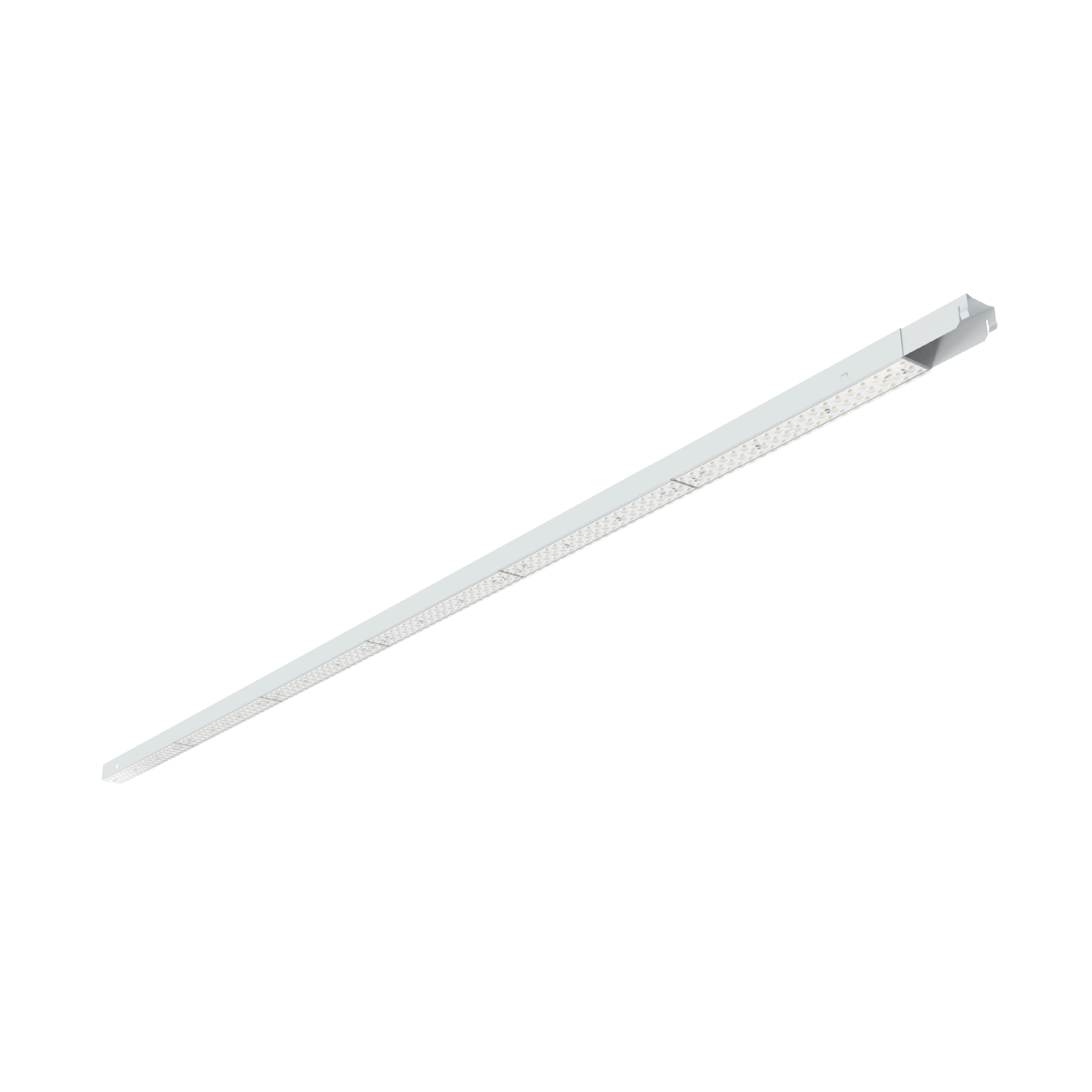

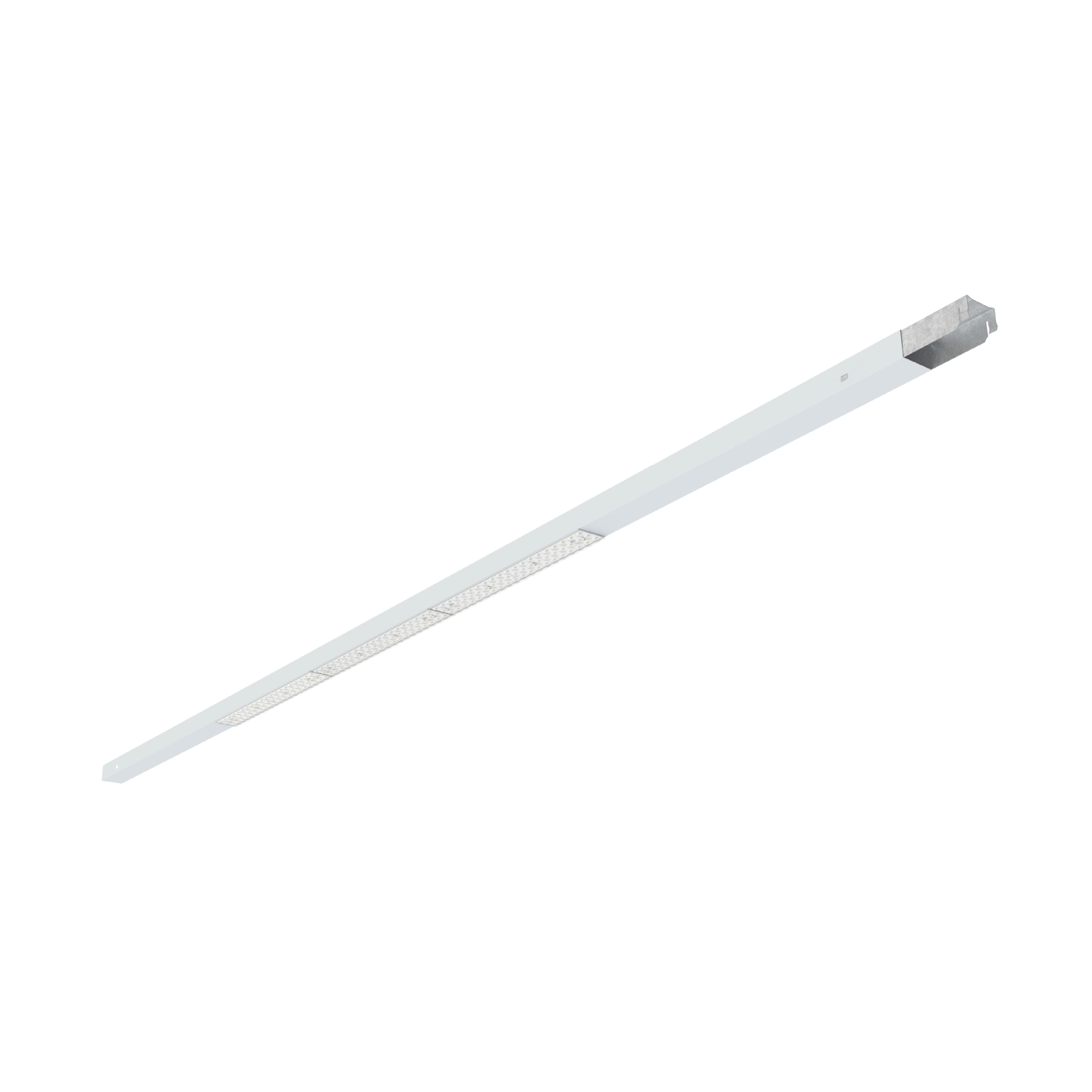

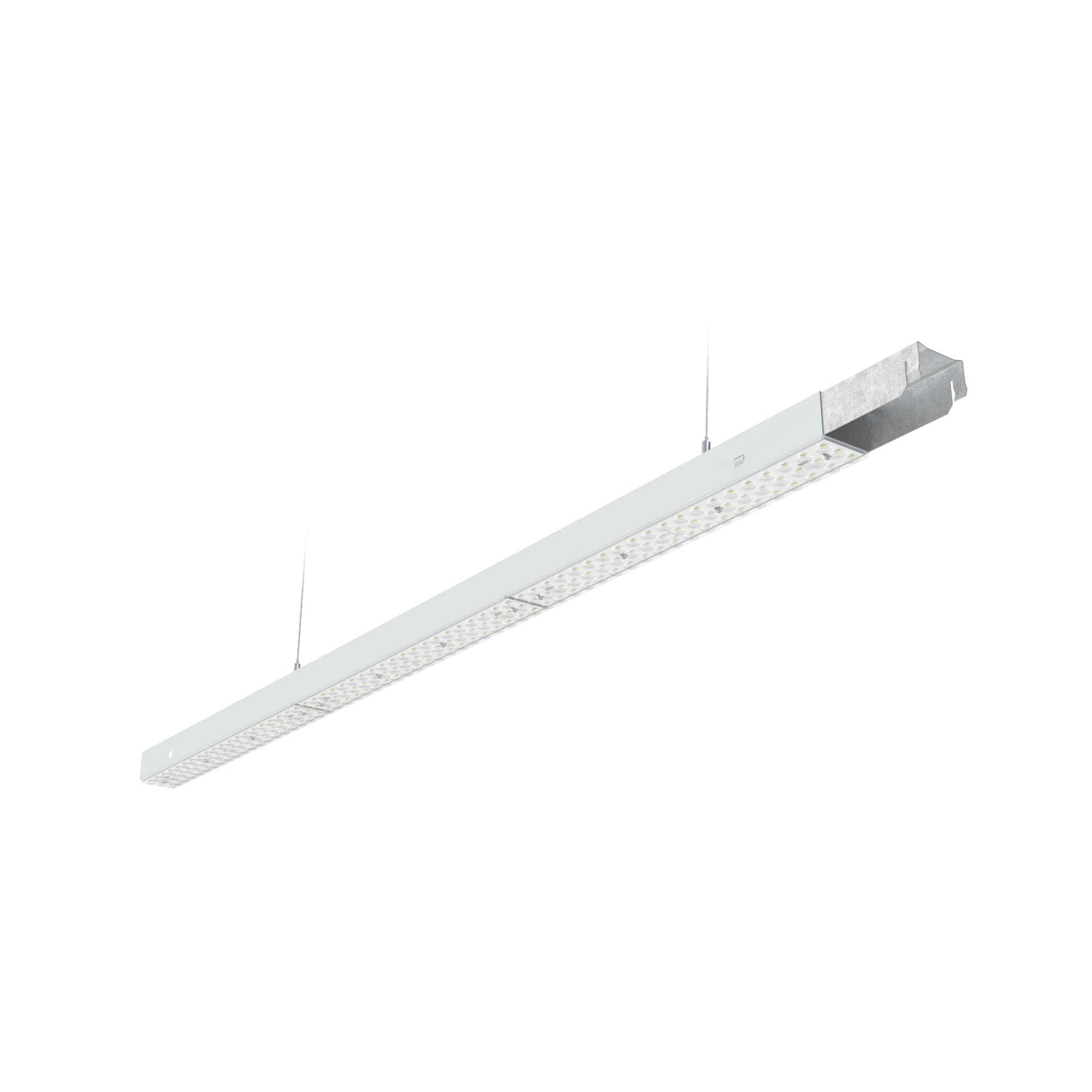

LUGTRACK SLIM LENS
Modern LED luminaire for quick assemby, construction of the luminaire enables quick, easy and tool-less connection into long lighting systems (available in 1.5m and 3m-long dimension) by the usage of mounting elements.



High efficacy to 178 lm/W
Universal design
Perfect for retail lighting
Fast and easy mounting
Possible illuminance control

Application

logistics centers, supermarkets, warehouses, warehouses

Luminous flux range

9700 - 30200 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (on request)
Length [mm]
1500, 3000
Body colour
white
Detail
white
Operating temperature range
0 ... +45 (0 ... +35)*, 0 ... +50 (0 ... +40)*
RAL
9010
Body
coated steel sheet
Type
AWReady

Electrical data

Power supply efficiency
≤92%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
60 - 170
Output current [mA]
500
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
5 - 11
Maximum number of luminaires in the circuit with a 16A fuse (B)
9 - 17
Maximum number of luminaires in the circuit with a 25A fuse (B)
27

Optical data

Way of lighting
direct
Type of optic
lens
Colour temperature [K]
4000
Beam angle
110°, 35°x75°, 60°, 90°
CRI/Ra
≥80
MacAdam's steps
3
Lumen luminaire [lm]
9700 - 30200
Efficacy [lm/W]
161 - 178
Photobiological risk group
RG0

General data

Other remarks
Use the list of available accessories to select the appropriate empty module.
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
1500x64x54 156 1 2.05
1500x64x54 156 1 2.3
3000x64x54 156 1 2.5
3000x64x54 156 1 2.75
3000x64x54 156 1 3
3000x64x54 156 1 3.2
3000x64x54 156 1 3.5
X

Available variants

Code
Type of equipment
DALI
ED
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Length [mm]
Beam angle
110°
35°x75°
60°
90°
Light distribution
elliptical
symmetric
Clear Filters
Compare Code Type Type of equipment Length [mm] Beam angle Light distribution Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Operating temperature range
080201.3L01.110 DALI 1500 60° symmetric 60 9800 163 0 ... +45 (0 ... +35)*
080201.3L01.120 DALI 1500 90° symmetric 60 10000 167 0 ... +45 (0 ... +35)*
080201.3L01.130 DALI 1500 110° symmetric 60 10000 167 0 ... +45 (0 ... +35)*
080201.3L01.140 DALI 1500 35°x75° elliptical 60 9700 162 0 ... +45 (0 ... +35)*
080201.3L01.210 DALI 3000 60° symmetric 60 9800 163 0 ... +45 (0 ... +35)*
080201.3L01.220 DALI 3000 90° symmetric 60 10000 167 0 ... +45 (0 ... +35)*
080201.3L01.230 DALI 3000 110° symmetric 60 10000 167 0 ... +45 (0 ... +35)*
080201.3L01.240 DALI 3000 35°x75° elliptical 60 9700 162 0 ... +45 (0 ... +35)*
080201.3L01Z.110 AWReady DALI 1500 60° symmetric 60 9800 163 0 ... +45 (0 ... +35)*
080201.3L01Z.120 AWReady DALI 1500 90° symmetric 60 10000 167 0 ... +45 (0 ... +35)*
Compare selected
Shown 10 / 104
Show all
* Operating temperature range for luminaire with masking frame (value in brackets).
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
080201.0000.101

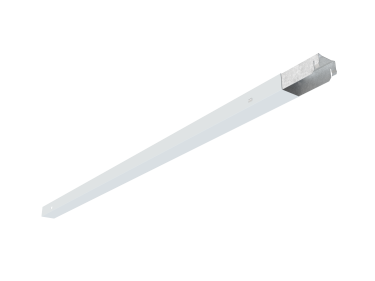

Empty module with through wiring 1500mm 5x2,5 mm² white
080201.0000.201

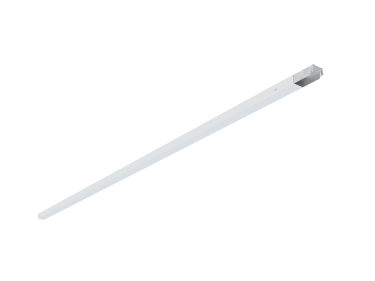

Empty module with through wiring 3000mm 5x2,5 mm² white
080201.0000Z.102
Empty module with through wiring AWReady 1500mm 7x2,5 mm² white
080201.0000Z.202
Empty module with through wiring AWReady 3000mm 7x2,5 mm² white
080201.0000.102
Empty module with through wiring DALI 1500mm 7x2,5 mm² white
080201.0000.202
Empty module with through wiring DALI 3000mm 7x2,5 mm² white
080201.0000Z.103
Empty module with through wiring DALI AWReady 1500mm 9x2,5 mm² white
080201.0000Z.203
Empty module with through wiring DALI AWReady 3000mm 9x2,5 mm² white
150111.01296
LUGTRACK SLIM LENS STARTER KIT white (set of power connectors, 2x module end cap)
150111.01308
LUGTRACK SLIM LENS DALI STARTER KIT white (set of power connectors, 2x module end cap)
150111.01297

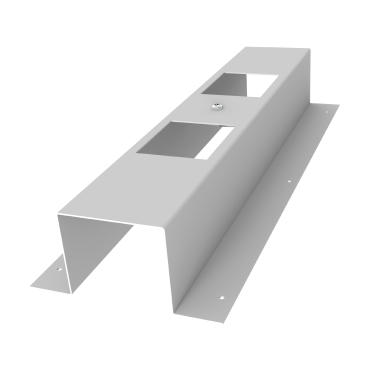

AWReady AXH bracket white
150111.01298

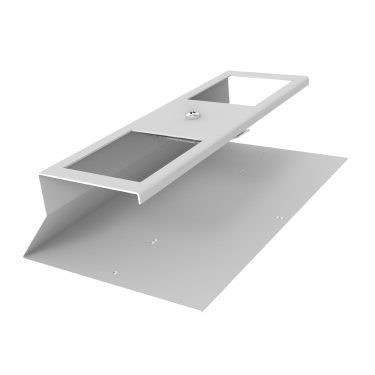

AWReady ITON bracket white
150111.01299

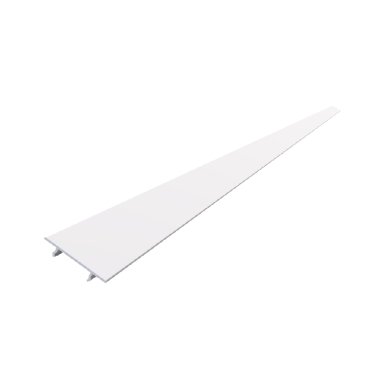

Masking frame 3000 white
150110.01300

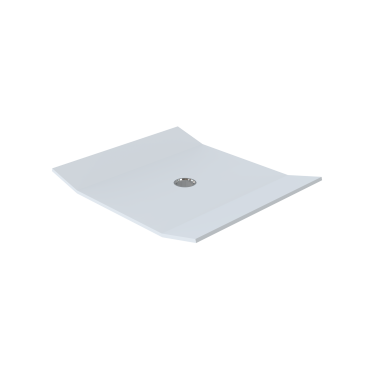

Mounting bracket for hanging
150060.00987
Gripper (1 pcs.)
