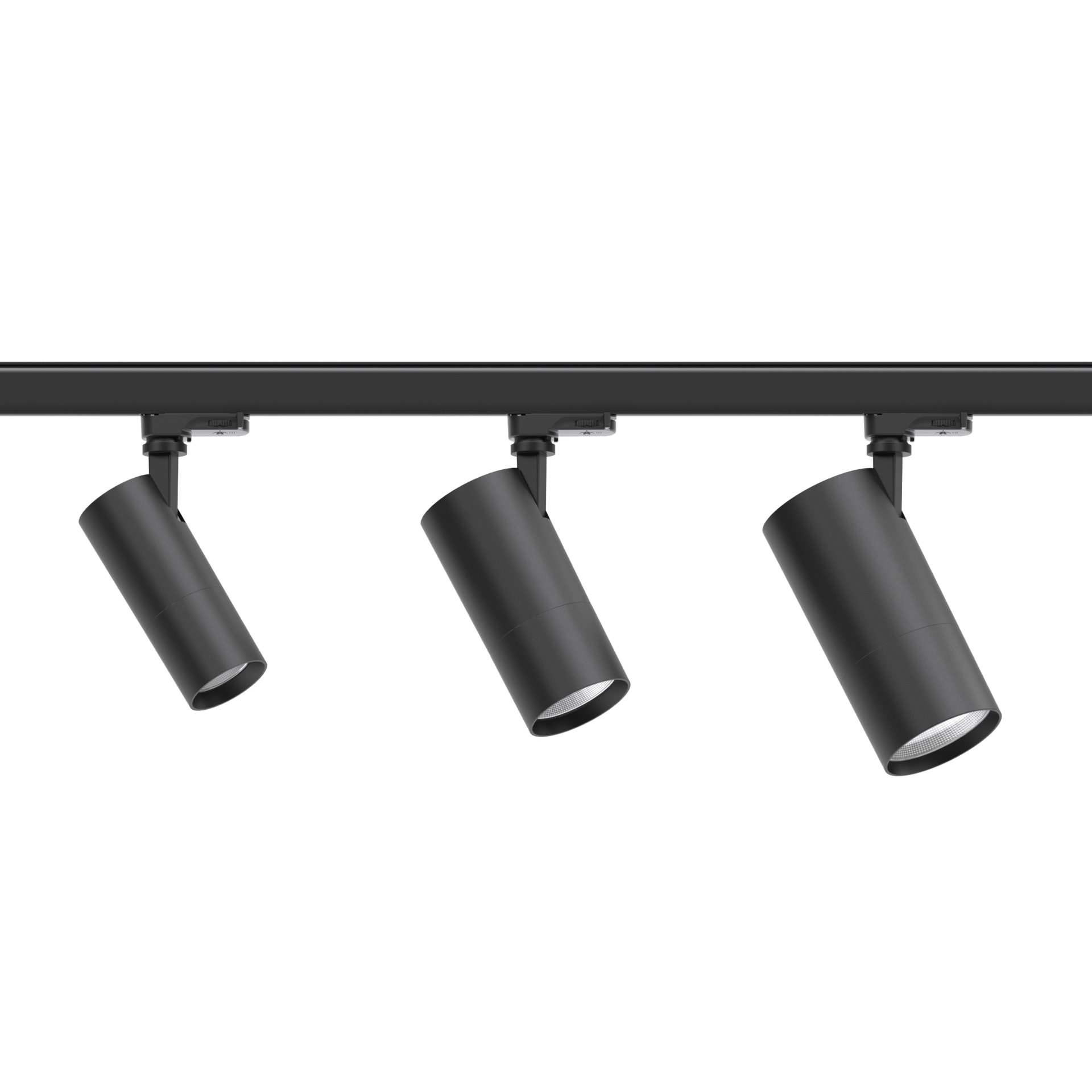

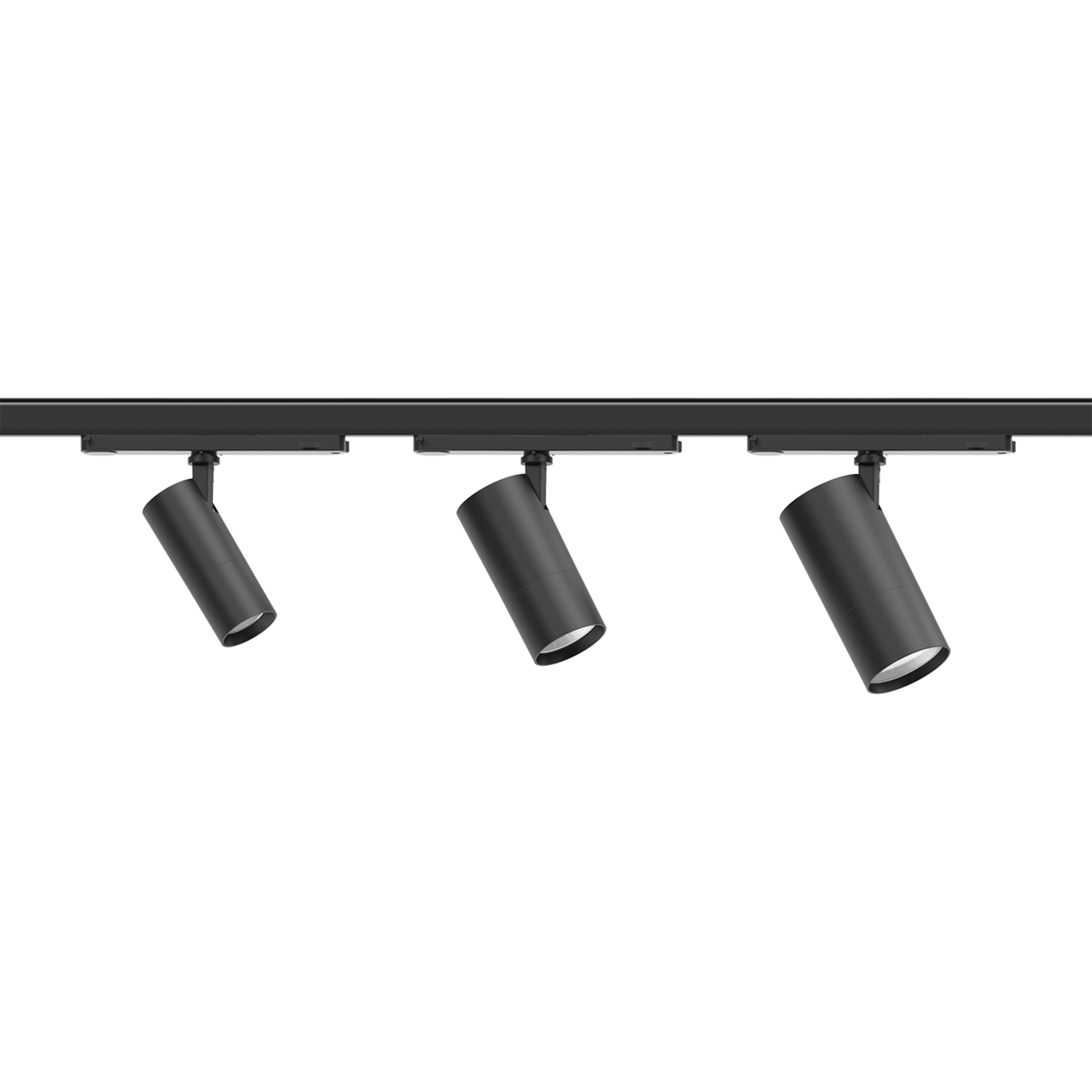

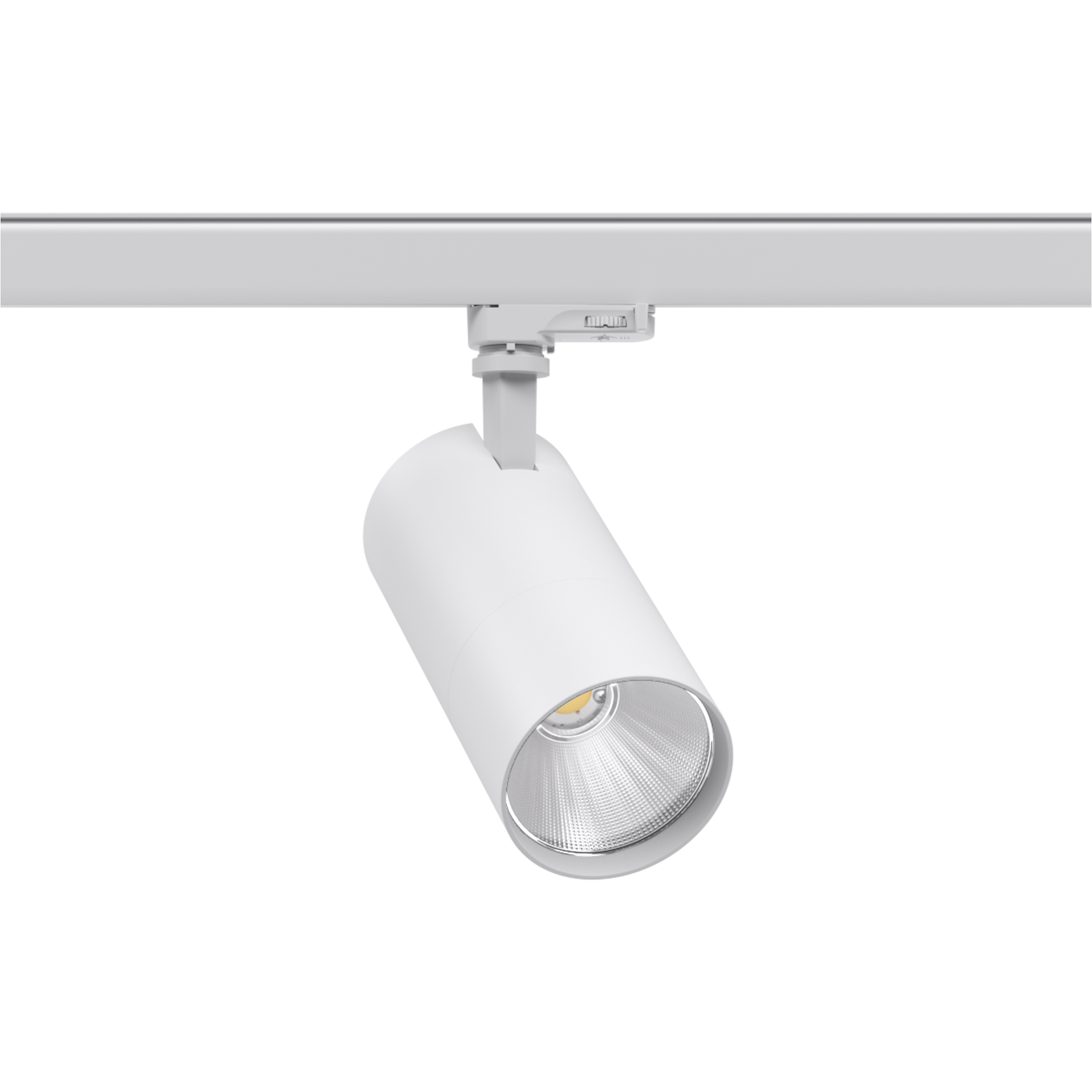

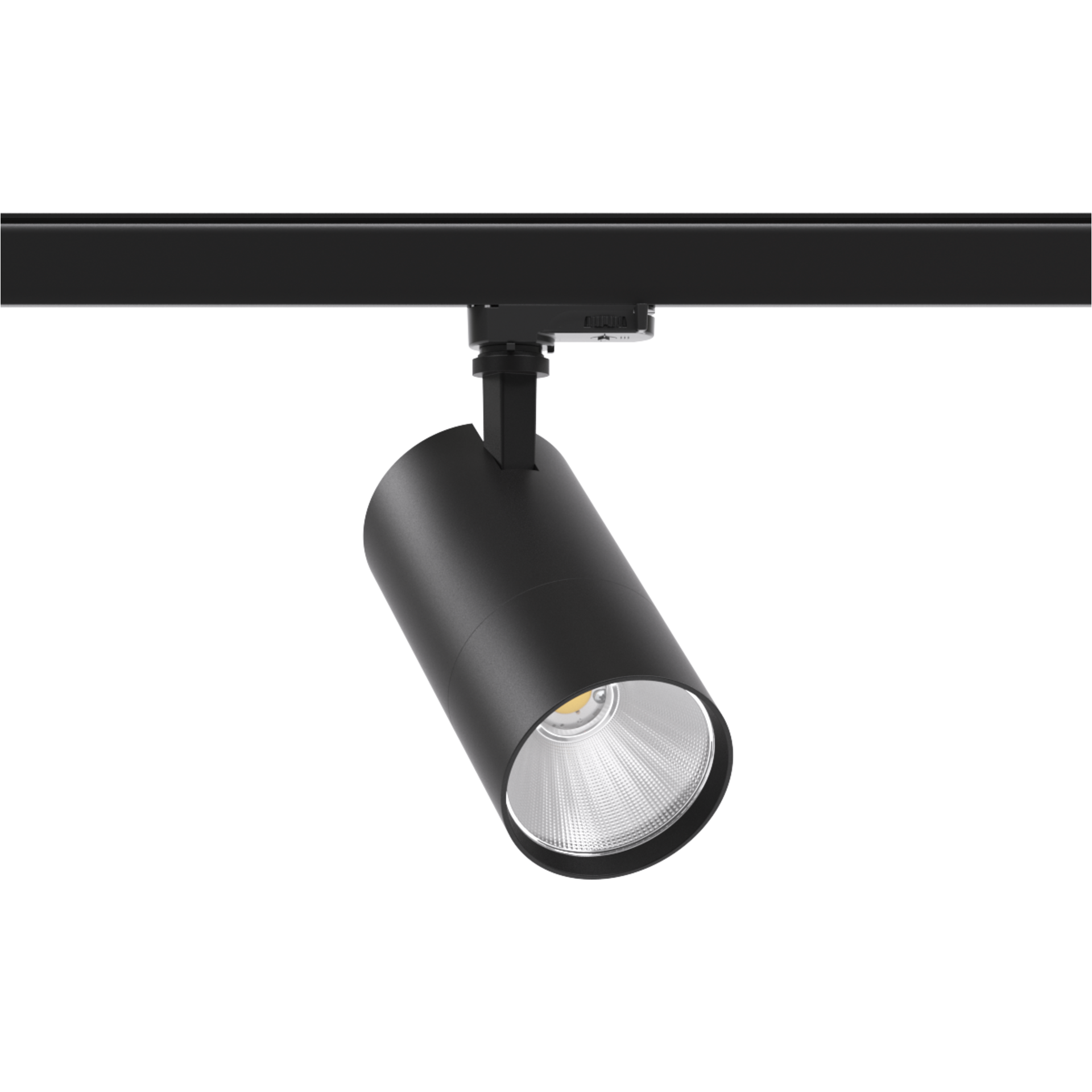

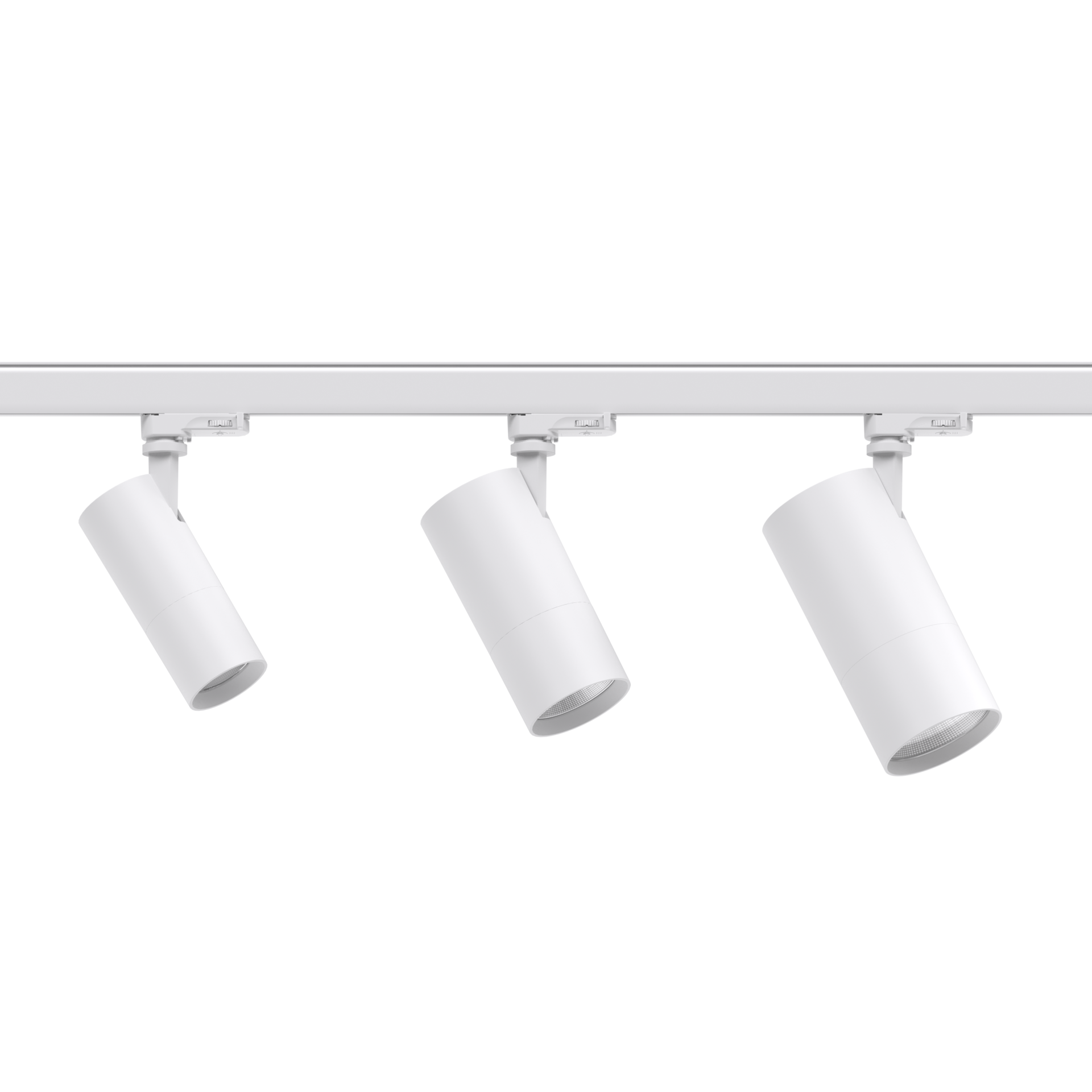

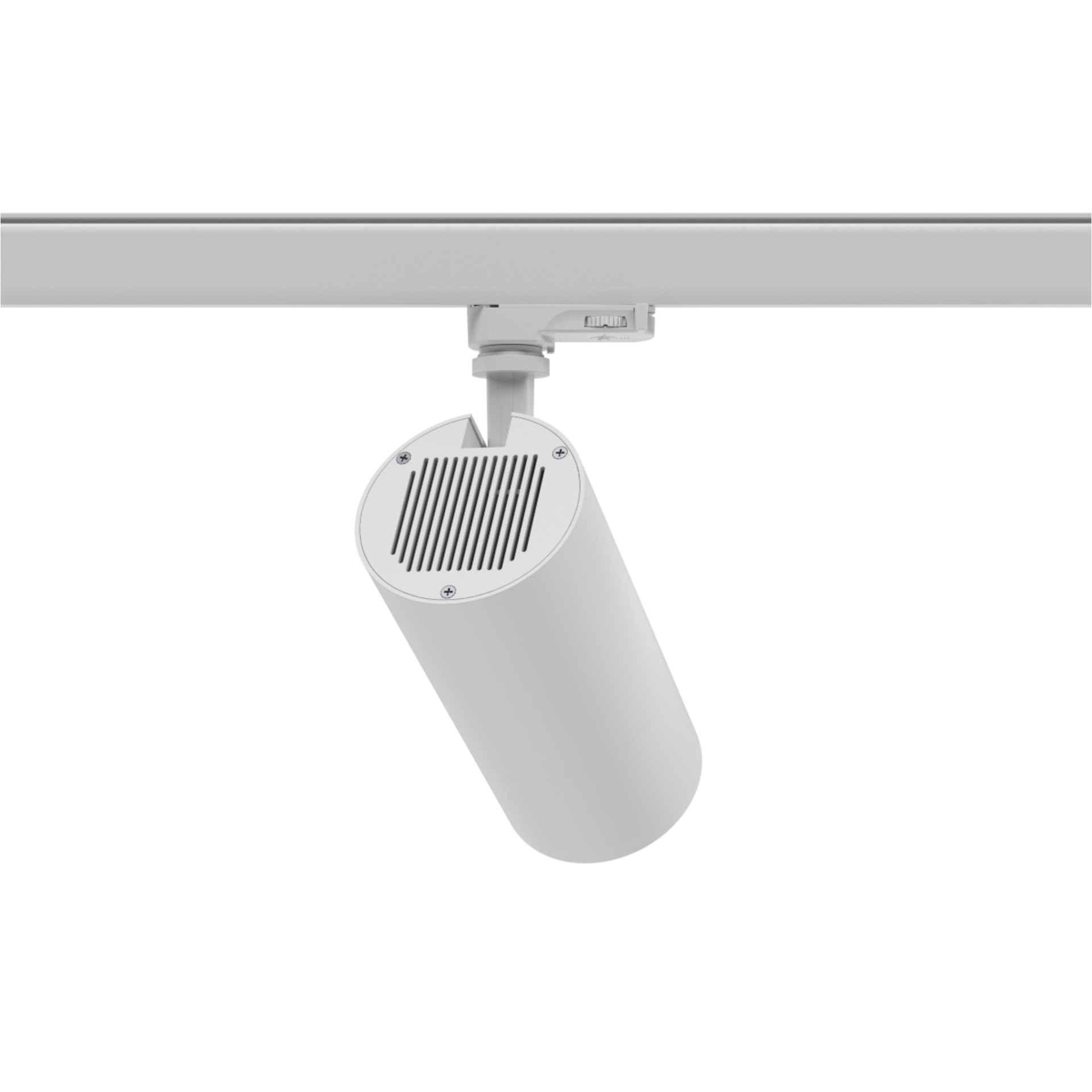

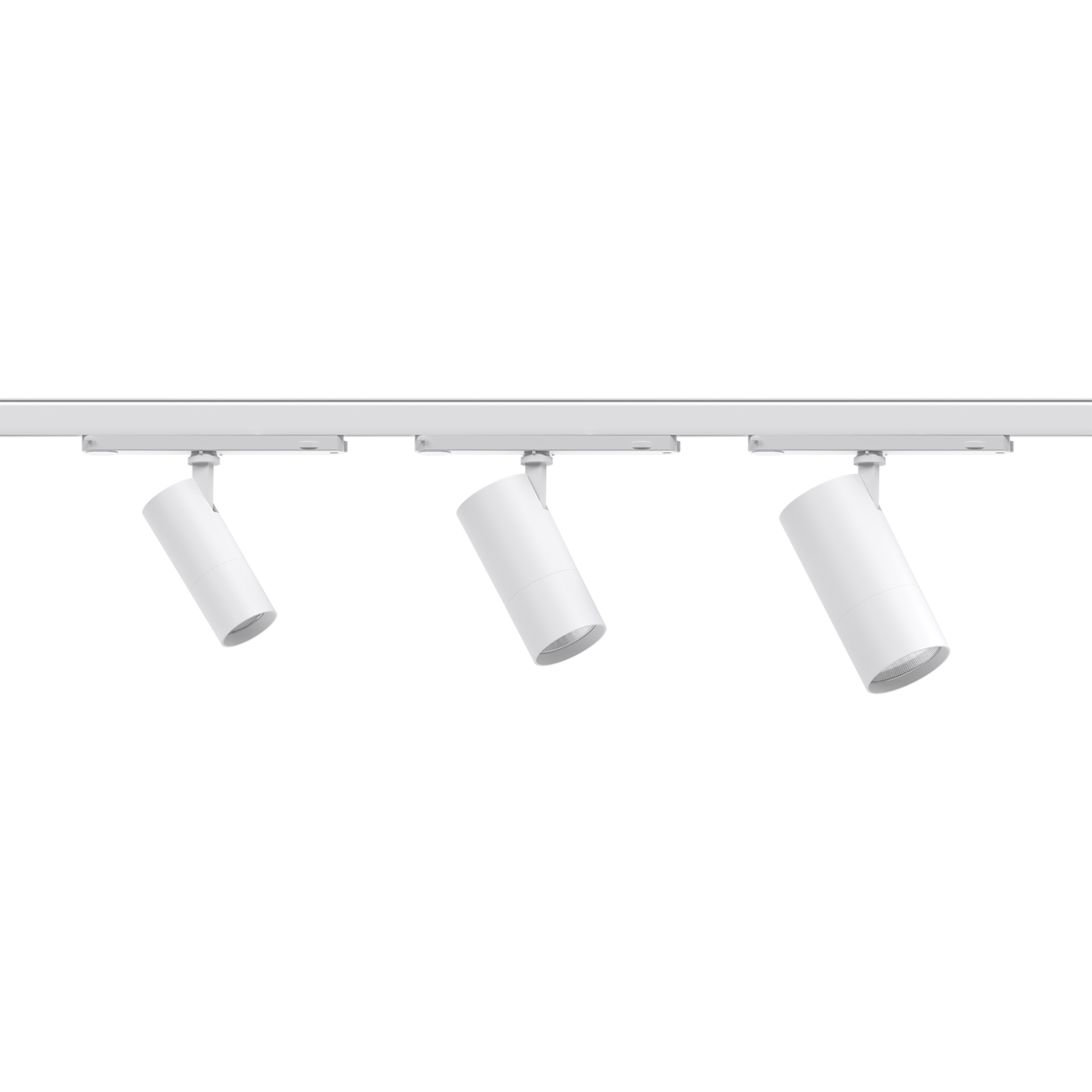

CALIBRO 2.0 LED
Modern projector for LED light sources.



Unique design
Tiltable optics allow for directing the light in an optimal way
Perfect for retail lighting
Fast and easy mounting

Application

boutiques, delicatessen, exhibitions, exhibitions, galleries, jeweler, museums, shopping centers

Luminous flux range

800 - 2950 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in 3-phase track, in 3-phase DALI track
Body colour
black, white
Surface finish
matt/satin
Operating temperature range
0 ... +35
RAL
9003, 9005
Body
high pressure die-cast aluminum
Type
HI-CRI, STANDARD

Electrical data

Power supply efficiency
≤80%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
10 - 26
Output current [mA]
250, 300, 500, 700
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
5 - 85
Maximum number of luminaires in the circuit with a 16A fuse (B)
10 - 135
Maximum number of luminaires in the circuit with a 25A fuse (B)
80 - 170

Optical data

Way of lighting
direct
Diffuser
polycarbonate
Colour temperature [K]
3000, 4000
Beam angle
18°, 23°, 35°
CRI/Ra
80, 90
MacAdam's steps
3
Lumen luminaire [lm]
800 - 2950
Efficacy [lm/W]
80 - 117
Photobiological risk group
RG1

General data

Additional information
Safe supply of the LED module with low SELV voltage
LED lifetime [h]
(L80B10) 100000h, (L80B10) 50000h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Marking Net weight [kg]
170x63x118 ED 0.44
185x74x135 ED 0.63
207x87x147 ED 0.83
253x63x118 DALI 0.5
253x74x135 DALI 0.63
270x87x147 DALI 0.78
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
CRI
80
90
Beam angle
18°
23°
35°
Body colour
black
white
Type
HI-CRI
STANDARD
Protection Class
I
II
Clear Filters
Compare Code Protection Class Type of equipment Body colour Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range LED lifetime [h]
020281.3L03.201 II DALI white 18° 18 2000 111 3000 80 0 ... +35 (L80B10) 50000h
020281.3L03.202 II DALI white 23° 18 2000 111 3000 80 0 ... +35 (L80B10) 50000h
020281.3L03.203 II DALI white 35° 18 2000 111 3000 80 0 ... +35 (L80B10) 50000h
020281.3L04.201 II DALI white 18° 18 2100 117 4000 80 0 ... +35 (L80B10) 50000h
020281.3L04.202 II DALI white 23° 18 2100 117 4000 80 0 ... +35 (L80B10) 50000h
020281.3L04.203 II DALI white 35° 18 2100 117 4000 80 0 ... +35 (L80B10) 50000h
020281.3L05.301 II DALI white 18° 26 2800 108 3000 80 0 ... +35 (L80B10) 50000h
020281.3L05.302 II DALI white 23° 26 2750 106 3000 80 0 ... +35 (L80B10) 50000h
020281.3L05.303 II DALI white 35° 26 2650 102 3000 80 0 ... +35 (L80B10) 50000h
020281.3L06.301 II DALI white 18° 26 2950 113 4000 80 0 ... +35 (L80B10) 50000h
Compare selected
Shown 10 / 144
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
