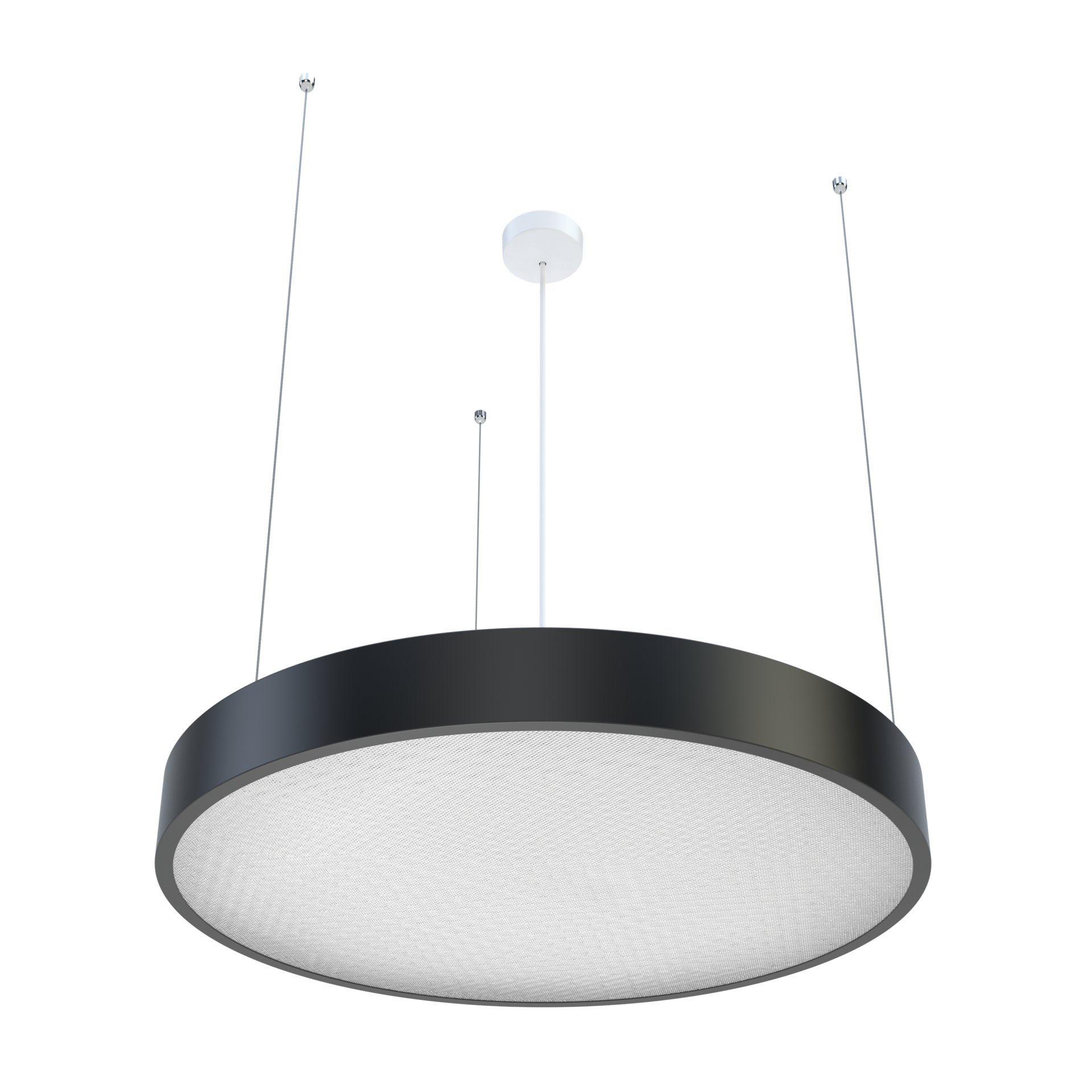

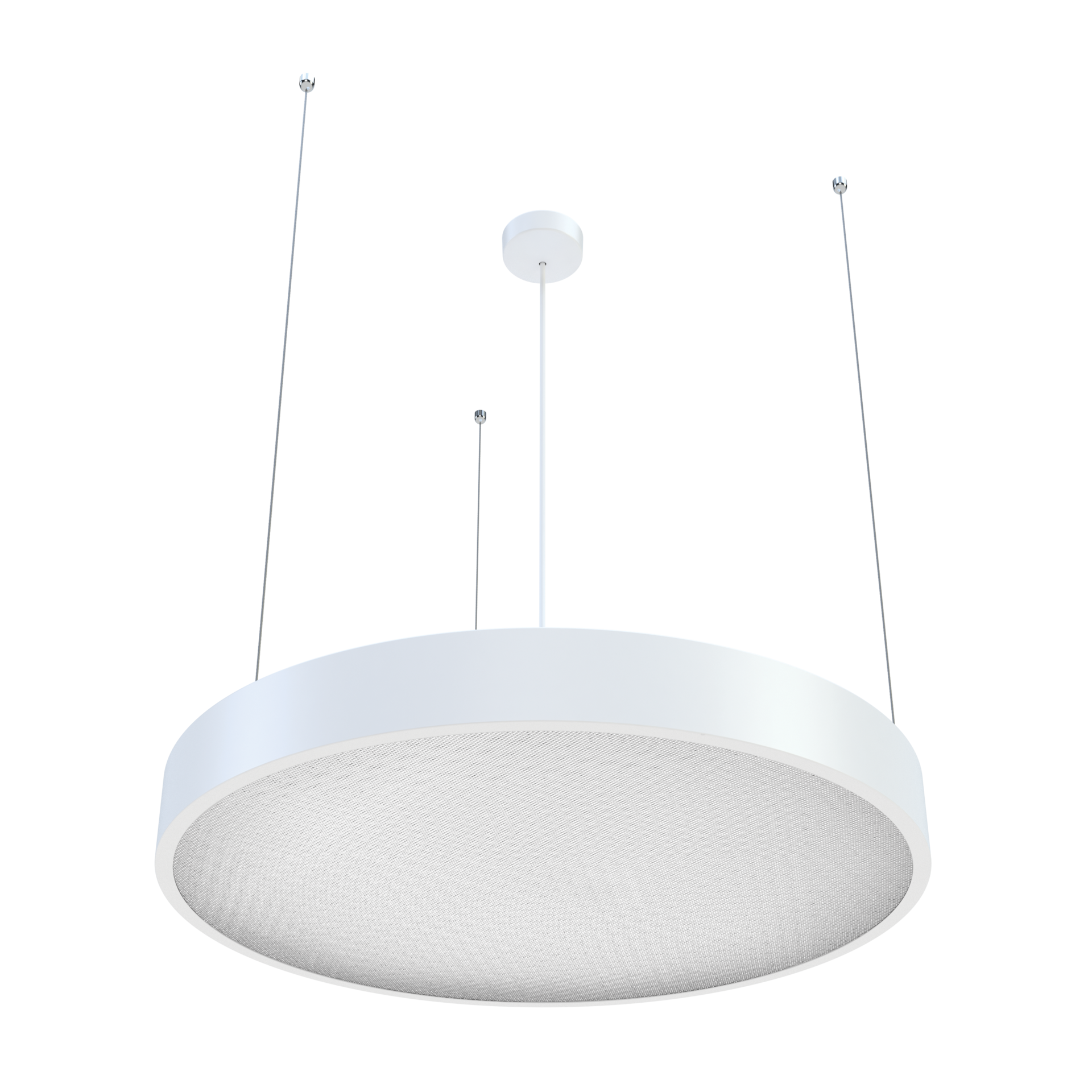

TLON 2.0
Decorative pendant luminaie. It is possible to order the luminaires in various dimensions.



High efficacy to 151 lm/W
Classic elegance
Perfect combination of aesthetics and ergonomics
Universal design
Fast and easy mounting

Application

boutiques, car showrooms, conference rooms, offices, reception desks, shopping centers

Available on request

luminaire in other sizes

Luminous flux range

2850 - 12500 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (included)
Body colour
black, white
Surface finish
matt
Operating temperature range
0 ... +35
RAL
9003, 9005
Body
formed aluminum profile, plastic, steel sheet
Type
Ø500, Ø700, Ø900

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
28 - 83
Output current [mA]
200, 250, 350, 550, 560
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
8 - 35
Maximum number of luminaires in the circuit with a 16A fuse (B)
13 - 56

Optical data

Way of lighting
direct
Type of optic
diffuser
Diffuser
microprismatic diffuser (MPRM), opal plexiglass (PLX)
Colour temperature [K]
3000, 4000
Beam angle
>80°
CRI/Ra
80
ULOR / DLOR
0/100
Lumen luminaire [lm]
2850 - 12500
Efficacy [lm/W]
97 - 151
Photobiological risk group
RG0

General data

Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Quantity in package Net weight [kg]
500x80 1 3
700x80 1 5
900x80 1 9
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Body colour
black
white
Diffuser
microprismatic diffuser (MPRM)
opal plexiglass (PLX)
Clear Filters
Compare Code Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Diffuser
200261.5L01.121 ED >80° 28 2850 102 3000 80 opal plexiglass (PLX)
200261.5L01.122 ED >80° 28 3550 127 3000 80 microprismatic diffuser (MPRM)
200261.5L02.121 ED >80° 28 2900 104 4000 80 opal plexiglass (PLX)
200261.5L02.122 ED >80° 28 3700 132 4000 80 microprismatic diffuser (MPRM)
200261.5L03.121 ED >80° 47 4800 102 3000 80 opal plexiglass (PLX)
200261.5L03.122 ED >80° 47 5500 117 3000 80 microprismatic diffuser (MPRM)
200261.5L04.121 ED >80° 47 5000 106 4000 80 opal plexiglass (PLX)
200261.5L04.122 ED >80° 47 5700 121 4000 80 microprismatic diffuser (MPRM)
200261.5L05.131 ED >80° 33 3650 111 3000 80 opal plexiglass (PLX)
200261.5L05.132 ED >80° 33 4600 139 3000 80 microprismatic diffuser (MPRM)
Compare selected
Shown 10 / 48
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products

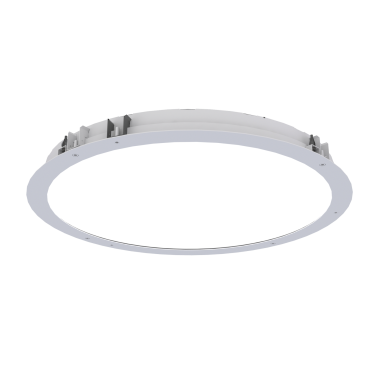

LUG HCL p/t
Recessed decorative luminaire for LED light sources. Concept.
View

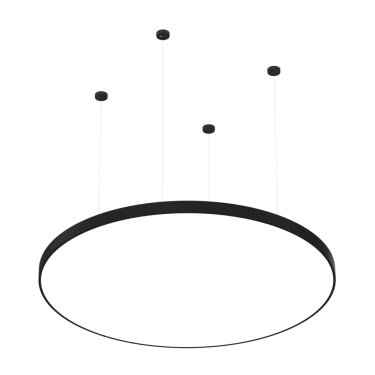

TLON 2.0 1950 zw
Decorative pendant luminaire with a diameter of 1950mm.
View

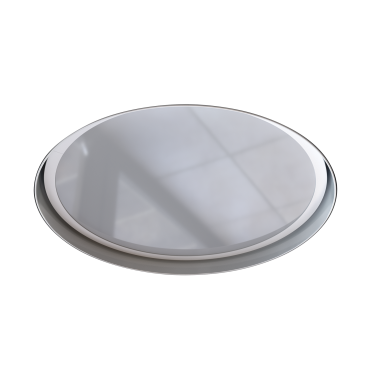

TLON TRIMLESS
