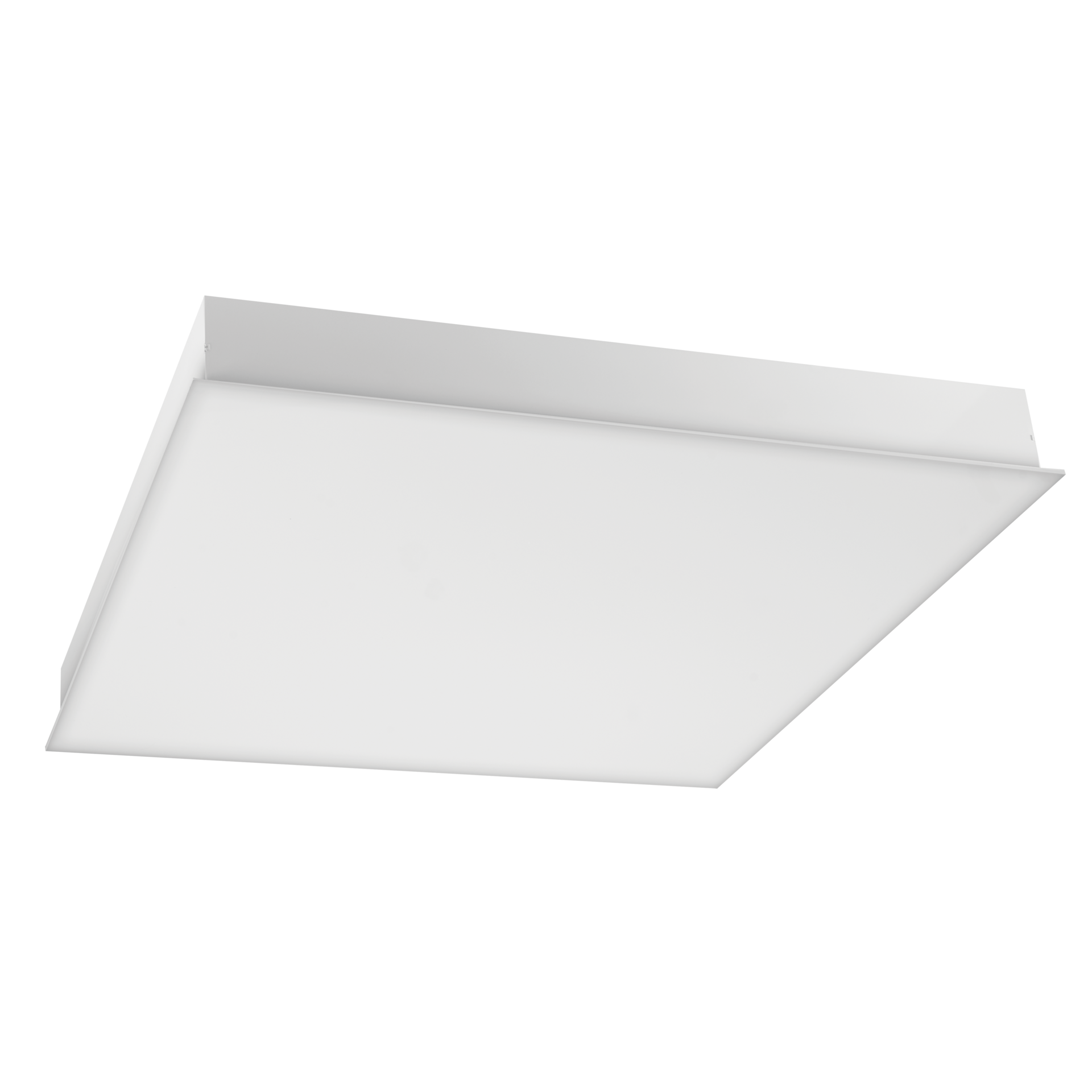

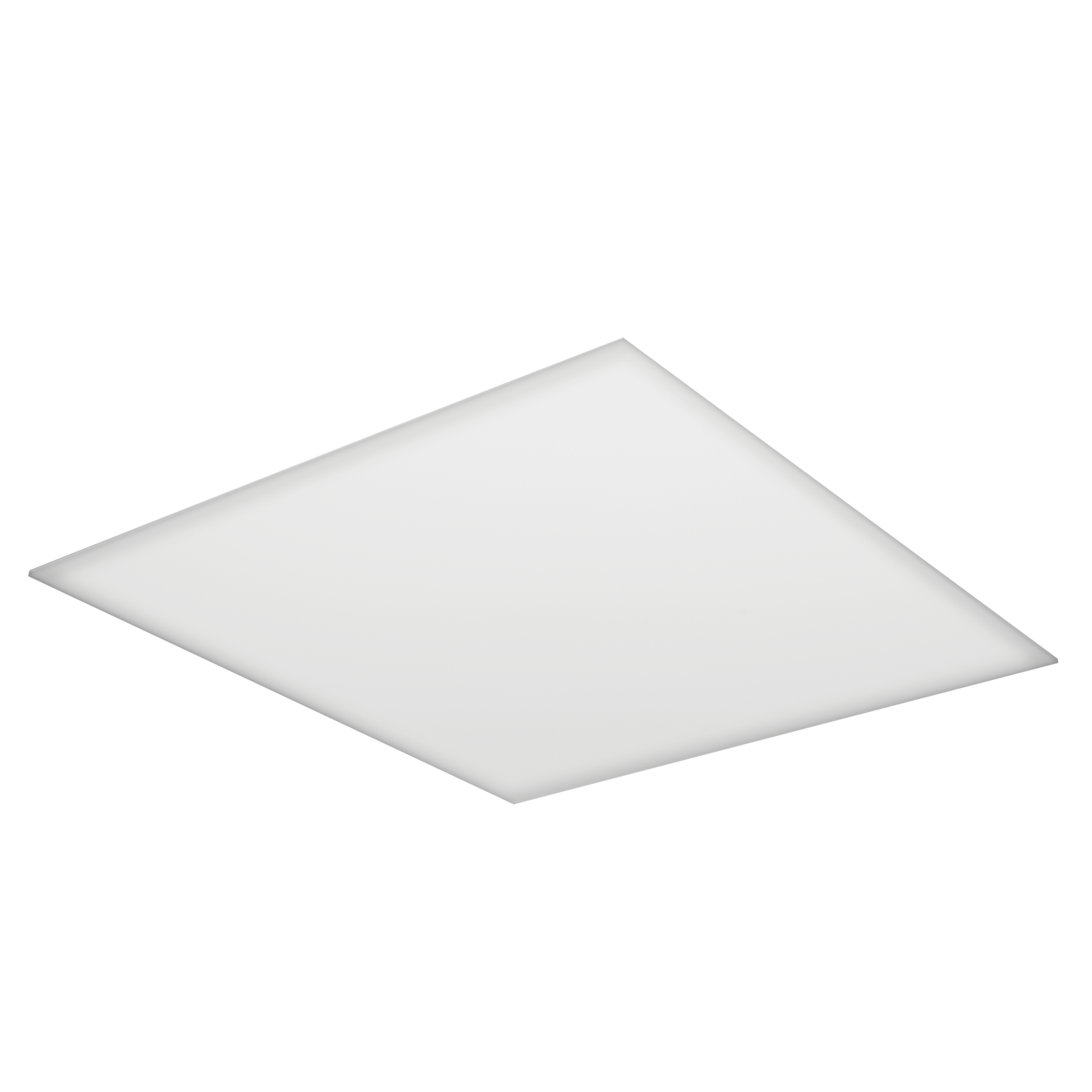

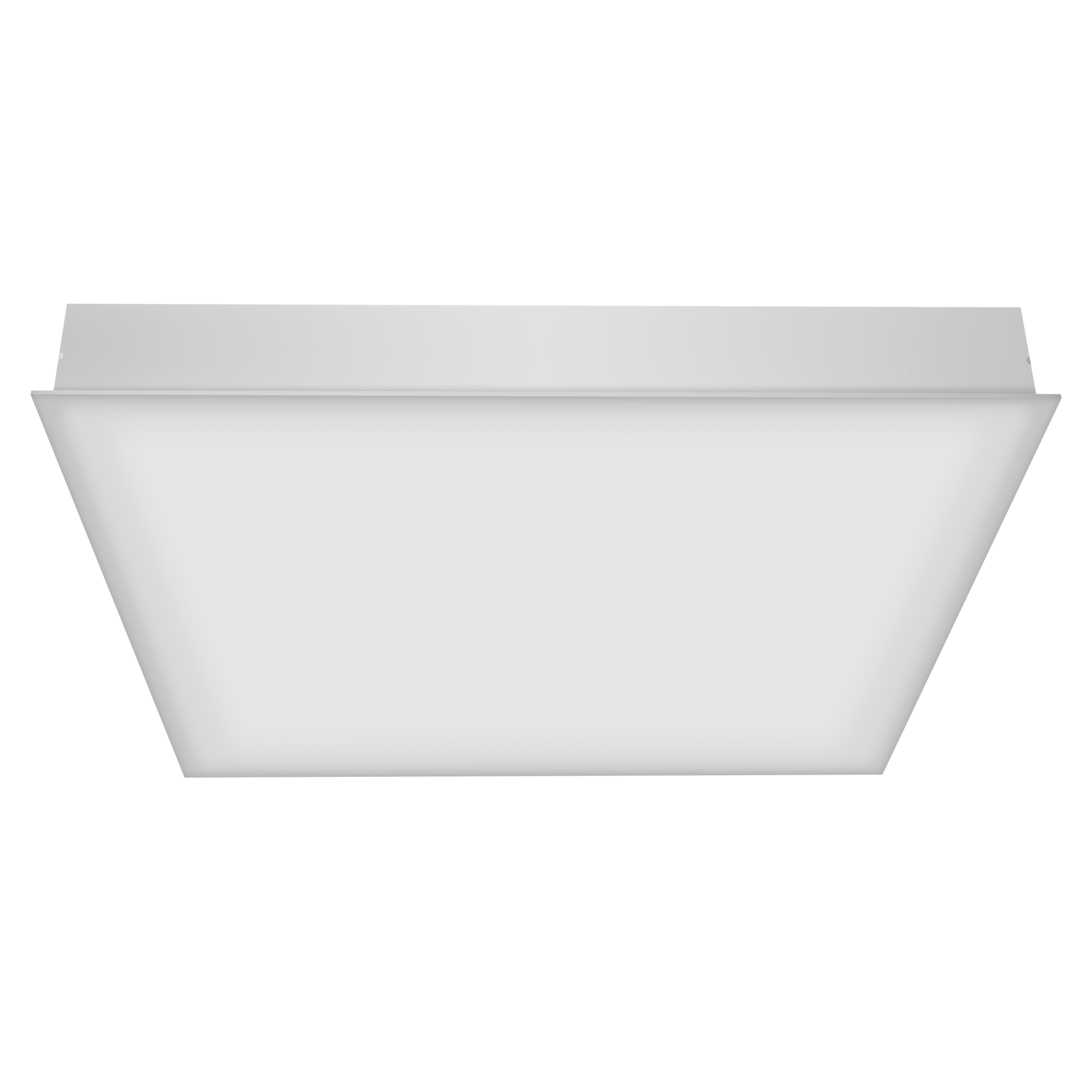

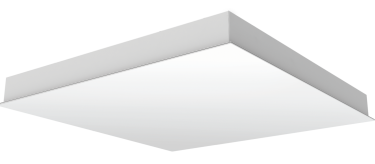

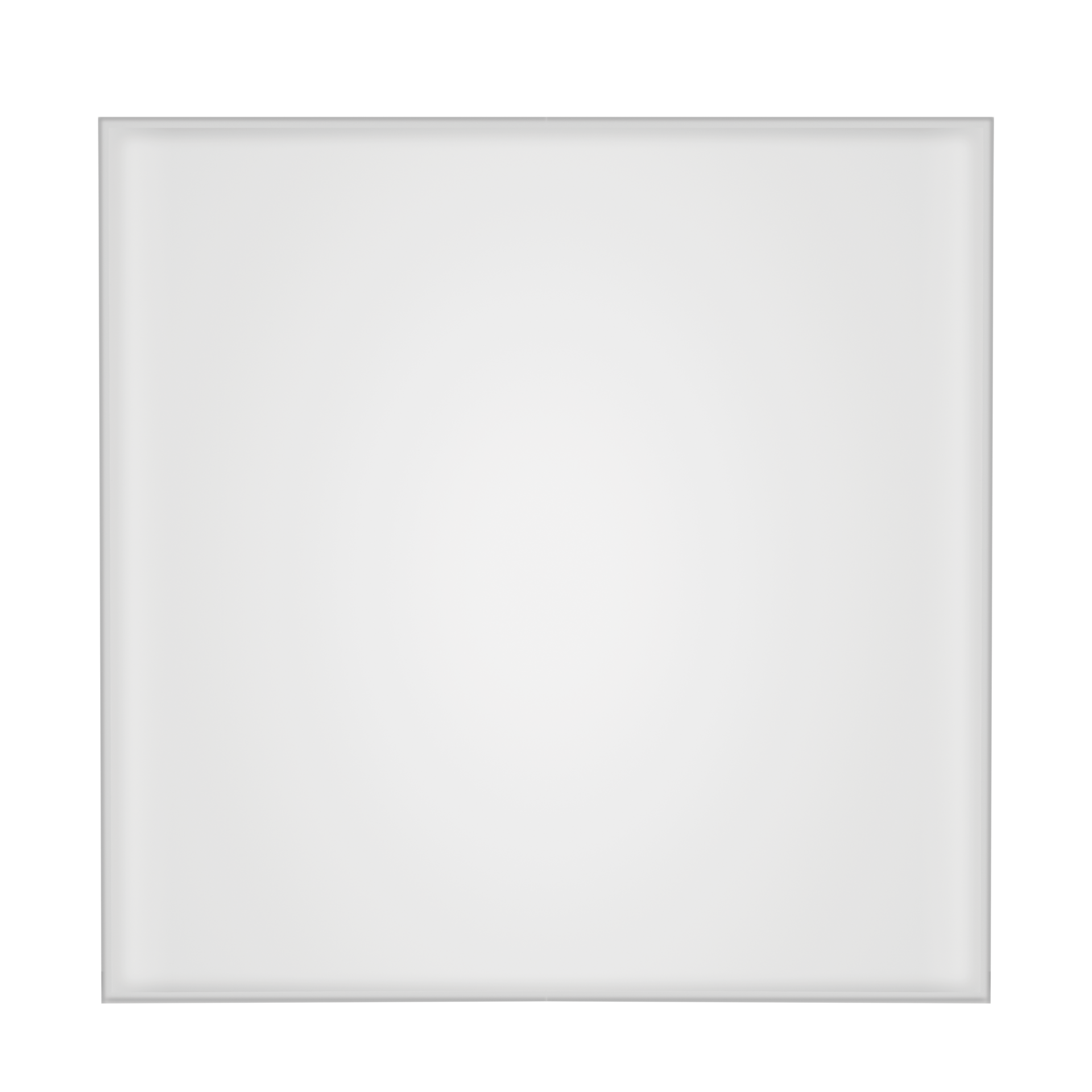

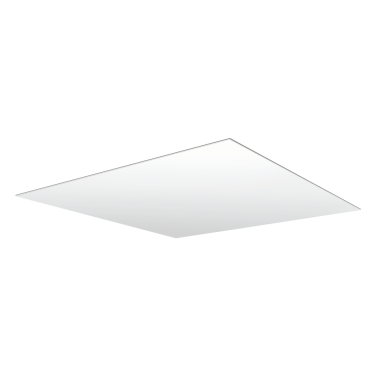

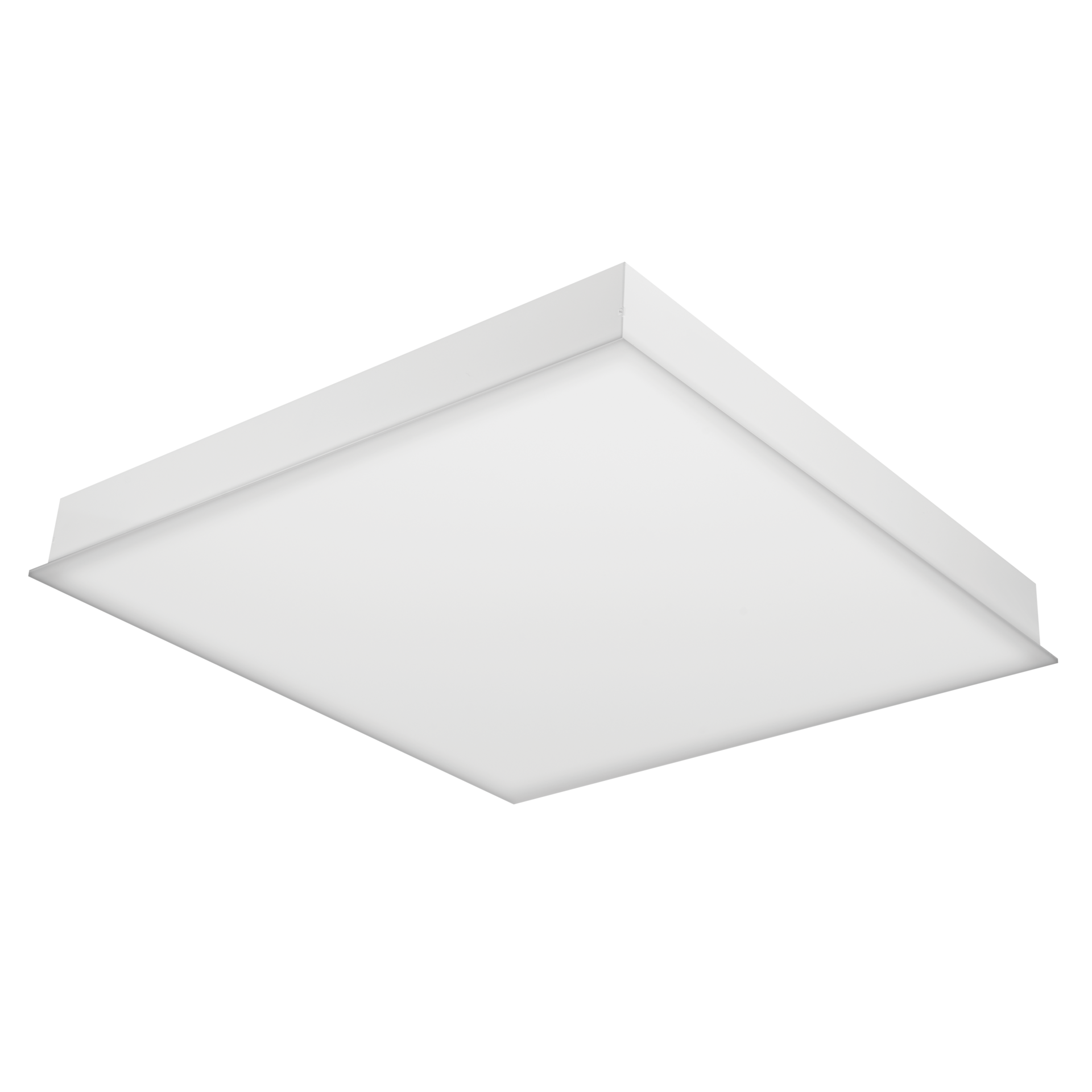

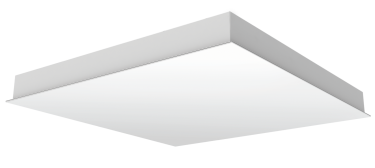

LUGCLASSIC LED p/t
Modern recessed luminaire for modular suspended ceilings for LED light sources.



High efficacy to 120 lm/W
Maintenance-free operation
Universal design

Application

auditorium, classrooms, hospitals, laboratories, offices, supermarkets

Available on request

DALI, LED emergency module, luminaires for KNAUF, AMF, ROCKFON ceilings (on request)

Luminous flux range

4400 - 9200 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Operating temperature range
0˚C ... +25˚C
RAL
9003
Body
powder-painted steel sheet
Type
600x600, 625x625

Electrical data

Power supply efficiency
≤84%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
40 - 82
Output current [mA]
750
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
7 - 15
Maximum number of luminaires in the circuit with a 16A fuse (B)
12 - 25

Optical data

Way of lighting
direct
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
4400 - 9200
Efficacy [lm/W]
102 - 120

General data

Additional information

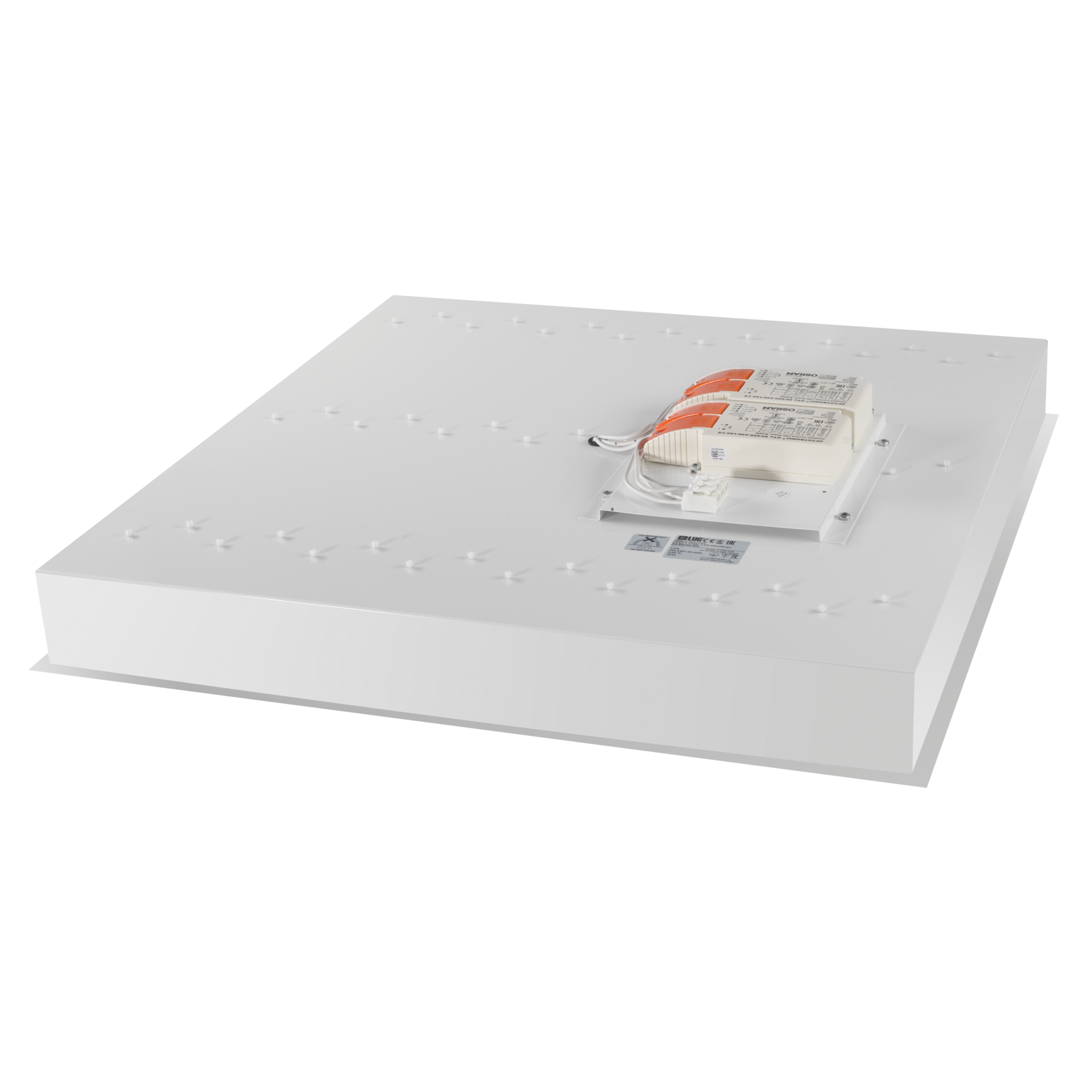

The possibility of using one or more power supplies in the luminaire.
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD Mounting dimensions [mm] LxW Pallet quantity Quantity in package Net weight [kg]
595x595x75x112 600x600 32 1 4.5
622x622x75x112 625x625 32 1 4.7
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type
600x600
625x625
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
060141.5L05.315 ED 40 4400 110 3000 ≥80
060141.5L05.325 ED 40 4400 110 3000 ≥80
060141.5L06.315 ED 40 4800 120 4000 ≥80
060141.5L06.325 ED 40 4800 120 4000 ≥80
060141.5L07.315 ED 82 8400 102 3000 ≥80
060141.5L07.325 ED 82 8400 102 3000 ≥80
060141.5L08.315 ED 82 9200 112 4000 ≥80
060141.5L08.325 ED 82 9200 112 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products

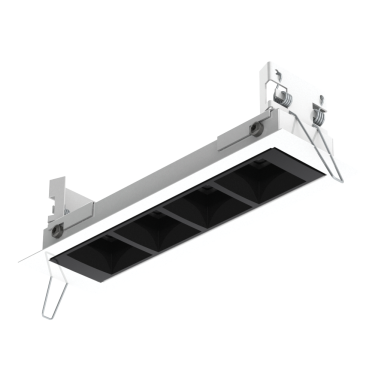

LUGCLASSIC CELLS LED
Decorative downlight luminaire with an optical system that eliminates glare and highly efficient lenses.
View

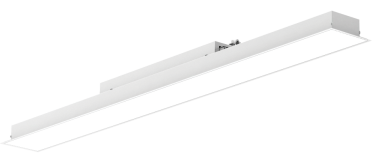

LUGCLASSIC LED 1195x104 OPAL
Modern recessed luminaire for modular suspended ceilings for LED light sources. Implementation of the luminaire in 1195x104 dimensions.
View

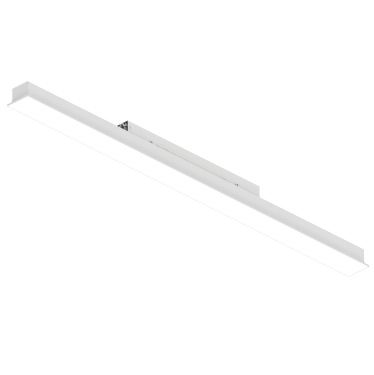

LUGCLASSIC LED 1195x72 p/t WIELAND
Modern recessed luminaire for modular suspended ceilings for LED light sources. The subject of modification is the luminaire in 1195x72mm dimensions, with MPRM diffuser and WIELAND connector.
View

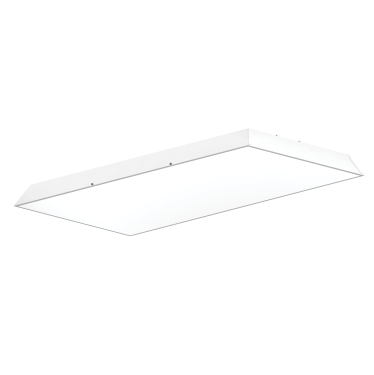

LUGCLASSIC LED 1200X600
Modern recessed luminaire on the LED light source emitting entire surface of the lens. Implementation of the luminaire in 1200x600 dimensions.
View

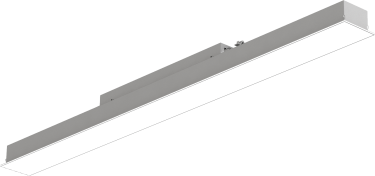

LUGCLASSIC LED 1200x100 p/t
Modern recessed luminaire for modular suspended ceilings for LED light sources. Implementation of the luminaire in 1200x100 dimensions.
View
LUGCLASSIC LED 1200x150
Using a double PLX + MPRM diffuser. Changing the dimensions of the luminaire according to customer requirements.
View

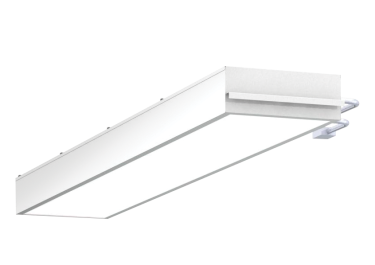

LUGCLASSIC LED 1200x200
Modern luminaire for modular ceiling on the LED light source. Adjustment of the luminaire to 1200x200 dimensions. LOW UGR <19 after confirmation of the laboratory test.
View
LUGCLASSIC LED LOW UGR p/t
Modern recessed luminaire for modular suspended ceilings for LED light sources. Application of a diffuser (plexiglass) to reduce glare.
View

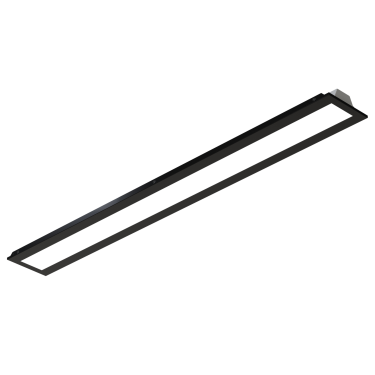

LUGCLASSIC LED P/T BLACK
Modern recessed luminaire for modular suspended ceilings for LED light sources. The subject of the modification is the change of the dimensions of the luminaire, the surface of the cover and the color of the luminaire into black.
View
LUGCLASSIC LED REDUCED FLUX p/t
Modern recessed luminaire for modular suspended ceilings for LED light sources. The subject of modification is the use of a lowered luminous flux of the luminaire.
View
LUGCLASSIC LED ROCKFON X
Modern recessed luminaire for modular suspended ceilings for LED light sources. Adaptation of the luminaire for mounting in the rockfon X ceiling.
View
LUGCLASSIC LED TECHZONE 1195x145
Modern recessed luminaire for LED light sources emitting light with it's entire diffuser surface. The subject of modification is adjusting the dimensions of the luminaire for installation in TECHZONE ceilings.
View

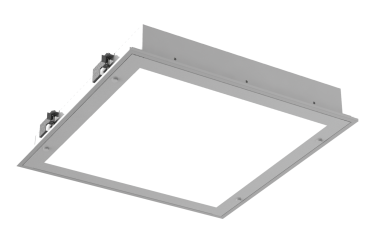

LUGCLASSIC LED g/k TIGHT
Modern recessed luminaire for modular suspended ceilings for LED light sources. Implementation of LUGCLASSIC luminaire for modular ceilings in LED technology.
View

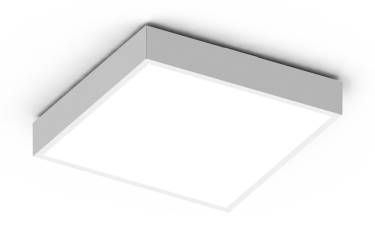

LUGCLASSIC LED n/t
Modern surface mounted luminaire for LED light sources. Customizing LUGCLASSIC LED luminaire for surface mounting.
View

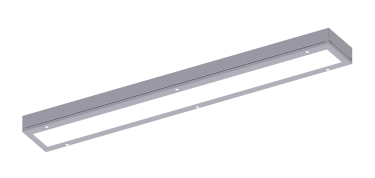

LUGCLASSIC LED n/t OPAL IP54
Modern surface mounted luminaire for LED light sources, glowing the entire surface of the diffuser. Luminaire with IP54, equipped with polycarbonate diffuser (PC).
View

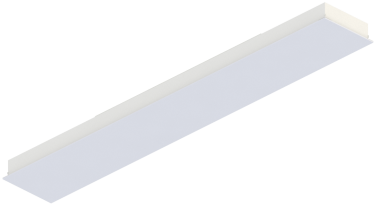

LUGCLASSIC LED p/t 1200x185
Modern recessed luminaire for modular suspended ceilings for LED light sources. LUGCLASSIC LED luminaire adjusted for 1200x185 dimensions.
View
LUGCLASSIC LED p/t 600x300
Modern recessed luminaire for modular suspended ceilings for LED light sources. Adjusting the luminaire to the 600x300 version.
View
LUGCLASSIC LED p/t EASY CONNECT
Modern recessed luminaire for modular suspended ceilings for LED light sources. Luminaire with shutter for EASY CONNECT connector.
View
LUGCLASSIC LED p/t SAS
Modern recessed luminaire for modular suspended ceilings for LED light sources. Luminaire for SAS 130 1522 ceiling in color RAL 9010.
View
LUGCLASSIC LED p/t SAS 130 EASY CONNECT
Modern recessed luminaire for modular suspended ceilings for LED light sources. Luminaire for SAS 130 ceiling mount with EASY CONNECT connector.
View

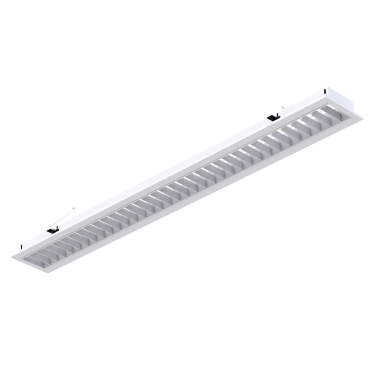

LUGCLASSIC PAR LED p/t g/k
