ARCHILINE LED

Product description

Technical parameters

To download

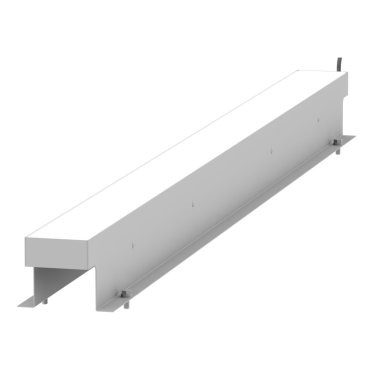

Accessories

Explore services Customisation Support and contact

Other parameters available View variants

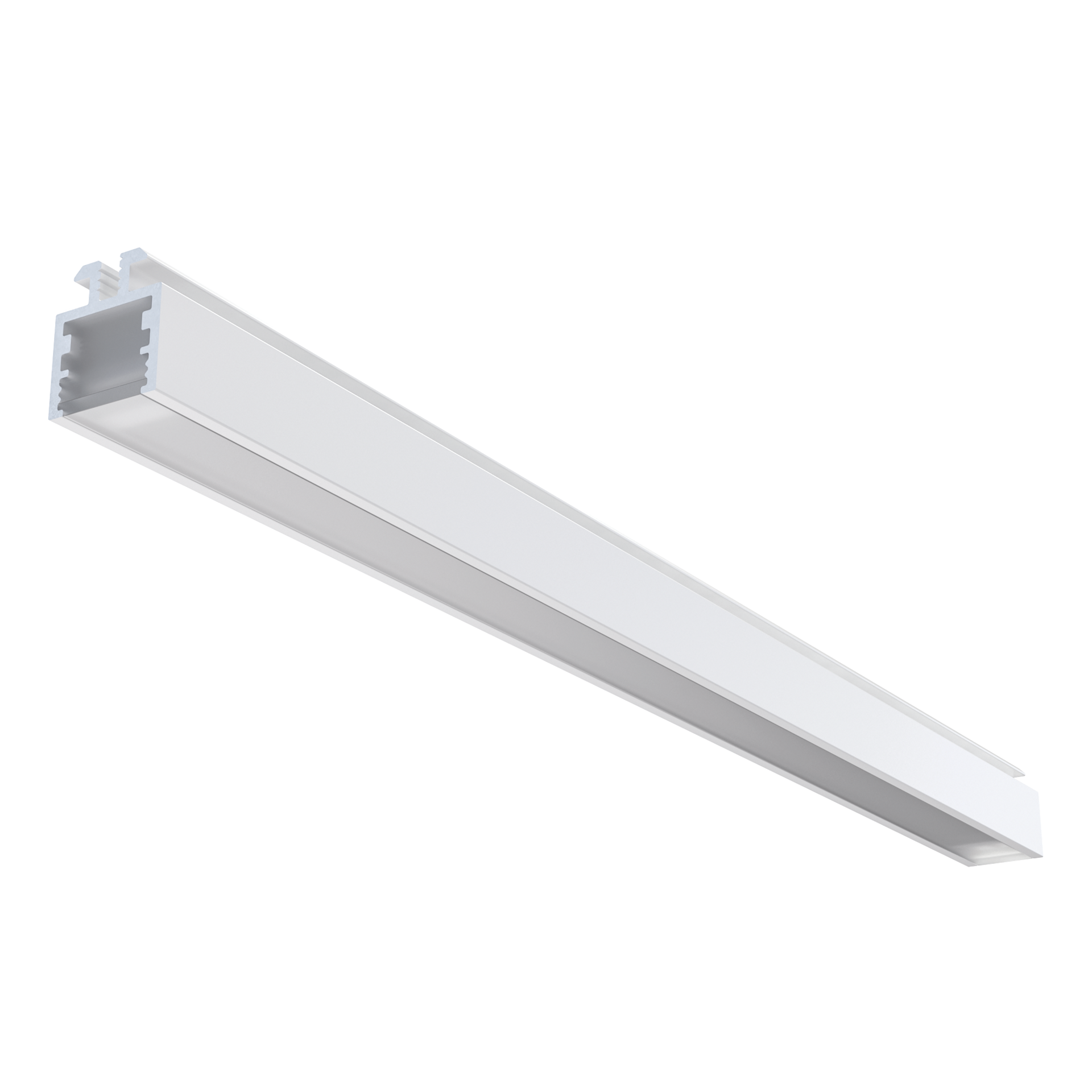

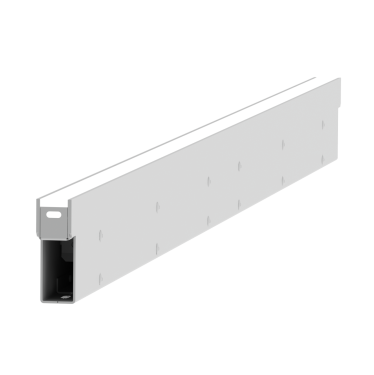

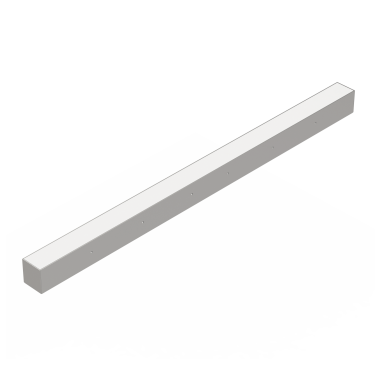

ARCHILINE LED

Modern architectural luminaire for LED light sources, for mounting in the ceiling and in the wall.

Increased weather resistance

Application

Railway stations, building facades, pathways, shopping centers, staircases

Available on request

DALI

Luminous flux range

270 - 1690 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

in the ceiling, in the wall

Body colour

white

Operating temperature range

-40 ... +45, -40 ... +50

RAL

9016

Body

aluminum profile

Type

Version with a width of 18 mm

Electrical data

Power

24V DC

Includes light source

yes

Luminaire power [W]

4.8 - 25.9

Output current [mA]

200, 440, 640, 880, 1080

Type of equipment

DALI - to be ordered separately, ED - to be ordered separately

Optical data

Way of lighting

direct

Colour temperature [K]

4000

CRI/Ra

>80

MacAdam's steps

ULOR / DLOR

100/0

Lumen luminaire [lm]

270 - 1690

Efficacy [lm/W]

54 - 65

General data

Additional information

mounting bracket included

Lifetime L90B10

50 000 h (ED); 43 000 h (DALI)

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Pallet quantity	Quantity in package	Net weight [kg]
300x18x21	252	1	0.17
600x18x21	252	1	0.33
900x18x21	210	1	0.5
1200x18x21	210	1	0.66
1500x18x21	210	1	0.83

Code	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range
140590.5L01.311	ED - to be ordered separately	5	270	54	4000	>80	-40 ... +50
140590.5L02.312	ED - to be ordered separately	10	540	54	4000	>80	-40 ... +50
140590.5L03.313	ED - to be ordered separately	14	810	58	4000	>80	-40 ... +50
140590.5L04.314	ED - to be ordered separately	19	1090	57	4000	>80	-40 ... +50
140590.5L05.315	ED - to be ordered separately	24	1360	57	4000	>80	-40 ... +50
140591.0L01.311	DALI - to be ordered separately	4,8	310	65	4000	>80	-40 ... +45
140591.0L02.312	DALI - to be ordered separately	10,6	690	65	4000	>80	-40 ... +45
140591.0L03.313	DALI - to be ordered separately	15,4	1000	65	4000	>80	-40 ... +45
140591.0L04.314	DALI - to be ordered separately	21,1	1380	65	4000	>80	-40 ... +45
140591.0L05.315	DALI - to be ordered separately	25,9	1690	65	4000	>80	-40 ... +45

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The proposed accessories are not an integral part of the luminaires in accordance with PN EN 60598-1.
It is not necessary to use the suggested power supplies.
Only power supplies that meet the requirements of SELV galvanic separation, 24V DC output voltage and are properly selected in terms of power should be used to power the luminaire.
Colour temperature tolerance +/- 5%.
