RUNA 2 LED

Product description

Technical parameters

To download

Explore services Customisation Support and contact

Other parameters available View variants

RUNA 2 LED

In-ground 'drive over' decorative luminaire IP67 supplied with high quality LED light sources.

High efficacy to 78 lm/W

Application

Railway stations, hotels, parking areas, pathways, shopping centers

Luminous flux range

260 - 940 [lm]

Variable color temperature

3000 - red [K]

Mechanical data

Mounting

in the substrate

Body colour

black

Operating temperature range

'-25˚C ... +40˚C

Body

stainless steel, high pressure die-cast aluminum

Electrical data

Power supply efficiency

≤75%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

Output current [mA]

350

Type of equipment

LED driver is in a seperate box (included)

Maximum number of luminaires in the circuit with a 10A fuse (B)

Maximum number of luminaires in the circuit with a 16A fuse (B)

Optical data

Way of lighting

direct

Diffuser

tempered glass

Colour temperature [K]

3000, 6000, blue, green, red

Beam angle

10°, 22°, 45°

CRI/Ra

≥80

Lumen luminaire [lm]

260 - 940

Efficacy [lm/W]

22 - 78

General data

Additional equipment

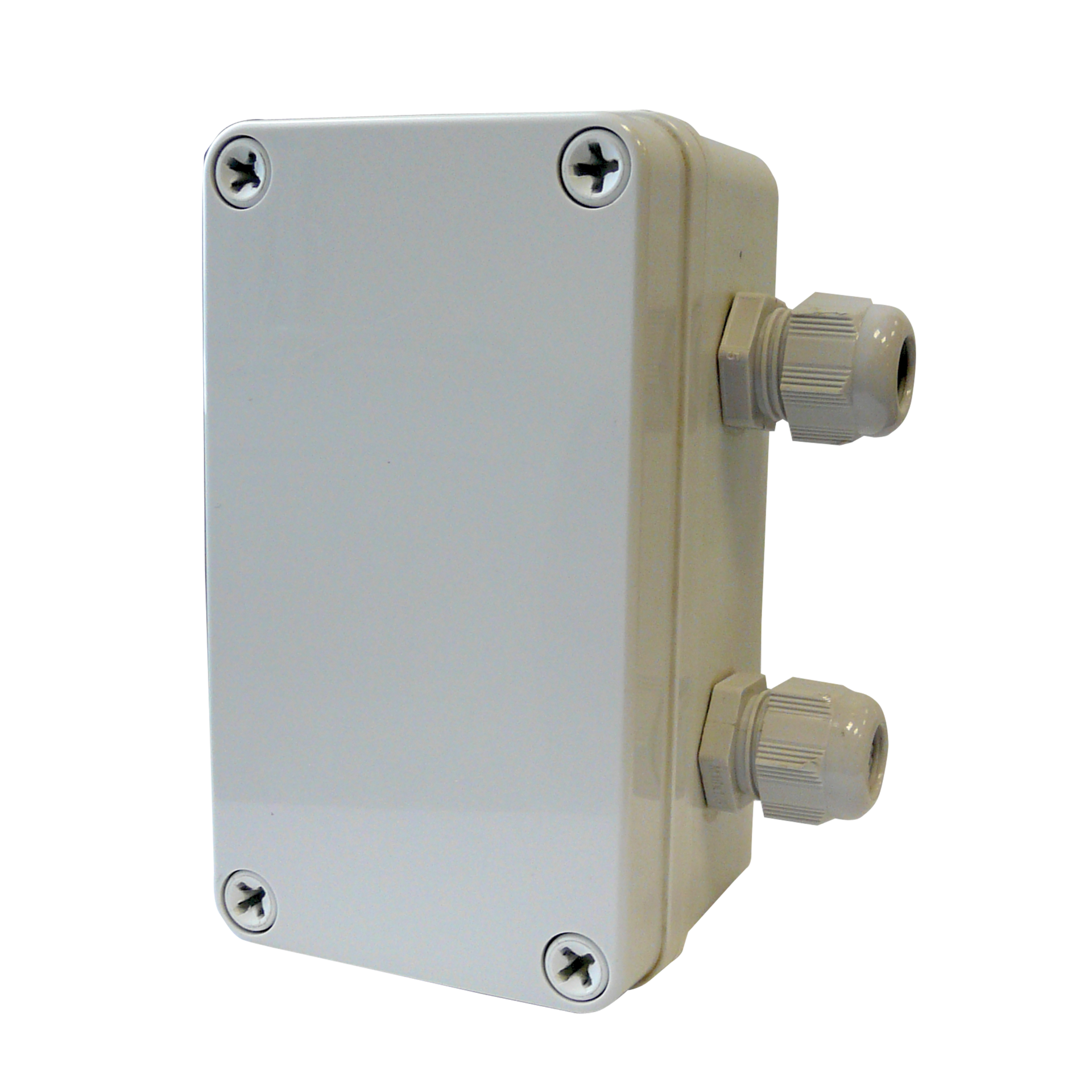

independent power supply cover (in a set)

Other remarks

lack of access to power feeders after installing the housing on solid surface (concrete, paving, etc.) without interfering with its structure

Lifetime L70B50

50 000 h

Warranty

5 years

Dimensions

Dimensions [mm] WxHxDxD1xD2	Mounting dimensions [mm] WxH	Pallet quantity	Quantity in package	Net weight [kg]
150x108x160x73x80	180x180	231	1	1.8

Available variants

Code	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Beam angle
140233.5L021.12	LED driver is in a seperate box (included)	12	750	63	3000	≥80	10°
140233.5L021.42	LED driver is in a seperate box (included)	12	740	62	3000	≥80	22°
140233.5L021.52	LED driver is in a seperate box (included)	12	770	64	3000	≥80	45°
140233.5L022.12	LED driver is in a seperate box (included)	12	930	78	6000	≥80	10°
140233.5L022.42	LED driver is in a seperate box (included)	12	910	76	6000	≥80	22°
140233.5L022.52	LED driver is in a seperate box (included)	12	940	78	6000	≥80	45°
140233.5L023.12	LED driver is in a seperate box (included)	12	285	24	red	≥80	10°
140233.5L023.42	LED driver is in a seperate box (included)	12	280	23	red	≥80	22°
140233.5L023.52	LED driver is in a seperate box (included)	12	290	24	red	≥80	45°
140233.5L024.12	LED driver is in a seperate box (included)	12	605	50	green	≥80	10°

Compare selected

Shown 10 / 15

Show all

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
