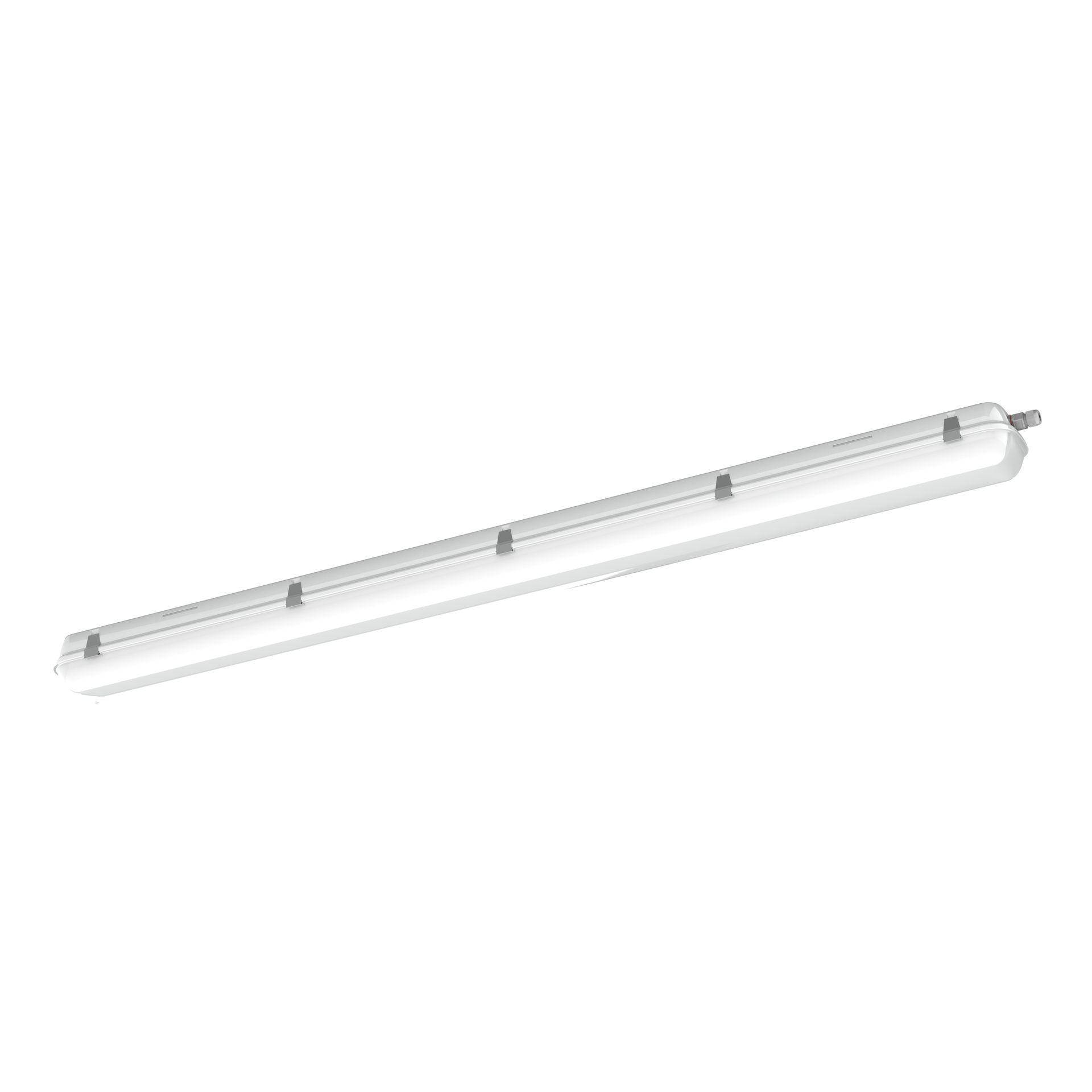

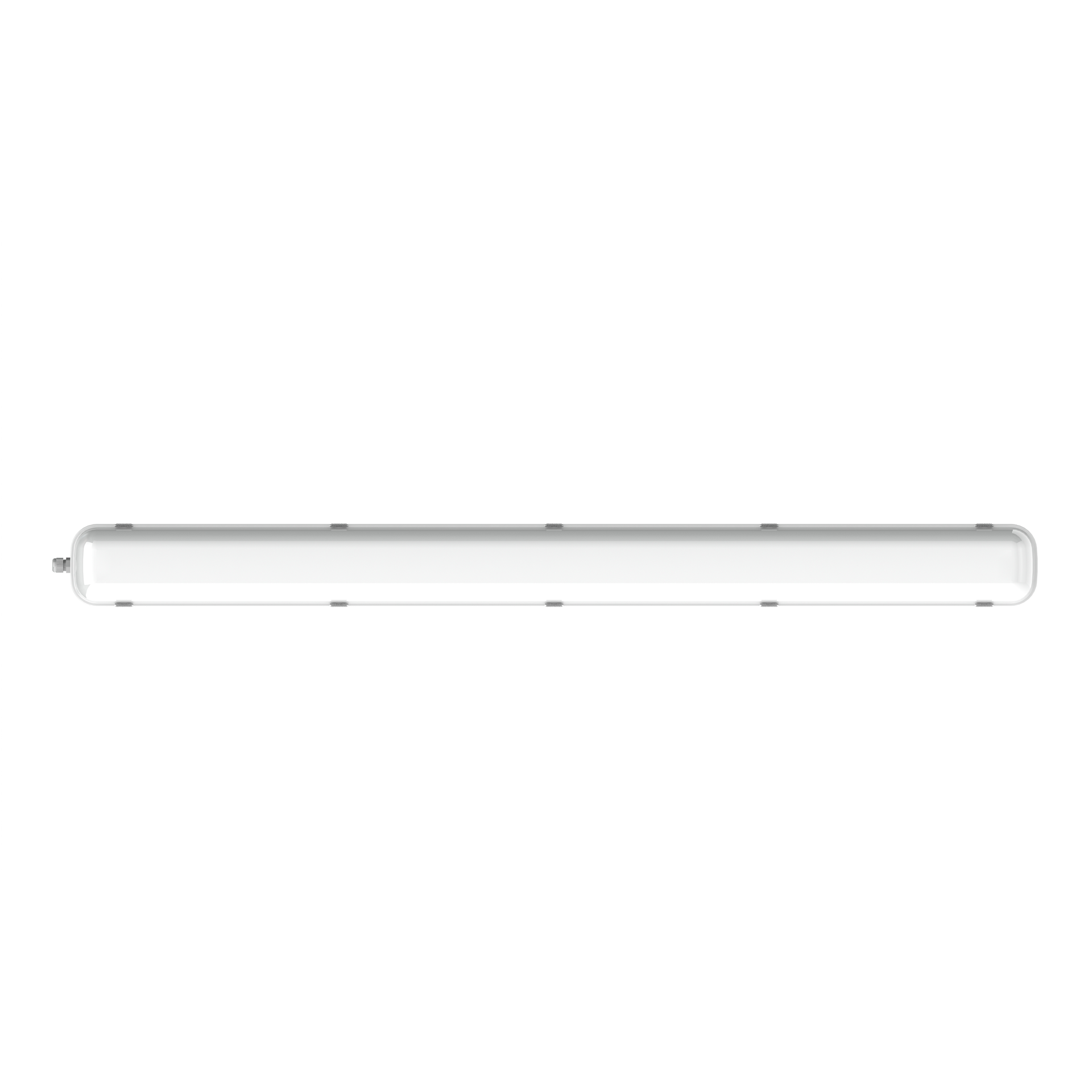

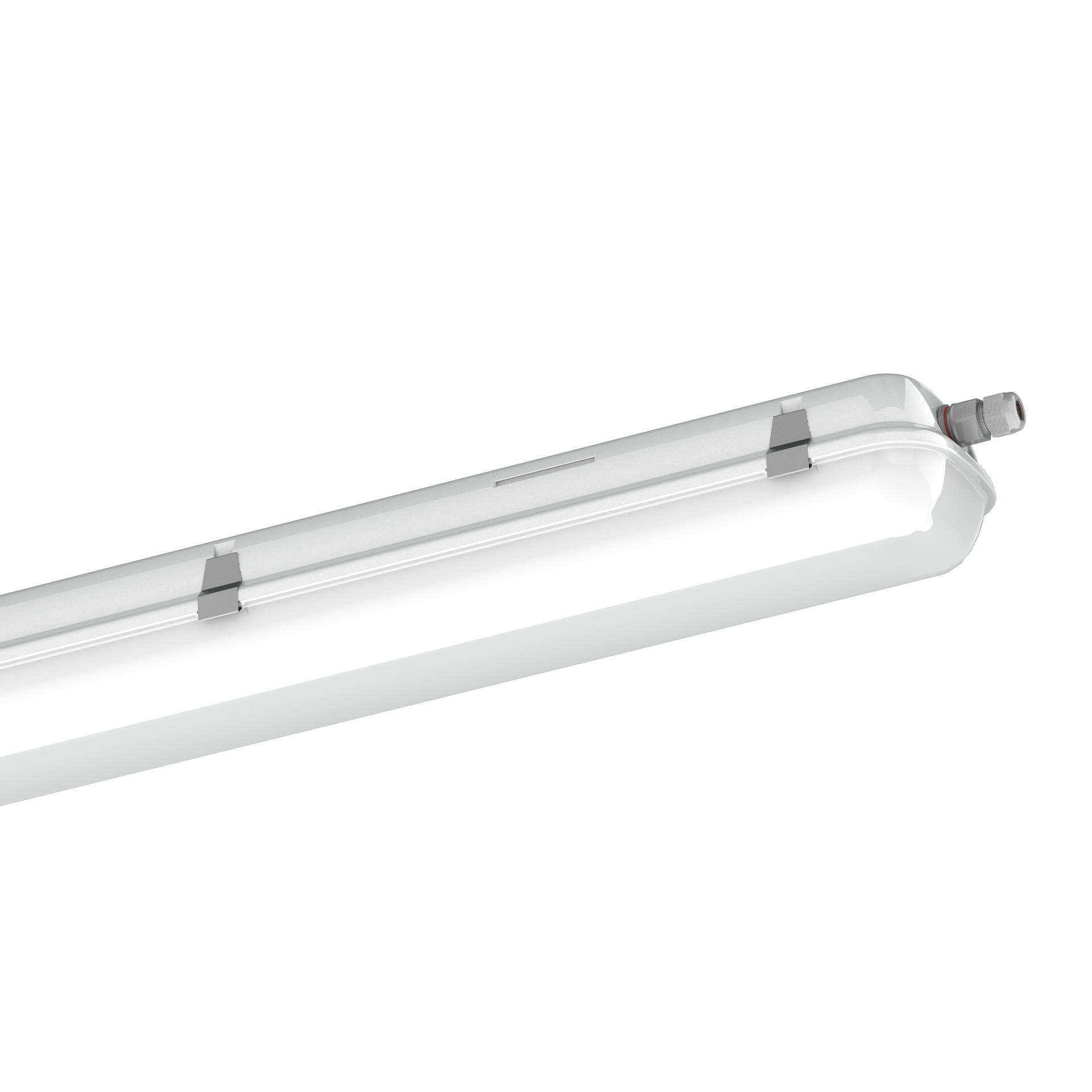

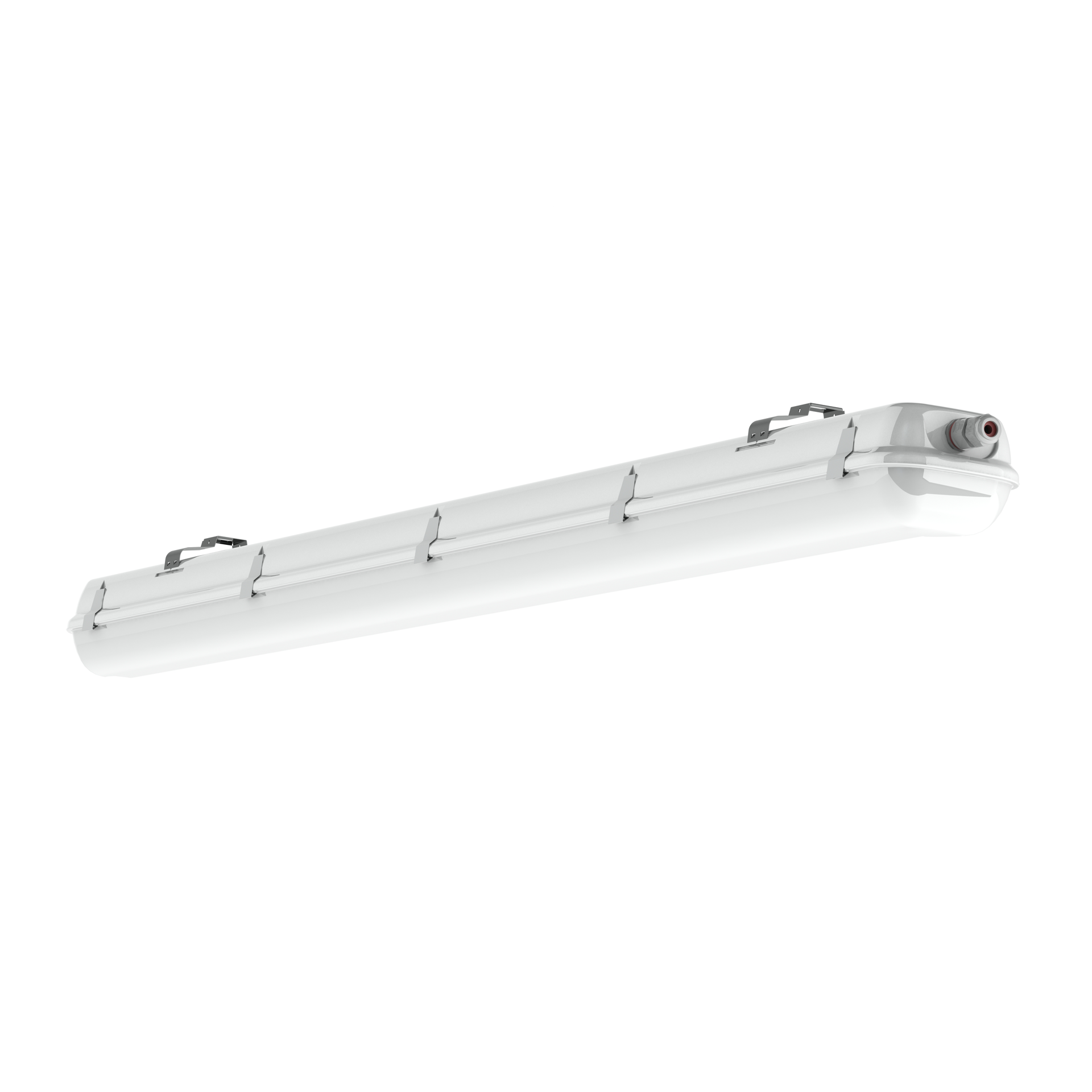

ATLANTYK LB LED GEN.2

Hermetic LED luminaire, water-jet protected, dedicated to use in industrial environments.

High efficacy to 181 lm/W

Perfect combination of aesthetics and ergonomics

Universal design

Simple one person mounting

Reliability

Application

electricity plants, parking areas, production halls, roofing

Luminous flux range

6700 - 11600 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

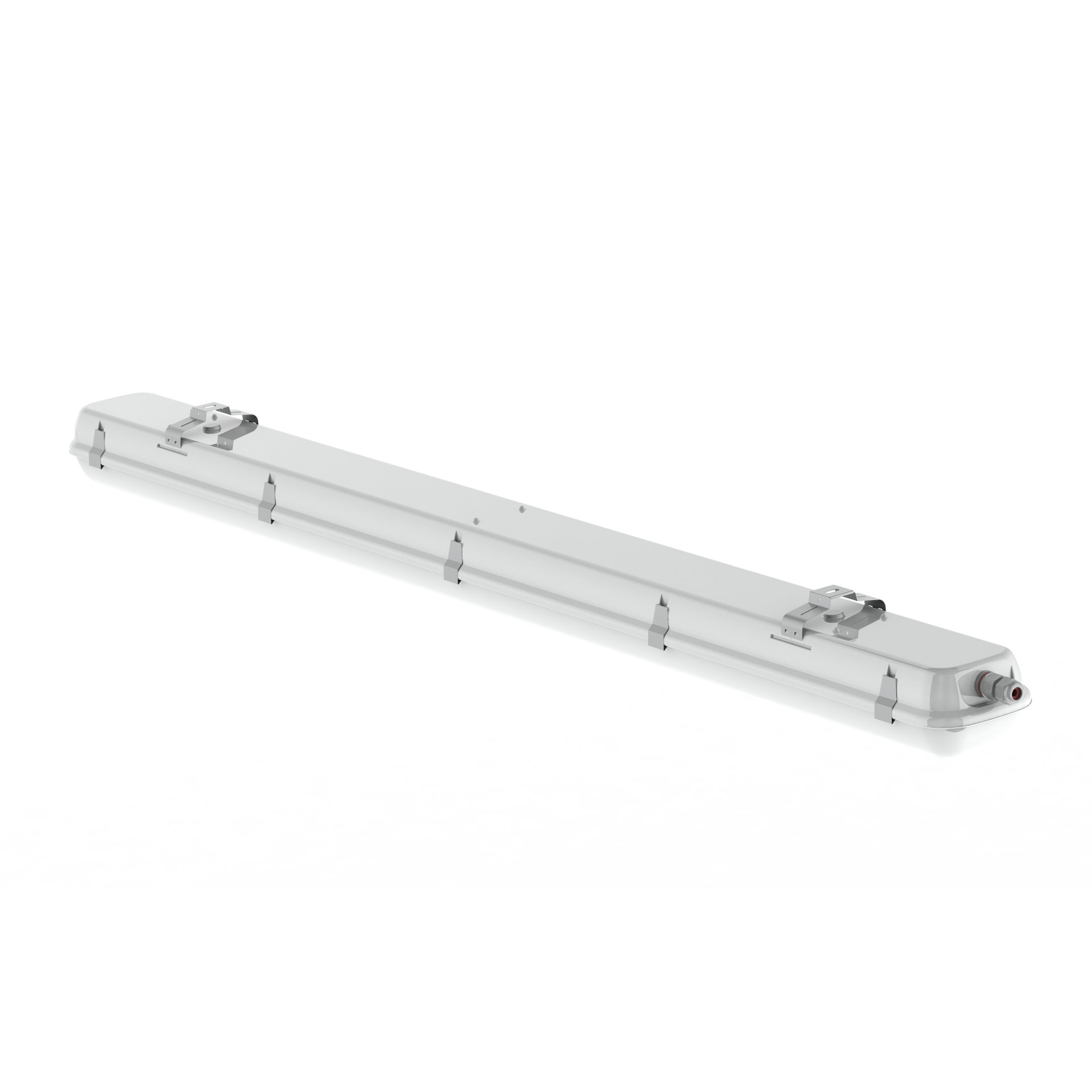

directly on the ceiling, suspended, with mounting brackets (included)

Body colour

gray

Operating temperature range

-20 ... +35, -20 ... +40, 0 ... +35

Body

polycarbonate

Type

High Efficacy

Electrical data

Power supply efficiency

≤91%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

46 - 80

Output current [mA]

400, 600

Type of equipment

DALI, EM 3h, STANDARD, STANDARD + TW 5x2,5 mm², choke

Maximum number of luminaires in the circuit with a 10A fuse (B)

8 - 35

Maximum number of luminaires in the circuit with a 16A fuse (B)

13 - 56

Optical data

Way of lighting

direct

Diffuser

polycarbonate

Colour temperature [K]

4000

CRI/Ra

≥80

MacAdam's steps

ULOR / DLOR

0/100

Lumen luminaire [lm]

6700 - 11600

Efficacy [lm/W]

137 - 181

Photobiological risk group

RG0

General data

Additional information

CRI/Ra ≥80, stainless steel clips included; in order to apply the luminaire in an aggressive environment a consultation with the LUG Technical Preparation of Production Branch is required

Other remarks

outdoor use only under a cover, do not expose to direct sunlight and rain

Lifetime L80B10

60 000 h; 85 000 h - High Efficacy

Warranty

3 years

Dimensions

Dimensions [mm] LxWxH	Mounting dimensions [mm] D	Pallet quantity	Quantity in package	Net weight [kg]
1585x134x99	1100	60	1	3.3
1650x134x99	1100	60	1	2.8
1749x134x99	1100	60	1	3

Available variants

Code	Type	Type of equipment	Replacement of conventional technology [W]	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Operating temperature range	Emergency operating time
090540.3L01.001	High Efficacy	DALI	2x80W (184W)	65	11600	178	-20 ... +35	-
090540.5L01.001	High Efficacy	STANDARD	2x80W (184W)	64	11600	181	-20 ... +35	-
090540.5L01.001.938	High Efficacy	STANDARD + TW 5x2,5 mm²	2x80W (184W)	64	11600	181	-20 ... +35	-

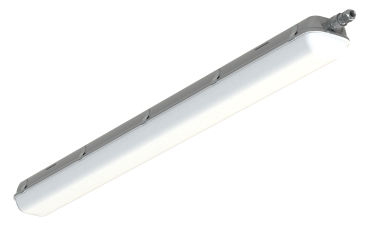

300090.00053		STANDARD	2x80W (184W)	80	11600	145	-20 ... +40	-
300090.00055		DALI	2x80W (184W)	80	11600	145	-20 ... +40	-
300090.00056		STANDARD + TW 5x2,5 mm²	2x80W (184W)	80	11600	145	-20 ... +40	-
300090.00062		STANDARD	2x58W (128W)	46	6700	146	-20 ... +40	-
300090.00062B		STANDARD, EM 3h, choke	2x58W (128W)	49	6700	137	0 ... +35	3h
300090.00070		DALI	2x58W (128W)	46	6700	146	-20 ... +40	-

Compare selected

In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
